Cement Bag Weaving Machine PP Woven Bag Circular Loom Making Machine
Set
Negotiable
Product information
High-quality Cement Bag Weaving Machine PP Woven Bag Circular Loom Making Machine supplied by Wenzhou Qianfeng Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Rotational Speed Of Main Body:
130-180r/Min
Weight:
1600kg Approx.
Power Of Main Motor:
2.2kw
Gross Power:
2.7kw
Package Size:
200.00cm * 200.00cm * 100.00cm
Production Capacity:
200sets Per Year
Dimension Of Bobbin (Dxl):
38X230mm
Folding Width Of Weaving:
400-800 (15.75-31.5 Inch)
Specifications
Rotational Speed Of Main Body:
130-180r/Min
Weight:
1600kg Approx.
Power Of Main Motor:
2.2kw
Gross Power:
2.7kw
Package Size:
200.00cm * 200.00cm * 100.00cm
Production Capacity:
200sets Per Year
Dimension Of Bobbin (Dxl):
38X230mm
Folding Width Of Weaving:
400-800 (15.75-31.5 Inch)
Number Of Shuttle:
6
Max. Number Of Warp:
792PCS
Package Gross Weight:
800.000kg
HS Code:
8446219000
Installing Dimensions (Lxwxh):
9200X2500X3200mm
Specification:
9200x2500x3200mm
Automation:
Automatic
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Certification:
ISO9001:2008
Payment Term:
LC, T/T
Real Power Consumption:
Less Than 1.8 Kw
Port Of Loading:
Ningbo Port
Screw:
None
Product Type:
PP Woven Bag
Product Name:
PP Woven Bag Circular Loom
Model NO.:
QF-GXYZJ-6/850
Trademark:
Qianfeng
Transport Package:
Seaworthy Packing
Payment Methods:
Support payments in USD
Origin:
Zhejiang, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2025-02-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
72
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port
Certificates:
ISO14001, ISO45001, ISO9001
Product descriptions from the supplier
This advanced circular loom is designed for weaving tubular or flat fabric from PP or HDPE yarns.

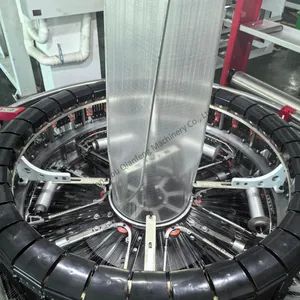

The suspension system supports shuttles with rollers behind the shuttle plate, reducing pressure on warp yarns. This improves warp tension, enhances fabric transparency, and reduces white dot marks-ideal for transparent and high-quality woven bags.
Key Features:
1.Low spare parts usage, easy maintenance
2.Chainless warp transmission, lower wear cost
3.Energy saving, low noise, no lubrication needed
4.Wireless weft monitoring via Bluetooth, visible output & fault area
5.Integrated touch screen control for 5 synchronized motors, avoids sparse fabric, extends machine life
The suspension system supports shuttles with rollers behind the shuttle plate, reducing pressure on warp yarns. This improves warp tension, enhances fabric transparency, and reduces white dot marks-ideal for transparent and high-quality woven bags.
Key Features:
1.Low spare parts usage, easy maintenance
2.Chainless warp transmission, lower wear cost
3.Energy saving, low noise, no lubrication needed
4.Wireless weft monitoring via Bluetooth, visible output & fault area
5.Integrated touch screen control for 5 synchronized motors, avoids sparse fabric, extends machine life
| Product Name | Cement Bag Weaving Machine PP Woven Bag Circular Loom Making Machine |
| Model No. | QF-GXYZJ-6/850 |
| Number of Shuttle | 6 |
| Folding Width of Weaving | 400-800 (15.75-31.5 inch) |
| Max. Number of Warp | 792pcs |
| Rotational Speed of Main Body | 130-180r/min |
| Power of Main Motor | 2.2kw |
| Gross Power | 2.7kw |
| Real Power Consumption | less than 1.8kw |
| Dimension of Bobbin (DxL) | 38x230mm |
| Installation Dimensions (LxWxH) | 9200x2500x3200mm |
| Weight | 1600kg Approx. |
| Learn More-Contact Us | |
| More Products→Click Here | |
Wenzhou Qianfeng Machinery Co.,Ltd.is a wholly-owned subsidiary of Wenzhou Qianfeng Technology Co.,Ltd.(established in 1997),focusing on expanding the international market.We are committed to providing themost practical woven bag production equipment and solutions to customers around the world.Main Products
Our company provides smart solutions for PP/PE woven bag production with main products including wovenbag cylinder-free reel-to-reel printing machine,woven bag automatic cutting and sewing machine with option-al functions for liner-insertion,top-hemming,bottom edge-binding,printing,perforation &handle punching,top-folding(valve woven bag)and other related machines.These equipments effectively reduce labor intensi-ty,lower production costs,improve product quality,and enhance production efficiency,creating greater eco-nomic benefits for your business.
Market &Service
With 28 years of expertise as a national high-tech enterprise,we deliver innovative woven bag manufacturingequipment backed by40+patents and ISO-certified quality.Our smart solutions are trusted by2,000+satisfiedclients worldwide,including markets across Southeast Asia,the Middle East,Central Asia,Russia,and Africa.
Q1:What types of machines does Qianfeng Machinery produce?
We specialize in manufacturing multifunctional automatic woven bag cutting andsewing machines and woven bag printing machines.Our equipment is widelyused for producing PP/PE woven sacks in industries like agriculture,food,chemi-cals,and construction.
Q2:What is your production capacity and lead time?
Production Capacity:We produce 400+machines annually.
Standard Delivery Time:around 30 days after deposit(depending on model andcustomization).
Expedited Options:Available for urgent needs (contact us for details).
Q3:Can your machines handle customized bag sizes/designs?
Yes!Our machines can be customized for:Bag dimensions (width/length adjustments)Printing colors (1-6 colors,flexographic)
Q4:What support do you provide after purchase?
Free remote installation guidance (or onsite engineer dispatch)One-year warranty+lifelong technical supportLifelong spare parts supply
