Center Four Side Sealing Automatic Bag Making Machine
1 Piece
$30,0001 Piece
$45,000Product information
High-quality Center Four Side Sealing Automatic Bag Making Machine supplied by Wuxi Shengkun Machinery Co., Ltd.. Bulk wholesale pricing ranges from $30,000 to $45,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Temperature Setting Range:
0~300℃
Lines:
1
Package Gross Weight:
10000.000kg
Production Capacity:
100sets/Month
Package Size:
118.00cm * 213.00cm * 218.00cm
Specification:
12500× 2200× 1750 mm
Number Of Heating Blocks:
16 PCS
Max. Bagging Speed:
180 Strokes/Min
Specifications
Temperature Setting Range:
0~300℃
Lines:
1
Package Gross Weight:
10000.000kg
Production Capacity:
100sets/Month
Package Size:
118.00cm * 213.00cm * 218.00cm
Specification:
12500× 2200× 1750 mm
Number Of Heating Blocks:
16 PCS
Max. Bagging Speed:
180 Strokes/Min
Voltage:
380V
Max. Width:
500mm
Net Weight:
6.5t
HS Code:
8477800000
Side Panel Thickness:
8mm
Total Power:
Around 55 Kw
Machine Type:
Bag Forming Machine
Product Line:
Bag Making Machine
Machine Functions:
Center Sealing, Side Sealing, Four-Side Sealing
Seals Mode:
Center Seals
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Layer:
Double
Trade Term:
FOB, CIF, CFR, EXW
Sealing & Cutting:
Heat-Sealing Cold-Cutting
Speed:
High
Origin:
Jiangsu, China
Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Bag Dimensions:
Length 400mm
Type:
Plastic Bag Making Machine
Trademark:
SK
Model NO.:
SK-500C
Port Of Loading:
Shanghai Port
Model:
Sk-500c
Payment Methods:
Support payments in USD
Transport Package:
Wooden Pallet, Rust Proof Bag
Continuous Rolled:
Yes
Max. Material Roll Dimensions:
Φ900×1250 mm
Max Discharge Line Speed:
≤40 M/Min
Positioning Accuracy:
≤±0.5 mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-09-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
31
Preferred Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Product descriptions from the supplier

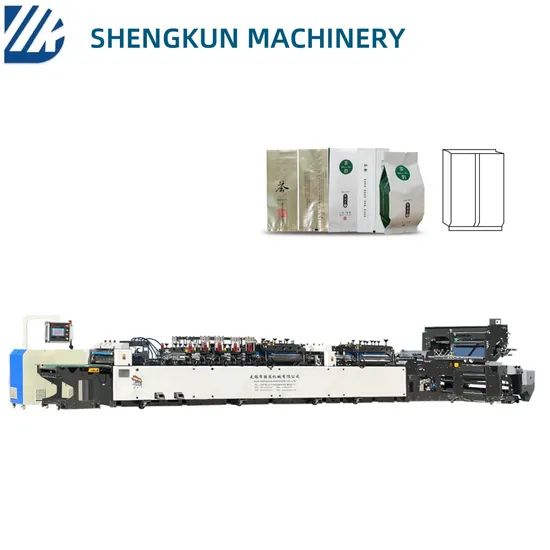

Center seal four side seal automatic bag making machine
This machine is suitable for making the following types of packaging bags:
This machine adopts a PLC dual-servo system with a third traction mechanismThe third traction motor steadily advances the material on both the unwinding rack and overhead frame at a uniform pace. This ensures reliable unwinding, precise tension management, and seamless material delivery. The automated feeding system greatly lowers the physical effort required.
The entire machine features a rational structure, precision machining and assembly, and a sleek appearance. It operates with high speed, low noise, and excellent stability, making it currently the most advanced equipment in terms of performance and structural design in the domestic market.This machine is suitable for making the following types of packaging bags:
| Bag type | Max. Output | Working speed |
| Mid-seal bag | 2 pcs | 180 strokes/min |
| Center Seal Gusseted Bag | 2 pcs | |
| Side Seal Gusseted Bag | 2 pcs | |
| Four-Side Seal Pouch | 1pc | |
| Single-Seal Side Gusset Pouch | 1pc |
| Model | SK-500C |
| Machine Functions | Center Sealing, Side Sealing, Four-Side Sealing |
| Key Electrical Components | Dual Servo Motors for Traction, Panasonic PLC Main Drive: Panasonic Servo Motor with Planetary Gear Reducer (Japan)16-Channel Temperature Control Constant Tension Unwinding |
| Suitable Materials | BOPP,CPP,PET,PVC,Nylon,Multi-layer Co-extruded Films, Aluminum-laminated Films, Paper-Plastic Composite Films, Pure Aluminum Foil Composite Films |
| Max. bagging Speed (strokes/min) | 180 strokes/min (Normal: 160 strokes/min, limited to bag length ≤200mm, depending on material) |
| Maximum discharge line speed | ≤40 m/min (depending on material) |
| Bag Dimensions | Length 400mm (longer lengths achieved via multiple feeding, Max. 6x feeding) |
| Max. Width | 500 mm |
| Max. Material Roll Dimensions | Φ900×1250 mm (Diameter × Width) |
| Positioning Accuracy | ≤±0.5 mm |
| Number of Heat Sealing Blades |
- Vertical Sealing: 2 Upper/Lower Heating + 2 Upper/Lower Cooling |
| - Horizontal Sealing: 4 Upper/Lower Heating + 1 Upper/Lower Cooling | |
| - Final Ironing: 2 Upper/Lower Heating + 2 Upper/Lower Cooling | |
| Number of Heating Blocks | 16 pcs |
| Temperature Setting Range | 0~300ºC |
| Total Power Consumption | Around 55 kW (Initial startup: ~30 kW; Steady operation: ~25 kW) |
| Overall Dimensions (L × W × H) | Overall Dimensions: 12500×2200×1750 mm (L × W × H) |
| Net Weight | ~6500 kg |
| Side Panel Thickness | 8 mm (Shanghai Baosteel material) |
| Color | - Body: Dark Gray - Covers: White - Components: Blackened, Nickel-plated, Chrome-plated |
| Control System Model | Panasonic PLC-based High-Speed Composite Film Bag Making Control System |
