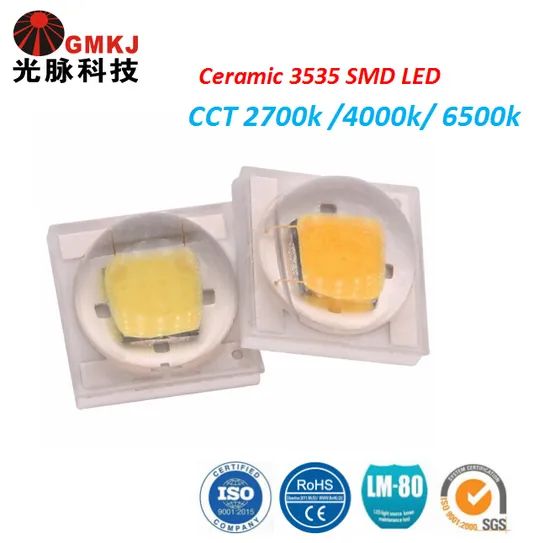

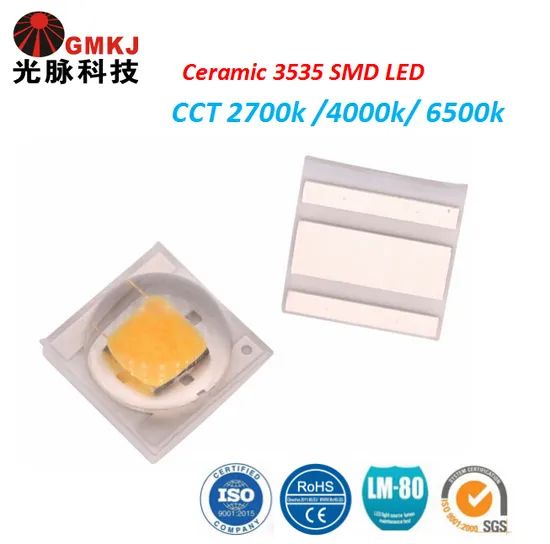

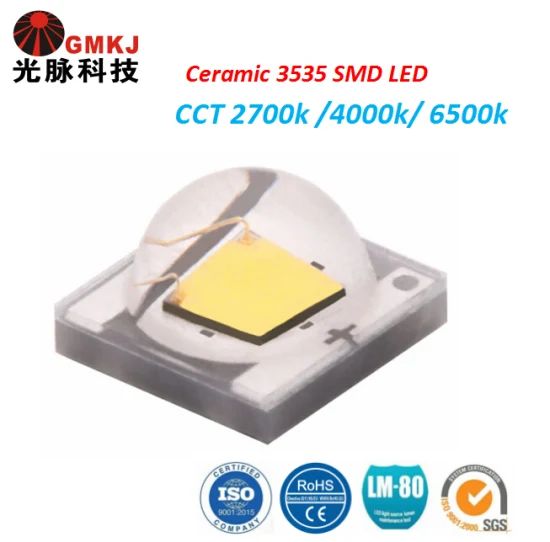

Ceramic SMD LED 3535 3V 1W 2W Power 3W Life 80000h Trademark GM IP Rating IP65 Beam Angle 120° Warranty 4 Years LED Chips

Name: Ceramic SMD LED 3535 3V 1W 2W Power 3W Life 80000h Trademark GM IP Rating IP65 Beam Angle 120° Warranty 4 Years LED Chips
Brand: Shenzhen Guangmai Electronics Co., Ltd.
SKU: FD-PRODUCT-Ceramic-SMD-LED-3535-3V-1W-2W
Price: 0.109 USD
Availability: InStock

5000-9999 Piece

$0.109

10000-49999 Piece

$0.108

50000 Piece

$0.107

Product information

High-quality Ceramic SMD LED 3535 3V 1W 2W Power 3W Life 80000h Trademark GM IP Rating IP65 Beam Angle 120° Warranty 4 Years LED Chips supplied by Shenzhen Guangmai Electronics Co., Ltd.. Bulk wholesale pricing ranges from $0.107 to $0.109 per Piece with a minimum order of 5,000 Piece. Inquiry for latest prices.

Transport Package:

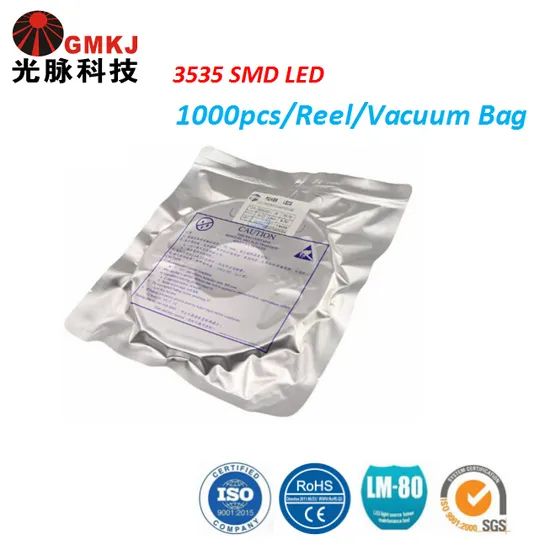

1000PCS /Reel in Vacuum Bag

Beam Angle:

120°

Luminoux Flux:

300-350lm

CCT:

3000-3200K/ 4000-4500K/6000-6500K 7000-7500K

Production Capacity:

300000/Day

Specification:

3535

Power:

Warranty:

4 Years

Specifications

Transport Package:

1000PCS /Reel in Vacuum Bag

Beam Angle:

120°

Luminoux Flux:

300-350lm

CCT:

3000-3200K/ 4000-4500K/6000-6500K 7000-7500K

Production Capacity:

300000/Day

Specification:

3535

Power:

Warranty:

4 Years

Loading Time:

5 Workdays

Current:

750mA , Max to 1000mA

Life:

80000h

HS Code:

8541401000

Base Material:

Ceramic

Origin:

China. Shenzhen

Certification:

EMC, SAA, FCC, Energy Star, CCC, RoHS, CE

Trade Term:

FOB, CIF, CFR, EXW

Chip Type:

Flip Chip Structure

Trademark:

Model NO.:

GT-3535W6

IP Rating:

IP65

Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

LED Chips:

Lextar

Substrate Material:

Oxide Aluminum/ Ceramic

Port Of Loading:

Shenzhen Port

Application:

Street Light, Aoto Light ,High Bay Light

Chip Brand:

Taiwan Lextar

Emitting Color:

White

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

COB LED; High Power LED; SMD LED

Year Established:

2009-11-11

Annual Revenue Amount:

Not specified

Numbers Of Employees:

Preferred Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Preferred Trade Term:

FOB, CIF, CFR, EXW

Port Of Loading:

Shenzhen Port

Certificates:

FCC, RoHS, CE

Product descriptions from the supplier

ceramic smd led 3535 3v 1w 2w

High Brightness

1. Only Use Best High Bin blue chip

2. Luminoux Flux 140lm, 150lm, 160lm,170lm, 180lm,190lm Are available.

3. Max Forward Voltage up to 1500mA each LED.

Superior Raw Material .

1.Oxide Aluminum or Nitride Aluminum Ceramic base

2. Only Use Heraeus 99.99% high purity Gold wire

3. Intematix Silicon Glue are been used.

4. Only use 1st grade brand chips

Product Name		1w 3w 5w Ceramic 3535 smd led chip
Keywords		3535 smd 3w leds
Power Dissipation		1-5w
Luminoux Flux		150-180lm @ 350mA, 3V.
Forward Current		350-1500mA
Forward Voltage		2.8-3.2v
Color Temeprature		6000-6500k
Chip Brand		Sanan / Bridgelux
Life Span		80.000Hrs
View Angle		120 degree
Base Material		Ceramic Alumina
Bonding wire		Pure Gold
Delivery Time		5-10 workdays
Warranty		4 Years

Absolute Maximum Ratings(At TA =25ºC)

Parameter	Symbol	Rating	Unit
DC Forward Current ()	I_F	1000	m A
Peak pulse Current* ()	I_FP	2000	m A
Power Dissipation ()	P_D	3.5	W
Reverse Voltage ()	V_R	5	V
Reverse Current ()	I_R	10	μ A
Operating Temperature Range ()	T_OPR	-30 ~ +75	°C
Storage Temperature Range ()	T_STG	-40 ~ +85	°C
LED Junction Temperature ()	T_J	120	°C

Electrical/Optical Characteristics--White (At TA=25°C)

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage ()	V_F	I_F=700mA	2.8	--	3.40	V
Thermal Resistance Junction To Board ()	RΘ_J-B	I_F=700mA	--	8	--	°C/W
Luminous Flux ()	Φv	I_F=700mA	260	280	300	lm
Color Temperature ()	CCT	I_F=700mA	6000		6500	K
CRI ()	Ra	I_F=700mA	70	--	--	--
Temperature Coefficient of Forward Voltage ()	V_F/T	I_F=700mA	−−	-2	−−	mV/°C
Reverse Current ()	I_R	V_R=5V	−−	−−	10	μ A
Viewing Angle^[1] ()	2Θ_1/2	I_F=700mA	−−	120	−−	Deg

Color code:

purple

blue

green

yellow green

yellow

orange

red

360-370

440-450

480-490

540-550

580-585

600-605

615-620

370-380

450-460

490-500

550-555

585-587.5

605-610

620-625

380-390

460-465

500-510

555-560

587.5-590

610-615

625-630

390-400

465-470

510-515

560-565

590-592.5

630-640

400-410

470-480

515-520

570-575

592.5-595

640-650

410-420

520-525

575-580

595-597.5

650-660

420-430

525-530

597.5-600

730

430-440

530-540

850

940

white

5000k CCT<5000K,2000-4500K,200K,4500-5000K.

5000k CCT>5000K,5000-8000,500K,8000-10000K,1000K;
10000-20000K,5000K,20000-30000K.

Ceramic SMD LED 3535 3V 1W 2W

Guangmai Electronics Co., Ltd. Specialize in LED Production From 2009, Main products are 1w 3w 5w-300w

led and SMD 5630LED, SMD 2835 LED, SMD 5054 LED (Flip Chip), And now ,we have NEW Products ,The Flip Chip .From 30w-300w, And SMD 0.5 2835 LED, SMD 5054 LED, . Based on Our High Quality and Excellent Service, We Now Become Top 10 LED in Shenzhen, Top 100 Manufacture in China. We Offer 3 Years Warranty for All of Our Products. You can Rely On Us About The Quality .

Ceramic SMD LED 3535 3V 1W 2W

Q1. Can I have a sample order?
A: Sample order is welcomed to test and check quality. Mixed samples are welcomed as well.

Q2. What about the lead time of this xpe series bridgelux 3535 smd led h11 6000k?
A: 3-7 working days for sample, 10-15 working days for bulky order based on the quantity.

Q3. How about MOQ?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order?
A. Please tell us your requirements or application.
B. Quotation or solution will be sent to you accordingly.
C. Sample will be shipped to you after everything is confirmed
D. Modify or confirm the order according to your opinion.

E. Start the production after your confirmation of order.

Q6: Do you provide OEM service?
A: Yes. OEM is welcomed .
Q7: Do you offer guarantee for the products?
A: Yes, 3-4 years warranty.
