Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark

Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark - Image 1
Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark - Image 2
Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark - Image 3
Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark - Image 4
Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark - Image 5
Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark - Image 6
Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark - Image 1
Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark - Image 2
Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark - Image 3
Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark - Image 4
Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark - Image 5
Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark - Image 6

1 Piece

$1,150

2 Piece

$1,050

3 Piece

$1,000

Product information

High-quality Cheap Price Total Station Dtm624r Image Erect Non-Prism 400m Three Prism 5km Minimum Focus 1m Field of View 5° Trademark supplied by Tianjin Unique Technology Co., Ltd.. Bulk wholesale pricing ranges from $1,000 to $1,150 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.

Focusing Range:

0.3m~∞

Tube Length:

165mm

Minimum Focus:

1m

Magnification:

30X

Single Prism:

3km

Non Prism:

400m

Effective Aperture:

48mm

Specification:

50*33*45cm

Specifications

Focusing Range:

0.3m~∞

Tube Length:

165mm

Minimum Focus:

1m

Magnification:

30X

Single Prism:

3km

Non Prism:

400m

Effective Aperture:

48mm

Specification:

50*33*45cm

Three Prism:

5km

Field Of View:

Continuous Operation Time:

Angle Measurement: 20 Hours

Model NO.:

DTM624R

Image:

Erect

Trade Term:

FOB

Transport Package:

High Quality Plastic Box with Carton Outside

Display Type:

LCD,Four Lines,Digital

Measuring Method:

Photoelectric Detection by Incremental Encoder

Data Communication:

RS-232c,USB

Power Resource:

Rechargeable Ni-H Battery

Origin:

Tianjin, China

Payment Term:

To be discussed

Trademark:

UNIQUE

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Year Established:

Not specified

Annual Revenue Amount:

Not specified

Numbers Of Employees:

Not specified

Preferred Payment Term:

Not specified

Preferred Trade Term:

FOB

Port Of Loading:

Not specified

Certificates:

SGS Certificate

Product descriptions from the supplier

Product Description

Cheap price total station DTM624R

Product Parameters

Specifications

Telescope


Erect

Magnification

30x

Effectiveaperture

48mm

Resolving power

3.75″

Minimum focus

1m

Stadia ratio

100

Sight distance precision

≤0.4%D

Tube length

165mm

Angle Measurement

Measuring method

photoelectric detection by incremental encoder

Diameterof circle (vertical, horizontal)

79mm

Minimum reading

1″,5″,10″Selectable

Measuring unit

360°/400gon/6400mil Selectable

Vertical angle0°

Zenith0°/Horizontal0°Selectable

Accuracy

2″

Distance Measurement

Single prism (under fair weather condition)

3km

Three prism (under fair weather condition)

5km

Non-prism (under fair weather condition)

400m

Display

Max

999999.999m

Min

1mm

Unit

m/ft Selectable

Accuracy

±(3mm+2ppm·D)

Measuring time

Fine single shot:?3S

Tracking:0.8S

Meteorological Correction

Manual input, Auto correction

Reflection prism correction

Manual input, Auto correction

Vial

Plate vial

20″/2mm

Circular vial

8′/2mm

Vertical Compensator

System

Liquid-electric detection

Compensation range

±3′

Resolving power

1″

Optical Plummet


Erect

Magnification

Focusing range

0.3m~∞

Field of view

Display

Type

LCD,Four lines,digital

Data Communication

Port

RS-232C,USB

On-board Battery

Power resource

Rechargeable Ni-H battery

Voltage

DC7.2V

Continuous operation time

BDC 3000mAh

Angle measurement: 20 hours

Distance measurement: 8 hours

Operation Environment

Operating temperature

-20°~+45ºC

Size & weight

Dimension

180mm×175mm×355mm

Weight

6.5kg

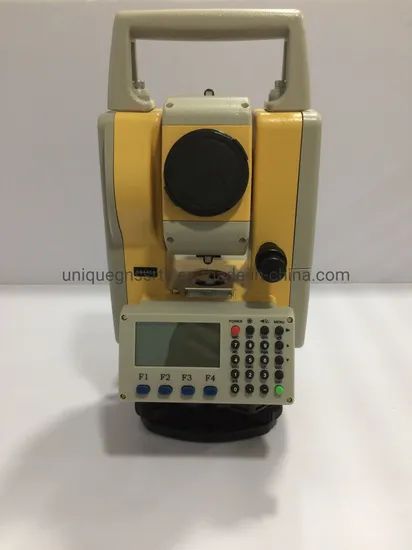

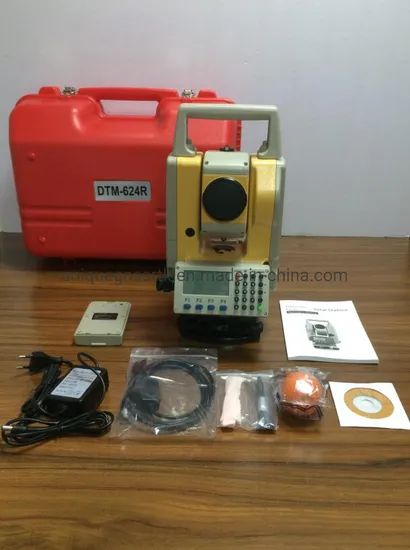

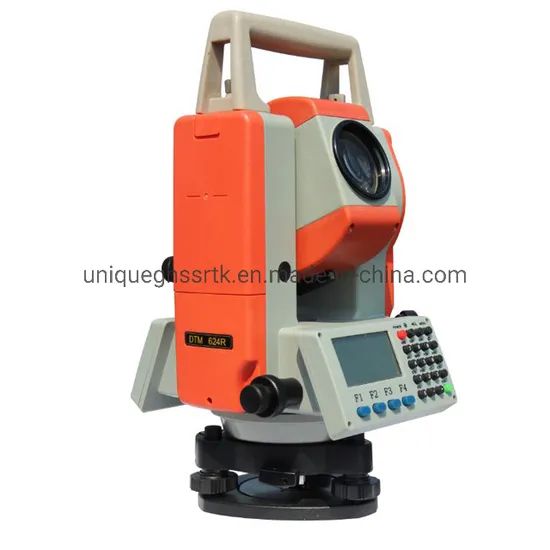

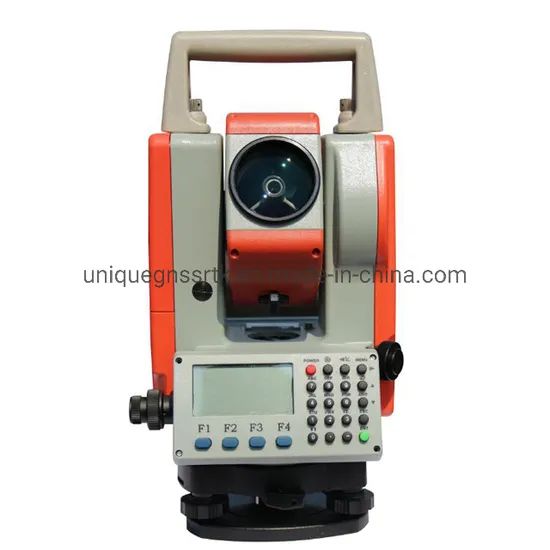

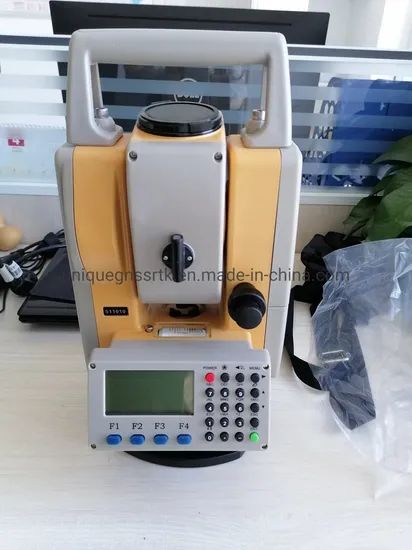

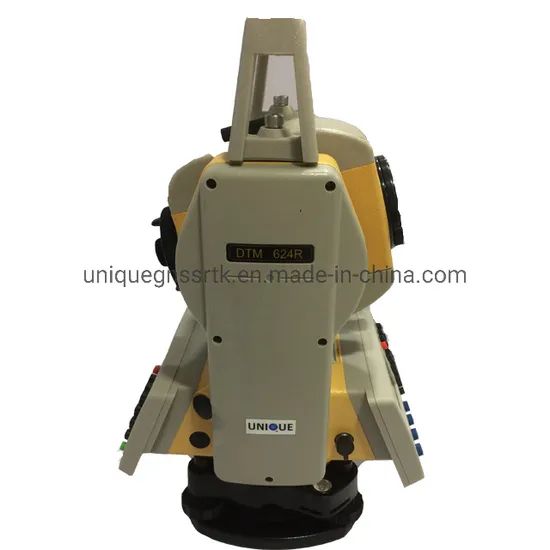

Detailed Photos

Cheap Price Total Station Dtm624rCheap Price Total Station Dtm624rCheap Price Total Station Dtm624rCheap Price Total Station Dtm624rCheap Price Total Station Dtm624rCheap Price Total Station Dtm624r

After Sales Service

The warranty period is 12 months.
Within the 12 months, if there is any fault caused by non-artificial reason, which can be repaired by the customer themselves, we
can offer the spare parts to the customer free of charge. If there is any problem which cannot be repaired by the customer
themselves, the customer can resent the products to our factory for repairing free of charge, and the freight charge would be
shared by the customer and our company two sides.Under the circumstances out of the warranty period, if there is any problem, we
can repair free of charge for the customers, we just charge for the spare parts at the cost itself, and the freight charge would
be bear by the customers.
If there is any problem caused by human reason within the first year, the service would be the same as the service out of the
warranty period.
Company Profile
Tianjin Unique Technology Co., Ltd. is a high-tech enterprise that specializes in researching and manufacturing high accuracy GNSS
products and surveying equiupments. Our products refer to many fields including GIS (geographic information system), Land Survey,
Machine Control, SI (system integration), Agriculture, etc. Our aim is to provide the high-quality products and offer the best
solutions and services for our customers worldwide.

Our Services & Strength

1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
Cheap Price Total Station Dtm624r
