Chemical Pharmaceutical Drying Machine for Acai Berry Extract Powder
1 Piece
$10,0001 Piece
$50,000Product information
High-quality Chemical Pharmaceutical Drying Machine for Acai Berry Extract Powder supplied by Chongqing Qiaoxing Machinery & Equipment Company. Bulk wholesale pricing ranges from $10,000 to $50,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Warranty Time:
12 Months
Delivery Time:
30 Days
Production Capacity:
50 Sets/Month
HS Code:
8514300090
Trademark:
Astar
Operation Pressure:
Atmospheric Pressure
Specification:
CE
Name:
Chemical Pharmaceutical Drying Machine for Acai
Specifications
Warranty Time:
12 Months
Delivery Time:
30 Days
Production Capacity:
50 Sets/Month
HS Code:
8514300090
Trademark:
Astar
Operation Pressure:
Atmospheric Pressure
Specification:
CE
Name:
Chemical Pharmaceutical Drying Machine for Acai
Origin:
China
Movement Way:
Combined
Operational Method:
Continuous
Material Status:
Cream, Bulk, Liquid
Drum Diameter:
Customized
Trade Term:
FOB, CFR, CIF
Model NO.:
HG-600
Drying Medium:
Inactive Gas, Superheated Steam, Effluent Gas
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Flow:
Parallel Flow
Port Of Loading:
Qingdao Port, China, Shanghai Port, China, Tianjing Port, China
Atomization:
Rotary Atomization
Materials:
Stainless Steel
Heating Source:
Steam, Electric, Gas or Oil
Heating Mode:
Transmission
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-01-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CFR, CIF
Port Of Loading:
Qingdao Port, China, Shanghai Port, China, Tianjing Port, China
Certificates:
CE, CO, FORM E, SGS certificate
Product descriptions from the supplier
Chemical Pharmaceutical Drying Machine For Acai Berry Extract Powder:
WORKING PRINCIPLE
HG Series Cylinder Scratch Board Dryer is a kind of rotating continuous drying equipment with internal heating conducting function. The material film will stick to the bottom of the rotating cylinder. The heat is transferred to the internal wall of the cylinder through piping system and it will be conducted to the external wall and material film. The moisture of the wet material film will be easily evaporated and the dried material will be scraped from the cylinder surface and transfer to the packing area by the screw conveyor.
FEATURES
1.High heat efficiency: The heat transfer of the cylinder dryer is heat conduction and the conducting direction keeps identical with operation circle. Most of the heats can be used for evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2.Flexible operation elasticity and wide application: Various drying factors of the dryer can be adjusted, such as concentration of the liquid, thickness of material film, temperature of heating medium, rotating speed of the drum, and etc. These factors can change drying efficiency of the cylinder dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and makes it applicable to dry different materials and meet different production requirements.
3.Short drying period: The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive materials. It also can be pressure reducing operated if it is put in vacuum vessel.
4.Fast drying rate: The thickness of the material film on the wall of the cylinder is very thin. Normal, thickness is 0.3 to 1.5mm. The directions of heat and mass transmittal are identical so the evaporation strength on the surface of material film can be 20-70 kg.H2O/m2.h.
Chemical Pharmaceutical Drying Machine For Acai Berry Extract Powder Application :
This dryer is suitable for drying liquid raw material or sticky material in chemical industry, dyestuff industry, pharmaceutical industry, foodstuff industry, and metallurgy industry, and etc.
Chemical Pharmaceutical Drying Machine For Acai Berry Extract PowderMain Data:
Chemical Pharmaceutical Drying Machine For Acai Berry Extract Powder More Photos:
Chemical Pharmaceutical Drying Machine For Acai Berry Extract Powder CE Certificate:
Any more information need of Chemical Pharmaceutical Drying Machine For Acai Berry Extract Powder, pls contact with us freely.
WORKING PRINCIPLE
HG Series Cylinder Scratch Board Dryer is a kind of rotating continuous drying equipment with internal heating conducting function. The material film will stick to the bottom of the rotating cylinder. The heat is transferred to the internal wall of the cylinder through piping system and it will be conducted to the external wall and material film. The moisture of the wet material film will be easily evaporated and the dried material will be scraped from the cylinder surface and transfer to the packing area by the screw conveyor.
FEATURES
1.High heat efficiency: The heat transfer of the cylinder dryer is heat conduction and the conducting direction keeps identical with operation circle. Most of the heats can be used for evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2.Flexible operation elasticity and wide application: Various drying factors of the dryer can be adjusted, such as concentration of the liquid, thickness of material film, temperature of heating medium, rotating speed of the drum, and etc. These factors can change drying efficiency of the cylinder dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and makes it applicable to dry different materials and meet different production requirements.
3.Short drying period: The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive materials. It also can be pressure reducing operated if it is put in vacuum vessel.
4.Fast drying rate: The thickness of the material film on the wall of the cylinder is very thin. Normal, thickness is 0.3 to 1.5mm. The directions of heat and mass transmittal are identical so the evaporation strength on the surface of material film can be 20-70 kg.H2O/m2.h.
Chemical Pharmaceutical Drying Machine For Acai Berry Extract Powder Application :
This dryer is suitable for drying liquid raw material or sticky material in chemical industry, dyestuff industry, pharmaceutical industry, foodstuff industry, and metallurgy industry, and etc.
Chemical Pharmaceutical Drying Machine For Acai Berry Extract PowderMain Data:
| Model | Drum size (diameter x length) |
Effective heating area (m2) | Drying capacity kg.H2O/m2.h |
Steam consumption (kg/h) |
Power (kw) |
Dimension(mm) | Weight (kg) |
| HG-600 | Φ600×800 | 1.12 | 40-70 | 100-175 | 2.2 | 1700×800×1500 | 850 |
| HG-700 | Φ700×1000 | 1.65 | 60-90 | 150-225 | 3 | 2100×1000×1800 | 1210 |
| HG-800 | Φ800×1200 | 2.26 | 90-130 | 225-325 | 4 | 2500×1100×1980 | 1700 |
| HG-1000 | Φ1000×1400 | 3.30 | 130-190 | 325-475 | 5.5 | 2700×1300×2250 | 2100 |
| HG-1200 | Φ1200×1500 | 4.24 | 160-250 | 400-625 | 7.5 | 2800×1500×2450 | 2650 |
| HG-1400 | Φ1400×1600 | 5.28 | 210-310 | 525-775 | 11 | 3150×1700×2800 | 3220 |
| HG-1600 | Φ1600×1800 | 6.79 | 270-400 | 675-1000 | 11 | 3350×1900×3150 | 4350 |
| HG-1800 | Φ1800×2000 | 8.48 | 330-500 | 825-1250 | 15 | 3600×2050×3500 | 5100 |
| HG-1800A | Φ1800×2500 | 10.60 | 420-630 | 1050-1575 | 18.5 | 4100×2050×3500 | 6150 |

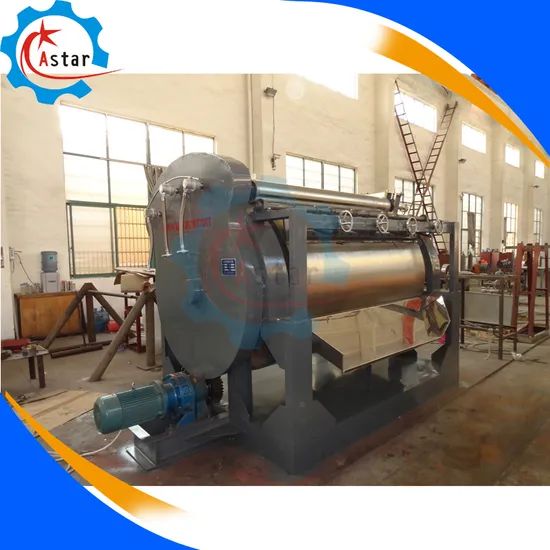

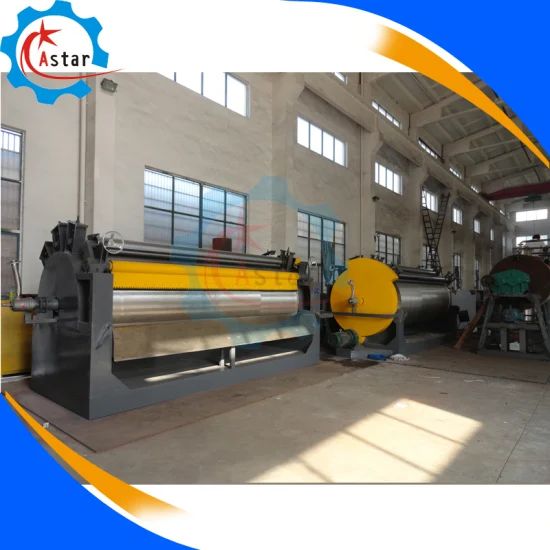

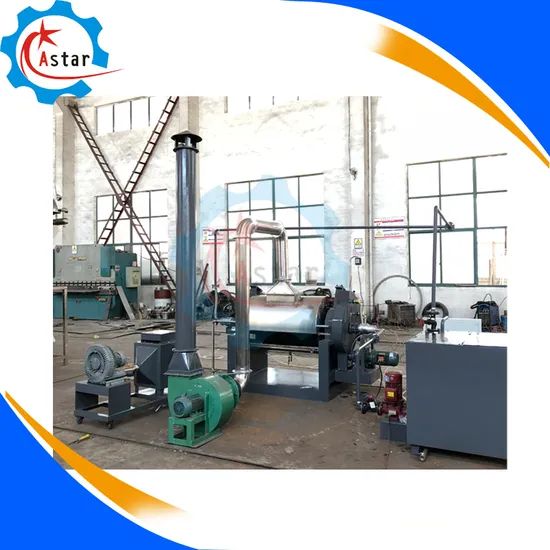

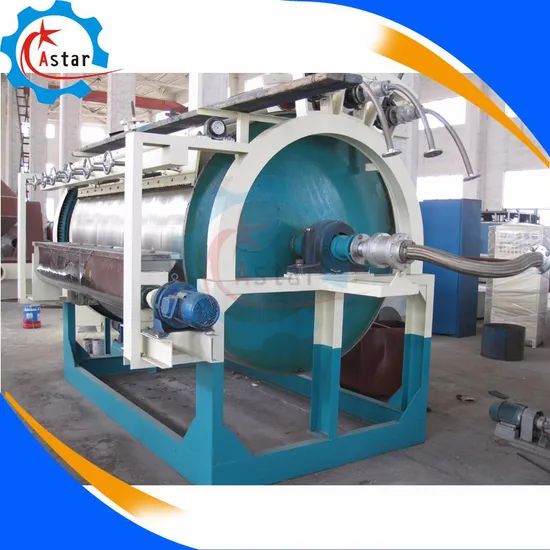

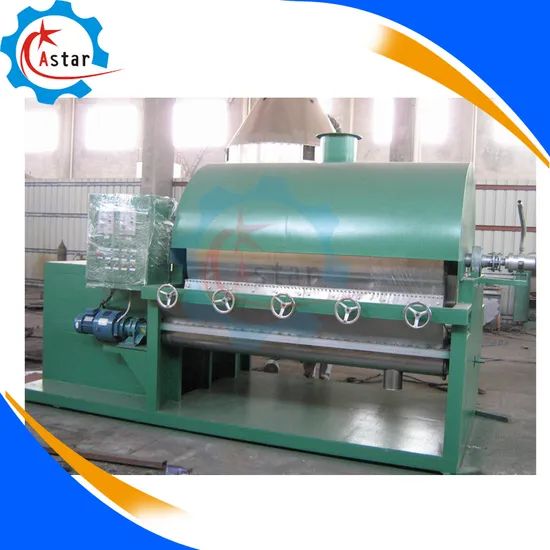

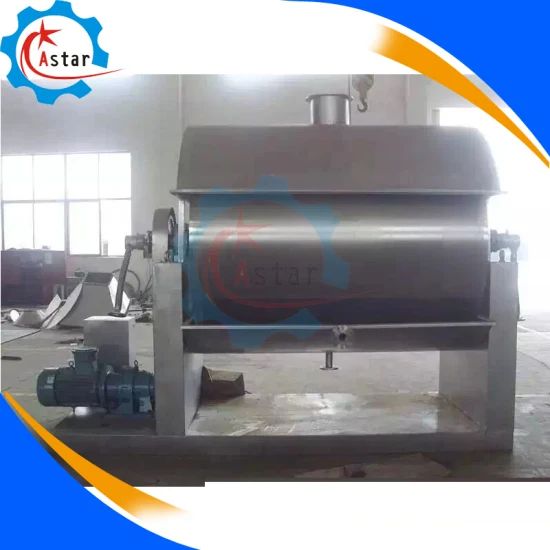

Chemical Pharmaceutical Drying Machine For Acai Berry Extract Powder More Photos:
Chemical Pharmaceutical Drying Machine For Acai Berry Extract Powder CE Certificate:
Any more information need of Chemical Pharmaceutical Drying Machine For Acai Berry Extract Powder, pls contact with us freely.
