Chemical Storage Tank Extrusion Making Machine

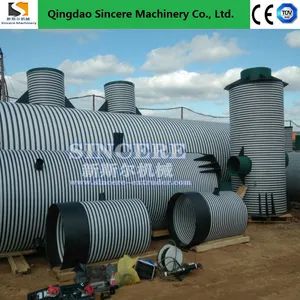

Chemical Storage Tank Extrusion Making Machine - Image 1

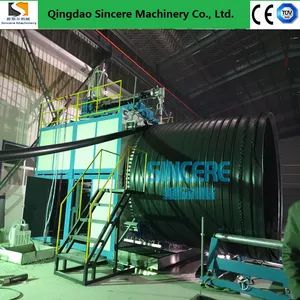

Chemical Storage Tank Extrusion Making Machine - Image 2

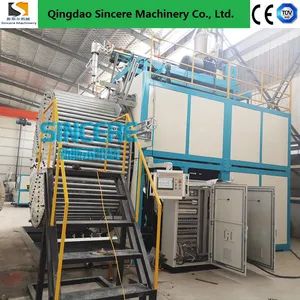

Chemical Storage Tank Extrusion Making Machine - Image 3

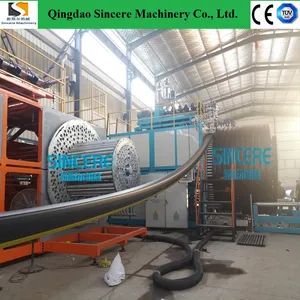

Chemical Storage Tank Extrusion Making Machine - Image 4

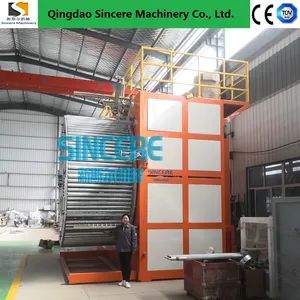

Chemical Storage Tank Extrusion Making Machine - Image 5

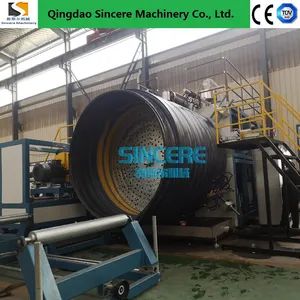

Chemical Storage Tank Extrusion Making Machine - Image 6
Chemical Storage Tank Extrusion Making Machine - Image 1
Chemical Storage Tank Extrusion Making Machine - Image 2
Chemical Storage Tank Extrusion Making Machine - Image 3
Chemical Storage Tank Extrusion Making Machine - Image 4
Chemical Storage Tank Extrusion Making Machine - Image 5
Chemical Storage Tank Extrusion Making Machine - Image 6

Set

Negotiable


Product information

High-quality Chemical Storage Tank Extrusion Making Machine supplied by Qingdao Sincere Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.

Production Capacity:

15 Sets\\Year

Output:

200-1500kg/H

HDPE Drainage Pipe Diameters:

200-800, 600-1600, 800-2400, 1600-3600mm

Prepayment Terms:

30%+70%

Material Of Screw And Barrel:

38crmoala Screw and Barrel

HS Code:

8477209000

Electrical Appliances:

ABB, Siemense, Omron, Rkc

Automation:

Automatic

Specifications

Production Capacity:

15 Sets\\Year

Output:

200-1500kg/H

HDPE Drainage Pipe Diameters:

200-800, 600-1600, 800-2400, 1600-3600mm

Prepayment Terms:

30%+70%

Material Of Screw And Barrel:

38crmoala Screw and Barrel

HS Code:

8477209000

Electrical Appliances:

ABB, Siemense, Omron, Rkc

Automation:

Automatic

Certification:

CE, ISO9001:2008, TUV

Computerized:

Computerized

Customized:

Customized

HDPE Spiral Pipe Line Consists 3 3:

Cutting Machine, Spiral Winding Machine, Welding

Specification:

DN200-DN4000

HDPE Pipe Types:

Double Wall, Hollow Wall, Square Profile, Drainage

Trade Term:

FOB, CIF, CIP, FCA, EXW

Delivery Conditions:

Fob CIF CIP

Payment Term:

LC, T/T, Western Union

Condition:

New, Under The Order

Welding Extruder:

Optional

Recycling Shredder And Crusher:

Pelletizing Line

Technical Support:

Permanent Technical Support

Port Of Loading:

Qingdao port

Origin:

Qingdao, China

Model NO.:

SMSG1000, SMSG2000, SMSG3000, SMSG4000

After Sales Service:

Send Technical Staff to Install and Test Machines

Electrical Control System:

Siemens PLC Touching Screen

Trademark:

Sincere Machinery

HDPE Spiral Pipe Line Consists 3 1:

Single Screw Extruder, Extrusion Die Mould

Transport Package:

Stretch Film and Wooden Pallet, Wooden Packing

HDPE Spiral Pipe Line Consists 3 2:

Vacuum Water Tanks, Haul-off Machine

Threating Machine:

Welding Extruder Machines

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Not specified

Year Established:

2004-09-09

Annual Revenue Amount:

Not specified

Numbers Of Employees:

Not specified

Preferred Payment Term:

LC, T/T, Western Union

Preferred Trade Term:

FOB, CIF, CIP, FCA, EXW

Port Of Loading:

Qingdao port

Certificates:

CE, CE of pelletizing line, CE of plastic sheet machine line, Certification TUV SUD

Product descriptions from the supplier

Large diameter HDPE Hollowness wall winding pipe extrusion making machine.
Weholite HDPE pipe production line.
HDPE structured-wall corrugated plastic pipe manufacturing machinery.
HDPE Solid Wall spiral winding pipe extrusion lines manufacture.
HDPE Ribbed pipe extrusion lines.

**plastic pipes diameters: 200mm-4000mm
**Ring stiffness: SN2, SN4,SN8,SN12.5, SN16
** Produced flat/corrugated pipes applications:


- Sewage and drainage pipes
- Storm water pipes
- Rain water sewage plastic pipes

- Cable protection
- Civil construction
-Chemical storage tank
- Liquid storage tank
- Manhole wellbore


Chemical Storage Tank Extrusion Making Machine
Part 1: HDPE large diameter hollow wall winding pipe production line
1. HDPE Large diameter winding pipeAvailable in diameters ranging from 200mm to 4000mm, this pipe features strong ring rigidity and excellent impact resistance due to its "H" design. It offers a service life of around 50 years and boasts benefits including simple installation, straightforward handling, sustained pressure performance, and resistance to corrosion from acids, alkalis, and salts. Today, it is increasingly replacing traditional cement and cast iron pipes and is extensively applied in sewage and drainage systems.

2. HDPE large diameter hollow wall winding pipe machine .
This HDPE large-diameter hollow-wall coiled pipe extrusion system incorporates advanced engineering and has been refined through extensive operational insights. It supports diameters from 200 to 4000 mm.
**Our machine is featured with comfortable operation and high performance/price ratio.
**Due to our special design, it is very convenient in transportation and installment.
**We also developed energy saving method to save energy consumption in large diameter hollow wall winding pipe extrusion.
Equipped with two advanced extrusion units, the production rate is significantly high. The winding pipe system produces pipes featuring ring stiffness ratings of 4, 8, 12, and 16 KN/m². Every component is meticulously engineered and produced to ensure consistent performance and dependable operation.
**Special design for easy maintenance.
**The HDPE large diameter hollow wall winding pipe extrusion line is mainly used for producing large diameter hollow wall winding pipe.

3. Technical parameters:
Model SMSG-800 SMSG-1200 SMSG-1600 SMSG-2400 SMSG-3000 SMSG-4000
Extruder SJ-65 SJ-55 SJ-90 SJ-65 SJ-100 SJ-65 SJ-120 SJ-90 SJ-120 SJ-90 SJ-150 SJ-90
Output capacity 150kg/h 60 kg/h 300 kg/h 120 kg/h 400 kg/h 150 kg/h 400 kg/h 200 kg/h 600 kg/h 300 kg/h 800
kg/h
400
kg/h
Pipe diameter 200-800 mm 400-1200 mm 800-1600 mm 1200-2400 mm 2000-3000 mm 2400-4000mm
Production speed 2-16 m/h 2-12 m/h 1-6 m/h 0.5-5 m/h 0.3-3 m/h 0.1-2m/h
Installed Power 180 kw 250 kw 300 kw 400 kw 500 kw 600kw

4. Machine Pictures:
Chemical Storage Tank Extrusion Making Machine
Part 2: HDPE Rib Reinforced Corrugated type Spiral Pipe production line

Chemical Storage Tank Extrusion Making Machine Chemical Storage Tank Extrusion Making Machine


1. HDPE Rib Reinforced Corrugated type Spiral Pipe production lineis a kind of new generation high performance.
plastic spiral pipe line for large diameter buried drain pipe according to hollow wall winding pipe
production technology with the intellectual property. It can produce pipe size from Ø200~Ø4000mm
which is widely used in fields of civil water drain, wastewater drain.


2. The pipe could also be made by the recycled polyethylene material. These properties make it superior
advantages compared with other kinds of drainage pipe.

1) The investment is lower and the automatic control system is easy for operation and maintenance.
2) Adopt winding method by winding the semi-round two side circle profile
3) The inner PE-layer is Composited with the U-type pipe in melting condition. And they will never been
delaminated after spraying cooling forming, with good adhesion effect.
4)Adopting Electric-magnetic heating system which can save 40% to 60% electric power.
5)All Electric Part (breaker/motor/INCKO/Inverter) is Siemens/Omron
6)Production Speed is 1-20m/min.
7)Max. Pipe Size: 4000mm.

3. The features of PE Spiral Corrugated Pipe:
1) Light weight-per-meter
2) Belling link, tight cementation
3) Pressure against, high strength
4) Anti-frozen and long service life (50 years )
5) Convenient construction

4.Technical parameter:

Model Pipe Dia.(mm) Extruder model Production speed m/h Max.out put kg/h Total power kw Overall dimension mm
SMSG-800 200-800mm SJ-75
SJ-45
1-30 200 180 17000*8000*4000
SMSG-1600 600-1600mm SJ-90
SJ-65
1-20 500 220 20000*10000*4800
SMSG-2000 800-1200mm SJ-120
SJ-90
1-18 700 260 22000*12000*5000
SMSG-3000 1500-3000mm SJ-150
SJ-90
1-10 1000 310 25000*14000*5300
SMSG-4000 2000-4000mm SJ-150
SJ-100
0.5-7 2000 310 40000*14000*5300


Part 3. Solid wall winding pipe extrusion production line.

The solid wall welded HDPE pipe, diameters from 200mm to 4000mm, wall thickness adjustable.
Solid-wall spiral winding pipes are using for Electric melting fusion pipe fittings, electrical cable protective/conduit pipes, thermal pipe casing shells and so on.

Chemical Storage Tank Extrusion Making Machine

Part 4. Steel Reinforced hollowness wall HDPE winding pipe extrusion line

Chemical Storage Tank Extrusion Making Machine

Steel belt straightening machine and heating device, steel belt is coated with polyethylene. Product has steel's rigidity and Anti-corrosion properties of plastics.
