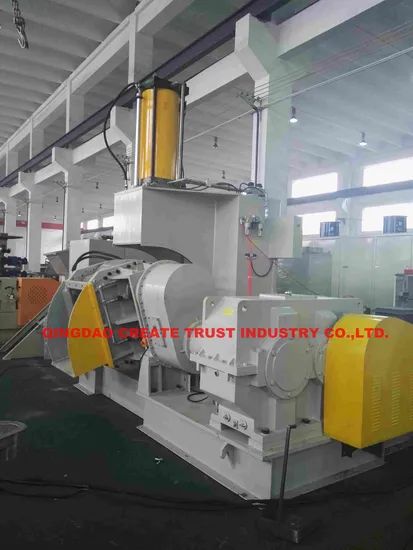

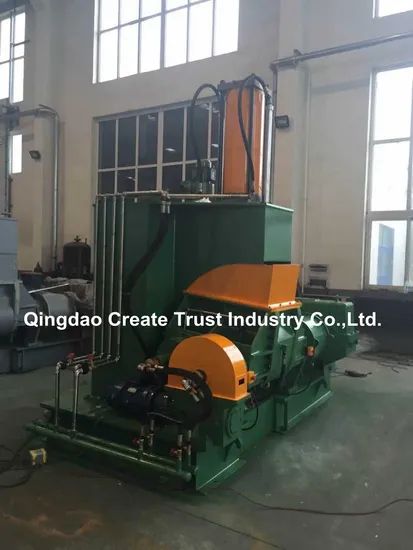

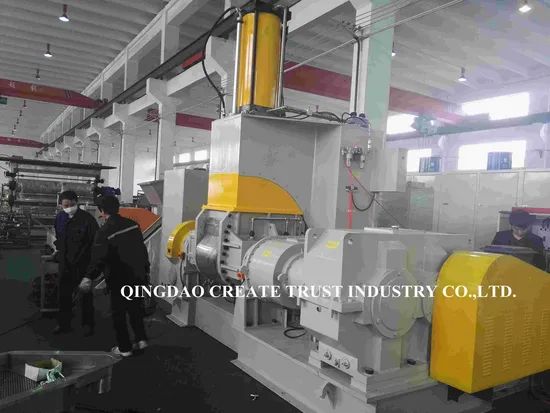

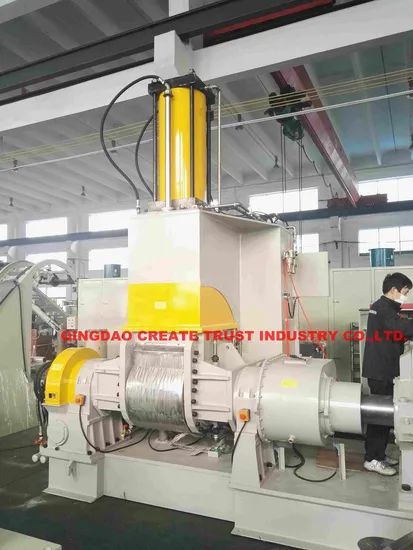

China Advanced Technology Rubber Internal Mixing Machine with PLC Control System
1 Set
$16,0002 Set
$15,000Product information
High-quality China Advanced Technology Rubber Internal Mixing Machine with PLC Control System supplied by Qingdao Create Trust Industry Co., Ltd.. Bulk wholesale pricing ranges from $15,000 to $16,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Power:
10~100kw
Production Capacity:
30 Sets/Month
Voltage:
380V
Warranty:
5 Years
HS Code:
8477800000
Weight:
<50 Tons
Automatic Grade:
Automatic
Specification:
CE, ISO9001: 2008
Specifications
Power:
10~100kw
Production Capacity:
30 Sets/Month
Voltage:
380V
Warranty:
5 Years
HS Code:
8477800000
Weight:
<50 Tons
Automatic Grade:
Automatic
Specification:
CE, ISO9001: 2008
Trademark:
CX
Origin:
China
Rotor Material:
Chrome Plated More Thickness Than Other Supplier
Customized:
Customized
Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP
Type:
General Rubber Machinery
Structure:
Horizontal
Payment Term:
LC, T/T, D/P, Western Union, Money Gram
Type Of General Rubber Machinery:
Material Processing Machine
Port Of Loading:
QINGDAO, DALIAN, NINGBO
Type Of Tire Machinery:
Rubber Regeneration Machinery
PLC:
Simens Brand
Transport Package:
Wooden Case Safety Packing
Model NO.:
XSN35
Using Life:
≥15 Years
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2000-01-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, Western Union, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP
Port Of Loading:
QINGDAO, DALIAN, NINGBO
Certificates:
CE Certification
Product descriptions from the supplier
Name: Rubber kneader,Rubber kneader machine,Rubber banbury mixer,Rubber dispersion kneader,Rubber kneading machine,EVA kneader,Rubber mixer
Model number : X(S)N35
Usage: Propose usable for rubber or plastic plasticizing and mixing or rubber and plastic blending.
FEATURES :
1. Rubber or plastic stock can be plasticized or mixed in a closed and pressurized space with the temperature controlled so that the productivity is high and the quality is good and stable.
2. Optimization of the parameters such as the helical angle of rotor wings and the wing overlap length brings about homogeneous distribution of the stock.
3. All the parts in contact with stock are plated with hard chrome and polished. The rotor wings are built up by welding with the carbide alloy to resist abrasion and corrosion.
4.All the parts in contact with stock are of the jacket design where water/steam/medium oil is lead through to provide cooling or heating and can meet different requirements for the rubber or plastic mixing process.
5. Stock is fed through the rear door of the frame work (or other port) and discharged by titling the mixing chamber forwarder by 1400 , such a design makes it possible to arrange the upstream and the downstream process steps in a line and facilitates stock clolor changing and mixing chamber cleaning .
6. Programmable logic controllers (PLC) are used for the electrical control system. It provides the perfect and reliable control ,detection&alarm and the necessary safty interlocking fuctions and hase the serial interfaces for connection to the net work.
Main parameter:
Service of us
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
Model number : X(S)N35
Usage: Propose usable for rubber or plastic plasticizing and mixing or rubber and plastic blending.
FEATURES :
1. Rubber or plastic stock can be plasticized or mixed in a closed and pressurized space with the temperature controlled so that the productivity is high and the quality is good and stable.
2. Optimization of the parameters such as the helical angle of rotor wings and the wing overlap length brings about homogeneous distribution of the stock.
3. All the parts in contact with stock are plated with hard chrome and polished. The rotor wings are built up by welding with the carbide alloy to resist abrasion and corrosion.
4.All the parts in contact with stock are of the jacket design where water/steam/medium oil is lead through to provide cooling or heating and can meet different requirements for the rubber or plastic mixing process.
5. Stock is fed through the rear door of the frame work (or other port) and discharged by titling the mixing chamber forwarder by 1400 , such a design makes it possible to arrange the upstream and the downstream process steps in a line and facilitates stock clolor changing and mixing chamber cleaning .
6. Programmable logic controllers (PLC) are used for the electrical control system. It provides the perfect and reliable control ,detection&alarm and the necessary safty interlocking fuctions and hase the serial interfaces for connection to the net work.
Main parameter:
| Type | X(S)N-10X32 | X(S)N-20X34 | X(S)N-35X30 | X(S)N-55X30 | X(S)N-75X30 | X(S)N-110X30 | |
| Pinching total cubage | L | 25 | 45 | 75 | 125 | 175 | 250 |
| Dense smelting total cubage | L | 10 | 20 | 35 | 55 | 75 | 110 |
| Main motor power | KW | 22 | 22 | 55 | 75 | 110 | 185 |
| Overturn motor power | KW | 1.1 | 1.5 | 2.2 | 2.2 | 3.0 | 7.5 |
| Overturn angle | 0 | 140 | 140 | 140 | 140 | 140 | 140 |
| Rotate speed of rotor oxis(front/back)) | r/min | 32/25 | 34/28 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of compressing air | Mpa | 0.5~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Pressure of cooling water | Mpa | 0.2~0.4 | .0.2~0.4 | .0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 |
| Pressure of heating vapor | Mpa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
| Overall size (L x W x H) | mm | 2640x1650x2350 | 3100x1300x2450 | 3200x1900x2945 | 3300x1900x2900 | 3760x2143x3135 | 4075x2712x3580 |
| Weight | kg | 3300 | 4500 | 6500 | 7800 | 10230 | 14970 |
Service of us
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
