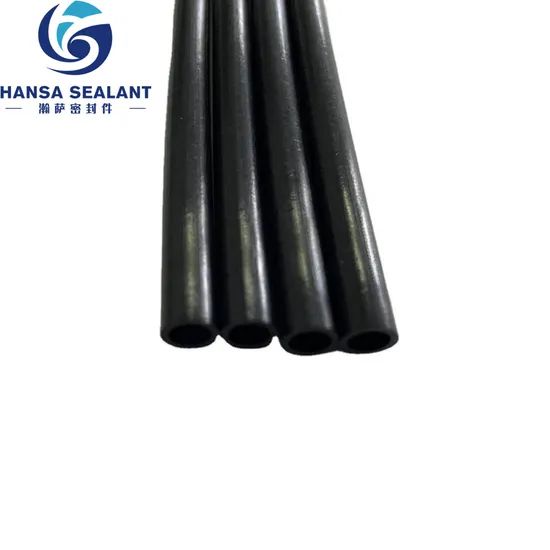

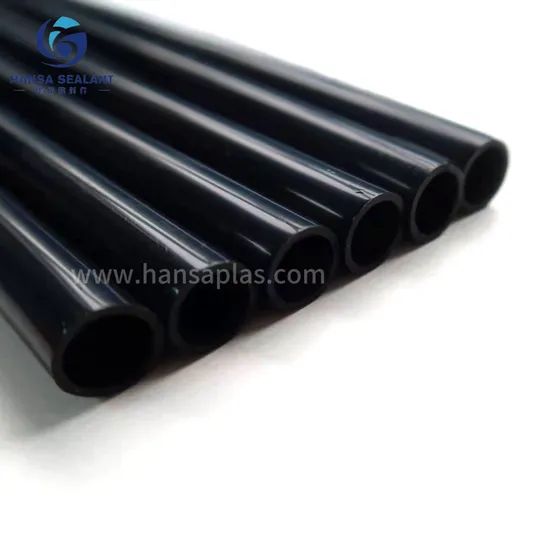

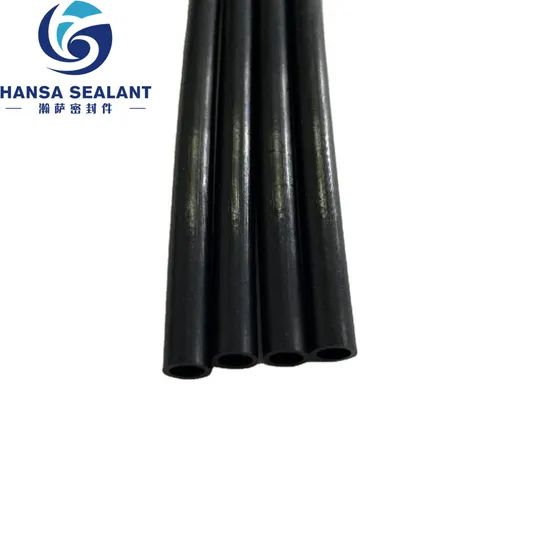

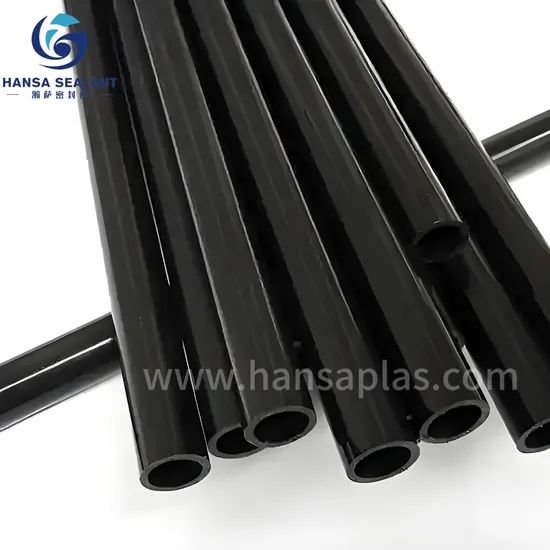

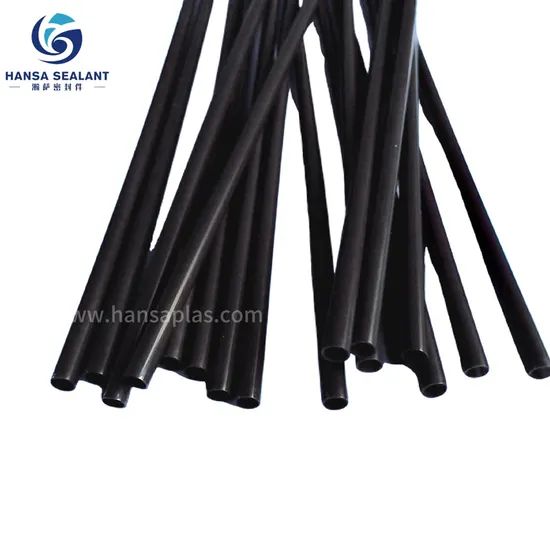

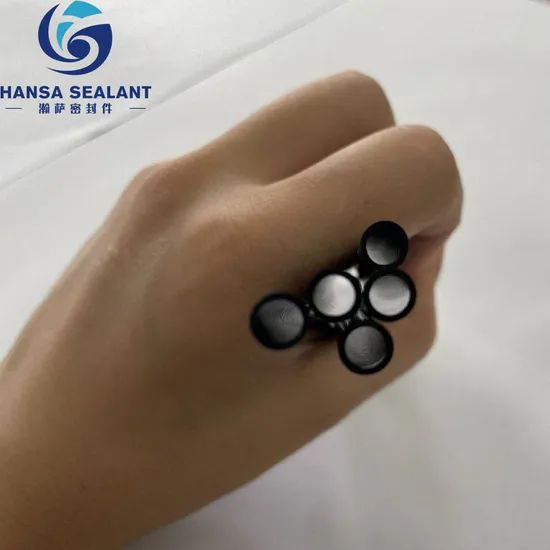

China Factory Price Industrial Plastic Pipe Black PTFE Extruded Tube
10-99 PCS
$1.5100 PCS
$0.8Product information
High-quality China Factory Price Industrial Plastic Pipe Black PTFE Extruded Tube supplied by Zhenjiang Hansa Sealant Co., Ltd.. Bulk wholesale pricing ranges from $0.8 to $1.5 per PCS with a minimum order of 10 PCS. Inquiry for latest prices.
Package Gross Weight:
0.300kg
Contraction Percentage:
1.0%~2.5%
Production Capacity:
10000PCS/Month
Tensile Strength:
14MPa
HS Code:
3926909090
Package Size:
6.10cm * 3.50cm * 0.30cm
Water Absorption:
<0.1%
Customized Service:
Available
Specifications
Package Gross Weight:
0.300kg
Contraction Percentage:
1.0%~2.5%
Production Capacity:
10000PCS/Month
Tensile Strength:
14MPa
HS Code:
3926909090
Package Size:
6.10cm * 3.50cm * 0.30cm
Water Absorption:
<0.1%
Customized Service:
Available
Color:
Black
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Length:
Customized
Specification:
Customized service available
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
Hansa
Origin:
Jiangsu China
Payment Term:
LC, T/T, D/P, PayPal, Small-amount payment, Western Union
Model NO.:
PTFE tube
Certification:
RoHS, Reach
Application:
Sealing
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Small-amount payment, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
RoHS and others
Product descriptions from the supplier
Polytetrafluoroethylene (PTFE) has excellent sealing properties and corrosion resistance. However, due to its inherent poor creep resistance, PTFE materials can leak at the seal over long-term use because of the creep of the gasket. To improve this drawback of ordinary PTFE, people add other materials such as graphite and glass fibers to PTFE to enhance its creep resistance and improve the durability of PTFE gaskets. Gaskets with other materials added to ordinary PTFE are called modified PTFE.
Main properties
| No | Filled Compound And Content By Wt | Tensile Strength Mpa min | Ultimate Strength % min | Compression Strength Mpa min | ||
| 1 | 20% Glass Fiber | 10 | 120 | 16 | ||
| 2 | 25% Glass Fiber | 10 | 100 | 16 | ||
| 3 | 20%Glass Fiber 5%Graphite | 10 | 120 | 16 | ||
| 4 | 60%Bronze | 10 | 80 | 20 | ||
| 5 | 15%Carbon Fiber | 11 | 130 | 16 | ||
| 6 | 24%Bronze 12%Glass Fiber 6%Carbon | 9 | 100 | 16 | ||
| 7 | 15%Glass Fiber 10% Polyimide5%Graphite | 10 | 120 | 16.7 | ||
| Item | Necessary Properties | Suggested PTFE Variety |
| Gasket | Creep Resistance,Chemical Resistance | 1,2,3,5, |
| Valve Seas | Creep Resistance,Chemical Resistance,Low Friction | 1,2,3,5, |
| Packing | Creep Resistance,Chemical Resistance,Low Friction,Low Wear,Stiffness | 1,3,5,7, |
| Bearings | Low Wear,Low Friction,Creep Resistance | 1,4,5,6, |
| Bearing Pads | Creep Resistance,Low Friction,Resistance To Weathering | 3, |
| Piston Rings | Creep Resistance,Low Friction,Chemical Resistance,Stiffness | 1,2,3,5 |
Quality control is a necessary step FOR EACH ORDER
Production Process for PTFE Rod As Following Steps :
Modified PTFE, due to its excellent chemical corrosion resistance, can withstand the corrosion of strong acids, strong alkalis, and various chemical solvents, making it an ideal choice for manufacturing key components such as chemical equipment, pipeline systems, and valve seals.
In the machinery industry, modified PTFE can serve as anti-sticking and lubricating materials for components like bearings, sliders, and guides, significantly improving the operational efficiency and service life of machinery.
Modified PTFE also possesses superior insulation properties and is widely used in the manufacturing of electrical insulation layers for wires and cables, capacitors, and other electronic components, providing strong assurance for the safety and stability of electronic products.
Zhenjiang Hansa Sealant Co., Ltd. is a manufacturing facility that specializes in producing various plastic components. The factory equipped with advanced machinery and technology to efficiently produce high-quality plastic parts. In addition to manufacturing plastic parts, we offer additional services such as assembly, finishing, or customization of the parts. This can include adding logos, labels, or any other branding elements requested by the customer.
Q1.What is your terms of packing
Answer : Generally, we use carbon boxes with wooden boxes outside ,to ensure our productshas been safely delivered
Q2.What is your term of delivery
Answer: FCQ DDP, if the usually take 7-10 days
If the total weight of the goods is up to ten tons, the required transport time is approximately 7-10 days
Q3:How about customized service
The demand for product customization is Available
Our customized service can provide unique and personalized plastic parts
