China New Surface Grinding Machine Grinder
1-4 Set
$10,0005-9 Set
$9,90010 Set
$9,800Product information
High-quality China New Surface Grinding Machine Grinder supplied by Weifang Runlian Economic and Trade Co., Ltd.. Bulk wholesale pricing ranges from $9,800 to $10,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Feed Of Handwheel:
0.02mm/Div
Auto Feed:
0.1-8mm/Min
Cooling Pump Motor:
0.125kw
Package Size:
1200.00cm * 1200.00cm * 1200.00cm
Grinding Wheel Speed:
1450rpm, 1750rpm
Package Gross Weight:
1500.000kg
Hydranlic Motor:
2.2kw
Production Capacity:
2000unit/Year
Specifications
Feed Of Handwheel:
0.02mm/Div
Auto Feed:
0.1-8mm/Min
Cooling Pump Motor:
0.125kw
Package Size:
1200.00cm * 1200.00cm * 1200.00cm
Grinding Wheel Speed:
1450rpm, 1750rpm
Package Gross Weight:
1500.000kg
Hydranlic Motor:
2.2kw
Production Capacity:
2000unit/Year
Max. Loading Capacity Of Table:
270kg
Magnetic Chuck Size:
300X600mm
Table Size:
305X635mm
Cross Tranal:
340mm
Grinding Wheel Size:
350X40X127mm
Spindle Motor:
5.5kw
Max.Distance From Spindle Center Totable:
580mm
Speed Of Table Longitudinal Movement:
7-23
Max.Longitudinal Travel:
765mm
HS Code:
8460291100
Rapid Speed:
990mm/Min
Controlling Mode:
Artificial
Certification:
CE, ISO 9001, SGS
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Cylindrical Grinder Type:
End Cylindrical Grinder
Trade Term:
FOB, EXW, CFR, CIF, FAS, FCA
Abrasives:
Grinding Wheel
Precision:
High Precision
Payment Term:
LC, T/T, D/P

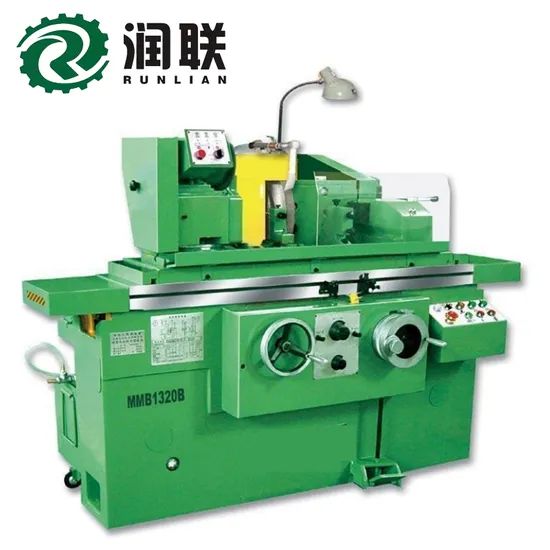

Model NO.:
MMB1320B
Processing Object:
Metal, Ceramics Flat Surface
Condition:
New
Trademark:
OEM
Transport Package:
Plywood Packaging
Port Of Loading:
Qingdao, China
Automatic Grade:
Semiautomatic
Payment Methods:
Support payments in USD
Type:
Surface Grinding Machine
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-12-16
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, EXW, CFR, CIF, FAS, FCA
Port Of Loading:
Qingdao, China
Certificates:
CE, CE-11, CE-11-2, CE-12, CE-12-2, CE-13, CE-13-2, CE-14, CE-14-2, CE-2, Lubricant qualification, SGS Certificates, Tool car, Tool car -1, Tool car-2, Tool car-3
Product descriptions from the supplier
Main Applications and Structural Features
The structure of the machine is delicate,whose accuracy isstable and its grinding efficiency is high. Wvorkpiece, wheel,oil-pump,and cooling pump are respectively driven by theirindividual motors. lt has hydraulic drvve, electric control, so it isconvenient to operate. lt is suitable for batch and mass production for grinding cylindrical or conical workpieces.It is designed on the base of MV1320, especially improvedfor its hydraulic cylinders, rapid advance & withdrawal cylinder,control box,presure-vale board and oil pump, The worktableswing angle from CW.3° and C.CW. 6° is increased to C.W.5° and C,C,W,g",The overall appearance of the machine isalso changed.
The structure of the machine is delicate,whose accuracy isstable and its grinding efficiency is high. Wvorkpiece, wheel,oil-pump,and cooling pump are respectively driven by theirindividual motors. lt has hydraulic drvve, electric control, so it isconvenient to operate. lt is suitable for batch and mass production for grinding cylindrical or conical workpieces.It is designed on the base of MV1320, especially improvedfor its hydraulic cylinders, rapid advance & withdrawal cylinder,control box,presure-vale board and oil pump, The worktableswing angle from CW.3° and C.CW. 6° is increased to C.W.5° and C,C,W,g",The overall appearance of the machine isalso changed.
| Diameter to be ground | Φ8 - 120 mm |
| Max. length to be ground | 350 mm |
| Distance between centers | 350 mm |
| Heigh of center | 125 mm |
| Max. workpiece weight | 50 kg |
| Max. longitudinal travel | 400 mm |
| Max. angle of swivel | -5° - +9° / -3° - +9° / -3° - +7° |
| Hydraulic traverse speed | 0.1 - 4 m/min |
| Traverse per turn of handwheel | 6 mm/r |
| Spindle speed | 60, 85, 230, 120, 170, 460 r/min |
| Taper of headstock center | No.3 |
| Dia. of headstock chuck | 125 mm |
| Stroke of center sleeve | 25 mm |
| Rapid travel of wheelhead | 20 mm |
| Traverse per turn of handwheel | 1 mm |
| Movement per graduation on micro adjustment knob | 0.00125 mm |
| Speed of wheelhead spindle | 2230/1820 r/min |
| Traverse of wheelhead | 150 mm |
| Max. diameter of grinding wheel | Φ400×(40 - 50)×Φ203 or Φ300×(25 - 40)×Φ127 mm |
| Total power motor | 4.24 kw |
| Overall dimensions of the machine(L×W×H) | 1800×1420×1600 |
| Weight of the machine | 2000 kg |
