Product information

High-quality China Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling System supplied by Suzhou Thriving Medical Equipment Corp.. Bulk wholesale pricing ranges from $300 to $600 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.

Production Capacity:

50000piecs/Year

Capacity:

60, 80, 99 at Max

Visual:

Available

Talking:

Available

Corridor Display:

Available

Washing Room Calling:

Available

Audible:

Available

Calling:

Available

Specifications

Production Capacity:

50000piecs/Year

Capacity:

60, 80, 99 at Max

Visual:

Available

Talking:

Available

Corridor Display:

Available

Washing Room Calling:

Available

Audible:

Available

Calling:

Available

Door Light:

Available

Origin:

China

Trade Term:

FOB, CFR, CIF, EXW

Payment Term:

LC, T/T, Western Union

Type:

Medical Call System

Scale:

Medium

Warranty Time:

One Year

Transport Package:

Standard Export Package

Trademark:

THR or OEM

Model NO.:

THR-ND928

Wire Type:

Two-Wire Rvv2*0.75

Port Of Loading:

shanghai

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Year Established:

2008-03-26

Annual Revenue Amount:

Not specified

Numbers Of Employees:

Not specified

Preferred Payment Term:

LC, T/T, Western Union

Preferred Trade Term:

FOB, CFR, CIF, EXW

Port Of Loading:

shanghai

Certificates:

CE, ISO9001 Standards

Product descriptions from the supplier

Product Description

China Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling SystemChina Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling System

Product Description

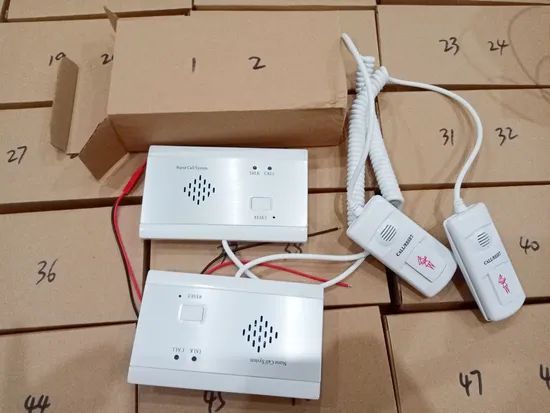

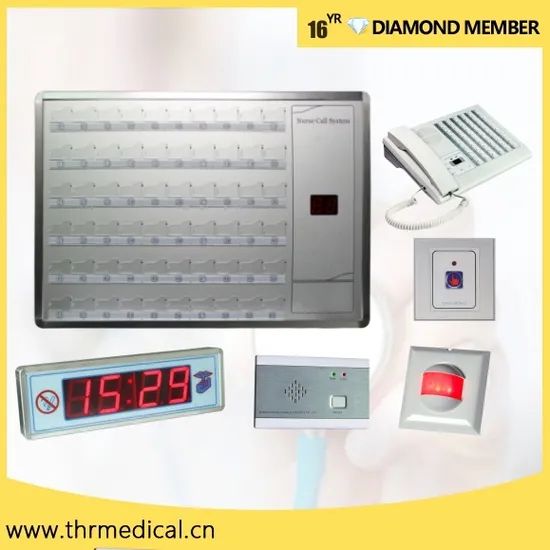

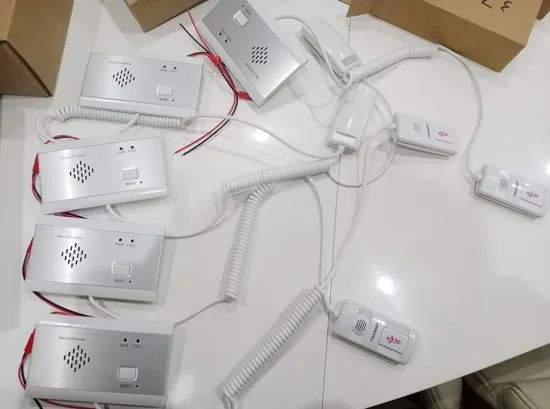

The system consists of a console, extension telephone, WC extension telephone, door lamps and display screen. The extensionMtelephones, door lamp and display screen are linked to the console with non-polar two-wire connection. The users may choose to install the extension telephone exposed or concealed according to their needs.

Key features:

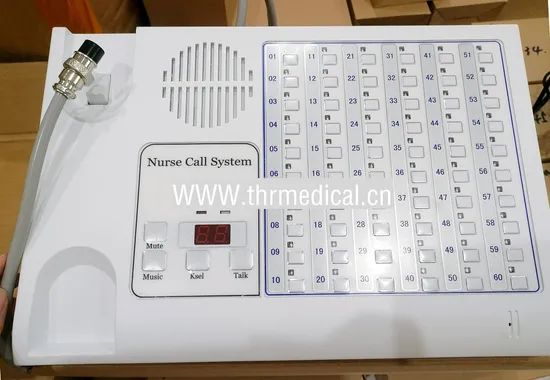

1. Sixty LED indicators are installedon the front panel, which can simultaneously display multiple calling bed numbers. Two-digit
LED high brightness nixie tube is also installed, which can automatically display the calling bed number sequentially. The display is clear at a glance.
2. The voice between the host telephone and the extension telephone isloud, clear and noise-free.
3. Easy to change numbers. The extension telephone uses PIC series 8-bit microcontroller fromMicrochip Technology Inc.as encoding chips, which can change the number online. The number changing procedure is easy and simple for operation and the performance is reliable.
4. With stylish and beautiful appearance, both the host telephone and the extension telephone are made ofimportedmolds and materials. The color combination is harmonious and beautiful.


Main Functions
1. Two-way communication: The host telephone can freely call the extension telephone while the extension telephone can call the host telephone.
2. Full duplexintercom: no need to convert for sending and receiving messages, the two sides just pick up the microphone and talk, as easy as making telephone calls.
3. The host telephone and the extension telephone can be reset.
4. Can be connectedto cordless phone with masterstation

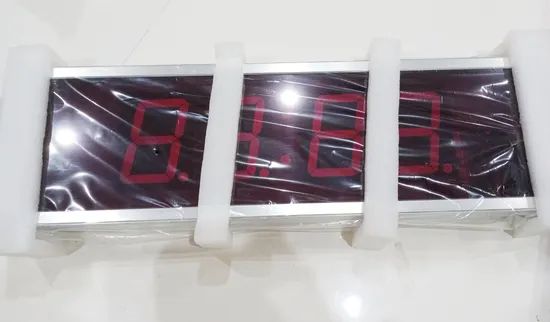

5. Four-digithigh brightness large nixie tube display
6. Treatment small display is equipped with the same music reminder as that of the host telephone console (including music reminder for extension telephone, special nursing and WC).
7. Extension telephone call memory and automatic queuing.
8. 12 chord ringtonesfor host telephone, 16 levels of digitally adjustable ring volume
9. Extension telephone has non-interrupt function: when the host telephone is talking with the extension telephone, another extension telephone can call the host telephone, the host telephone can receive the new call signal and display it without interrupting the current call.
10. Special nursing priority: Multiple special nursing priority numbers can be set on the host telephone according to the needs of the nurses. When several extension telephones call at the same time, the special nursing priority numbers will have the priority.
11. Short circuit alarm: In case of short circuit, the host nixie tube displays "DL" with alarm sound.
12. WC emergency calling extension telephonecan be installed


Main technical Parameters
1: Operating Temperature: -10ºC~40ºC
2: Relative Humidity: ≤80%
3: Power Supply: 220VAC 50Hz
4: Bus Voltage: 24VDC
5: Static Power: <20W
6: Extension Telephone Standby Current: ≤250ua
7: Extension Telephone Call Current: ≤50ma
8: Maximum System Capacity: 99 users
9: Maximum Wiring Length: 100 meters
10: Distortion Degree:≤10%


China Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling System

System Wiring Diagram (see the following figure)China Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling SystemChina Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling System


China Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling System
China Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling System
China Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling System
China Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling System
China Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling SystemChina Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling SystemChina Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling SystemChina Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling SystemChina Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling SystemChina Supplier Hospital Alarm System Intercom Call Bell System Nurse Calling System
