China Tube Welding Machine Automatic Pipe Orbital Welding Machine MIG Welder
Piece
Negotiable
Product information
High-quality China Tube Welding Machine Automatic Pipe Orbital Welding Machine MIG Welder supplied by Wincoo Engineering Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
12 Months
Package Gross Weight:
16.000kg
Package Size:
24.00cm * 33.00cm * 31.00cm
Production Capacity:
3000sets/Month
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Electric Current:
DC
Specifications
Warranty:
12 Months
Package Gross Weight:
16.000kg
Package Size:
24.00cm * 33.00cm * 31.00cm
Production Capacity:
3000sets/Month
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Electric Current:
DC
Transport Package:
Export Package
Trade Term:
FOB, CIF, CFR, EXW
Frequency Range:
High Frequency
Key Word:
Orbital Welding Machine
Port Of Loading:
Shanghai Port
Specification:
Standard size
Payment Methods:
Support payments in USD
Payment Term:
T/T, LC, D/P, PayPal, Small-amount payment, Western Union
Model NO.:
WQ-III
Trademark:
Wincoo
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-04-07
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, LC, D/P, PayPal, Small-amount payment, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier

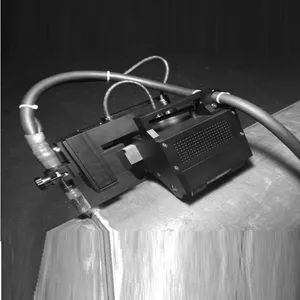

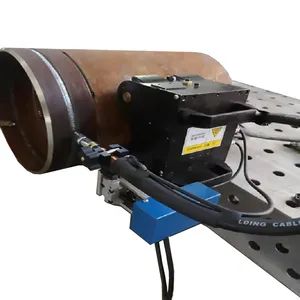

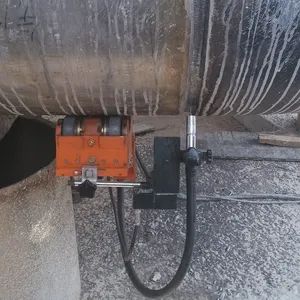

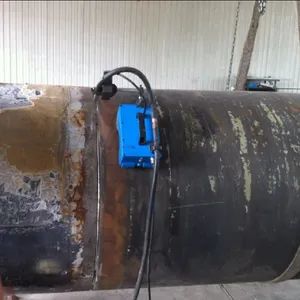

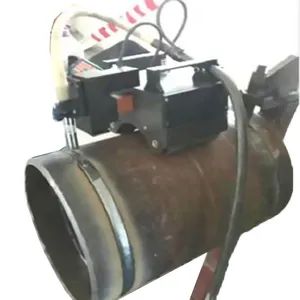

KA-GD Magnetic Pipe Orbital Welding Tractor with Electric and Manual Type
1. Product Overview
KA-GD can be used to weld both inner and outer pipeline surfaces. Welding is performed directly on the arc-exposed side of the material, eliminating the need for support rails.
CO2 automated welding tractor finds extensive application across shipbuilding, bridge construction, rail transport, steel frameworks, petrochemical facilities, and other sectors, ideal for diverse welding components including: reinforcement sheets, rib sections, intersecting joints, box girder assembly, and more. Key benefits include:
1) Reduce labor intensity and improve working environment;
2) To improve the working efficiency, it is 1.5 times of manual welding;
3) Avoid the poor quality of welding seam caused by human factors, the defect rate of manual welding is aThe automated welding system delivers about 20% improvement, eliminating welding flaws due to machine-based welding. As a result, its overall efficiency exceeds manual welding by nearly 200%.
4) High degree of automation to ensure the stability of welding quality;
5) Simple and convenient operation, do not need very skilled technical workers.
2. Product features
1) KA-GD is swing automatic welding device, one welding can get a wider weld;
2) Swing speed, swing range, center position and left and right residence time can be adjusted, suitable for various specifications of the weld;
3) Small size, light weight, easy to install and move, unskilled workers can also carry out welding;
4) Permanent magnet is installed to avoid welding line disconnection during welding;
3. Application Environment
Suitable for pipe welding of various steel structures.

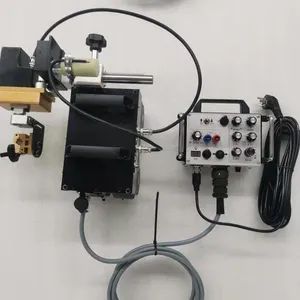

4. Major Component
Components: welding gun swing device, slider, welding gun handle, control box, control panel and other accessories:
1) Swing device: used to drive the welding gun for pendulum swing welding;
2) Driving part: the driving device of the trolley is composed of four magnetic wheels, helical gears, chains and sprockets;
3) Slider part: used to adjust the position of the welding gun, you can fine-tune the position before and after when welding;
4) welding gun fixture: welding gun clamping device, it can adjust the Angle of the welding gun;
5) Control box: All movements of the tractor can be adjusted. For details, refer to the operation method of the control panel;
5.Control Panel Introduction
Control knob for setting current and voltage: Rotate the knob right to raise the setting (The tractor features two power connectors: 3P and 8P; with the 3P connector, current and voltage) The current and voltage settings on the wire feeder are ineffective, requiring manual adjustment; the current and voltage controls function properly only with the 8P connector)
2) Selection knob for welding/non-welding: the knob must be in the welding position to weld;
3) Point feed: manual wire feed device;
4) Walking switch: manages vehicle movement and halt; when the "welding/non-welding" selector is set to "non-welding", activate the walking switch, and the tractor will move without performing welding;
5) Walking speed adjustment: the adjusting knob of tractor walking speed. It is recommended to adjust the tractor walking speed after turning on the walking switch;
6) Choice of walking direction: choose to walk left or right;
7) Power switch and indicator light: the indicator light is on after the power is energized;
8) Swing control part: it can adjust swing speed, swing range, left and right stay time, center position and swing mode;
6. Technical Parameter
| Items | Parameter | Note | |
| Tractor | Power supply | AC 220V | |
| Size | 240×330×310 | W×L×H | |
| Weight | 16Kg | Including swinger | |
| Moving mode | Four-wheel drive | Magnet-wheel | |
| Walking speed | 0∼700mm/min | ||
| Swing motor | DC24V 18RPM | ||
| Adjustable range of welding gun | Up and down | ||
| Before and after | 85mm | ||
| Operating Angle adjustment range | 360° | ||
| Carry out Angle adjustment range | 0° | ||
| Control | Operating function | Swing mode |  |
| Swing speed | 0-10RPM(Show with scale) | ||
| Swing scope | 0-±10°(Show with scale) | ||
| Left and right residence time adjustment | 0-2S(Show with scale) | ||
| Central range of movement | 0-±8° | ||
| Inching wire feeding | |||
| Walking starts/stops | |||
| Welding current/voltage control | |||
| Choice of walking direction | |||
| Walking speed regulation | 0∼1000mm/min(Show with scale) | ||
| Welding/non-welding options | |||
7. Installation
A. Preparation for welding
1) The necessary tools for welding are welding machines and wire feeding devices;
2) Special control cables (AC 220V) are required. Different welding power supplies require different cables;
3) CO2 tanks for welding are required;
4) CO2 automatic welding torch;
5) Other necessary tools;
B. Tractor connection method
1) Install the tractor and place the tractor on the working surface;
2) Install the wire on the wire feed tray and pull the wire to the end of the torch;
3) The end of the torch is connected to the wire feeder;
4) The control power supply is connected to the 8P port of the control panel of the tractor;
5) Control power cable is connected to AC 220;
6) The dedicated control cable features four connection points: one links to the 220V power source, another to the welding cart, and the remaining two attach to the welding unit and the wire conveyor machine;
8. Packing List
| Parts name | Qty | Unit | Note |
| Walking welding tractor | 1 | set | |
| Swinging nose | 1 | set | |
| Power line | 1 | pcs | About 10-15m |
| Welding torch signal cable | 1 | pcs | About 0.5m |
| Swing signal line | 1 | pcs | About 0.5m |
| Specification | 1 | pcs | |
| Inner hexagon tool | 1 | set |
9. Company Profile
Wincoo Engineering Co., Ltd (WINCOO) offers tailored technologies and machinery to clients, fabricators, and EPC/C contractors in pipe making, tank building, pipeline development, industrial assembly lines, clean energy initiatives, and various industrial applications.
Our Services & StrengthWe offer practical strategies to help clients secure faster project delivery, reduce labor expenses, adopt more efficient construction or manufacturing techniques, and achieve improved quality throughout the bidding process.
*Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
*We are fully prepared to act as on-call responders, swiftly delivering project-related items such as spare parts, hand tools, machinery, and unique goods. Additionally, leveraging our adaptability, we can serve as a Chinese procurement representative to identify and secure necessary supplies.
FAQ
Q:Are you a factory or trading company?
A, Yes we are the trading company,but we have a lot of factories that have cooperative relationships, and we can get the best plan and price for you.
Q:Does the machine have CE certificate?
A:Yes, others certifications also can be sent
Q:What's the shipping method?
A: International express and sea transportation,Depend on customer.
Q:Can I use my own forwarder to transport the products for me?
A:Yes, if you have your own forwarder in China, you can let your forwarder ship the products for you.
Q:What's the Payment method?
A:T/T,L/C and other payment method, Depend on customer.
Q: What is our payment term?
A:We can accept the payment by T/T and Trade assueance .
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.And we warmly welcome you to China for inspection.
Q:How to Place an order?
A:Please kinldy send us your order by email,we will confirm the PI with you .we wish to know the below:your details address,phone/fax number,destination,transportation way ;Product informaiton:item number,size,quantity,logo,etc.
