Chovyting Automatic Vertical Slitting and Rewinding Machine
1 Set
$9,5001 Set
$10,000Product information
High-quality Chovyting Automatic Vertical Slitting and Rewinding Machine supplied by Zhejiang Chovyting Machinery Co., Ltd.. Bulk wholesale pricing ranges from $9,500 to $10,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Specification:
2600*1100*1450mm
Production Capacity:
350set/Year
HS Code:
8477800000
Unwind:
Auto
Trademark:
CHOVYTING
Trade Term:
CIF, FOB
Model NO.:
CP-1300FQL
Origin:
China Mainland
Specifications
Specification:
2600*1100*1450mm
Production Capacity:
350set/Year
HS Code:
8477800000
Unwind:
Auto
Trademark:
CHOVYTING
Trade Term:
CIF, FOB
Model NO.:
CP-1300FQL
Origin:
China Mainland
Structure:
Cutting Part
Inverter:
Delta Taiwan
Packaging:
Film
Suitable Substrates:
Film Cutting
Work Method:
Flat Knife Slitting
Standard Device:
Flat Slitting Knives 10PCS
Payment Term:
LC, T/T
Port Of Loading:
Ningbo Port, Shanghai Port
Packaging Material:
Plastic
Classification:
Plastic Film Cutting
Applicable Process:
Process Materials
Transport Package:
Wooden Base with Stretch Film Warp Pack
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-06-24
Annual Revenue Amount:
Not specified
Numbers Of Employees:
146
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
CIF, FOB
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
CE, Others, ISO9001:2015
Product descriptions from the supplier
Brief Introduction:

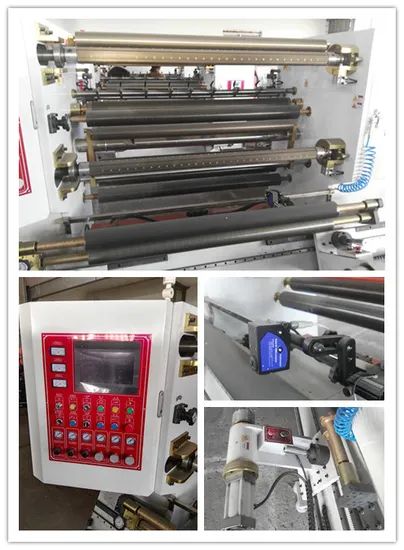

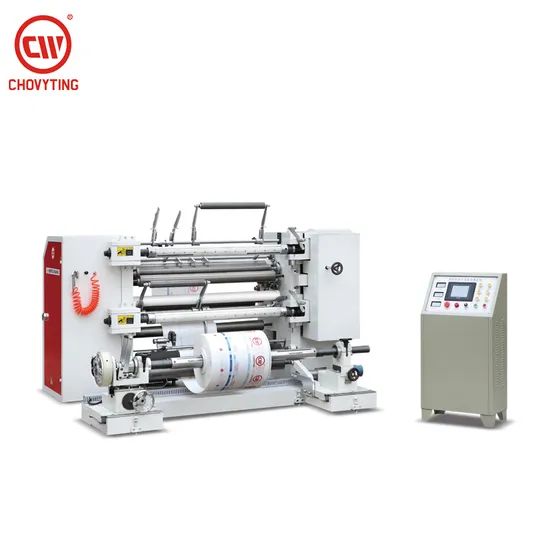

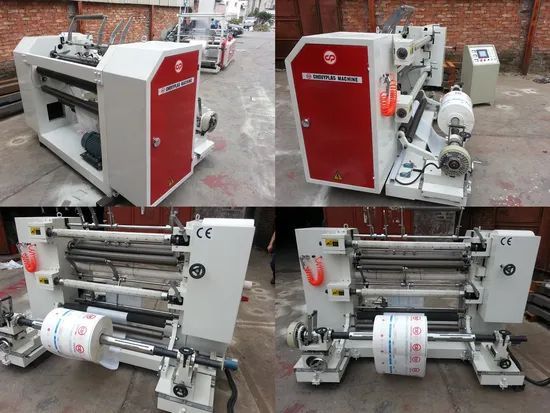

Newly improved vertical slitting machine,design of rewinding and unwinding on the same side,heavy duty,is suitable for high speed slitting or cutting, such as BOPP,PET,CPE,PVC,Aluminium foil and paper etc…
Technical data:
Optional device:Hot pin perforater,including pin roller and heating oil.
Special PP or PE films featuring tiny vent holes to release air are typically employed in producing bread wrappers or food packaging bags.
The pin hole diameter is made as customer requirement!
Optional device:slip shaft
used for sliting and rewind PP film or thin HDPE film into many small rollers.
Newly improved vertical slitting machine,design of rewinding and unwinding on the same side,heavy duty,is suitable for high speed slitting or cutting, such as BOPP,PET,CPE,PVC,Aluminium foil and paper etc…
Technical data:
| Model | CP-1000FQL | CP-1300FQL | CP-1600FQL |
| Max.Width of Jumbo Roll | 1000mm | 1300mm | 1600mm |
| Max.Dia. of Jumbo Roll | φ500mm | φ500mm | φ500mm |
| Width of Final Roll | 50-1000mm | 50-1300mm | 50-1600mm |
| Max.rewind Dia. | φ500mm | φ500mm | φ500mm |
| Slitting speed | 180m/min | 180m/min | 180m/min |
| Tolerance of EPC | <±0.5mm | <±0.5mm | <±0.5mm |
| Total power | 3.7kw | 3.7kw | 3.7kw |
| Weight of Machine | 1550kg | 1850kg | 2150kg |
| Overall Dimension | 2400*1100*1450mm | 2600*1100*1450mm | 2900*1100*1450mm |
Optional device:Hot pin perforater,including pin roller and heating oil.
Special PP or PE films featuring tiny vent holes to release air are typically employed in producing bread wrappers or food packaging bags.
The pin hole diameter is made as customer requirement!
Optional device:slip shaft
used for sliting and rewind PP film or thin HDPE film into many small rollers.
