Chromium Nickel Silicon Bronze Plate
100-999 kg
$201000 kg
$15Product information
High-quality Chromium Nickel Silicon Bronze Plate supplied by Alb (Xiamen) Material Company Limited. Bulk wholesale pricing ranges from $15 to $20 per kg with a minimum order of 100 kg. Inquiry for latest prices.
MOQ:
100kg
Delivery Time:
20-25days
Production Capacity:
50000 Ton
Trademark:
ALB-ALLOY
Standard:
ASTM
Alloy:
Alloy
Color:
Bronze
Model NO.:
C18000
Specifications
MOQ:
100kg
Delivery Time:
20-25days
Production Capacity:
50000 Ton
Trademark:
ALB-ALLOY
Standard:
ASTM
Alloy:
Alloy
Color:
Bronze
Model NO.:
C18000
Price Term:
CIF CFR Fob Ex-Work
Origin:
China
Rwma:
Class 3
Size:
Custom
Specification:
Customer's size
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, PayPal, Western Union
Shape:
Plate
Transport Package:
Plywood Case
Port Of Loading:
Tianjin Port, Shanghai Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-04-20
Annual Revenue Amount:
Not specified
Numbers Of Employees:
5
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port, Shanghai Port
Certificates:
Others
Product descriptions from the supplier

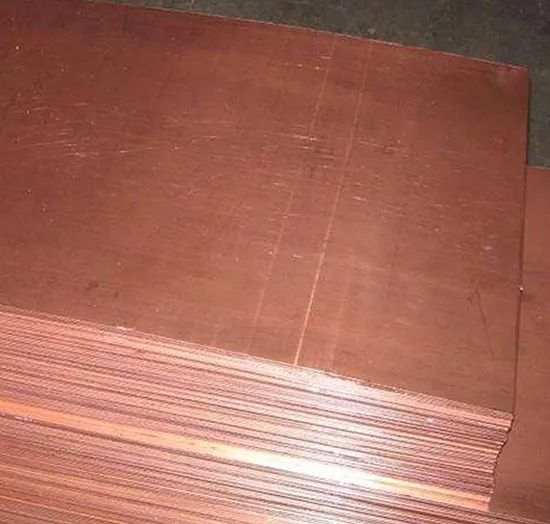

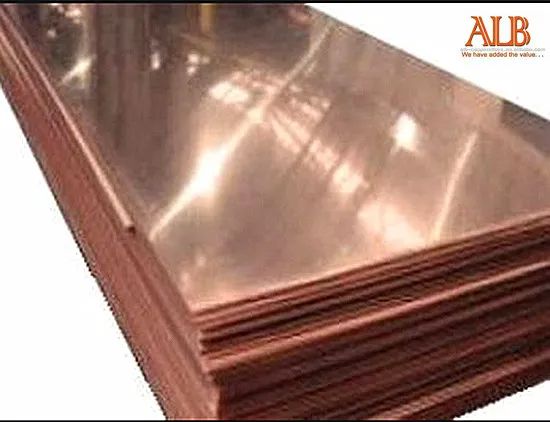

Chromium Nickel Silicon Bronze plate
Specification
Product Name:Copper Chromium Nickel Silicon Plate C18000 from China Factory
UNS/CDA:UNS. C18000, CDA 180
RWMA:Class 3
DIN:2.0855, CW111C, CuNi2CrS
Specification
Product Name:Copper Chromium Nickel Silicon Plate C18000 from China Factory
UNS/CDA:UNS. C18000, CDA 180
RWMA:Class 3
DIN:2.0855, CW111C, CuNi2CrS
Chemical Composition
Cr:: 0.10-0.80%
Si: 0.40-0.80%
Ni 1.80-3.0%
Cu:: Balance
Note:
Cu+Cr+Ni+Si: 99.50% Min.
Physical Properties
Si: 0.40-0.80%
Ni 1.80-3.0%
Cu:: Balance
Note:
Cu+Cr+Ni+Si: 99.50% Min.
Physical Properties
|
Density (g/cm3)
|
0.315Ib/in3 at 68F
|
|
Specific Gravity
|
8.80g/cm3
|
|
Melting Point(Liquidus)
|
1955F
|
|
Melting Point(Solidus)
|
1885F
|
|
Electrical Resistivity
|
22.8 ohms/cmil/ft@68F
|
|
Electrical Conductivity
|
45%IACS@68F(heat-treated)
|
|
Thermal Conductivity
|
200.0Btu ft ata 68F
|
|
Modulus Elasticity inTension
|
140.0X103N/MM2
|
Application
Heat Sink Inserts in Steel Plastic Molds,
Plunger Tips for Die Casting Metal Machines,
Core & Ejector Pins for Injection Molds,
Mold Cavities for Bold Molds,
Welding Dies for Wires and Flash,
Hot Runner Systems for Injection Molds,
Stud Welding Collets and Tips,
Resistance Welding Wheels and Fixtures,
Resistance Welding Tips.
Plunger Tips for Die Casting Metal Machines,
Core & Ejector Pins for Injection Molds,
Mold Cavities for Bold Molds,
Welding Dies for Wires and Flash,
Hot Runner Systems for Injection Molds,
Stud Welding Collets and Tips,
Resistance Welding Wheels and Fixtures,
Resistance Welding Tips.
Production Show
Packaging & Shipping
Company Profile
ALB (Xiamen) Material Company Limited, a member of ALB group, has been the leading Chinese manufacturer and supplier of copper beryllium alloy material and copper beryllium semi-finished & finished machining parts since its establishment.
We are specialized in producing beryllium copper alloy strips, rods, bars, wires, plates, sheets, tubes, discs with materials of CuBe1.7-UNS.C17000,CuBe2-UNS.C17200, CuBe2Pb-UNS.C17300, CuCo2Be-UNS.C17500, CuNi2Be-UNS.C17510, CuCo1Ni1Be-CW103C as well as beryllium copper machining & finished & turned parts.
