Circulating Fluidized Bed Boiler for Electricity Generation Origin China Model NO. Various Structure Water Tube Trademark Runh power

Please click here >>>> Contact us for more factory prices,shipping and discounts.

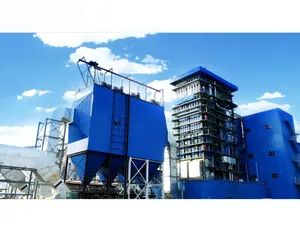

Circulating fluidized bed steam boiler

RUNH can supply 50MW~100 MW high pressure boiler; 125MW, 200MW, 210MW super high pressure boiler; 350~600MW super-critical boiler; 600~1000MW ultra-super-critical boiler; 50~300MW CFB boiler, steam gas combine cycle heat recovery steam generator, pressured fluidized boiler 50~1000MW HP heater, deaerator, sootblower, periodical & continuous blowdown equipment, deslag, heat supply system heater, boiler auto control system.
1. The fuels of this boiler is with broad adaptability, so many kinds of coal is suitable to supply stable and efficient heat.
During the operational process of the boiler, it is easy to achieve high burning efficiency in the condition of not changing
burning equipment when the coal is changed.
2. Circulating fluidized bed boiler is radically different from other boilers on the burning system. Its burning system consists of burning room, material destination and material returner. The high heat material enters the material returner together with the airflow, and the material collected will enter the material returner and then returns the burning room. This is called circulating burning which increase the burning efficiency greatly.
3. This boiler is with a wide range and high speed of load adjustment.
4. A clean and environmental burning technology is used in this boiler to improve the quality of air and environment.
5. It is easier to use the ash completely because of the low-heat burning and good burning condition of this boiler.
6. There is no immersed tube in the boiler, so it is easy to start or stop the equipment

Runh Power Corporation Limited was founded in 1996 as one of the earliest independent EPC contractor of power plant and later incorporated one of the most famous turbine designer and manufacturer, Qingdao ChuangNeng  Steam Turbine Co.,Ltd (better known as CNT in China). With subordinate design institute founded in 2001, Runh Power was bestowed upon the capability of providing one-step, package technical solution of thermal, hydraulic, solar, biomass power plant.

Scope of service includes :

A. EPC (Engineering, Purchase & Construction) project of power plant plus financing service.

Power plant project on EPC basis (or "on turnkey basis") is characterized by the overall package solution provided by the contractor. Runh Power's service covers survey all the way till final acceptance.

Link :

  1. Thermal power plant EPC project

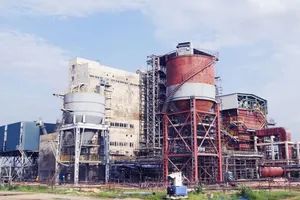

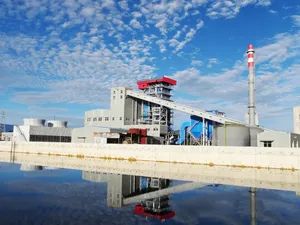

Thermal power plants refer to power plants generating power from fossil fuel, such as coal,  heavy oil or natural gas. Thermal power plant, being the most common in the world, has been a speciality of Runh Power since its very foundation.

Link:

  2. Biomass power plant EPC project

Biomass such as bagasse, bark, straw, stalk of plants has become a good resource of fuel for power plants in the last decade. The ash is often collected and processed to fertilizer for additional economic gain. Runh Power is well experienced in building biomass power plants in Ecuador & Pakistan.

Link:

   3. Animal dung power plant EPC project

Treatment of livestock's dung can be a real headache, especially for ranch owners or dairy farmers. However, with the help of CFB boiler provided by Runh Power, it can be good resource of fuel just as coal or biomass.

Link:

4. Municipal Solid Waste (MSW) power plant EPC project

Other than being buried in landfill, garbage can find its way to boiler. Runh Power has profound expertise in aspects such as selection of combustible waste, eco-friendly treatment of ash, etc.

Link:

B. EPC project of Steam Turbine Island (STI)

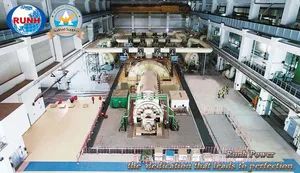

Steam turbine island refers to a steam turbine along with all the accessories and auxiliary systems, including turbo-generator set,condensation system and various sub-systems.

Link:
C. Steam turbine

1.Back pressure turbine: Best known for its simple structure, low maintenance cost and relatively high thermal efficiency.

Link:

2.Condensing steam turbine: Popular for its wide range of power (3 to 60MW) and the convenience of repurposing by adding additional steam extraction exit.

Link:

3.Condensing & extracting steam turbine (a.k.a cogeneration unit): welcomed for its application in power plants and cogeneration, convenience in switching between the condensing unit and cogeneration unit by simply adjusting the extraction rate.

Link:

4.Condensing & double extracting steam turbine: Mostly used for cogeneration purpose. It's structure allows to to produce steam of two sets of parameters, such as temperature, pressure, flow, to be extracted from two exits for different purposes, which makes it popular in industies such as food-processing or phamarciuticals where steam of different parameters are often needed.

Link:

5.Inducting steam turbine: Being able to fully exploit residual heat from steam, a byproduct in cement, food processing, etc, allows it to maximize ecomonic viability by generating power.

Link:


D. Spare parts and quick-wear parts.

1. In case the owner of power plant prefers to do maintenance independent of Runh Power's assistance, Runh Power is also glad to provide a wide range of parts, especially quick-wear parts constantly needed in regular maintenance.

Link:
