Product Description

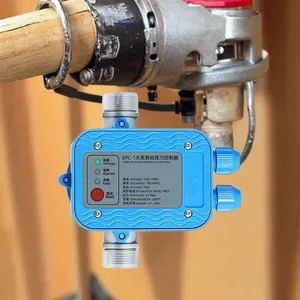

Automatic water pump pressure controller EPC-1
EPC-1, adjustable electronic pressure switch, fully automatic control of pump start and stopwith a delayed protection, to avoid frequent pump start. Original relay, higher qualityproducts.
Whole house automatic water supply without water tower,the user selects the suitable starting pressure according to the actual pump head and the highest vertical height of the faucet
INSTRUCTIONS FOR CORRECT UNIT INSTALLATION
If the water column between the pump and the highest tap exceeds 15 metres, the appliance cannot be mounted directly on the pump. but must be raised until the water column between the appliance and the highest tap does not exceed 15 metres.
The appliance is fitted with a non-return valve to prevent loss of pressure in the pipework.

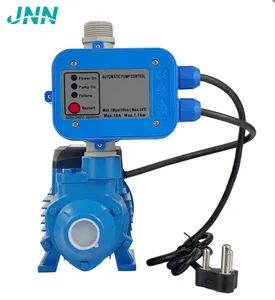

The appliance can be mounted directly on the pump or between the pump and the first tap.
Safety valve prevents water discharge in case of diaphragm rupture
The manufacturer pre-sets the restart pressure of the appliance to 1.5 bar. The pressure generated by the pump must normally be 0.8 bar higher than the preset pressure.
Product application: Widely used in a variety of self-priming pumps, jet pumps, centrifugual pumps, garden pumps and other water supply systems: Ordinary wells and tube wells, Household water booster, High buildings water booster, lrrigation system.
| Max. Working Pressure |
10Bar |
| Max.working temperature |
100ºC |
Detailed Photos
Adjustable starting pressure Thickened brass check valve with magnet inside Waterproof case and circuit board, IP65
