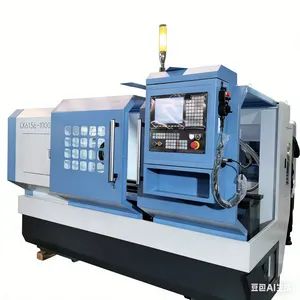

Ck6156 High Rigidity Gear Transmission 1800rpm Metal Working CNC Lathe Machine
1-2 set
$11,0003-4 set
$10,9005 set
$10,700Product information
High-quality Ck6156 High Rigidity Gear Transmission 1800rpm Metal Working CNC Lathe Machine supplied by Shandong ACR MACHINE TOOL Co., Ltd.. Bulk wholesale pricing ranges from $10,700 to $11,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Processing Precision:
0.04~0.05(mm)
Distance Between Centers:
1000/1500/2000/3000
Z Axis Travel:
1000/1500/2000/3000
Spindle Motor Power:
11
Lead Time:
15 days (1 - 1 set)To be negotiated ( > 1 set)
Package Gross Weight:
2700.000kg
Specification:
3200*1600*1700
X Axis Travel:
340
Specifications
Processing Precision:
0.04~0.05(mm)
Distance Between Centers:
1000/1500/2000/3000
Z Axis Travel:
1000/1500/2000/3000
Spindle Motor Power:
11
Lead Time:
15 days (1 - 1 set)To be negotiated ( > 1 set)
Package Gross Weight:
2700.000kg
Specification:
3200*1600*1700
X Axis Travel:
340
Package Size:
340.00cm * 180.00cm * 190.00cm
Swing Over Cross Slide:
350
Swing Over Bed:
560
X Axis Rapid Traverse:
6000
Tailstock Quill Diameter:
75/150
Zaxis Rapid Traverse:
8000
Spindle Bore:
82
Spindle Nose Type:
A2-8
Trademark:
ACR
Numerical Control:
CNC/MNC
Model NO.:
Ck6156
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Performance Classification:
Economical CNC Machine Tools
Trade Term:
FOB, CIF, CFR, EXW
Certification:
GS, CE, ISO 9001
Spindle Speed Range:
L:45-200 M:160-800 L:600-1600
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Movement Method:
Linear Control
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools
Condition:
New
Port Of Loading:
Qingdao Port, Shanghai Port, Tianjin Port
Control Method:
Semi-Closed Loop Control
Origin:
Shandong, China
Spindle Speed Steps:
Stepless
Payment Methods:
Support payments in USD
Transport Package:
Wooden Box Package
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-02-22
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port, Shanghai Port, Tianjin Port
Certificates:
CE
Product descriptions from the supplier
Product Description
This series of lathes features a monolithic cast bed, which provides strongrigidity and a stable structure. Combined with a stepless variable-speedindependent spindle, they offer reliable performance and higher precision. it is aneconomicai CNc machine tool, is a general CNC automatic metal processingequipment, can carry out mechanical parts semi-finishing and finishing, withreliable structure, easy operation and economic and practical characteristicsSuitable for all kinds of shaft and disc parts to automatically complete theinternal and external cylindrical surface, conical surface, arc surface, end face.grooving, chamfering and other processes of cutting, and can turn metric straightthread, end thread and inch straight thread and taper thread and other kinds ofturning.
MANUAL CHUCK
Function: Used on machine tools to fixworkpieces, ensuring stability duringprocessing and enabling precisemachining operations.The 3-jawstructure allows it to better adapt toworkpieces of different shapes.ll.Features.
1. High versatility: Can hold variousshaped workpieces, such as cylindricaland hexagonal, with wide applicationrange to meet different machiningrequirements.
2. Easy operation: Simply rotate thewrench by hand to open and close thejaws, adjustment is quick andconvenient,no complex power sourcerequired, making it easy to use in simplemachining tasks or maintenancesituations.

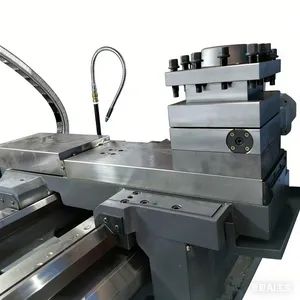

ELECTRIC TOOL POST/TURRET
Features: Automatic tool changing, reduced manual intervention,improved machiningefficiency and accuracy, suitable for multi.process and complex part processingrequirements .
Four different functional tools can be installedsimultaneously to meet various machiningrequirements such as turning, drilling,tapping, and grooving, thereby reducing toolchanging frequency.
The 4 Position Electric Tool Post, with itsautomation, high precision, and high reliabilityhas become a crucial auxiliarydevice in CNC machining. Through properselection,installation,and maintenance, it cansignificantly improve machine toolprocessing efficiency and flexibility, making it suitable for various manufacturing scenarios.
Product Parameters
SPECIFICATIONS | Units | CK6156 |
Swing over bed | mm | 560 |
Swing over cross slide | mm | 350 |
Distance between centers | mm | 1000/1500/2000/3000 |
Spindle bore | mm | 82 |
Spindle nose type | - | A2-8 |
Spindle speed steps | - | Stepless |
Spindle speed range | rpm | L:45-200 M:160-800 L:600-1600 |
Turret/tool post | - | Electric 4 position |
Tool size | mm | 25*25 |
X axis travel | mm | 340 |
Z axis travel | mm | 1000/1500/2000/3000 |
X axis rapid traverse | mm/min | 6000 |
Z axis rapid traverse | mm/min | 8000 |
Tailstock quill diameter | mm | 75/150 |
Tailstock quill taper | - | MT5# |
Tailstock quill travel | mm | 75/150 |
Spindle motor power | kw | 11 |
Machine weight | kg | 2600/3050/3450/4250 |
Overall dimension(L*W*H) | mm | 3200/3700/4200/5200*1600*1700 |
Standard configuration
4-station Electrician Tool Holder
GSK System
Manual Tailstock
Manual Three Jaw Chuck
Optional configuration
FANUC System
SYNTEC System
GSK system
Siemens System
Oil Mist Collector
Hydraulic Tailstock
Hydraulic chuck
Center Frame And Knife Holder
Air Conditioner
8-Station Horizontal Turret
Company Profile
Shandong ACR Machine Tool Co., Ltd. is a product design, research and development, manufacturing and sales in one of the enterprises. The main production and operation of CNC lathe machine, CNC milling machine, vertical machining centers, horizontal machining centers, gantry machining centers, manual lathes, manual milling machines and other series of machine tools products.
The company is located in known as "nine provinces, Qufu, south of the pearl of Lunan," said the saint Mozi's hometown-Tengzhou, north of Confucius's hometown, south of the misty Weishan Lake, which is a good place to admire mountain Tai, visit Confucius and Mencius, spring city, boating Weishan red Lotus wetland tourist resort. Beijing-fu Expressway, Beijing-Shanghai Railway and 104 National Highway run through the whole country, and the traffic is developed.
The company's products have covered all parts of the country, and have been exported to North Korea, Angola, Kenya, South America, Southeast Asia, Russia, the Middle East and other countries and regions, the products have been praised by domestic and foreign customers. In recent years, the company in the continuous innovation and development, has launched a number of special CNC machine tool products, and has been recognized by the market.
We always insist on good products, good services and good reputation!
We have a high-quality team, as always to serve you!
Shandong ACR Machine Tool Co., Ltd. welcomes friends from all over the world to visit and guide us!
The company is located in known as "nine provinces, Qufu, south of the pearl of Lunan," said the saint Mozi's hometown-Tengzhou, north of Confucius's hometown, south of the misty Weishan Lake, which is a good place to admire mountain Tai, visit Confucius and Mencius, spring city, boating Weishan red Lotus wetland tourist resort. Beijing-fu Expressway, Beijing-Shanghai Railway and 104 National Highway run through the whole country, and the traffic is developed.
The company's products have covered all parts of the country, and have been exported to North Korea, Angola, Kenya, South America, Southeast Asia, Russia, the Middle East and other countries and regions, the products have been praised by domestic and foreign customers. In recent years, the company in the continuous innovation and development, has launched a number of special CNC machine tool products, and has been recognized by the market.
We always insist on good products, good services and good reputation!
We have a high-quality team, as always to serve you!
Shandong ACR Machine Tool Co., Ltd. welcomes friends from all over the world to visit and guide us!
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )7.If the above products do not meet your requirements, we can customize them according to customer requirements!
A: 1 set .(Only some low cost machines will be more than 1 set )7.If the above products do not meet your requirements, we can customize them according to customer requirements!
