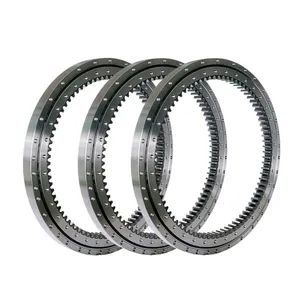

Classic Single Row Crowned Raceway Slewing Bearing 50mn 55-62HRC 1Y MOQ100 Axial Radial Tilting
Piece
Negotiable
Product information
High-quality Classic Single Row Crowned Raceway Slewing Bearing 50mn 55-62HRC 1Y MOQ100 Axial Radial Tilting supplied by Wier (Beijing) New Materials Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Gross Weight:
10.000kg
Package Size:
100.00cm * 100.00cm * 50.00cm
Production Capacity:
100000 Pieces/Year
Specification:
50-10000mm
Material:
50mn/42CrMo/42CrMo4V/Customized
Raceway Hardness:
55~62HRC
Load Direction:
Axial, Radial, Tilting Moment
Origin:
China
Specifications
Package Gross Weight:
10.000kg
Package Size:
100.00cm * 100.00cm * 50.00cm
Production Capacity:
100000 Pieces/Year
Specification:
50-10000mm
Material:
50mn/42CrMo/42CrMo4V/Customized
Raceway Hardness:
55~62HRC
Load Direction:
Axial, Radial, Tilting Moment
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Size:
Clients Requirements
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Roller Type:
Crowned Raceway
Trade Term:
FOB
Advantage:
Low Noise, Low Vibration, High Precision
Application:
Mining, Petroleum, Automatic, Excavator, Crane
Type:
None Gear/Internal Gear/External Gear
Transport Package:
Plywood Package/Customized Packaging
Sealing Gland:
Seals or No Seals
Rolling Element Number:
Single Row /Double Row/Multiple-Column
Payment Methods:
Support payments in USD
Mounting Hole:
Through Hole/Tapped Hole
Payment Term:
To be discussed
Trademark:
WIER/Customized logo/OEM
Model NO.:
bearing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
IATF16949, IS09001
Product descriptions from the supplier
China slewing bearing manufacturer
Slewing bearings serve as fundamental elements for allowing spinning movement. These bearings consist of an inner and an outer ring, with one typically featuring a gear assembly.
Together with attachment holes in both rings, they enable an optimized power transmission with a simple and quick connection between adjacent machine components.
The inner and outer rings, together with the rolling components and retainers or separators, are engineered to handle forces applied individually or jointly, regardless of orientation.
Together with attachment holes in both rings, they enable an optimized power transmission with a simple and quick connection between adjacent machine components.
The inner and outer rings, together with the rolling components and retainers or separators, are engineered to handle forces applied individually or jointly, regardless of orientation.
Another term for slewing bearing is rotary bearing. It's occasionally referred to as slewing bearing or slewing bearing. In English, it's known as slewing bearing, slewing ring bearing, turntable bearing, or slewing ring.
A critical component in machinery that enables rotational movement between two elements and simultaneously withstands axial, radial, and overturning loads
WIER slewing rings are extensively applied across marine systems, construction equipment, light manufacturing tools, metal processing machines, medical devices, wind energy systems, heavy industrial systems, and various other sectors.
WIER produces both standard and bespoke slewing bearings in multiple configurations, offering outer diameters ranging from 0.1 to 18 meters to satisfy specific application needs.
 |
 |
 |
Single Row Four Point Contact Ball Slewing Bearings
Single-row four-point contact ball slewing bearings consist of two seat rings, featuring a compact structure and light weight.
The steel balls make four-point contact with the arc-shaped raceway, enabling the bearing to simultaneously withstand axial forces, radial forces, and overturning moments.
It is suitable for use in engineering machinery such as rotary conveyors, welding manipulators, medium and small-sized cranes, and excavators.
Single Row Crossed Roller Slewing Bearings
Single-row crossed roller slewing bearings are composed of two ring supports, offering a compact design, low mass, superior production accuracy, minimal fit tolerance, and strict demands on installation precision.
The rollers are arranged in a 1:1 crossed pattern, enabling them to simultaneously withstand axial forces, overturning moments, and large radial forces.
They are widely used in lifting and transportation equipment, construction machinery, and military products.
Double Row Ball Slewing Bearing
A double-row ball slewing bearing features three support rings; the steel balls and spacer block are positioned directly within the upper and lower raceways, with separate sets of upper and lower balls of varying sizes installed based on load distribution.
This open configuration is highly practical due to the 90° arc angles of both upper and lower bearing raceways, enabling it to handle significant axial loads and tilting torques. If the radial load exceeds 0.1 times the axial load, the raceway must undergo specific engineering adjustments.
Double-row variable-ball slewing bearings feature substantial axial and radial dimensions with a robust design, making them ideal for medium-diameter tower cranes, mobile cranes, and material handling equipment.
Three Row Roller Slewing Bearings
This three-row roller slewing bearing includes three seat rings, each having distinct upper, lower, and radial tracks, allowing accurate measurement of the load carried by each roller row.
It can simultaneously withstand various loads and is the product with the highest load-bearing capacity among the four types.
Features a substantial shaft and broad radial reach with a strong, durable build. Ideal for heavy-duty equipment needing significant diameter, including bucket wheel excavators, wheel cranes, ship cranes, steel ladle turntables, and heavy-load truck cranes.
Thin Section Slewing bearings
Light slewing bearings share the same basic design as standard slewing bearings but feature reduced mass, a more concise build, and a thinner profile.
They are widely used in fields such as food machinery, filling machinery, and environmental protection machinery.
Flanged Slewing Bearing
Flanged slewing bearings are advanced rotational components engineered to handle substantial axial, radial, and torque forces, enabling accurate and seamless spinning across diverse industrial uses.
They are characterized by a flange on their outer or inner ring, facilitating easy mounting and, in some cases, providing greater stiffness.
Flanged slewing bearings are widely used across different industries, including construction, wind turbines, heavy machinery, and crane systems.
A Leader of Slewing Bearing Manufacturer.
WIER slewing bearings, a seasoned specialist in custom slewing solutions, boasting two decades of expertise, allow you to maintain current operations; our manufactured bearings seamlessly substitute your current inventory.
Our full-process production capabilities, from raw materials (blanks) to finished products, serve your industry.
 |
 |
| Professional Manufacturing, Reliable Quality Over 20 years of experience in slewing bearing production with strict quality control ensures stable and dependable performance trusted by global clients. |
Complete Series for All Applications We provide complete lines of products — 01, HS, Q, 11, HJ, Thin-section, and Flange — extensively applied across construction equipment, wind energy, healthcare, defense, and various other sectors. |
| High Precision, Smooth Operation Manufactured with advanced CNC equipment, our bearings feature high gear accuracy and smooth meshing, extending equipment lifespan. |
Custom Solutions Available Support for non-standard and customized slewing bearings based on your drawings or special working conditions, with fast delivery and guaranteed compatibility. |
| Premium Materials, Durable Performance Produced with high-quality alloy steel and treated with surface hardening and anti-rust processes, our bearings perform reliably in harsh environments. |
Comprehensive Service & Support From technical selection to installation guidance and after-sales service, we respond quickly to customer needs and ensure efficient project delivery. |
|
Type
|
1. Single Row Four Point Contact Ball Slewing Bearings.
2. Single Row Crossed Roller Slewing Bearings
3. Double Row Ball Slewing Bearings
4. Three Row Roller Slewing Bearings
5. Thin Section Slewing bearings (Light type).
6. Thin Section Slewing Bearings (Flange type)
|
||
|
Gear type
|
No gear, internal gear, or External gear.
|
||
|
Rolling elements
|
Steel Ball/Cylinder Roller
|
||
|
Rolling Elements Material
|
GCr5/GCr15SiMn/Customized
|
||
|
Bearing Material
|
50Mn/42CrMo/42CrMo4V/Customized
|
||
|
Cage Material
|
Nylon/ steel /copper
|
||
|
Structure
|
taper pin, Mounting holes, inner ring, grease fitting, load plug, seals, roller, spacer balls, or separators
|
||
|
Outer diameter
|
50-10000mm
|
||
|
Bore size
|
50-10000mm
|
||
|
Mounting hole
|
Through hole/Tapped hole
|
||
|
Raceway hardness
|
55-62 HRC
|
||
|
Inner and outer ring modulation hardness
|
229-269HB/Customized
|
||
|
Embellish grease
|
EP2 lithium lubricating grease
|
||
|
Application area
|
Slewing Bearing for New Energy
Slewing Bearing for Engineering Machinery
Slewing Bearing for Automation Equipment
Slewing Bearing for Amusement Machinery
Slewing Bearing for Agricultural Machinery
Slewing Bearing for Logistics Warehousing
Slewing Bearing for Environmental Protection Machinery
Slewing Bearing for Mining Machinery
Slewing Bearing for Forest Machinery
Slewing Bearing For Light Machinery
|
||
|
Used For
|
Heavy-duty construction tools, digger, breaker, material handler, leveling machine, compactor, impact hammer, drilling rigs, tunneling cutter, cement equipment, feed systems, hoisting systems, soil stabilization gear, harbor gear, clean energy tech, metal processing units, ladle turntable, stacker crane, bucket wheel unit, solar mirror tracking, harbor crane, cable laying machine, tower hoist, marine structure, observation wheel, automated palletizer, rotating furnace, canned goods filler, wind turbine blade mover, tunnel boring machine, pipe jacking station, and similar devices.
|
||
|
Packing details
|
1. Filling with anti-rust oil
2. Covered with Plastic paper
3. Covered with kraft paper
4. Carved with Blue tie
5. Put in wooden box
|
||
|
Brand Name
|
OEM or WIER
|
||
|
Origin
|
China
|
||
|
Warranty
|
12 months
|
||
Step1.Forgings
Evaluate top suppliers by randomly selecting and analyzing their raw materials to confirm compliance with national regulations and ensure mechanical characteristics align with product specifications.
2. Once the forgings arrive at the facility, quality control personnel carry out visual checks and size verification to confirm the absence of visible flaws, ensuring sufficient tolerance for final product manufacturing.
2. Rough turning
1. Descaling rough turning: according to the size of finished products, reserve enough size margins.
2. Ultrasonic inspection: forged parts following rough machining are examined using ultrasonic waves to identify material flaws like porosity, inclusions, and layering, among others.
3. Tempering treatment: according to the national standard or the special reguirements of customers, the tempering treatment could improve the mechanical properties.
4. Hardness testing of tempering treatment: Testing whether the overall hardness of forgings is qualified according to quenching and tempering hardness requirements.
3. Precision turning before quenching
A adequate allowance is set based on the raceway's design and dimensions to compensate for both machining and quenching distortions, while minimizing the leftover material as much as feasible.
4. Quenching and temper stability of raceway.
The raceway undergoes medium frequency quenching treatment. The hardened layer achieves a hardness of HR(SS-62 and maintains a minimum effective depth of 3 mm. Following quenching, a stable tempering process is applied to relieve internal stresses, minimize deformation during later machining, and lower the likelihood of raceway fractures.
5. Detection of hardness, depth and crack
Detection of hardness. effective depth and crack in quenched area. especially initial position.
6. Quenched semi-finish turning
Processing datum level, providing datum for subsequent processing of teeth, holes, etc.
7. Tooth processing
According to different kinds of tooth shape, processing methods such as shaping, hobbing and milling can be selected.
The accuracy level can meet 7-10 grades. If higher accuracy is needed, grinding can meet 4-6 grades.
8. Hardening, Tempering Stability and Testing of Teeth
To ensure the teeth have sufficient durability and operational lifespan, selective high-frequency quenching is applied to both the root and crown areas based on specific needs. The resulting hardness reaches HRC 40–55, with a penetration depth of 1.5mm. Following quenching, a tempering process stabilizes the structure, removes residual stresses, lowers the chance of cracks forming, and enables post-treatment evaluation of hardness and potential flaws.
9. Hole Processing and Detection
Control the chord length, wall thickness. aperture and other items in the machining process and correct them in time
Inspection for threads with high accuracy requirements
10. Fine grinding and testing
Accurate grinding is employed in high-precision manufacturing to tightly regulate ring ellipse, wall thickness, and surface flatness, thereby guaranteeing that final product accuracy aligns with specified standards or customer specifications.
11. Match clearance
Accurate measurement of part size, Calculating spare parts allowance, according to the requirements of the drawings to match clearance.
12. Assembling
Eliminate ring burrs and ensure surface is free of debris. Fit rollers, cages, seals, and other components as specified in the assembly blueprint. Hand-rotate the unit to verify smooth operation and the absence of any unusual sounds.
13. Finished product testing
The assembly is completed, detecting whether all aspects meet technical standards.
14. Installation of Sign Mark
Install sign and logo according to customer requirement.
15. Fill grease and Packaging
1. Before product packaging. add corresponding brand and type grease according to customer's requirements to protect raceway from damage.
Wooden crates designed for ocean freight are employed to guarantee goods reach their destinations safely, regardless of distance, duration, or location.
WIER, China's powerful manufacturer.
WIER is headquartered in Beijing, China. As a manufacturing facility, we produce gears, slewing bearings, and sheet metal components. The company operates three distinct business units with dedicated production sites for gears, rotary bearings, and sheet metal forming. We offer ODM and OEM production solutions to numerous recognized brands across China and around the world.
Specialized in delivering top-tier gears, slewing bearings, and integrated parts for sectors including agriculture, forestry, construction, building, oil & gas equipment, mining, machine shops, textiles, gearboxes, packaging, printing, marine vessels, tobacco processing, paper production, automotive, fluid handling gears, robotics, automated systems, machine tool drives, and numerous additional fields.
WIER features more than 200 units of processing and quality inspection machinery, along with 7 automated production lines, 7 packaging systems, and 2 dedicated units for environmental sanitation, drying, and coating. Thanks to cutting-edge technology and extensive production expertise, international clients from the U.S., Belgium, Italy, Canada, Germany, UAE, Norway, South Korea, and Southeast Asia have partnered with us. Currently, annual exports represent over 80% of overall output.
20 years of Slewing bearings manufacturing experience, supporting non-standard customization
We have three production bases, seven production lines, over 200 sets of production equipment, and more than 180 employees.
| OEM Services We are proficient in providing OEM services to customers. From prototypes to mass production, WIER offers efficient manufacturing support to customers. |
Engineering Capabilities We offer comprehensive support including product development, refinement, and efficiency evaluation. Through ongoing enhancements and advancements in techniques like rolling, broaching, shaving, grinding, heat treatment, forging, and more, we deliver superior products and service solutions. |
| High Cost-effectiveness WIER offers inventory assistance to mainframe producers, delivering products as per a predefined schedule. This proven approach enables you to cut down or fully remove surplus stock, directly lowering your operational costs. |
Fast Delivery Design, development, manufacturing, assembly, and testing are all carried out in our factory, so our delivery time is very fast. |
1. Q: Are you trading company or manufacturer ?
A: We are professional slewing bearing manufacturer with 20 years' experience.
2. Q: How long is your delivery time?
A: Generally it is 4-5 days if the goods are in stock. or it is 45 days if the goods are not in stock, Also it is according to quantity.
3. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, it is extra.
4. Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
5. Q: Can you provide special customization according to the working conditions?
A: Sure, we can design and produce the slewing bearings for different working conditions.
6. Q: How about your guarantee?
A: We provide lifelong after-sales technical service.
