Clinotronic Plus Repeatability ≤ 0.01° Weight 13 Oz. (380 Grams) Data Output Interface Serial Measuring Range ± 45° /
1 Piece
$2,420Product information
High-quality Clinotronic Plus Repeatability ≤ 0.01° Weight 13 Oz. (380 Grams) Data Output Interface Serial Measuring Range ± 45° / supplied by South India Trading Co.. Bulk wholesale pricing is $2,420 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Operating Temperature Range:
0 To 40°c
Weight:
13 Oz. (380 Grams)
Dimensions:
4x3x1" (100 X 75 X 30mm)
Housing Material:
Aluminum Hard Anodized
Temperature Coefficient:
Less Than 0.01°/°c
Data Output Interface:
Serial
Battery Type:
Standard Aa 1.5v Alkaline Or Aa 3.0v Mn02-lithium
Trade Term:
To be discussed
Specifications
Operating Temperature Range:
0 To 40°c
Weight:
13 Oz. (380 Grams)
Dimensions:
4x3x1" (100 X 75 X 30mm)
Housing Material:
Aluminum Hard Anodized
Temperature Coefficient:
Less Than 0.01°/°c
Data Output Interface:
Serial
Battery Type:
Standard Aa 1.5v Alkaline Or Aa 3.0v Mn02-lithium
Trade Term:
To be discussed
Payment Term:
To be discussed
Response Time:
Within 5 Seconds
Measuring Range:
± 45° / 0-360°
Repeatability:
≤ 0.01°
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2014
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier

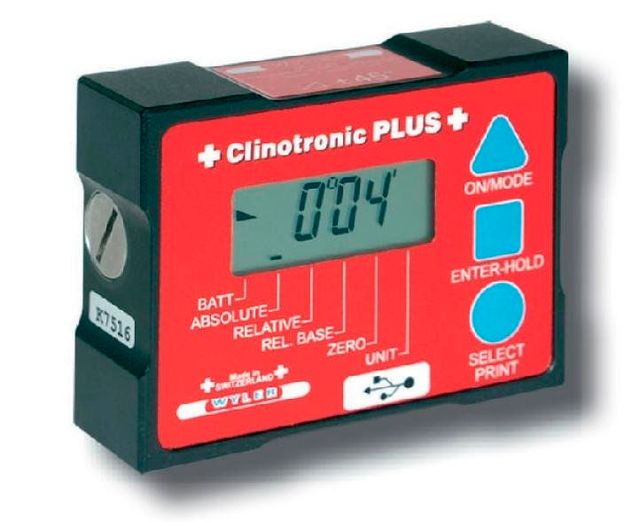

We are supplier & trader of Clinotronic Plus.The +CLINOTRONIC PLUS+ provides a measuring capacity of ± 45 degrees or alternatively ± 10 degrees respectively ± 30 degrees. Four precisely machined exterior reference surfaces assure accuracy and repeatability of measurements in any quadrant. Selected by push-button, any units suitable for inclination measurement may be applied to the display. Even slope indication based on a relative base of selectable length is possible. Simple push-button operation automatically sets absolute as well as relative zero. The RS 485 interface allowsthe connection to other WYLER instruments or directly to a PC using a special cable.
All indicated values are, by interpolation of calibration values stored, computed prior to display. If required, an integrated calibration mode may be actuated in order to replace the stored calibration data. For this purpose, the +CLINOTRONIC PLUS+ ± 45° must, with the aid of suitable equipment, be accurately inclined, using 5 degrees steps over the range of ± 50 degrees.The measuring principle is based on a differential capacity measurement of a pendulum providing excellent repetition, hysteresis as well as start-up behaviour. Combined with a complex evaluation algorithm this forms the base of an high quality hand-held tool.
Specifications:
All indicated values are, by interpolation of calibration values stored, computed prior to display. If required, an integrated calibration mode may be actuated in order to replace the stored calibration data. For this purpose, the +CLINOTRONIC PLUS+ ± 45° must, with the aid of suitable equipment, be accurately inclined, using 5 degrees steps over the range of ± 50 degrees.The measuring principle is based on a differential capacity measurement of a pendulum providing excellent repetition, hysteresis as well as start-up behaviour. Combined with a complex evaluation algorithm this forms the base of an high quality hand-held tool.
Specifications:
- Measuring range/capacity: ± 45°/0-360°
- Response time: Value available within 5 seconds.
- Repeatability<.01:0
- Temp, coefficient: Less than 0.01°/°C.
- Data output: Serial
- Battery: Standard AA 1.5V alkaline/130hrs or AA 3.0V Mn02-Lithium (for longer operation 300/hrs)
- Housing: Aluminum hard anodized
- Dimensions: 4x3 x 1 "(100 x 75 x 30mm)
- Weight: 13 oz.(380 grams)
- Temp, range: operational 0 to 40°C.
