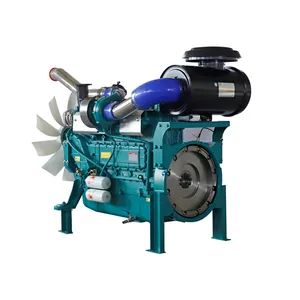

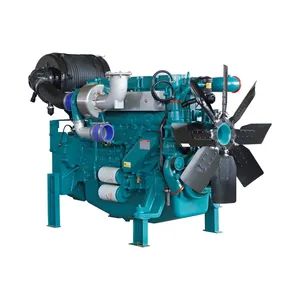

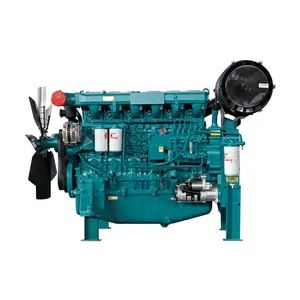

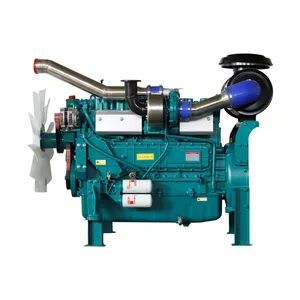

Color Custom Diesel Engine Electric Engine Cylinder Engine with 4 Stroke for Generator Set
1-4 set
$5,2005-9 set
$5,10010 set
$5,000Product information
High-quality Color Custom Diesel Engine Electric Engine Cylinder Engine with 4 Stroke for Generator Set supplied by Weifang Lambert Power Co., Ltd. Bulk wholesale pricing ranges from $5,000 to $5,200 per set with a minimum order of 1 set. Inquiry for latest prices.
Specification:
1050kg
Displacement:
11.6L
Bore*Stroke:
126mm*155mm
Compression Ratio:
17:1
Production Capacity:
5000 Sets
Number Of Cylinders:
6-Cylinder
Model NO.:
6D12D320
HS Code:
8408909390
Specifications
Specification:
1050kg
Displacement:
11.6L
Bore*Stroke:
126mm*155mm
Compression Ratio:
17:1
Production Capacity:
5000 Sets
Number Of Cylinders:
6-Cylinder
Model NO.:
6D12D320
HS Code:
8408909390
Origin:
China
Fuel:
Diesel
Type:
Electric Motor
Trade Term:
FOB, CIF, CFR, EXW
Number Of Strokes:
Four-Stroke
Cylinder Arrangement Form:
L
Payment Term:
LC, T/T
Trademark:
Lambert
Transport Package:
Plywood Case
Port Of Loading:
Qingdao
Piston Movement:
Reciprocating
Intake Pressure Impulse:
Supercharged
Intake Type:
TCI
Cooling Cylinder:
Water-Cooled
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-01-18
Annual Revenue Amount:
Not specified
Numbers Of Employees:
20
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao
Certificates:
Ce Certificate, GAS Engine Ce Certificate, ISO 9001, LAMBERT mark registration
Product descriptions from the supplier
Details of diesel engine for electric:
Product pictures:
Components and details:
Hose:silicone material
Advantage:
good resistivity,
strong scalability,
greatly extend the life of diesel engines,
easy installation and disassembling.
Air filter:original Weichai products Manufacturer: AVIC XINHANG PINGYUAN FILTER CO.,LTD.
(military products technology)
Low pressure diesel pipes:
are made of alloy stainless steel;
desige with damping hose;
fitting worked at high temperatures especially for silent diesel generator sets.
Cylinder liner: Yangzhou Wutingqiao Piston: Hunan Jiangbin (military enterprises),
≥ 350KW using Germany Mahler piston;
Piston ring: Anqing (Japan, USA and China tripartite joint venture)
Crankshaft: forged steel, instead of casting material, forged steel crankshaft with high strength.
Cylinder head:Weichai original products.
Oil sump:
flat design reducing the engine's height;
increasing the capacity of oil and the cooling area.
more suitable for silence generator set and fire pump.
Workshop and Package:
At present, our company has three advanced assembly lines with complete supporting equipments
and auxiliary facilities, two of which are assembly lines and one is packaging line.
The assembly lines have realized automatic operation mode. Experienced and skilled operators perform
on-site operations in accordance with process control procedures and operating instructions to ensure
products meet customer requirements.
The assembly line has a reasonable design and the staff work closely together. Each assembly line
can produce 130 diesel engines in 8 hours.
Our company focuses on providing high-quality products and first-class services to meet your needs.
Wemainly produce a series of direct injection and eddy current dieselengines,and various types
of generator sets, with the product power covering from 20KW to 462KW.
Our diesel engines are widely used in power generation equipment,marine machinery, engineering
machinery, fixed power,agricultural machinery and other fields.
Our company has four advanced test stands, each of which is equipped with automatic water
temperature control, automatic oil temperature control and temperature control system before and
after intercooling, which can realize the accurate control of engine inlet and outlet water temperature,
oil temperature and post-intercooling air temperature during the test.
Each test bench can accurately measure engine speed, torque, power, fuel consumption rate, water
temperature, oil temperature, before and after intercooling temperature and other engine performance
parameters. Each parameter measurement accuracy is within 0.5%.
Exhibition:
Certifications:
Company profile:
LAMBERT is a high-tech enterprise of diesel and gas engines, while also a leading manufacturer of
generating sets, complete sets of industrial and fire pump equipment, agricultural equipment,
remanufacturing, and automated control. The company has been adhering to the concept of
'TECHONOLOGY IN MOTION' which for our customers provide high reliability, high quality
products and services.
LAMBERT continues to grow and develop. Our diesel engines are busy working in the city, in the
countryside, in the harbor, or in the mine. Although you can't see us usually, we have been quietly
beside you. We not only provide reliable backup power for telecommunications, banks, hotels,
shopping centers and hospitals but also provide complete fire pump and automatic control systems
for workshop and construction of buildings. We turn municipal waste and sewage into electricity; also
we turn the rural straw, human and animal feces, and food factory wastewater and waste residue
into clean energy. Our diesel engines also have played an important role in the highlands, agricultural
irrigation and water diversion. Growing with ourcustomers together is our changeless commitment.
LAMBERT specializes in providing quality of products, excellent service and complete solutions.
In order to meet the diverse requirements of customers, we have our own factory and we
have R & D centers and laboratories in the UK and Australia. Our team develops products which
suit the market with customers together, and provides customers with unparalleled support.
LAMBERTadheres to people-oriented and development of talent. Establish learning and communication
platform by cooperating with a number of universities to attract talent to enrich our team.
LAMBERT focuses on the career planning and indicating the development path and prospect of talents.
LAMBERT takes 'sincerity, innovation, excellence and cooperation' as core values and all of our
actionsare abide by it.
LAMBERTadvocates of volunteerism and the sustainable development concept and promote green
civilization to build a beautiful homeland.
LAMBERT is committed to innovation; committed to quality products; committed to the timely and
efficient services; committed to unparalleled customer support.
FAQ:
1. How to choose the right model ?
It depends on continuous output power, Voltage, Frequency and fuel type.
2. What is the warranty ?
One year.
We offer all spare parts free of charge during warranty period. After this period, spare parts are not free.
What's more, a set of spare parts will be shipped together with engine and generator set free of charge.
3.Why do you choose Lambert?
More than 7 years experience in international market development of diesel engine andgenerator
set, enables us to provide the most suitable products according to the needs of customers, and
quickly collect and integrate relevant market resources.
It enables me to grasp themarketand industry trends and take effective plans and measures.
4.How is the after sale service and maintenance?
A:We offer installation,repair and maintain service abroad. And online guide service if needed anytime.
Our before-sale, in-sale and after-sale service are all trustable, you can name it.
| Power range182KW-283KW | |||
| Model | 6D10D182 | 6D10D235 | 6D10D258 |
| Type | water-cooling,in-line,4-stroke,direct injection and dry liner | ||
| Rated Output(KW) | 182/200 | 235/258 | 258/283 |
| r/min | 1500/1800 | ||
| Cylinder No. | 6 | ||
| Firing Order | 1-5-3-6-2-4 | ||
| Intake Type | TCI | ||
| Compression Ratio | 17:1 | ||
| Bore*stroke(mm) | 126*130 | ||
| Displacement | 9.7 | ||
| Governor | Electronic Governor≤1% | ||
| Flywheel No. | SAE1# | ||
| Flywheel Housing No. | 14" | ||
| Net Weight(kg) | 980 | ||
| Power range240KW-315KW | |||
| Model | 6D10D264 | 6D10D286 | 6D10D315 |
| Type | water-cooling,in-line,4-stroke,direct injection and dry liner | ||
| Rated Output(KW) | 240/264 | 260/286 | 286/315 |
| r/min | 1500/1800 | ||
| Cylinder No. | 6 | ||
| Firing Order | 1-5-3-6-2-4 | ||
| Intake Type | TCI | ||
| Compression Ratio | 17:1 | ||
| Bore*stroke(mm) | 126*130 | ||
| Displacement | 9.7 | ||
| Governor | Electronic Governor≤1% | ||
| Flywheel No. | SAE1# | ||
| Flywheel Housing No. | 14" | ||
| Net Weight(kg) | 950 | ||
| Power range288KW-363KW | |||
| Model | 6D12D288 | 6D12D315 | 6D12D330 |
| Type | water-cooling,in-line,4-stroke,direct injection and dry liner | ||
| Rated Output(KW) | 288/317 | 315/347 | 330/363 |
| r/min | 1500/1800 | ||
| Cylinder No. | 6 | ||
| Firing Order | 1-5-3-6-2-4 | ||
| Intake Type | TCI | ||
| Compression Ratio | 17:1 | ||
| Bore*stroke(mm) | 126*155 | ||
| Displacement | 11.6 | ||
| Governor | Electronic Governor≤1% | ||
| Flywheel No. | SAE1# | ||
| Flywheel Housing No. | 14" | ||
| Net Weight(kg) | 1050 | ||
| Power range330KW-440KW | |||
| Model | D2765A | D2765A-1 | D2765A-2 |
| Type | water-cooling,in-line,4-stroke,direct injection and dry liner | ||
| Rated Output(KW) | 330/363 | 368/405 | 400/440 |
| r/min | 1500/1800 | ||
| Cylinder No. | 6 | ||
| Firing Order | 1-5-3-6-2-4 | ||
| Intake Type | TCI | ||
| Compression Ratio | 17:1 | ||
| Bore*stroke(mm) | 126*166 | ||
| Displacement | 12.6 | ||
| Governor | Electronic Governor≤1% | ||
| Flywheel No. | SAE1# | ||
| Flywheel Housing No. | 14" | ||
| Net Weight(kg) | 1200 | ||
Product pictures:
Components and details:
Hose:silicone material
Advantage:
good resistivity,
strong scalability,
greatly extend the life of diesel engines,
easy installation and disassembling.
Air filter:original Weichai products Manufacturer: AVIC XINHANG PINGYUAN FILTER CO.,LTD.
(military products technology)
Low pressure diesel pipes:
are made of alloy stainless steel;
desige with damping hose;
fitting worked at high temperatures especially for silent diesel generator sets.
Cylinder liner: Yangzhou Wutingqiao Piston: Hunan Jiangbin (military enterprises),
≥ 350KW using Germany Mahler piston;
Piston ring: Anqing (Japan, USA and China tripartite joint venture)
Crankshaft: forged steel, instead of casting material, forged steel crankshaft with high strength.
Cylinder head:Weichai original products.
Oil sump:
flat design reducing the engine's height;
increasing the capacity of oil and the cooling area.
more suitable for silence generator set and fire pump.
Workshop and Package:
At present, our company has three advanced assembly lines with complete supporting equipments
and auxiliary facilities, two of which are assembly lines and one is packaging line.
The assembly lines have realized automatic operation mode. Experienced and skilled operators perform
on-site operations in accordance with process control procedures and operating instructions to ensure
products meet customer requirements.
The assembly line has a reasonable design and the staff work closely together. Each assembly line
can produce 130 diesel engines in 8 hours.
Our company focuses on providing high-quality products and first-class services to meet your needs.
Wemainly produce a series of direct injection and eddy current dieselengines,and various types
of generator sets, with the product power covering from 20KW to 462KW.
Our diesel engines are widely used in power generation equipment,marine machinery, engineering
machinery, fixed power,agricultural machinery and other fields.
Our company has four advanced test stands, each of which is equipped with automatic water
temperature control, automatic oil temperature control and temperature control system before and
after intercooling, which can realize the accurate control of engine inlet and outlet water temperature,
oil temperature and post-intercooling air temperature during the test.
Each test bench can accurately measure engine speed, torque, power, fuel consumption rate, water
temperature, oil temperature, before and after intercooling temperature and other engine performance
parameters. Each parameter measurement accuracy is within 0.5%.
Exhibition:
Certifications:
Company profile:
LAMBERT is a high-tech enterprise of diesel and gas engines, while also a leading manufacturer of
generating sets, complete sets of industrial and fire pump equipment, agricultural equipment,
remanufacturing, and automated control. The company has been adhering to the concept of
'TECHONOLOGY IN MOTION' which for our customers provide high reliability, high quality
products and services.
LAMBERT continues to grow and develop. Our diesel engines are busy working in the city, in the
countryside, in the harbor, or in the mine. Although you can't see us usually, we have been quietly
beside you. We not only provide reliable backup power for telecommunications, banks, hotels,
shopping centers and hospitals but also provide complete fire pump and automatic control systems
for workshop and construction of buildings. We turn municipal waste and sewage into electricity; also
we turn the rural straw, human and animal feces, and food factory wastewater and waste residue
into clean energy. Our diesel engines also have played an important role in the highlands, agricultural
irrigation and water diversion. Growing with ourcustomers together is our changeless commitment.
LAMBERT specializes in providing quality of products, excellent service and complete solutions.
In order to meet the diverse requirements of customers, we have our own factory and we
have R & D centers and laboratories in the UK and Australia. Our team develops products which
suit the market with customers together, and provides customers with unparalleled support.
LAMBERTadheres to people-oriented and development of talent. Establish learning and communication
platform by cooperating with a number of universities to attract talent to enrich our team.
LAMBERT focuses on the career planning and indicating the development path and prospect of talents.
LAMBERT takes 'sincerity, innovation, excellence and cooperation' as core values and all of our
actionsare abide by it.
LAMBERTadvocates of volunteerism and the sustainable development concept and promote green
civilization to build a beautiful homeland.
LAMBERT is committed to innovation; committed to quality products; committed to the timely and
efficient services; committed to unparalleled customer support.
FAQ:
1. How to choose the right model ?
It depends on continuous output power, Voltage, Frequency and fuel type.
2. What is the warranty ?
One year.
We offer all spare parts free of charge during warranty period. After this period, spare parts are not free.
What's more, a set of spare parts will be shipped together with engine and generator set free of charge.
3.Why do you choose Lambert?
More than 7 years experience in international market development of diesel engine andgenerator
set, enables us to provide the most suitable products according to the needs of customers, and
quickly collect and integrate relevant market resources.
It enables me to grasp themarketand industry trends and take effective plans and measures.
4.How is the after sale service and maintenance?
A:We offer installation,repair and maintain service abroad. And online guide service if needed anytime.
Our before-sale, in-sale and after-sale service are all trustable, you can name it.
User Reviews
Write a review
File a complaint
Supplier Review
Summary by Vivian
TRUST STARS
3.5/5
0 Reviews
Company Verification
0/4
Profile Completeness
67%
Avg. Product Score
0/5
Responsiveness
0%
Certification
Ce Certificate, GAS Engine Ce Certificate, ISO 9001, LAMBERT mark registration
Related searches
Frequently Asked Questions (FAQs)
How can I buy & import Electric Drives from China?
You can contact verified China supplier Weifang Lambert Power Co., Ltd through platforms like Freshdi.com to purchase Color Custom Diesel Engine Electric Engine Cylinder Engine with 4 Stroke for Generator Set. For direct inquiries, please contact Mrs. Hanna Liu, the company’s representative. The supplier has a 3.5-star rating on Freshdi and has verified. You’ll receive product details, pricing, and shipping terms directly from supplier.
What are the payments and trade terms for Color Custom Diesel Engine Electric Engine Cylinder Engine with 4 Stroke for Generator Set?
For Color Custom Diesel Engine Electric Engine Cylinder Engine with 4 Stroke for Generator Set, Weifang Lambert Power Co., Ltd accepts LC, T/T as the preferred payment method, the trade term is FOB, CIF, CFR, EXW, and shipments are typically arranged from port Qingdao, ensuring secure and timely international delivery.
What is the current price of Color Custom Diesel Engine Electric Engine Cylinder Engine with 4 Stroke for Generator Set?
The supplier Weifang Lambert Power Co., Ltd offers Color Custom Diesel Engine Electric Engine Cylinder Engine with 4 Stroke for Generator Set at negotiation.
What are the specifications of Color Custom Diesel Engine Electric Engine Cylinder Engine with 4 Stroke for Generator Set from China?
Color Custom Diesel Engine Electric Engine Cylinder Engine with 4 Stroke for Generator Set is sourced from China and meets international export standards. Key specifications include: Bore*Stroke: 126mm*155mm, Cylinder Arrangement Form: L, Fuel: Diesel, Number of Strokes: Four-Stroke, Model NO.: 6D12D320, Type: Electric Motor, Trade Term: FOB, CIF, CFR, EXW, Payment Term: LC, T/T
You are viewing details for Color Custom Diesel Engine Electric Engine Cylinder Engine with 4 Stroke for Generator Set. The information provided here is either posted directly by the supplier, who is responsible for its accuracy, or collected by Freshdi AI from publicly available sources. Freshdi strives to make product information as useful and reliable as possible, but we do not guarantee complete accuracy. If you notice any incorrect or misleading details, please use the Report Product option so our team can review and address it quickly.
$5,200
/ set
Min. order: 1 set
