Colored Steel Ridge Tile Roll Forming Machine Roof Ridge Cap Making Machine Metal Ridge Cap Machine
Set
Negotiable
Product information
High-quality Colored Steel Ridge Tile Roll Forming Machine Roof Ridge Cap Making Machine Metal Ridge Cap Machine supplied by Botou Xianfa Roll Forming Machine Factory. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production:
0-15m/Min
Stations:
16 Steps(Customizable)
Voltage:
380V 50Hz 3phases(Customizable)
Power(W):
4+4kw
Roller & Shaft Material:
45# Steel with Chrome Treatment
Large Frame:
450h Steel
Production Capacity:
50sets/Month
Package Gross Weight:
7000.000kg
Specifications
Production:
0-15m/Min
Stations:
16 Steps(Customizable)
Voltage:
380V 50Hz 3phases(Customizable)
Power(W):
4+4kw
Roller & Shaft Material:
45# Steel with Chrome Treatment
Large Frame:
450h Steel
Production Capacity:
50sets/Month
Package Gross Weight:
7000.000kg
Package Size:
776.00cm * 820.00cm * 170.00cm
HS Code:
8455221000
Color:
Blue(Customizable)
Origin:
Botou China
Certification:
CE
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Tile Type:
Colored Steel
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Cutter Material:
Cr12
Customized:
Customized
Specification:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, D/P, Western Union, PayPal
Transmission Method:
Machinery
Transport Package:
Naked and Covered by Plastic Film Into Container
Condition:
New
Control System:
PLC System
Type:
Roof Panel Machinery
Usage:
Roof, Wall
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin Port
Trademark:
XF
Model NO.:
XF25-122-370
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-01-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
22
Preferred Payment Term:
LC, T/T, D/P, Western Union, PayPal
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
BV, CE
Product descriptions from the supplier

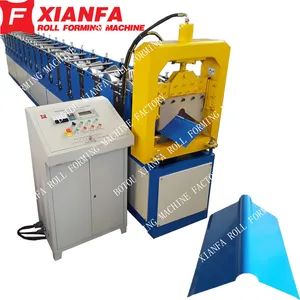

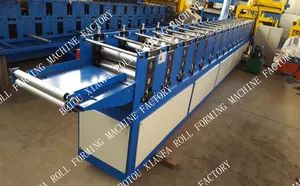

Color steel ridge cap roll forming machine roof ridge tile Roll forming machine
The main parts: roll forming machine; molding press; cutting machine; PLC computer control;
hydraulic system. The machine is stable, with no noise, no shake.
We can make and design the kinds of roll forming machines according to customer's requests

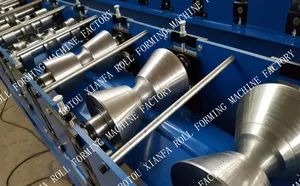

Main rollers
Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated
1.Roller stations: 15row wheels (according to different design, depend on the profile drawing)
2.Shaft diameter: 70mm, solid.
3.Wheel speed: 10-15M/min
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated
1.Roller stations: 15row wheels (according to different design, depend on the profile drawing)
2.Shaft diameter: 70mm, solid.
3.Wheel speed: 10-15M/min
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.

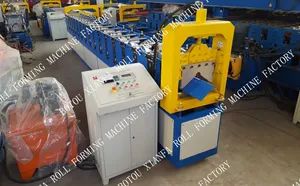

Computer control cabinet
It adopts TaiDa PLC to control,
Computed mode has two modes: Automatic and manual.
touchscreen
The unit length of the targeted sheet can be set in the control cabinet.
the operation is easy, running is steady and reliable, endurable.
It adopts TaiDa PLC to control,
Computed mode has two modes: Automatic and manual.
touchscreen
The unit length of the targeted sheet can be set in the control cabinet.
the operation is easy, running is steady and reliable, endurable.
hydraulic pump station
The hydraulic system uses the CDF-10 hydraulic pump, long operating life, no noise.
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank,
the pump drive the cutting machine to begin the cutting job.
The hydraulic system uses the CDF-10 hydraulic pump, long operating life, no noise.
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank,
the pump drive the cutting machine to begin the cutting job.
Feeding table
Feeding is smooth and level
The tail is equipped with a hand-pulled knife for early cutting and cost saving
Feeding is smooth and level
The tail is equipped with a hand-pulled knife for early cutting and cost saving

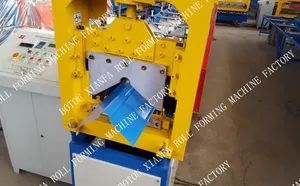

Cutting knife
1.Work type: Hydraulic
2.Driving method: By Cylinder
3.Cutter material : Cr 12/CR12MOV, Heat treatment
4.Cutting length tolerance: ±1.0mm
5.Advantages:Energy saving effect, hydraulic technology can achieve higher energy conversion efficiency and reduce energy consumption, the hydraulic drive response speed is fast.
1.Work type: Hydraulic
2.Driving method: By Cylinder
3.Cutter material : Cr 12/CR12MOV, Heat treatment
4.Cutting length tolerance: ±1.0mm
5.Advantages:Energy saving effect, hydraulic technology can achieve higher energy conversion efficiency and reduce energy consumption, the hydraulic drive response speed is fast.
remote control
The device is equipped with a remote control for easier operation. You can start or pause it anytime and anywhere.
The device is equipped with a remote control for easier operation. You can start or pause it anytime and anywhere.
Botou Xianfa Press Factory has a 28-year production history.
Our goods are now available in over 130 international markets including Australia, the United States, Romania, the Dominican Republic, Mexico, Kenya, Thailand, the Philippines, Zimbabwe, Peru, Colombia, Croatia, Saudi Arabia, and Macedonia, among others.
We maintain a good cooperative relationship with our customers.
We firmly believe that technological innovation and making every detail of the product perfect are our eternal pursuit.
Welcome to visit our factory
Package
Each piece of equipment undergoes a pre-shipment check, followed by plastic wrapping to block humidity and safeguard the exterior. Critical components will be secured with collision protection prior to packaging.
