Column Loadcell Floor Scale Weighing Load Force Measurement Pressure Module
1 Piece
$1501 Piece
$300Product information
High-quality Column Loadcell Floor Scale Weighing Load Force Measurement Pressure Module supplied by Qingdao Weitewosi Automation Equipment Co., Ltd. Bulk wholesale pricing ranges from $150 to $300 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Precision:
0.03%F.S
Compensated Temperature:
0~60℃
Package Gross Weight:
1.000kg
Excitation Voltage:
10V (DC)
Voltage Supply:
10VDC
Warranty:
12 Months
Output:
15V
Package Size:
27.00cm * 20.00cm * 17.00cm
Specifications
Precision:
0.03%F.S
Compensated Temperature:
0~60℃
Package Gross Weight:
1.000kg
Excitation Voltage:
10V (DC)
Voltage Supply:
10VDC
Warranty:
12 Months
Output:
15V
Package Size:
27.00cm * 20.00cm * 17.00cm
Capacity:
3-300kN
Production Capacity:
5000pieces/Year
HS Code:
8423891000
Model NO.:
A1
Certification:
CE
Transport Package:
Carton Packing
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Output Type:
Digital Signal
Output Signal Type:
Digital Type
Trade Term:
FOB
Wiring Type:
Five-Wire
Defend Grade:
Fixed Installation
IP Rating:
IP68
Application:
Industrial Automation
Usage:
Industrial Automation
Measuring Medium:
Liquid
Thread Type:
M
Production Process:
Normal Wirewound
Port Of Loading:
Qingdao Port, Tianjin Port, Shanghai Port
Origin:
Qingdao, Shandong, China
Selling Units:
Single Item
Material:
Stainless Steel
For:
Strain Gauge Pressure Transmitter
Payment Methods:
Support payments in USD
Work Force:
Tension
Payment Term:
To be discussed
Theory:
Vibration Sensor
Trademark:
WTWS
Description:
Weighing Modules
Specification:
customized
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Qingdao Port, Tianjin Port, Shanghai Port
Certificates:
ISO14001, ISO45001:2018, Others, ISO9001:2015
Product descriptions from the supplier
Product Description
Weighing module series

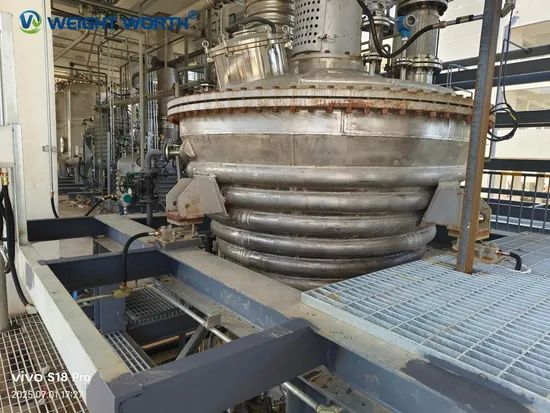

Used to weigh hopper, reactor, raceway, platform, vertical tank and other
containers, can easily and quickly convert tank and other forms of containers
into weighing systems.
containers, can easily and quickly convert tank and other forms of containers
into weighing systems.
Specification

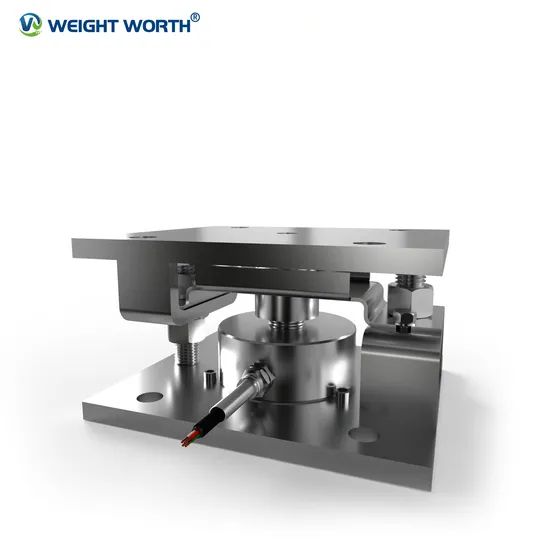

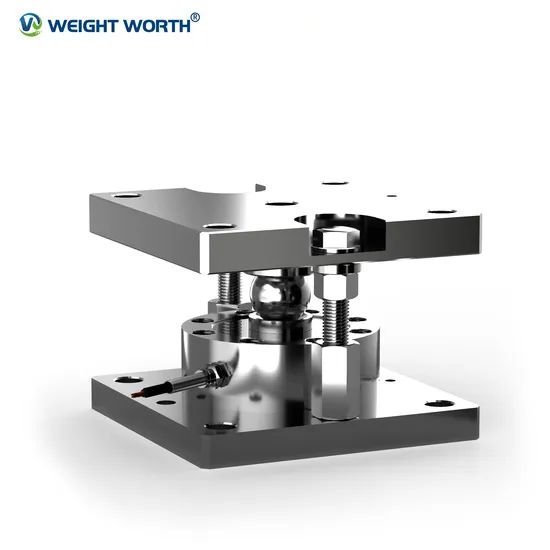

Dynamic load weighing module
1. Stainless steel and alloy steel materials are optional
2.Optional explosion-proof configuration
3. The upper board of the weighing module can shake, has good resetting performance, and comes with an upper board limit
4. Indoor, allowing slight shaking, mixing
tank with temperature (can be heated)
2.Optional explosion-proof configuration
3. The upper board of the weighing module can shake, has good resetting performance, and comes with an upper board limit
4. Indoor, allowing slight shaking, mixing
tank with temperature (can be heated)
5.Support more options
Model | Capacity | Accuracy | Remarks |
-A1 | 5kg-500kg | 1/3000 | Optional digital configuration |
-A2 | 300kg-5000kg | 1/3000 | |
-A3 | 10t-500t | 1/3000 |

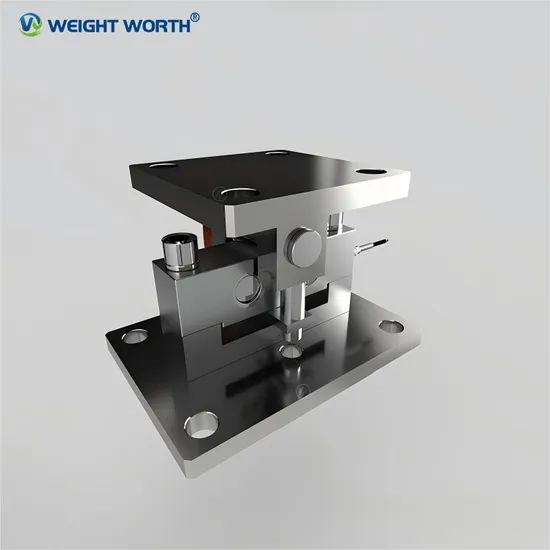

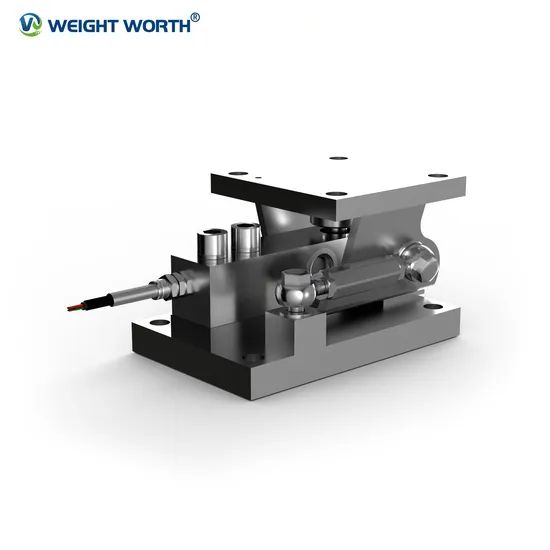

Static load weighing module
1.Stainless steel and alloy steel materials are optional
2. Optional explosion-proof configuration
3. The upper board of the weighing module cannot shake and has poor resetting performance
2. Optional explosion-proof configuration
3. The upper board of the weighing module cannot shake and has poor resetting performance
4.Indoor, no obvious shaking, and the material in the tank is at room temperature (no significant temperature
change)
5. Support more options
5. Support more options
Model | Capacity | Accuracy | Remarks |
-B1 | 5kg-500kg | 1/3000 | Optional digital configuration |
-B2 | 300kg-5000kg | 1/3000 | |
-B3 | 10t-500t | 1/3000 |

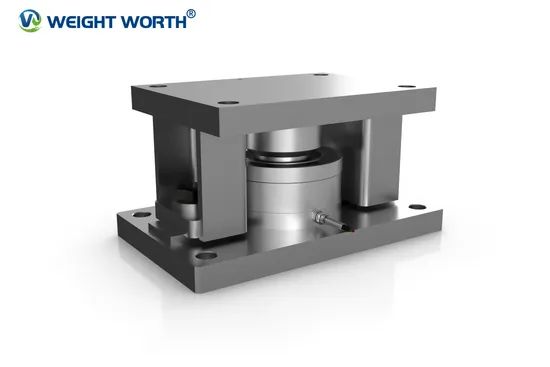

Dynamic and static dual-use weighing module
1.Stainless steel and alloy steel materials are optional
2.Optional explosion-proof configuration
3. Dynamic and static integrated structure, suitable for both static and dynamic weighing applications, with a wider range of applications
4.360 degree horizontal limit, limit the gap between the top plate and the sensor, making it less likely to get stuck
5.Can achieve sensorless installation, effectively
2.Optional explosion-proof configuration
3. Dynamic and static integrated structure, suitable for both static and dynamic weighing applications, with a wider range of applications
4.360 degree horizontal limit, limit the gap between the top plate and the sensor, making it less likely to get stuck
5.Can achieve sensorless installation, effectively
protecting sensors when welding is required for on-site installation
6.Support more options
Model | Capacity | Accurancy | Remarks |
\-C | 1000KG-5000KG | 1/3000 | Optional digital configuration |
Product Name | Membrane load cell (3-300kN) |
Accuracy | 0.03~0.1%FS |
Non-linearity | 0.03% |
Relative creep over 30 min | 0.03% |
Temp. influence on sensitivity | 0.03%FS/10℃ |
Temp. influence on the zero signal | 0.03%FS/10℃ |
Zero output | ±1.0%FS |
Input resistance | 380±10Ω & 750±15Ω |
Output resistance | 350±3Ω & 700±5Ω |
Insulation resistance | >5000 MΩ |
Operating temperature range | -20~+65℃ |
Nominal (rated) temperature range | -10~+45℃ |
Reference temperature | 23℃ |
Reference excitation voltage | 10V DC |
Limit force | 150% |
Breaking force | >300% |
Material | Stainless Steel |
level of protection | IP68 |
Mode of connection | Input+ : Red, Input- : Black, Output+ : Green, Output- : White |
Mass | 1kg |
Characteristics & Usage:
Unique structure, it can be easily installed on various tanks and supported firmly to prevent equipment from overturning.
The weighing module can conveniently and quickly integrate the batching tank, reaction kettle, tank, hopper, electronic truck scale, electronic platform scale, waterproof electronic scales, quantitative packaging scale, automatic weighing scale, electronic hook scale and various weighing system.
The weighing module can conveniently and quickly integrate the batching tank, reaction kettle, tank, hopper, electronic truck scale, electronic platform scale, waterproof electronic scales, quantitative packaging scale, automatic weighing scale, electronic hook scale and various weighing system.
Standard Weights
Standard weights, also known as standard masses, are objects of precise mass used for calibrating and inspecting weighing instruments (such as balances and scales). They are produced in strict accordance with manufacturing and testing standards to guarantee the consistency and accuracy of their mass. Their primary function is to calibrate and inspect all kinds of weighing instruments, like electronic scales and weighbridges, so as to ensure the accuracy and reliability of the measurement results of these weighing devices. Standard weights play a vital role in numerous fields, including trade settlement, quality control, and scientific experiments. They also make it convenient to calibrate and debug the products being weighed on-site, ensuring that the weighing equipment attains the optimal precision..
FAQ
FAQ
Q1: What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
Q2: Can I get samples?
Yes, we could offer the small size sample for free charge but do not pay the cost of freight.
Q3: Could you provide me the shortest lead time?
Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to quantity.
Q4: Can you print our brand on the product?
Yes, Of course. It can make customer's brand logo.
Q5: Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, Our R&D team will solve all your problems all the way.
Q6: What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below.
Q7: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Made-in -china's verified supplier, you don't have to worry about this.
Q8: When will you arrange the production?
We will arrange the production immediately after receiving your payment.
Q9: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
