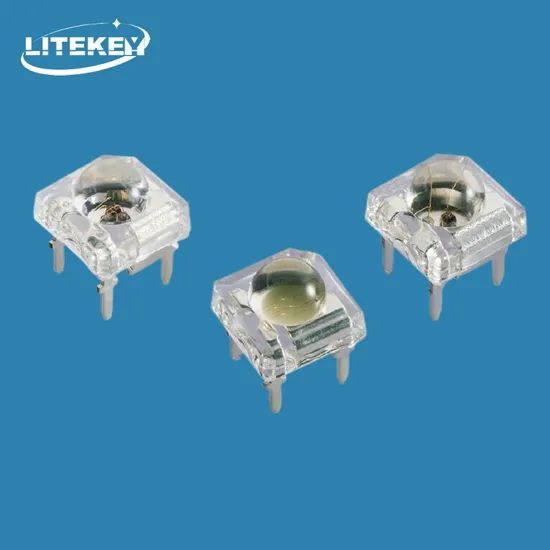

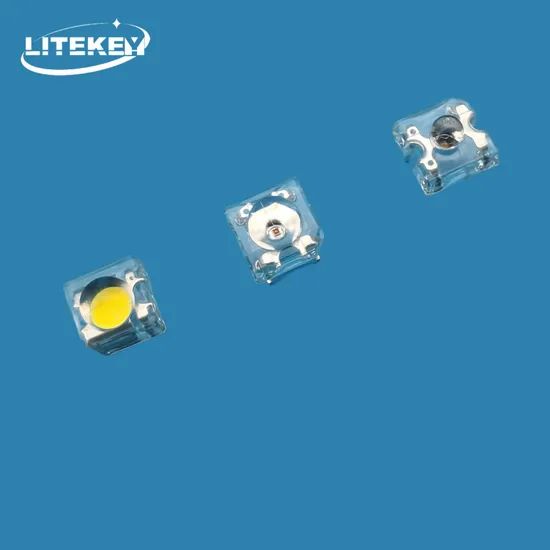

Common Cathode 5mm Round RGB Super Flux LED Lamp with High Flux
1000 Piece
$0.021000 Piece
$0.05Product information
High-quality Common Cathode 5mm Round RGB Super Flux LED Lamp with High Flux supplied by Ningbo Lightkey Electronic Technology Co., Ltd.. Bulk wholesale pricing ranges from $0.02 to $0.05 per Piece with a minimum order of 1,000 Piece. Inquiry for latest prices.
Production Capacity:
10 000 000PCS/Year
Power:
120MW
Beam Angle:
120°
Pin Number:
4
Chip Matrial:
4-Element
Life:
50000h
Outline Dimensions:
7.6X7.6X2.5mm
HS Code:
8541401000
Specifications
Production Capacity:
10 000 000PCS/Year
Power:
120MW
Beam Angle:
120°
Pin Number:
4
Chip Matrial:
4-Element
Life:
50000h
Outline Dimensions:
7.6X7.6X2.5mm
HS Code:
8541401000
Transport Package:
Bag and Carton
Trade Term:
CFR, CIF, DAP, FCA, EXW
Origin:
China
IP Rating:
IP20
Payment Term:
LC, T/T, PayPal, Western Union
Trademark:
LITEKEY
Model NO.:
LL7625RGBC
LED Chips:
Mic
Port Of Loading:
Ningbo, Shanghai
Certification:
RoHS
Specification:
RoHS, REACH
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-03-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
CFR, CIF, DAP, FCA, EXW
Port Of Loading:
Ningbo, Shanghai
Certificates:
ISO14001 Certifcate for Lightkey LED, ISO9001:2008 Certificate of LIGHTKEY, Product Inspection Report, REACH, RoHS, Trademark Registration Certificate
Product descriptions from the supplier
1. What is the size detail?

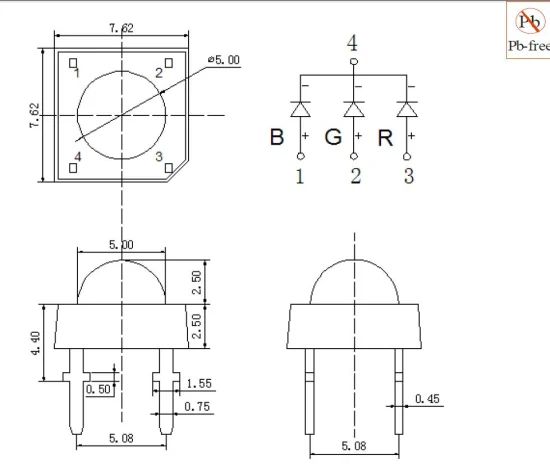

Dimensions of common cathode RGB Super Flux LED Lamp:
2. Summary:
3. What emitting color, viewing angle and intensity you can have?
4. What max voltage and current you can use to drivecommon cathode RGB LED Lamp?
5. What packing is available?
Bag Packing:
6. How do we produce RGB High Flux LED Lamp?
Dimensions of common cathode RGB Super Flux LED Lamp:
2. Summary:
| Available Emitting color: | Red, yellow-green, orange, amber, yellow, pure green, blue, white |
| Available Len Color: | Water clear. |
3. What emitting color, viewing angle and intensity you can have?
P/N |
DICE MATERIALS |
EMITTED COLOR |
LENS COLOR |
λD (nm) | Iv(mcd) @20mA |
VIEW ANGLE |
|
| MIN. | TYP. | ||||||
LF7625RGBC1(C) |
AlGaInP | Red | Water Clear |
625 | 500 | 700 | 60 |
| InGaN | Pure Green | 525 | 1000 | 1500 | 60 | ||
| InGaN | Blue | 465 | 500 | 700 | 60 | ||
| Color Code |
Color | Electrical Characteristics[1] | Absolute Maximum Ratings[1] | ||||
| VF@ IF=20mA[2] | Reverse Current VR=5V |
Power Dissipation | DC Forward Current | Peak Forward Current[3] | |||
| Typ. | Max. | ||||||
| SR | Super Red | 1.8 | 2.2 | 30 | 60 | 20 | 100 |
| UR | Ultra Red | 2.0 | 2.6 | 30 | 65 | 20 | 100 |
| UA | Ultra Amber | 2.0 | 2.6 | 30 | 65 | 20 | 100 |
| UY | Ultra Yellow | 2.0 | 2.6 | 30 | 65 | 20 | 100 |
| UG | Yellow Green | 2.1 | 2.6 | 30 | 75 | 20 | 100 |
| PG | Pure Green | 3.0 | 3.6 | 30 | 110 | 20 | 100 |
| BL | Blue | 3.0 | 3.6 | 30 | 120 | 20 | 100 |
| PW | Pure White | 3.0 | 3.6 | 30 | 120 | 20 | 100 |
| Unit: | V | V | uA | mW | mA | mA | |
5. What packing is available?
Bag Packing:
6. How do we produce RGB High Flux LED Lamp?
