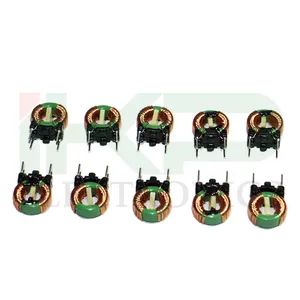

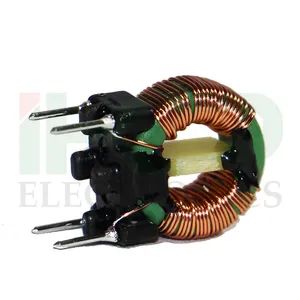

Common Mode Choke Toroidal Coil Inductor
5000-49999 Pieces
$0.7550000-499999 Pieces
$0.7500000 Pieces
$0.69Product information
High-quality Common Mode Choke Toroidal Coil Inductor supplied by IKP ELECTRONICS CO., LTD.. Bulk wholesale pricing ranges from $0.69 to $0.75 per Pieces with a minimum order of 5,000 Pieces. Inquiry for latest prices.
Specification:
2X3MH 23A 50% RM25X15MM
Production Capacity:
5000000/Month
HS Code:
85045000
Transport Package:
Carton
Range Of Application:
Choke
Nature Of Operation:
Choke Coil
Used In Various Power Supplies:
Customized Designs Are Accepted
Core:
Different Type Core Avaliable
Specifications
Specification:
2X3MH 23A 50% RM25X15MM
Production Capacity:
5000000/Month
HS Code:
85045000
Transport Package:
Carton
Range Of Application:
Choke
Nature Of Operation:
Choke Coil
Used In Various Power Supplies:
Customized Designs Are Accepted
Core:
Different Type Core Avaliable
Trade Term:
FOB, CIF
Structure Of Magnetizer:
Ferrite Coil
Origin:
Hefei
Working Frequency:
High Frequency
Payment Term:
LC, T/T, PayPal, Western Union
Model NO.:
LF-TR12004
Packaging Form:
Power Coils
Port Of Loading:
Shanghai
Structure Of Winding:
Single Coil
Inductor Value:
Variable Inductor
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2003-11-18
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Shanghai
Certificates:
CE Certificate 2017, ISO9001:2015 CN Version, ISO9001:2015 New Version, REACH of Choke Inductor, REACH of Transformers, RoHS of Choke Inductors, RoHS of Transformers
Product descriptions from the supplier
Features
1. Separated windings for minimum interwinding capacitance
2. Single layer windings for highest common mode impedance over the widest frequency range
3. Suitable for 50Hz to 500 KHz
4. Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
5. All materials used are UL94-VO recognized
6. Operating temperature:-55ºC to +105ºC
7. Available in either vertical or horizontal mount
8. Available in vertical header mount for ease in PCB assembly
9. Easy FR-4 board mounting Good vibration resistance
Application
1. Low Frequency AC Reactor
2. Solar Power System
3. Power Conditioning System
4. Wind Power System
5. Automatic Drive Machine
6. Induction Heater
7. Welding Machine
8. Paper Industries
9. RFI Suppression Choke
10. DC/DC converters
11. IP and OP devices
Physical andElectricalPerformanceParameters
| Part NO. | Inductance(mH) @1 KHz |
IDC(A) (Max) |
DCR(mΩ) (Max) |
Mounting | Dimension(mm) Coil size A×B×C |
| 220-65-23.5 | 0.065 | 23.5 | 0.9 | Vertical | 26×26×18 |
| 220--100-19 | 0.100 | 19.0 | 1.3 | Vertical | 28×26×18 |
| 220-180-15 | 0.180 | 15.0 | 2.5 | Vertical | 28×26×20 |
| 220-470-12 | 0.470 | 12.0 | 4.0 | Vertical | 28×26×18 |
| 220-880-9 | 0.880 | 9.0 | 6.5 | Horizontal | 28×30×20 |
| 220-1000-3.2 | 1.000 | 3.2 | 15.3 | Vertical | 26×26×17 |
| 220-1180-7.5 | 1.180 | 7.5 | 12.5 | Horizontal | 26×28×20 |
| 220-1500-2 | 1.500 | 2.0 | 18.0 | Vertical | 26×26×18 |
| 220-1500-2 | 1.500 | 2.0 | 18.0 | Vertical | 26×26×18 |
| 220-1800-5 | 1.800 | 5.0 | 50.0 | Horizontal | 26×28×18 |
| 220-2200-5 | 2.200 | 5.0 | 40.0 | Vertical | 26×26×19 |
| 250-200-15 | 0.200 | 15.0 | 5.0 | Horizontal | 30×28×15 |
| 250-200-18 | 0.200 | 18.0 | 5.0 | Vertical | 30×28×15 |
| 250-300-15 | 0.300 | 15.0 | 7.3 | Horizontal | 30×32×18 |
| 250-300-15A | 0.300 | 15.0 | 7.3 | Vertical | 38×28×17 |
| 250-425-8 | 0.425 | 8.0 | 4.26 | Vertical | 32×30×21 |
| 250-600-9 | 0.600 | 9.0 | 10.0 | Horizontal | 30×30×18 |
| 250-600-9A | 0.600 | 9.0 | 10.0 | Vertical | 30×28×19 |
| 250-1000-8 | 1.000 | 8.0 | 20.0 | Vertical | 30×28×13 |
| 250-3500-1.5 | 3.500 | 1.5 | 80.0 | Horizontal | 30×32×16 |
| 250-3700-4 | 3.700 | 4.0 | 70.0 | Vertical | 30×32×17 |
Physical andElectricalPerformanceParameters
| Part NO. | Inductance(mH) @1 KHz |
IDC(A) (Max) |
DCR(mΩ) (Max) |
Mounting | Dimension(mm) Coil size A×B×C |
| 310-100-30 | 0.100 | 30.0 | 3.0 | Horizontal | 38×40×18 |
| 310-100-30A | 0.100 | 30.0 | 3.0 | Vertical | 36×36×15 |
| 310-150-20 | 0.150 | 20.0 | 3.4 | Horizontal | 36×36×16 |
| 310-150-20A | 0.150 | 20.0 | 3.4 | Vertical | 38×38×18 |
| 310-150-30 | 0.150 | 30.0 | 3.5 | Vertical | 38×38×19 |
| 310-200-15 | 0.200 | 15.0 | 5.0 | Vertical | 38×38×18 |
| 310-200-18 | 0.200 | 18.0 | 5.0 | Horizontal | 38×38×19 |
| 310-280-13 | 0.280 | 13.0 | 2.9 | Vertical | 28×26×18 |
| 310-580-13 | 0.580 | 13.0 | 10.0 | Vertical | 38×38×18 |
| 310-7200-2.5 | 7.200 | 2.5 | 93.0 | Horizontal | 38×40×18 |
| 310-11000-1.5 | 11.000 | 1.5 | 184.0 | Vertical | 40×40×19 |
