Communication All Dielectric Self-Supporting Aerial Optical Fiber Optic Cable -ADSS
1000-29999 Meter
$0.2530000-99999 Meter
$0.19100000 Meter
$0.1Product information
High-quality Communication All Dielectric Self-Supporting Aerial Optical Fiber Optic Cable -ADSS supplied by Shenzhen NH-Link Communication Co., Ltd. Bulk wholesale pricing ranges from $0.1 to $0.25 per Meter with a minimum order of 1,000 Meter. Inquiry for latest prices.
Allowed Lateral Pressure:
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength:
100N<1000N
Specification:
12 Cores
Core:
2 Cores to 288 Cores
Production Capacity:
50000m/Day
HS Code:
8544700000
Model NO.:
ADSS
Color:
Black or Other
Specifications
Allowed Lateral Pressure:
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength:
100N<1000N
Specification:
12 Cores
Core:
2 Cores to 288 Cores
Production Capacity:
50000m/Day
HS Code:
8544700000
Model NO.:
ADSS
Color:
Black or Other
Trade Term:
CIF, EXW, FOB
Sheath Material:
HDPE
Construction:
Loose Tube
Brand:
OEM
Trademark:
OEM
Certification:
RoHS, CE, ISO9001
Material Shape:
Round Wire
Connection Structure:
SC
Port Of Loading:
Shenzhen Port, Guangzhou Port
Origin:
Shenzhen, China
Style:
Single Jacket & Double Jacket
Fiber Type 1:
Sm OS2, G657A1, G657A2, G657b3
Payment Term:
T/T, PayPal, Western Union
Transport Package:
Wooden Drum
Fiber Type 2:
mm Om1, Om2, Om3, Om4, Om5
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-06-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
2
Preferred Payment Term:
T/T, PayPal, Western Union
Preferred Trade Term:
CIF, EXW, FOB
Port Of Loading:
Shenzhen Port, Guangzhou Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
Description

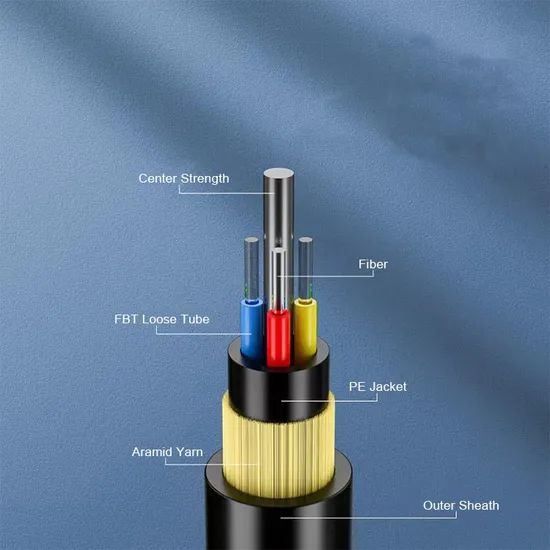

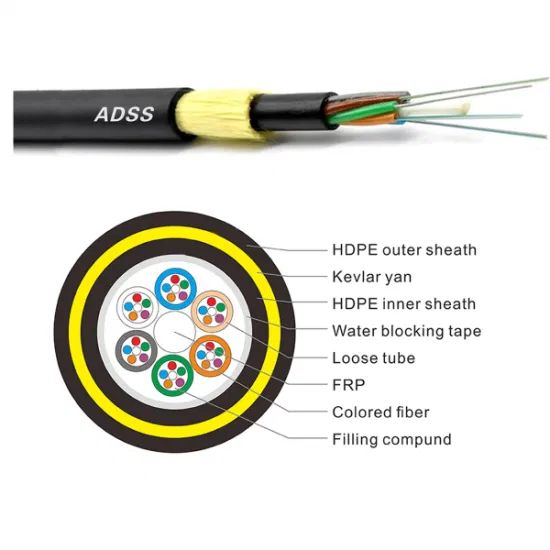

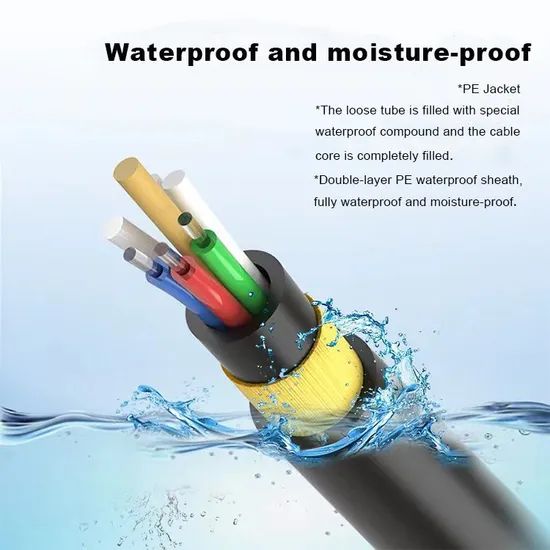

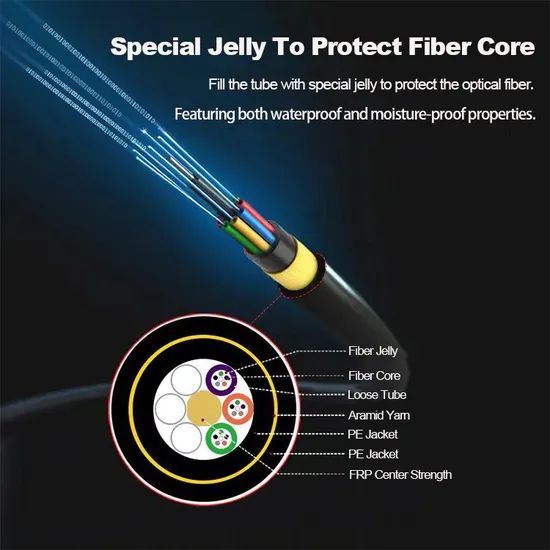

All Dielectric Self-Supporting Fiber Optic Cable ADSS is loose tube stranded. 200um or 250um Bare Fibers, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Features
•S-Z stranded (up to 288 fibers)
All Dielectric Self-Supporting Fiber Optic Cable ADSS is loose tube stranded. 200um or 250um Bare Fibers, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Features
•S-Z stranded (up to 288 fibers)
•Suitable for use on distribution and high voltage transmission lines

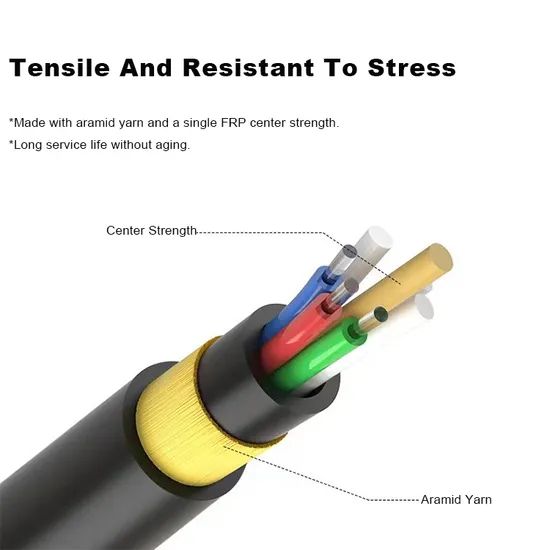

•Aramid yarn make cable have excellent tensile strength
•FPR for center strength member, PE or AT-PE sheath materials
•Low attenuation, low dispersion, stable control of excess length makes the optical cable perfect mechanical and environmental properties
•All dielectric structure protect it from electromagnetic influence
•Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN
Application
1.Long distance telecom, LAN in high voltage area or access to telecom network;
2.For power transmission system, much thunder areas and high electro-magnetic inerference.
Technical Parameters
| Reference of outer diameter (mm) | Reference of weight | Ref.daily max. working | Max allowable working tension | Break strength | Strength member CSA mm² | Modulus of elasticty KN/mm² | Heat expansion coefficient×10-6/k | Suitable span | ||||
| kg/km | KN | KN | (m) | |||||||||
| PE Sheath | AT Sheath | A | B | C | D | |||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
| 15.6 | 194 | 208 | 10.5 | 28 | 70 | 33 | 19.6 | 0.1 | 800 | 560 | 800 | 560 |
| 16.3 | 211 | 226 | 12.75 | 34 | 85 | 40 | 20.1 | 0.1 | 880 | 650 | 880 | 650 |
| 16.8 | 226 | 242 | 15.45 | 41 | 103 | 48 | 24 | -0.4 | 1000 | 750 | 1000 | 760 |
| 17.2 | 236 | 253 | 16.2 | 45 | 108 | 51 | 25.1 | -0.5 | 1100 | 800 | 1100 | 830 |
| 17.9 | 249 | 266 | 18 | 50 | 120 | 58.8 | 26.1 | -0.6 | 1180 | 880 | 1180 | 900 |
| Storage/Operating Temperature : -40ºC to + 70ºC | ||||||||||||
Requirement for Order
| (1) Fiber sort: Single mode:G652D,G657A1, G657A2, Multi mode:OM1,OM2,OM3,OM4. | ||||||||||||
| (2) Fiber brand: YOFC, Corning, Fiberhome,OFS etc. | ||||||||||||
| (3) Jacket material: PE,LSZH ( can be required). | ||||||||||||
| (4) The fiber and tube color: according to stranded color, can be required. | ||||||||||||

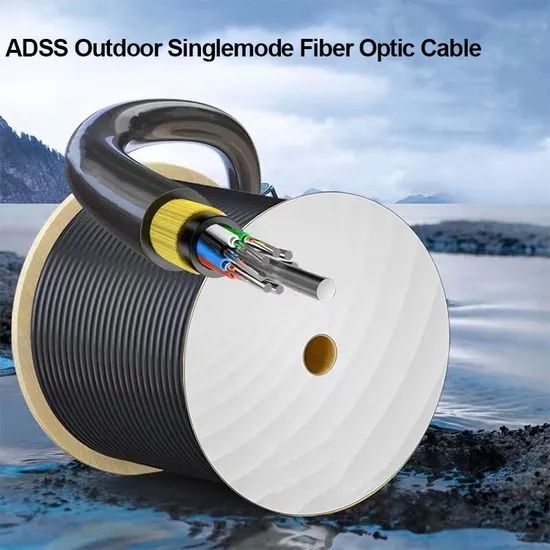

| (5) Length of cable: generally is 2KM/drum, can be required. | ||||||||||||
| (6) Other requirement: can be negotiated. | ||||||||||||
Fiber optical Characteristic (after cable)
| Fiber type | Attenuation | Bandwidth | Effective modal bandwidth | 10 Gb/s Link Length | |||
| Conditions | 1310/1550nm | 850/1300nm | 850/ | 850nm | 850nm | ||
| Typical | Maximum | Typical | Maximum | 1300nm | |||
| Unit | dB/km | dB/km | dB/km | dB/km | MHz.km | MHz.km | m |
| G652D | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
| G657A1 | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
| G657A2 | 0.4/0.3 | 0.5/0.4 | / | / | / | / | / |
| G657B3 | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
| 62.5/125 | / | / | 3.5/1.0 | 3.5/1.5 | ≥160/500 | / | / |
| 50/125/ | / | / | 3.0/1.0 | 3.5/1.5 | ≥200/500 | / | / |
| OM1 | |||||||
| 50/125/ | / | / | 3.0/1.0 | 3.5/1.5 | ≥500/500 | / | / |
| OM2 | |||||||
| OM3-150 | / | / | 3.0/1.0 | 3.5/1.5 | ≥700/500 | ≥950 | 150 |
| OM3-300 | / | / | 2.5/0.8 | 3.0/1.0 | ≥1500/500 | ≥2000 | 300 |
| OM4-550 | / | / | 2.5/0.8 | 3.0/1.0 | ≥3500/500 | ≥4700 | 550 |
