Compact Lab Scale Two Roll Mill Open Mixing Mill for Plastic Polymer Compounds
set
Negotiable
Product information
High-quality Compact Lab Scale Two Roll Mill Open Mixing Mill for Plastic Polymer Compounds supplied by Dongguan Miko Testing Instrument Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Specification:
1000(L)*600(W)*1350mm(H)
HS Code:
8477800000
Control Type:
Artificial
Automatic Grade:
Automatic
Origin:
China
Control Mode:
Digital Display and PLC Touch Screen for Option
Power Source:
Electric
Heating Mode:
Electrical and Oil Heating for Option
Specifications
Specification:
1000(L)*600(W)*1350mm(H)
HS Code:
8477800000
Control Type:
Artificial
Automatic Grade:
Automatic
Origin:
China
Control Mode:
Digital Display and PLC Touch Screen for Option
Power Source:
Electric
Heating Mode:
Electrical and Oil Heating for Option
Trade Term:
FOB
Model NO.:
MK-8001RM
Gap Adjustment:
Manual and Electric Automatic for Option
Type:
Open Mixing Mill
Application:
Plastic, Rubber and Silicone Raw Materials
Payment Term:
To be discussed
Cooling Mode:
Water Cooling
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
Certificate
Product descriptions from the supplier
SONA2024 2.2.1

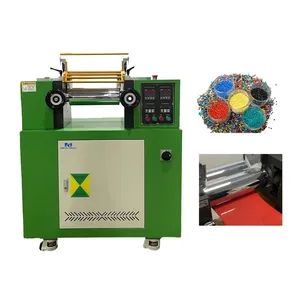

Laboratory Mini Rubber and Plastic Two Roll Mill
Lab two roll mill is a small processing equipment used for compounding rubber or plastics raw materials. The compact design is suitable for laboratory research and development. The features of save materials and safety operation make it very popular for teaching demonstrations and training use too.
Working principle:

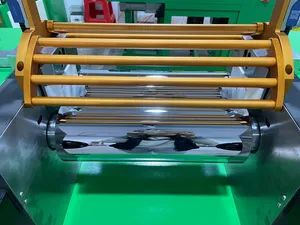

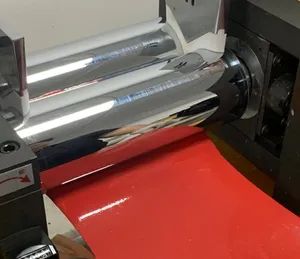

Two roll mill has two opposing rotating rollers with different rotational speeds. Rubber or plastic raw materials are placed between the rollers, and due to the rotation and friction of the rollers, the raw materials are drawn into the space between them. Under the squeezing and shearing action of the rollers, the raw materials are gradually plasticized, mixed, and dispersed.
Applications
1. Material Development & Formulation:
For optimizing rubber/plastic formulas with new fillers, additives, or polymers in R&D labs.
2. Education & Training
For optimizing rubber/plastic formulas with new fillers, additives, or polymers in R&D labs.
2. Education & Training
Used in universities to demonstrate polymer processing principles like mastication and mixing hands-on.
3. Small-Batch & Pilot Production
Produces small quantities of specialized compounds for prototyping or low-volume products.
4. Quality Control & Testing
Prepares samples for physical, mechanical, or thermal property testing in QC labs.
5. Process Simulation & Parameter Study
Simulates production-scale milling to study effects of time, temperature, and friction on materials.
3. Small-Batch & Pilot Production
Produces small quantities of specialized compounds for prototyping or low-volume products.
4. Quality Control & Testing
Prepares samples for physical, mechanical, or thermal property testing in QC labs.
5. Process Simulation & Parameter Study
Simulates production-scale milling to study effects of time, temperature, and friction on materials.
Technical Specifications
Model | MK-8001RM-F | MK-8001RM-S | MK-8001RM-D |
Roll Speed | Fixed speed | Adjustable speed | Adjustable speed |
Roll Speed Ratio | Fixed speed ratio | Fixed speed ratio | Adjustable speed radio |
Control Mode | Digital display button control / PLC touch screen control are optional | ||
Size of Rollers | 3", 4", 6", 8" optional, or customized | ||
Heating Mode | Electrical heating / Oil heating are optional | ||
Cooling Mode | Tap water cooling/ Water chiller are optional | ||
Safety device | Reverse stop / emergency opening system optional | ||
Volume(L×W×H) | 1100×550×1150mm | ||
Weight | 380kg | ||
Power supply | 3∮, AC380 | ||
Note: Custom configurations available upon request. | |||
Key Features:
1. High Flexibility:
Adjustable roller speed, gap, and temperature parameters allow for the study of their impact on material properties.
2. Small Batch Processing:
Suitable for small-batch material processing, reducing material waste.
3. Multifunctionality:
Not only can it be used for mixing and plasticizing rubber and plastics, and color matching, but it can also be used for processing other composite materials and performing simple material property tests.
4. High Safety:
Multiple safety devices are available as options, such as protective covers, emergency stop buttons, emergency stop levers, reversing doors, and automatic hydraulic emergnecy openning systems, ensuring operators' safety.
Adjustable roller speed, gap, and temperature parameters allow for the study of their impact on material properties.
2. Small Batch Processing:
Suitable for small-batch material processing, reducing material waste.
3. Multifunctionality:
Not only can it be used for mixing and plasticizing rubber and plastics, and color matching, but it can also be used for processing other composite materials and performing simple material property tests.
4. High Safety:
Multiple safety devices are available as options, such as protective covers, emergency stop buttons, emergency stop levers, reversing doors, and automatic hydraulic emergnecy openning systems, ensuring operators' safety.
Why Choose Us?
After Sales Service
OEM/ODM capabilities
Competitive pricing & Reliable quality
Fast shipping & customs clearance support
Provide professional solutions according to clients' demands
Best services for pre-sales and after-sales
Competitive pricing & Reliable quality
Fast shipping & customs clearance support
Provide professional solutions according to clients' demands
Best services for pre-sales and after-sales
1. Standard Warranty: 12 months after the manufacturing date.
2. Extended Warranty: Optional coverage up to months.
3. Global Support: 24 hours technical assistance and spare parts supply.
4. Training: On-site or remote operation/maintenance training.
2. Extended Warranty: Optional coverage up to months.
3. Global Support: 24 hours technical assistance and spare parts supply.
4. Training: On-site or remote operation/maintenance training.
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 20–30 days; customized units require 45–60 days.
A: Standard models ship in 20–30 days; customized units require 45–60 days.
Q: Can I request a customized design?
A: Absolutely! We can provide customized production according to clients' requirements.
A: Absolutely! We can provide customized production according to clients' requirements.
Q: How do you provide after-sales service?
A: We provide on-line service for the life-time of equipment, include training video and spare parts supply.
A: We provide on-line service for the life-time of equipment, include training video and spare parts supply.
Q: How do I installation and debugging the equipment?
A: The equipment is whole set shipment. You only can connect it with power supply. We will provide you instruction munual and operation video.
A: The equipment is whole set shipment. You only can connect it with power supply. We will provide you instruction munual and operation video.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, etc.).
