Compact Uav Detection System for Drone Urban Safety
1 Piece
$70,0001 Piece
$75,000Product information
High-quality Compact Uav Detection System for Drone Urban Safety supplied by Wuhan Lakeda Science and Technology Co. Ltd. Bulk wholesale pricing ranges from $70,000 to $75,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Horizontal Resolution:
1080P
Production Capacity:
200sets/Month
Azimuth Coverage:
360 Degree
Weight:
77kg
Specification:
840*374*938(Unit: mm)
Kind:
Autofocus Lens
Sensor:
CMOS
Model NO.:
CS-RAD-A-5000XP
Specifications
Horizontal Resolution:
1080P
Production Capacity:
200sets/Month
Azimuth Coverage:
360 Degree
Weight:
77kg
Specification:
840*374*938(Unit: mm)
Kind:
Autofocus Lens
Sensor:
CMOS
Model NO.:
CS-RAD-A-5000XP
Client Software:
Client Software
Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Guangzhou Port
Transport Package:
High - Fiber Carbon Material Packaging Box
Certification:
ISO9001, FCC, RoHS, CE, ISO45001
Payment Term:
LC, T/T, D/P
Software Function:
Monitoring+Control
Trademark:
OEM
Technology:
Pan / Tilt / Zoom
Working System:
Pulse Doppler
Model:
Radar
Software Usage:
Vehicle Monitoring Software, Computer Monitoring Software
Video Capture System:
Video Camera
Feature:
Waterproof / Weatherproof, High Definition, Auto BLC, Vandal-proof
Video Transmission System:
Wireless Transmission
Origin:
Wuhan
Frenquen Band:
X Band
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-07-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
83
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Guangzhou Port
Certificates:
ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier

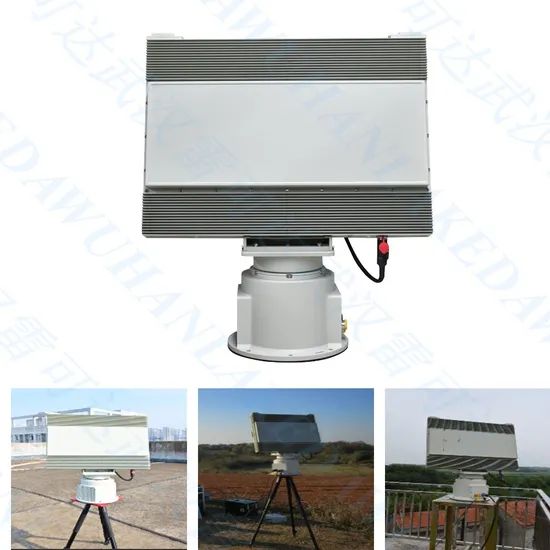

CS-RAD-A-5000XP Drone Detection Radar
The CS-RAD-A-5000XP is a flexible phased array radar capable of identifying and monitoring multiple types of objects, such as drones, people, and moving vehicles. It includes advanced capabilities to distinguish between birds and unmanned aerial systems. Built for use in high-priority zones like borders, secure perimeters, airports, coastlines, and sensitive installations, this radar offers superior functionality and broad suitability across various monitoring scenarios.
Specification
Detection Range
pedestrians: 8 km
Vehicles: 10 km
Vessels (5-10m small boats): 15 km
UAVs (RCS=0.01m²): 5 km (2s/r); 8 km (4s/r)
Vehicles: 10 km
Vessels (5-10m small boats): 15 km
UAVs (RCS=0.01m²): 5 km (2s/r); 8 km (4s/r)
Key Configurations
The CS-RAD-A-6000XP features a precision radar system, a motorized rotating platform, and a stable power supply, utilizing Digital Beam Forming and Active Phased Array Technology to achieve simultaneous monitoring of several targets and deliver precise 3D positioning data.
Engineered for year-round performance, it delivers consistent functionality across extreme weather like rain, snow, fog, and particulate exposure, and retains robust resistance to electromagnetic noise in dense signal environments.
Key Features
360° Omnidirectional Coverage
Equipped with a motorized rotary table to achieve large-area blind-spot-free seamless monitoring and enhance situational awareness.
Strong Anti-Interference Capability
Features anti-electromagnetic interference design to ensure stable system operation in complex, high-density environments.
Compact Modular Design
Easy to deploy, integrate and maintain; can be combined with multiple devices for multi-purpose operations.
All-Weather & All-Terrain Performance
Operates effectively in harsh environments and ensures 24-hour reliable work.
Technical Specifications
(Custom configurations available upon request.)
Parameter Category | Specific Parameters |
Model | CS-RAD-A-5000XP |
Operating System | Azimuth Mechanical Scanning + Elevation Phased Scanning |
Operating Mode | Pulse Doppler |
Operating Frequency | X-band |
Transmit Peak Power | 320W |
Coverage Range | Azimuth Coverage: 360° Elevation Coverage: ≥40° |
Detection Range | Pedestrians: 8 km Vehicles: 10 km Vessels (5-10m small boats): 15 km UAVs (RCS=0.01m²): 5 km (2s/r); 8 km (4s/r) |
Minimum Operating Distance | ≤100m |
Detection Speed Range | 1m/s - 75m/s |
Accuracy | Speed: ≤0.5m/s Distance: ≤10m Azimuth: ≤0.4° Elevation: ≤0.5° |
Data Rate | ≥0.5 frames/s |
Maximum Simultaneous Detectable Targets | 200 |
Target Track | Track generation for moving targets |
Interface | RJ45 |
Rated Power Consumption | ≤400W |
Power Supply | AC200 - AC240 |
Environmental Adaptability | Dustproof & Waterproof Standard: IP66 Operating Temperature: -40℃ - +55℃ |
Weight | ≤77kg (Antenna Array: 38kg + Rotary Table: 26kg + Power Distribution Box: 12kg) |
Drawings & Dimensions
After Sales Service
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance
Training: On-site or remote operation/maintenance training
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance
Training: On-site or remote operation/maintenance training
Company Profile
Wuhan Lakeda Science and Technology Co. Ltd
Established in July 2016, Wuhan Lakeda Technology operates as a branch of Beijing Starneto Technology, a cutting-edge tech firm holding its own intellectual property. Specializing in the research, development, and production of dual-use radar technologies, the company has developed three key areas, one of which is UAV threat identification. Leveraging advanced innovation, it pursues the vision of "Lakeda · Safe World," delivering top-tier solutions and services, bolstering the radar protection sector, and expanding its outdoor safety offerings across diverse applications.
