Competitive Price Ultrasonic Flaw Detector Testing Machine Accuracy A Gain 0~120dB Range 0~25mm Origin Shan Dong Trademark CYEEYO
1 Piece
$1,900Product information
High-quality Competitive Price Ultrasonic Flaw Detector Testing Machine Accuracy A Gain 0~120dB Range 0~25mm Origin Shan Dong Trademark CYEEYO supplied by Jinan Cyeeyo Instruments Co., Ltd.. Bulk wholesale pricing is $1,900 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Precision:
0.015mm
Resolution:
0.01mm
Frequency Range:
0.5~15MHz
Thickness Measuring Range:
0~10000mm
Gain:
0~120dB
Range:
0~25mm
Production Capacity:
100
Sound Speed:
1000~15000m/S
Specifications
Precision:
0.015mm
Resolution:
0.01mm
Frequency Range:
0.5~15MHz
Thickness Measuring Range:
0~10000mm
Gain:
0~120dB
Range:
0~25mm
Production Capacity:
100
Sound Speed:
1000~15000m/S
Lead Time:
15 days (1 - 1 Pieces)To be negotiated ( > 1 Pieces)
Package Gross Weight:
15.000kg
Package Size:
56.00cm * 35.00cm * 30.00cm
Specification:
75cm*65cm*70cm
HS Code:
9027500090
Accuracy:
A
Certification:
CE
Model NO.:
CY-NDT680
Trademark:
CYEEYO
Transport Package:
Carton
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
D Delay:
D-Delay -20~+3400μs
Trade Term:
FOB, CFR, CIF, DDP, DAP, FCA, EXW, Others
Type:
Inspection Surface Plate
Payment Term:
LC, T/T, Western Union, Money Gram, credit card
Measure Method:
Manual
Customized:
Non-Customized
Precision Measuring Device:
Not Precision Measuring Device
Origin:
Shan Dong
Measurement Object:
Squareness
Material:
Stainless Steel
Payment Methods:
Support payments in USD
Port Of Loading:
qingdao,shanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-07-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union, Money Gram, credit card
Preferred Trade Term:
FOB, CFR, CIF, DDP, DAP, FCA, EXW, Others
Port Of Loading:
qingdao,shanghai
Certificates:
CE
Product descriptions from the supplier
Competitive Price Ultrasonic Flaw Detector Testing Machine
Product Description
1 Introduction

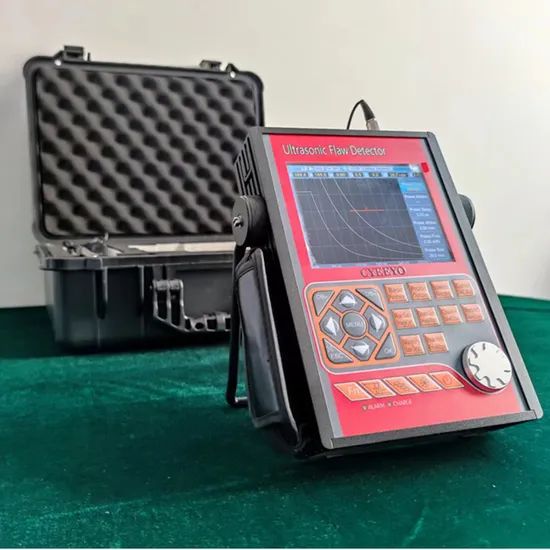

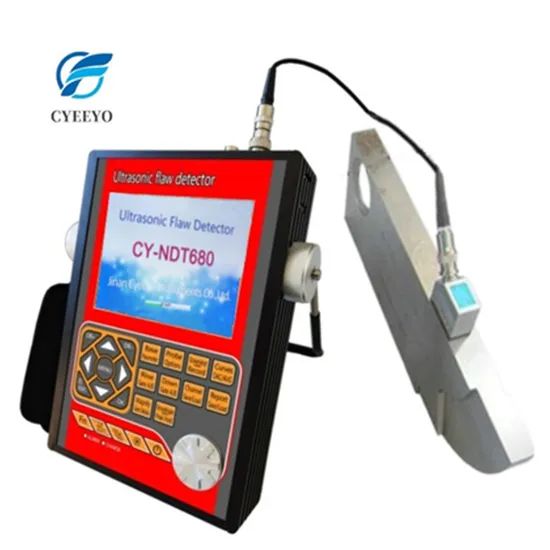

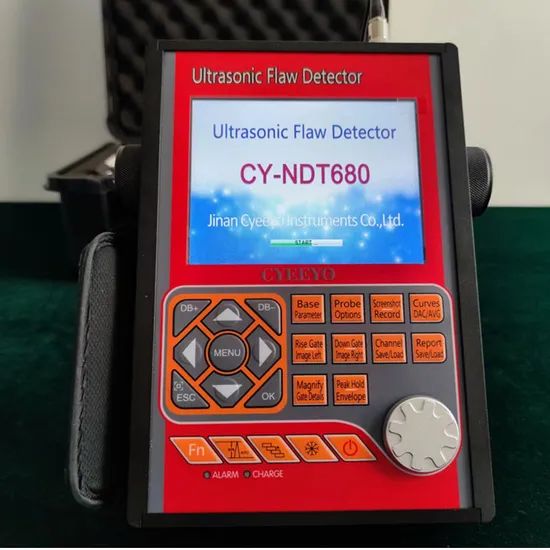

This CY-NDT680 is a portable industrial digital ultrasonic flaw detector that can detect, locate, evaluate and diagnose various defects (cracks, inclusions, pores, etc.) in the workpiece quickly, conveniently, without damage, and accurately. It can be used both in the laboratory and on the engineering site. This instrument can be widely used in manufacturing, iron and steel metallurgy, metal processing, chemical industry and other fields that require defect detection and quality control. It is also widely used in online safety inspection and Life assessment in the fields of aerospace, railway transportation, boilers and pressure vessels, etc.The instrument can be widely used in locating and sizing hidden cracks, voids, disbands, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbines, and structural components.
1.1 Features of the Instrument
The core hardware is designed with ARM+FPGA, and the software uses a highly reliable multitasking operating system, which greatly improves the function, portability, durability and reliability of the instrument.This instrument uses a master-slave menu, and is designed with shortcut keys and a digital rotary knob.The instrument is light and portable, and can be held with one hand.
Display

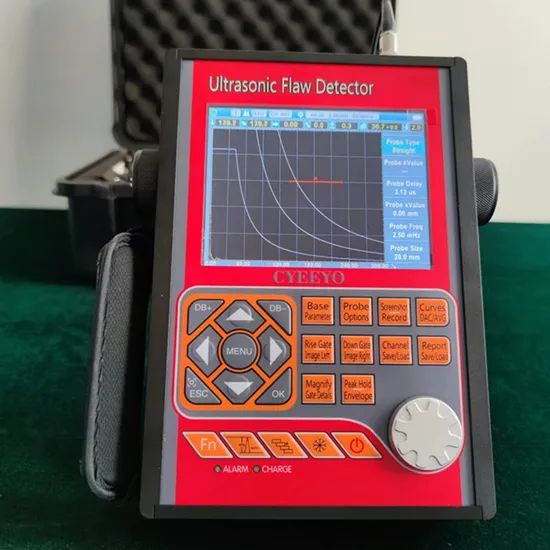

Full-digital multi -color high-resolution (640×480 pixels) multi-color TFT LCD display. The waveform display is more delicate and humane.4 operating interface styles can be selected according to the environment.
The LCD with fast 60 Hz update. Able to display subtle waveform changes.
The LCD brightness can be set freely.
Shape

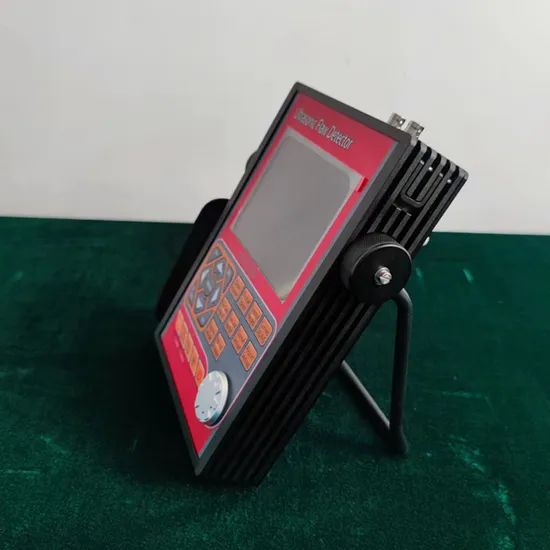

The all-aluminum metal shell is strong and durable, and the electromagnetic shielding performance is very good.
360-degree rotating damping bracket and rubber sheath are easy to use.
Tempered glass panel, extremely hard, wear-resistant and scratch-resistant
Screenshot and PDF flaw detection report
Real-time screenshots of all pages and flaw detection reports, and save them as BMP pictures to U disk, which can be set as color or grayscale pictures.
Export the flaw detection report as a PDF file and save it to a U disk for easy archiving and printing.
All contents of the PDF file can be customized according to user needs.
BMP pictures and PDF files can be viewed on a computer or mobile phone.
Range
Up to 9999 mm in steel; range selectable in fixed steps or continuously variable. Suitable for use on large work pieces and in high-resolution measurements.
Pulser
Pulse Energy selectable among 100V,200V, 250V,300V,350V, 400V and 500V.
Pulse Width tunable from 0.1µs to 0.5 µs to match the probes with different frequency.
Pulse Repetition Frequency adjustable from 20 Hz to 2 KHz.
Damping selectable among 50Ω,150Ω,250Ω and 500Ω for optimum probe performance
Probe selection: single crystal probe, dual crystal probe, special angle probe, penetrating probe, climbing probe.
Receiver
Sampling:16 digit AD Converter at the sampling speed of 320 MHz
Rectification:Positive Halfwave, Negative Halfwave, Fullwave and RF
Analog Bandwidth: 0.2MHz to 20MHz capability with selectable frequency ranges (automatically set by the instrument) to match probe for optimum performance.
Gain:0 dB to 110 dB adjustable in selectable steps 0.1 dB, 2 dB, 6 dB.
Gates
Two fully independent gates offer a range of measurement options for signal height or distance using peak triggering.
The echo-to-echo mode allows accurate gate positioning for signals which are extremely close together.
Gate Start: Variable over entire displayed range
Gate Width: Variable from Gate Start to end of displayed range
Gate Height: Variable from 0 to 99% Full Screen Height
Alarms: Threshold positive/negative with LED Flash.
Memory
The instrument has a built-in large-capacity memory, and data and files will not be lost due to power failure of the instrument.
Memory of 500 channel files to store calibration setups and probe parameter.
Memory of 1000 wave report files to store A-Scan wave and settings.
All the files can be stored, recalled and cleared.
The channel settings and report files can be exported via U disk, and the information can also be stored in unlimited amounts via USB memory.
Video Recorder
Video Recorder is useful in many situations, it is very convenient for those who want to analyze the probing activities later.
The instrument can record the test process and save it as a video file, which can be played back through the instrument or special software. It supports up to 10 video files, and each video file can be up to 5 minutes long.
If you choose to save the video file to the U disk, the number and duration of the video file will not be limited.
Recording and replaying the testing process provides great convenience for future study and analysis of flaw detection.
Video playback supports pause, fast forward, fast rewind, and stop functions.
Functions
- Auto calibration: Automated calibration of probe zero offset, probe angle (K value) and material velocity.
- Flaw Locating:Live display Sound-path, Projection (surface distance), Depth, Amplitude,
- Flaw sizing: Automatic flaw sizing using AVG or DAC, speeds reporting of defect acceptance or rejection.
- Digital Readout and Trig. Function: Thickness/Depth can be displayed in digital readout when using a normal probe and Surface Distance and Depth are directly displayed when angle probe is in use.
- DAC/AVG:The curve is automatically generated, and the sampling points can be compensated and corrected. The curve automatically floats with the gain, automatically expands with the detection distance, and automatically moves with the delay time. It can display the AVG curve of any aperture.
- AWS D1.1. Choosing this standard can reduce manual calculations and improve detection efficiency.
- Curved Surface Correction feature.
- Crack Height Measure function.
- Gate Magnify :spreading of the gate range over the entire screen width.
- Video Recording and playback.
- Auto-gain function
- Envelope: Simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan display
- Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
- Peak mark: capture and mark the peak in real time
- Echo coding: display 1~9 echo display area in different colors, used to analyze the defect position.
- A Scan Freeze:Display freeze holds waveform and test distance data.
- B Scan display feature. Intuitively display the defect shape of the workpiece and the detection result is more intuitive.
The instrument clock keeps running tracking the time.
Communication
Two High speed USB2.0 port. Two USB modes can be selected: U-DISK and U-BRIDGE. In U-DISK mode, channel Configuration files, flaw report files, screenshot pictures and recorded movies can be saved to U-DISK. In U-BRIDGE mode, the instrument exchanges data with DataPro Software.
Battery
Built-in large-capacity and high-performance lithium-ion battery.
The continuous working time more than 12 hours.
4-6 hours typical recharge time.
Knob
Operating adjustments are easily and quickly made using the rotary knob.
software upgrade
The software can be easily upgraded through U-DISK. The upgrade will not cause damage to the machine.
1.2 Specifications
- Measuring Range: 0 to 15000 mm, at steel velocity
- Material Velocity: 1000 to 20000m/s
- Gain: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB.
- System Linearity: Horizontal: +/-0.2% FSW,
- Sensitivity Leavings: more 50dB(Deep 200mmФ2 flat-bottomed hole)
- Dynamic range: more 40dB
- Bandwidth (amplifier bandpass ): 0.2 to 20 MHz
- Pulse Displacement: more 32dB
- Resolving Power: more 40dB
- Noise: less than10%
- Display Delay: -20 to 3400 µs
- Probe Delay/Zero Offset : 0 to 99.99µs
- Test Modes: Pulse echo, dual element and thru-transmission
- Pulser: Tunable Wave Pulser
- Pulse Repetition Frequency ranges from 20 Hz to 2000 Hz
- Pulse Energy: 100V, 200V, 250V, 300V, 500V selectable
- Gate Monitors: Two independent gates controllable over entire sweep range
- Rectification: Positive half wave, negative half wave, full wave, RF
- Reject (suppression): 0 to 80% full screen height
- Units: Inch or millimeter
- Transducer Connections: BNC or LEMO
- Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
- Operating Temperature: -10ºC to 50ºC
- Storage Temperature: -30ºC to 50ºC

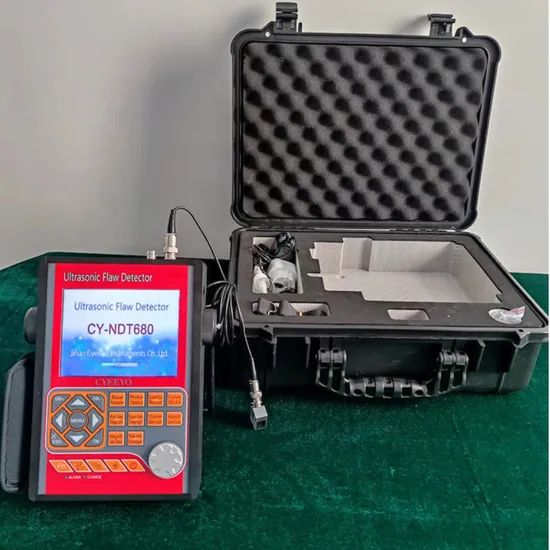

Standard configuration
Host-1,Straight probe-1,Angle probe-1, Power adapter-1, BNC probe connect cable-1,USB flash disk memory-1,Shoulder straps-1,User manual-1,Warranty card-1,Instrument case-1
