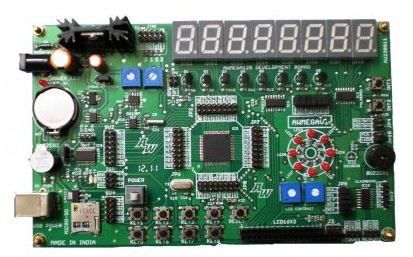

Complete AVR Microprocessor Development Board Eeprom At24c08 On Board Reset Circuit Yes Temperature Sensor Ds18b20 Relay Driver 8 Relay
1 Piece
$41.8Product information
High-quality Complete AVR Microprocessor Development Board Eeprom At24c08 On Board Reset Circuit Yes Temperature Sensor Ds18b20 Relay Driver 8 Relay supplied by Amateur World. Bulk wholesale pricing is $41.8 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Voltage Regulators:
+5v And +3v3 With Jumper Settings
Glcd Support:
128x64 Graphic Lcd
Leds:
8 Leds With Enable/disable Jumper Settings
Crystal Oscillator:
8 Mhz On Board
Push Buttons:
8 Push Button Switches
Relay Driver:
8 Relay Driver
Seven Segment Displays:
8 Seven Segment Displays With Spi Driver
Lcd Support:
8x1, 8x2, 16x2, Or 20x4 Character Lcd
Specifications
Voltage Regulators:
+5v And +3v3 With Jumper Settings
Glcd Support:
128x64 Graphic Lcd
Leds:
8 Leds With Enable/disable Jumper Settings
Crystal Oscillator:
8 Mhz On Board
Push Buttons:
8 Push Button Switches
Relay Driver:
8 Relay Driver
Seven Segment Displays:
8 Seven Segment Displays With Spi Driver
Lcd Support:
8x1, 8x2, 16x2, Or 20x4 Character Lcd
Eeprom:
At24c08
Microcontroller Model:
Atmega128
External Interrupt Sources:
Available
Real Time Clock:
Ds1370 With Battery Backup, Crystal, And Buzzer
Temperature Sensor:
Ds18b20
Programming Interfaces:
Isp And Jtag
Sd Card Support:
Mmc/sd Card Socket For Data Logging
Buzzer:
On Board Buzzer For Sound Or Alarm
Servo Motor Driver:
On Board Servo Motor Driver
Stepper Motor Driver:
On Board Stepper Motor Driver
Boot Loader:
Pre-loaded Boot Loader For Direct Programming Without External Programmer
Trade Term:
To be discussed
Payment Term:
To be discussed
Adc Channels:
Two Channels With On Board Potentiometers
Power Sources:
Usb Port And 12v Dc External Power
Usb Functionality:
Usb Socket For Power Delivery And Firmware Downloading With Boot Loader
On Board Reset Circuit:
Yes
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2005
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
This is a State of Art, Complete AVR Micro-Controller Development Board. Any New Bee or a Professional Micro-Controller Developer will find this board very much attractive and useful as they can develop their software very easily efficiently and quickly with the help of this development board. The main heart of the board is the AVR micro-controller ATMEGA128. This is a advance AVR micro-controller which has got all most every features that can be available with different AVR Controller. Most attractive features is that it can be powered by directly USB port of your computer as well as it has got also a separate external Power (12V DC) socket. It has got LED, LCD, GLCD, Seven Segment Display, Push Button Switches, Buzzer, Relay Driver, Stepper Motor, Servo Motor, RTC, EEPROM, MMC/SD Connector, ADCs, USB, ISP & JTAG, External Interrupt Sources, Temperature Sensor. More Over user can directly interact with any of the port, as all the I/O ports are available with connectors.
FEATURES:
- ADVANCE AVR MICRO-CONTROLLER, ATMEGA128.
- All I/Os are available with connectors.
- On board Reset Controller Circuit.
- On Board 8 MHz Crystal.
- On Board Two Pot for Experiment with Two Channels ADC.
- On Board 8 LED with Enable/Disable Jumper Settings.
- On Board 8 Push Button Switches.
- On Board 8 Seven Segment Display with SPI Driver Circuit.
- On Board LCD socket for 8X1 or 8X2 or 16X2 or 20X4 Character LCD.
- On Board GLCD (Graphic LCD) socket for 128X64 etc.
- On Board 8 Relay Driver.
- On Board Stepper Motor Driver.
- On Board Servo Motor Driver.
- On Board Buzzer for generation of sound or alarm.
- On Board Temperature Sensor (DS18B20)
- On Board RTC (DS1370) with its peripheral circuits like Battery Backup, Crystal and Buzzer.
- On Board EEPROM (AT24C08)
- On Board MMC/SD card socket for any data logging application.
- On Board USB Driver with USB Socket.
- On Board USB can deliver power for the Board.
- On Board USB can also be used for downloading application firmware when used with Boot Loader. Free Boot Loader program is supplied with CD.
- On Board ISP for programming the board with external programmer.
- On Board JTAG for debugging your application with external de
- On board External Power Supply (12VDC) Socket. Board is intelligent enough to chose external power or USB Power.
- On Board +5V and +3V3 voltage regulator. Jumper Setting for choosing +5V or +3V3, as you may have different application demanding +5V or +3V3
- Pre-Loded Boot Loader, so no need of external ISP Programmer. You can directly program through BASCOM Editor or you can use stand alon Programmer Softwear (Available with the CD) to program the chip with out using any external programmer device.
