Complete Solar System 100kw Power Conversion System with 261kwh Solar Storage Battery Liquid Colling in Outdoor Cabinet
Sets
Negotiable
Product information
High-quality Complete Solar System 100kw Power Conversion System with 261kwh Solar Storage Battery Liquid Colling in Outdoor Cabinet supplied by Sail Solar Energy Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
1000 Piece/Pieces Per Month
Power Configuration:
100kW-250kW
Energy Capacity:
100kWh-500kWh
Capacity:
125kw 261kwh
Package Size:
135.00cm * 135.00cm * 230.00cm
Specification:
1350x1350x2300mm
Warranty:
15 Years
Package Gross Weight:
2800.000kg
Specifications
Production Capacity:
1000 Piece/Pieces Per Month
Power Configuration:
100kW-250kW
Energy Capacity:
100kWh-500kWh
Capacity:
125kw 261kwh
Package Size:
135.00cm * 135.00cm * 230.00cm
Specification:
1350x1350x2300mm
Warranty:
15 Years
Package Gross Weight:
2800.000kg
Cycle Life:
8000 Cycles (80%DOD)
OEM/ODM:
>20PCS, Acceptable
Origin:
Anhui, China
Model NO.:
BESS-P261
System Type:
Business Energy Storage System
Certification:
CE TUV VDE
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Transport Package:
Container
Trade Term:
FOB, CIF, CFR, EXW
Cooling Method:
Full Liquid Cooling (Temperature Difference ≤3℃)
Mounting Type:
Ground Mounting
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Battery Type:
Lithium Battery LiFePO4
Trademark:
SAIL SOLAR
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022-01-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
13
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
CERTIFICATE
Product descriptions from the supplier
SONA2024 2.2.1
Air-cooling type have 50kw/100kwh, 100kw/215kwh and 125kw/253kwh, three standard products, customization supported.
Product Description
Our all-in-one energy cabinet operates as an autonomous power hub. It intelligently shifts between three key modes to maximize savings and ensure reliability:
1) Peak shaving and valley filling: Automatically charges from the grid during low-rate periods and powers your facility during high-cost hours.
2) Solar Optimization: Adding solar panel and on grid inverter, to archive AC coupling
3) Instant Backup: Adding solar panel, DCDC chrage module, provides seamless, uninterrupted power for critical loads within milliseconds of a grid outage.
Product Specification
Outdoor Cabinet ESS | |||||
Outdoor Cabinet ESS | 100kWh | 215kWh | 253kWh | 233kWh | 261kWh |
Battery rated voltage | 844.8V | 768V | 806.4V | 832V | 832V |
Battery type | LFP | ||||
Battery cell capacity | 120Ah | 280Ah | 314Ah | 280Ah | 314Ah |
Series of Battery | 1P*24S*11S | 1P*20S*12S | 1P*18S*14S | 1P*52S*5S | 1P*52S*5S |
Rated AC power | 50kW | 100kW | 125kW | 100kW | 125kW |
Rated AC voltage | 400V,3W+N+PE | ||||
Cooling mode | Air-cooling | Liquid-cooling | |||
Communication | CAN/Ethernet / 485 | ||||
Size (W * D * H) | 1300*1000*2100mm | 1600*1200*2300mm | 1600*1200*2300mm | 1350*1350*2300mm | 1350*1350*2300mm |
Weight (approx.) | 1665kg | 2750kg | 2800kg | 2620kg | 2750kg |
Product Details
Air-cooling type details
Outdoor cabinet ESS system is consists of Lithium Battery, PCS module, control box, EMS, chiller, fire protection, etc. BMS gathers status data from cell, module and rack, and exchange information with other components.EMS can run different modes of the system inclusing peak and shaving mode/ self-sing mode/UPS mode,etc.
Air-cooling type have 50kw/100kwh, 100kw/215kwh and 125kw/253kwh, three standard products, customization supported.
Air-cooling type details
Outdoor cabinet ESS system is consists of Lithium Battery, PCS module, control box, EMS, chiller, fire protection, etc. BMS gathers status data from cell, module and rack, and exchange information with other components.EMS can run different modes of the system inclusing peak and shaving mode/ self-sing mode/UPS mode,etc.
Liquid-coolingtype have 100kw/233kwh and 125kw/261kwh, two standard products, customization supported.

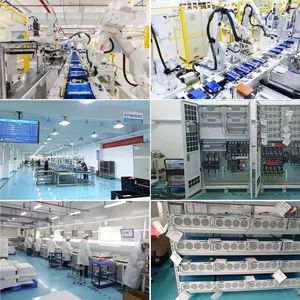

Our Factory
Factory Features
Sail Solar has developed an industry-leading intelligent manufacturing system, and constantly leads innovation in equipment and technology with the independent R&D of a top-notch technical team. With world-class production automation, intelligence, and production efficiency, Sail Solar has built an efficient intelligent factory employing new technologies such as AI, image recognition, machine learning, predictive algorithms and 5G.
Certifications
Sail Solar have passed IEC62619, IEC/EN60730, UL1973. CE-EMC etc testing, and got certification
Packaging & Shipping
Exhibition
Sail Solar participate in more than 20 exhibitions worldwide each year, spanning Asia, Europe, the Americas etc
Contact us
Please enter the title here
We can supply industry and commerce energy storage system, Air-cooling and Liquid-cooing type are optional.
