Concrete Block Making Machine Qt4-15 Semi-Automatic Brick Machines in Zambia
1 Set
$15,500Product information
High-quality Concrete Block Making Machine Qt4-15 Semi-Automatic Brick Machines in Zambia supplied by Shandong Gaotang Huatong Hydraulic Pressure Machinery Co., Ltd.. Bulk wholesale pricing is $15,500 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
300sets Per Year
Specification:
400*200*200mm
HS Code:
84748090
Block Size:
Based on Client Requirement
Certification:
CE, ISO, SGS
Raw Material Use:
Cement,Sand,Gravel
Origin:
China
Steel:
China Standard Steel
Specifications
Production Capacity:
300sets Per Year
Specification:
400*200*200mm
HS Code:
84748090
Block Size:
Based on Client Requirement
Certification:
CE, ISO, SGS
Raw Material Use:
Cement,Sand,Gravel
Origin:
China
Steel:
China Standard Steel
Trade Term:
FOB, CIF, CFR, EXW
Automatic:
Fully Automatic
Mould:
Heat-Treatment
Brick Type:
Hollow,Soild,Paving,Curbstone and So on
Trademark:
Huatong brand
Hydraulic:
Hydraulic Pressure,More Density
Type:
Hydraulic Shock
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Transport Package:
Non Package
Customized:
Non-Customized
Model NO.:
QT4-15
Port Of Loading:
Qingdao Port
Automatic Grade:
Semiautomatic
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-12-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
32
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
ISO9001:2015
Product descriptions from the supplier

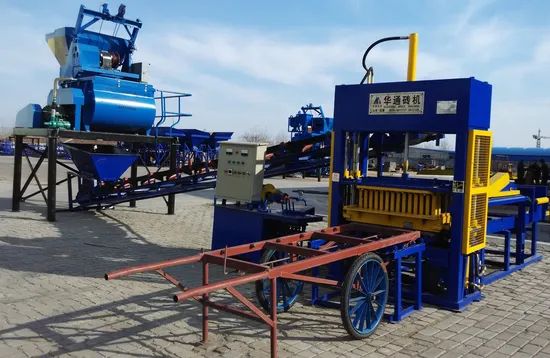

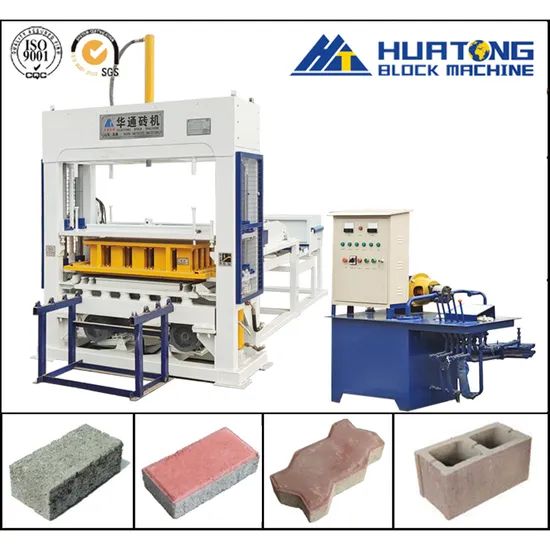

QT4-15 Semi-autoamtic brick making machine production line

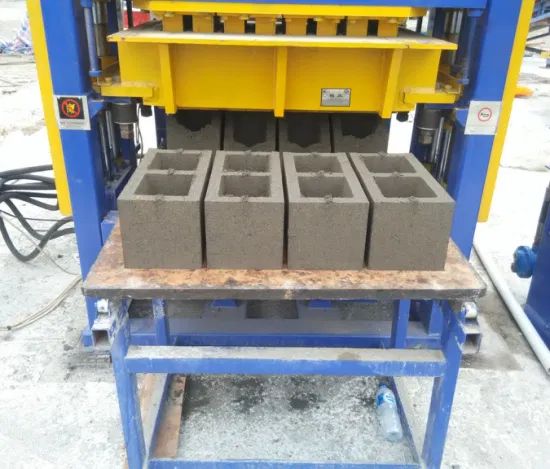

1.Way of moulding is vibration combined with hydraulic pressure.So blocks have good strength and density.The machine can produce hollow block,solid block,paving block by changing mould.
2.The way of concrete feeding into mould is compulsive by three shaft with blades.It is quick speed and well distributed.The vibration is oil-immersed to have a good lubrication.
3.Only two vibration motors is always working,other motors works fitfully.So it is power saving.
4.Concrete feeder,pallet feeder,up mould and down mould is powered by hydraulic system.
5.Mould is made with heat treatment,Carburizing.So working life of mould is improved.
| Dimension | 2800x1570x2600mm |
| Weight | 4500KG |
| Pallet Size | 960x630mm |
| Power | 19.9KW |
| Mode of Vibration | Table Vibration |
| Vibration Frequency | 4200r/min |
| Vibration Force | 70KN |
| Cycle Time | 15-25sec |
Production Capacity:
| Block Type | Picture | Size(L x W x H) | Pcs./Pallet | Pcs./Hour | Pcs./8 Hours |
| Hollow Block |  |
390x190x190mm | 4 | 625 | 5000 |
| Hollow Block |  |
390x150x190mm | 5 | 780 | 6240 |
| Hourdi Block |  |
530x160x195mm | 5 | 780 | 6240 |
| Stock Brick |  |
220x110x70mm | 20 | 4500 | 36000 |
| Paving Block |  |
200x100x60mm | 16 | 2300 | 18400 |
| Paving Block |  |
225x112.5x60mm | 14 | 2000 | 16000 |

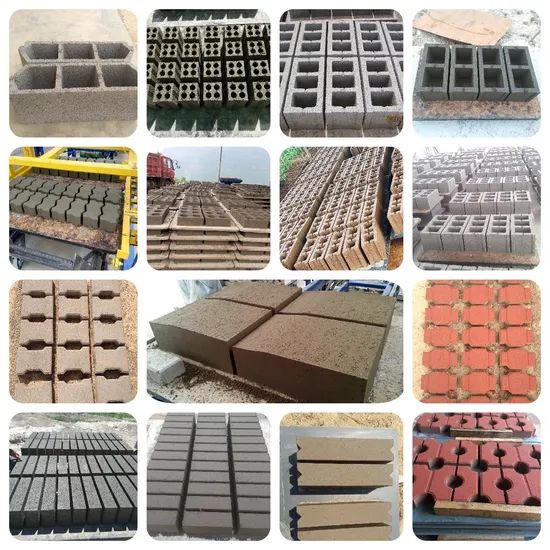

Block sample:
1,Hollow blocks:For high building,house,villa,wall and so on.
2,Solid blocks:For high building,house,villa,wall,park,road and so on.
3,Paving blocks:For park,road,invironment grow grass so on.
4,Interlocking blocks:For park,garden,road,house decoration and so on.
5,Curb stone:road side.
Shandong Gaotang Huatong Hydraulic Machinery Co., Ltd. is located in Renhe Industrial Park, Gaotang County, Shandong Province. It is one of the large manufacturers specializing in the production of non-burning brick machines.
Our company was founded in 2004. After more than ten years of development, from an annual output of more than a dozen small brick machines to an annual output of hundreds of large brick machine production lines, Huatong now covers an area of 65000 square meters and a construction area of 19000 square meters. It has modern production workshops and office facilities, complete machine tools, heat treatment, rust removal and shot blasting equipment, and welding equipment, and has gathered a large number of senior technical and management personnel. There are 4 senior engineers, there are 8 engineers, more than 60 talents with college education or above, and more than 600 technicians of various types.
The whole block making machine line could load in one 40'f container,except this,it could load 900pieces pallets.
We can load the block making machine to your countries port,then you can let your forwarder to clear custom and transport to your place,its easy to operate.
Befor sale service:
1,We will supply the block making machine specification.
2,Show how to operate the machine.
3,Could supply the block samples disign drawing.
4,Tell our customer the international business operation procedure.
5,24h E-mail and call service.

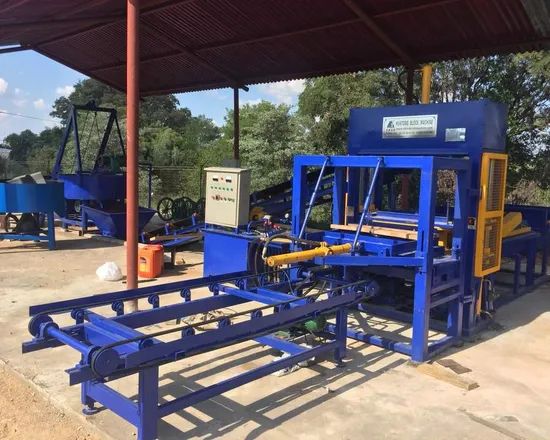

Different countries customers work site:
1,Our technician is available to overseas service,guide installation and help training the workers.
2,24h E-mail and call service.
3,One year guarantee time.
ISO certificate:
Specifications of JS500 Concrete Mixer:
| Charging Capacity (L) | 800 | Discharging Capacity(L) | 500 | |
| Maximum Production(m3/h) | 25 | Aggregate Maxi Diameter(mm) | 80mm | |
| Mixing Blade | Speed(r/min) | 35 | Mixing Motor(kw) | 18.5 |
| Quantity | 27 | Hoist Motor(kw) | 5.5 | |
| Water Pump Motor(kw) | 0.75 | Discharging Mode | Manual/ Pneumatic |
|
| Discharging Height(m) | 1.5/2.7/3.8 | Weight (kg) | 4000 | |
| Transport Dimension | 3030x2300x2680 | Working Dimension (mm) | 4486x3030x5280 | |
We warmly welcome your enquiry,asking any questions,we will do our best to buy the best quality machine with lower price.
