Conductive Fabric Sheet Cutting Machine
Set
Negotiable
Product information
High-quality Conductive Fabric Sheet Cutting Machine supplied by YANCHENG LONGTERM MACHINERY CO., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Cutting Width:
0-1000mm
Production Capacity:
500 Sets/Year
Cutting Speed:
80-200cut/Min
HS Code:
84411000
Specification:
960x1020x1150mm
Computerized:
Computerized
Driven Type:
Electric
Trade Term:
FOB, CFR, CIF, EXW
Specifications
Cutting Width:
0-1000mm
Production Capacity:
500 Sets/Year
Cutting Speed:
80-200cut/Min
HS Code:
84411000
Specification:
960x1020x1150mm
Computerized:
Computerized
Driven Type:
Electric
Trade Term:
FOB, CFR, CIF, EXW
Type:
Industrial Cutter
Origin:
Jiangsu, China
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Model NO.:
LT-700B
Trademark:
Longterm
Port Of Loading:
Shanghai
Classification:
Single-blade Cutter
Transport Package:
Standard Plywood Package
Blade Material:
Steel
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2017-08-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Shanghai
Certificates:
CE
Product descriptions from the supplier

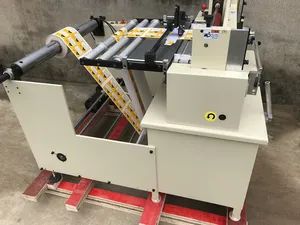

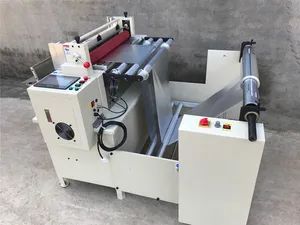

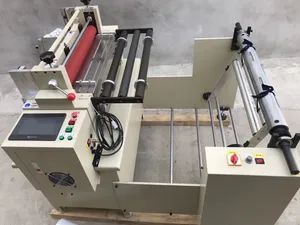

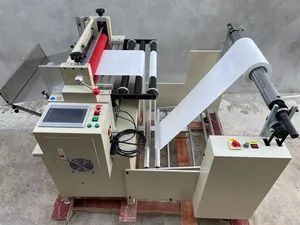

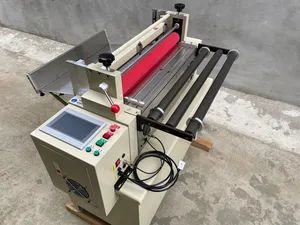

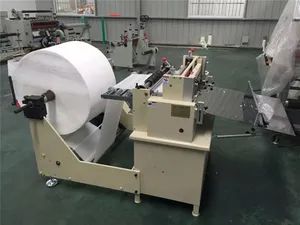

Conductive Fabric Sheet Cutting Machine
Main Technical Parameter
Features
FUNCTIONAL CHARACTERSTICS
This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting, equipped with automatic unwinding system and air shaft, which will be easy to load and unload. With photoelectric system to searching the marks , and with the electric static eliminator after cutting the sheets
Purpose
Sizing cutting for all kind paper, aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form. To cut material from rolls to sheets.
Materials can be cut as below
Main Technical Parameter
| Item Number | LT-360 | LT-500 | LT-600 | LT-700 | LT-1000 |
| Web Width | 0-360mm | 0-500mm | 0-600mm | 0-700mm | 0-1000mm |
| Cutting length | 0-9999.99mm | 0-9999.99mm | 0-9999.99mm | 0-9999.99mm | 0-9999.99mm |
| Cutting speed | 100 cut/min | 100 cut/min | 100 cut/min | 100 cut/min | 100 cut/min |
| Cutting precision | 0.03mm | 0.03mm | 0.03mm | 0.03mm | 0.03mm |
| Voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
| Size | 1100x1420x1280mm | 1250x1420x1280mm | 1350x1420x1280mm | 1450x1420x1280mm | 1730*1420x1280mm |
| Weight | 320kg | 380kg | 400kg | 420kg | 450kg |
| Total Power | 2.2kw | 2.2kw | 2.2kw | 2.2kw | 2.2kw |
Features
1. The max width: 360, 500, 600, 700, 1000, customized
2. Tolerence: 0.05mm, Precision: 0.03mm
3. Material thickness: 0.5mm-20mm
4. Cutting speed: 100cut/min;
5. Both kiss-cut and complete cut are available;
6. Complete cut is for standard machine, and kiss-cut is an option;
7. A conbination of PLC and servo motor.
8. Eye mark device for optional
9. An air shaft as the loading shaft;
10. Two accessories, static eliminator and conveyor belt, for you to choose
11. Automatic unwinding function;
12. Cutting length is accurate;
13. Operation is easy;
14. Waste rate is low;
15. Diverse functions satisfy your various requirements;
16. We offer superior-quality products and best service for you;
17. As a high-tech manufacturer, we possess veteran engineers and professional sales team;
CE certificate
After-service
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
Electric Box
