Construction Efficiency Booster: High Frequency Concrete Vibrator
48-95 Pieces
$26096-191 Pieces
$220192 Pieces
$180Product information
High-quality Construction Efficiency Booster: High Frequency Concrete Vibrator supplied by Ningbo Ace Machinery Co., Ltd.. Bulk wholesale pricing ranges from $180 to $260 per Pieces with a minimum order of 48 Pieces. Inquiry for latest prices.
Unloaded Speed:
17500
Rated Power:
2300W/1800W
Rated Frequency:
230V/50Hz 115V/60Hz
Package Gross Weight:
30.000kg
Production Capacity:
3000PCS/Month
Weight:
30kg
Packing Size:
35.8*20*24cm
Product Capacity:
40～400t/h
Specifications
Unloaded Speed:
17500
Rated Power:
2300W/1800W
Rated Frequency:
230V/50Hz 115V/60Hz
Package Gross Weight:
30.000kg
Production Capacity:
3000PCS/Month
Weight:
30kg
Packing Size:
35.8*20*24cm
Product Capacity:
40～400t/h
Specification:
66*34*42cm/1PCS
Package Size:
66.00cm * 34.00cm * 42.00cm
HS Code:
847982900
Trademark:
ASOK
Transport Package:
Carton
Object:
Cement Concrete Pavement
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Type:
Concrete Vibrator
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Insulation Class:
Double Insulation Ipx4
Manufancture Standards:
En 60745-2-12:2003
Trade Term:
FOB, CIF
Cord Plug:
Ho7rn-F 3*1.5mm2
Certification:
ISO9001: 2000, CE
Mixing Method:
Intermittent Compulsory
Model NO.:
MHP
Moving Type:
Mobile
Condition:
New
Port Of Loading:
Ningbo Port
Origin:
Ningbo, China
Automatic Grade:
Non-Automatic
Color:
Orange
Payment Methods:
Support payments in USD
Payment Term:
T/T, LC
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-03-24
Annual Revenue Amount:
Not specified
Numbers Of Employees:
17
Preferred Payment Term:
T/T, LC
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Ningbo Port
Certificates:
CE Certificate2 of C-77/90/120 Plate compactor, CE certification of C-60 plate compactor, CE Certification of concrete vibrator, CE Certification of Portable Concrete Vibrator, CE Certification of power trowel, CE Certification of steel bar cutter, CE for External vibrator, CE for plate comapctor C-80/100, CE of C-77/90/120 Plate compactor, CE2 for plate compactor C-90, Concrete cutter of CE certification, SGS Certificate
Product descriptions from the supplier

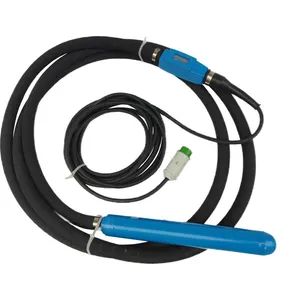

MHP is a universal motor for driving aneccentric system of concrete vibrator. With strong housing, qualified rotor & stator, high level of carbon brush, it provides both superior dynamic to the flexible shaft & poker, and also reliable performance & long lifetime
TheMHPUniversal Motor is a high-performance solution engineered specifically for driving the eccentric systems of concrete vibrators. Built with a robust waterproof housing and advanced components, this motor delivers superior dynamic performance, ensuring efficient compaction in construction projects. Its universal compatibility and modular design make it ideal for importers and construction professionals seeking reliability, ease of maintenance, and adaptability to diverse working conditions.
-
1.Powerful & Reliable Motor: Equipped with a high-performance motor, ensuring stable power output for efficient concrete vibration tasks.
-
2.Strong Waterproofed Housing with Integrated Filter: The rugged, IPX4-rated housing and integrated filter protect internal components from dust, water, and harsh working conditions, enhancing durability.
-
3.Well-Protected & Easy-to-Change Carbon Brush: The carbon brush is safeguarded for prolonged use yet simple to replace, streamlining maintenance processes and reducing downtime.
-
4.Low Noise & Soft Vibration on Flexible Shaft: Operates with minimal noise and gentle vibration, creating a more comfortable working environment and extending the shaft's service life.
-
5.Tool-Free Assembly/Disassembly for Motor-Shaft Coupling: Allows quick and effortless connection/disconnection between the motor and shaft, improving operational convenience.
-

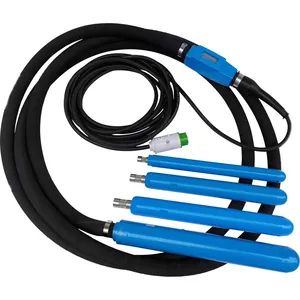

6.Interchangeable Poker Head for All Flexible Shafts: Offers flexibility to adapt to different flexible shafts, maximizing usability across various equipment setups.
-
7.Variety of Poker Head Sizes for Diverse Work Conditions: Available in multiple sizes, catering to different construction requirements and ensuring optimal performance in various scenarios.
-
8.High-Frequency Vibration on Poker Head: Generates rapid vibration to enhance concrete compaction efficiency, meeting professional construction standards.
| Technical Data | |||||
| MODEL | WEIGHT (KG) |
VOLTAGE (V) |
FREQUENCY (Hz) | POWER (kW) |
VIBRATION (m/s2) |
| MHP 38 | 11 | 42 | 200 | 0.58 | 3.8 |
| MHP 50 | 15 | 42 | 200 | 0.85 | 4.5 |
| MHP 58 | 17.5 | 42 | 200 | 1.10 | 4.6 |
| MHP 65 | 22.5 | 42 | 200 | 1.50 | 4.9 |
| *Standard length: 10m cable and 5m hose. (Other lengths available upon request) | |||||
