High-quality Construction Machine Cold Planer Sm200m-C6 Electric Hydraulic Road Cold Milling Machine Cold Planer supplied by Liebty Machinery Technology (Hangzhou) Co., Ltd. Bulk wholesale pricing ranges from $38,000 to $59,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
100 Units Per Month
Fuel Tank (L):
1120
Power:
477kw
Width Of Conveyor Belt (Mm):
800
HS Code:
8429510000
Origin:
China
Transport Package:
Container Bulk Nude Frame
Trademark:
Cutomizable
Specifications
Production Capacity:
100 Units Per Month
Fuel Tank (L):
1120
Power:
477kw
Width Of Conveyor Belt (Mm):
800
HS Code:
8429510000
Origin:
China
Transport Package:
Container Bulk Nude Frame
Trademark:
Cutomizable
Trade Term:
FOB, CIF, EXW, CFR
Certification:
ISO9001: 2000, CE
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Condition:
New
Model NO.:
SM200M-C6
Port Of Loading:
Shanghai Port; Ningbo Port
Specification:
Standard specification size
Color:
White
Wing Angle Of Conveyer (Rightward/Leftwa:
±45
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-01-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
12
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, EXW, CFR
Port Of Loading:
Shanghai Port; Ningbo Port
Product descriptions from the supplier
============================================================================================
Product Description
-----------------------------------------------------------------------------------------------------------------
SM200M-C6 Electric Hydraulic Road Cold Milling Machine
Drive system
1, The 600ps electronic injection engine works with 32t operating weight to realize high milling capability and high efficiency for hard roads and large-depth milling.
2, The energy-saving technologies, including temperature-controlled fan technology and engine automatic idling technology, realize better fuel economy of the machine.
3, The limit load function guarantees the engine against flameout under severe working condition.
4, The milling drum is driven by mechanical belt and the drive belt is hydraulically tensioned, featuring high drive efficiency, effectively mitigated operating impact, and stable and reliable power transmission.
Control system
1, The full-CAN bus digital network control mode is applied to effectively guarantee the automatic control and protection for all motions of the machine.
2, The design of double operating consoles enables the driver's operations from both left and right sides.
3, The installed human-machine interfaces can centrally display the digital working parameters of the machine.
4, The complete malfunction self-diagnostic information and the warning and prompt information realize safer and more efficient operations of the machine.
1, The full-CAN bus digital network control mode is applied to effectively guarantee the automatic control and protection for all motions of the machine.
2, The design of double operating consoles enables the driver's operations from both left and right sides.
3, The installed human-machine interfaces can centrally display the digital working parameters of the machine.
4, The complete malfunction self-diagnostic information and the warning and prompt information realize safer and more efficient operations of the machine.
Specification
|
Parameter name
|
SM200M-C6
|
|
Performance parameters
|
|
|
Operating weight (Kg)
|
32000
|
|
Transport weight(Kg)
|
29700
|
|
Maximum milling width (mm)
|
2000
|
|
Maximum milling depth (mm)
|
320
|
|
Engine
|
|
|
Engine model
|
QSX15
|
|
Rated power/rated speed (kW/rpm)
|
447/2100
|
|
Overall dimensions
|
|
|
Overall dimensions of machine (mm)
|
14940*2515*4090
|
|
Driving performance
|
|
|
Traveling speed (km/h)
|
0-5
|
|
Working speed (m/min)
|
0-83
|
|
Conveyor System
|
|
|
Width of conveyor belt (mm)
|
800
|
|
Swing angle of conveyer (Rightward/leftward) (°)
|
±45
|
|
Tank capacity
|
|
|
Fuel tank (L)
|
1120
|
|
Working device
|
|
|
Number of milling cutters (Piece)
|
162
|

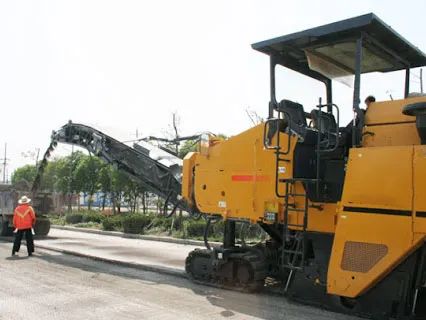

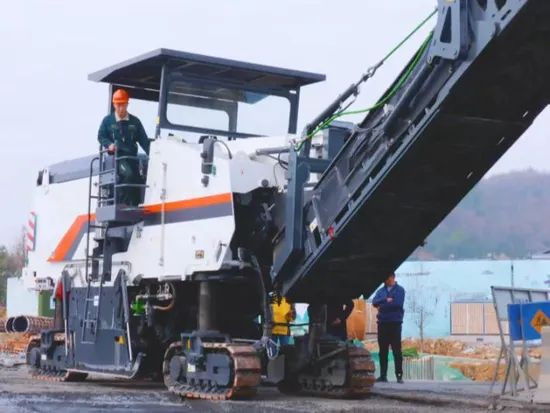

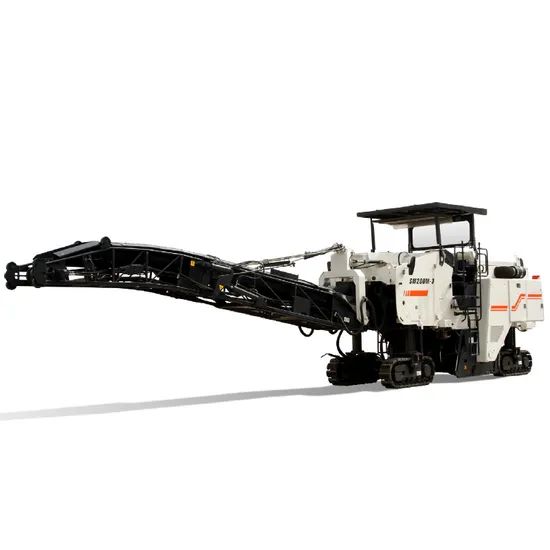

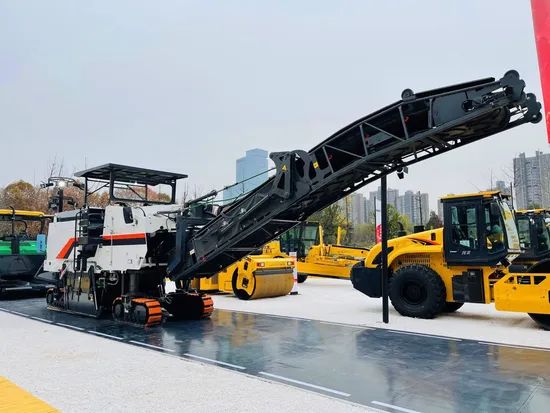

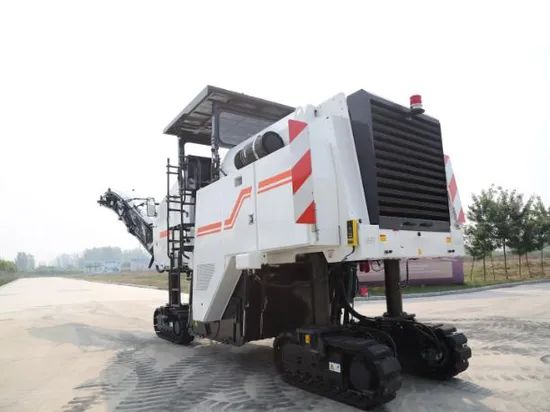

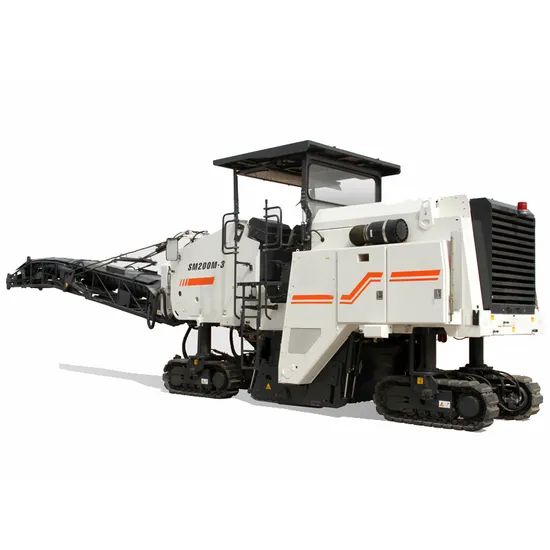

Product Image
