Continuous Servo Food Thermoforming Vacuum Packing Machine for Meat Deli Ham Bacon
1 Set
$61,000Product information
High-quality Continuous Servo Food Thermoforming Vacuum Packing Machine for Meat Deli Ham Bacon supplied by Nanjing Sunrise Science and Technology Co. Ltd.. Bulk wholesale pricing is $61,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Gas Velocity:
0.60.8MPa
Forming Time/ Sealing Time:
1-2s/1.5-2.5s
Molding Temperature/ Molding Pressure:
100-120℃/0.15MPa
Sealing Temperature/ Sealing Pressure:
125-150℃/0.15MPa
Main Fram Material:
304 Stainless Steel(Food-Grade)
Main Power Supplier:
380V/15kw
Power Supply:
380V/50Hz
Production Capacity:
500 Units/Year
Specifications
Gas Velocity:
0.60.8MPa
Forming Time/ Sealing Time:
1-2s/1.5-2.5s
Molding Temperature/ Molding Pressure:
100-120℃/0.15MPa
Sealing Temperature/ Sealing Pressure:
125-150℃/0.15MPa
Main Fram Material:
304 Stainless Steel(Food-Grade)
Main Power Supplier:
380V/15kw
Power Supply:
380V/50Hz
Production Capacity:
500 Units/Year
Effective Working Packing Film Size:
586*600mm
Width For Upper/Lower Film:
598mm/622mm
Matrix Distance:
600mm
HS Code:
8422303090
Automation:
Automatic
Type:
Double Chamber Vacuum Packing Machine
Power:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Application:
Food
Origin:
Jiangsu, China
Payment Term:
LC, T/T, D/P, PayPal
Condition:
New
Object State:
Paste, Powdery, Liquid, Solid
Model NO.:
SR620D
Trademark:
SUNRISE SCIENCE
Port Of Loading:
Shanghai Port
Transport Package:
Standard Packaging or Customized
Specification:
Standard Specifications or Customized
Inflatable Device:
Without Inflatable Device
Vacuum Gas:
≤200PA
Cooling Water Pressure:
≥0.1 MPa
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-07-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
6
Preferred Payment Term:
LC, T/T, D/P, PayPal
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Product descriptions from the supplier
SONA2024 2.2.1
Product Description
VACUUM PACKING MACHINE
Our company is dedicated to new design, new planning, and new research and development of vacuum packaging. And provide a complete set of packaging equipment and automated material handling, filling, and conveying solutions.
It adopts a 304 stainless steel frame structure, featuring high straightness, high strength, and corrosion resistance.
At present, we have filled new gaps in the industry in areas such as high vacuum, three-element gas adjustment, edge and corner R arc, V-shaped tear joint, hard box forming, overall punching and cutting, and edge and corner recycling.
Our company is dedicated to new design, new planning, and new research and development of vacuum packaging. And provide a complete set of packaging equipment and automated material handling, filling, and conveying solutions.
It adopts a 304 stainless steel frame structure, featuring high straightness, high strength, and corrosion resistance.
At present, we have filled new gaps in the industry in areas such as high vacuum, three-element gas adjustment, edge and corner R arc, V-shaped tear joint, hard box forming, overall punching and cutting, and edge and corner recycling.
KEY FEATURES
* The lifting system adopts the eight-link drive technology with bent knees, which is stable, fast, and has excellent performance. Stable and rapid positive and negative pressure forming technology ensures uniform standard thickness.
* The guard plate cover that can be quickly disassembled and assembled is beautiful, clean, and easy to rinse. The super-long material filling area makes it convenient for manual or robot workers to increase the filling speed.
* The advanced upper and lower film electronic control pre-tightening system can better control the offset of the packaging film, ensure accurate cursor positioning, and enhance the appearance of the packaging. The edge and corner waste collection system is energy-saving, low-noise, and highly operable.
* The lifting system adopts the eight-link drive technology with bent knees, which is stable, fast, and has excellent performance. Stable and rapid positive and negative pressure forming technology ensures uniform standard thickness.
* The guard plate cover that can be quickly disassembled and assembled is beautiful, clean, and easy to rinse. The super-long material filling area makes it convenient for manual or robot workers to increase the filling speed.
* The advanced upper and lower film electronic control pre-tightening system can better control the offset of the packaging film, ensure accurate cursor positioning, and enhance the appearance of the packaging. The edge and corner waste collection system is energy-saving, low-noise, and highly operable.
Application Scenarios
Specification
TECHNICAL PARAMETERS | |
Width for Upper/Lower Film | 598mm/622mm |
Effective Working Packing Film Size | 586*600mm |
Molding Temperature/ Molding Pressure | 100-120℃/0.15Mpa |
Sealing Temperature/ Sealing Pressure | 125-150℃/0.15Mpa |
Forming Time/ Sealing Time | 1-2S/1.5-2.5S |
Vacuum Gas | ≤200pa |
Matrix Distance | 600mm |
Matrix/m | 5-8 Times/m (Up To A Maximum Of 12 Times) |
Total Power | Including A Weak Current Of Approximately 18KW |
Power Supply | 380V/50Hz |
Main Fram Material | 304 Stainless Steel(Food-grade) |
Cooling Water | 0.1 - 0.15 MPa, The Chlorine Ion Content In The Cooling Water Should Not Exceed 25 Mg/L |
GAS Velocity | 0.60.8mpa |
Cooling Water Pressure | ≥0.1 Mpa |
Gas Compressor | 1.0m3/m, Pressure 10 Kilograms |
Gas Container | 1.0m3, Pressure 10 Kilograms |
Main Power Supplier | 380V/15KW |

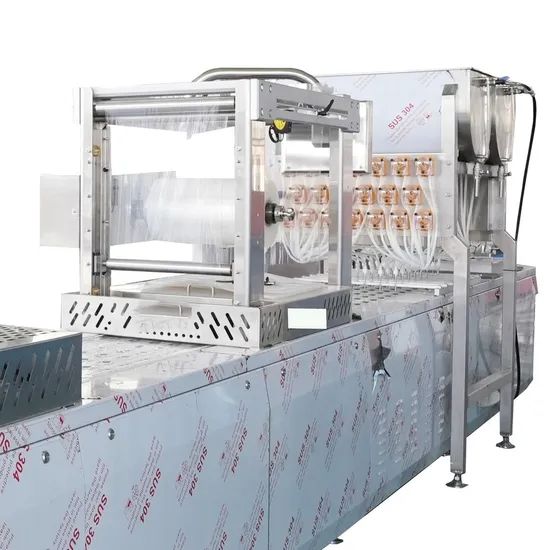

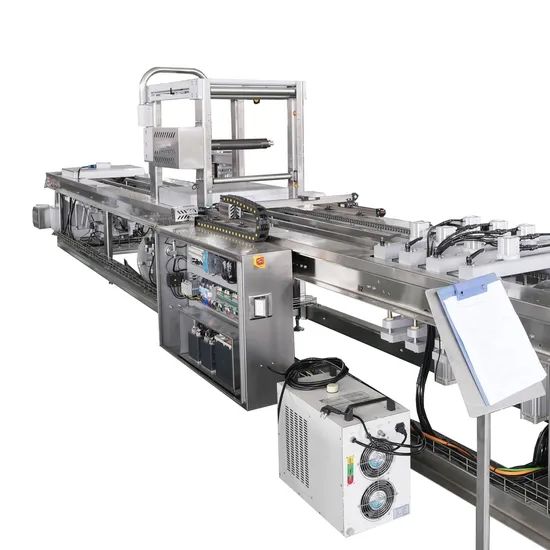

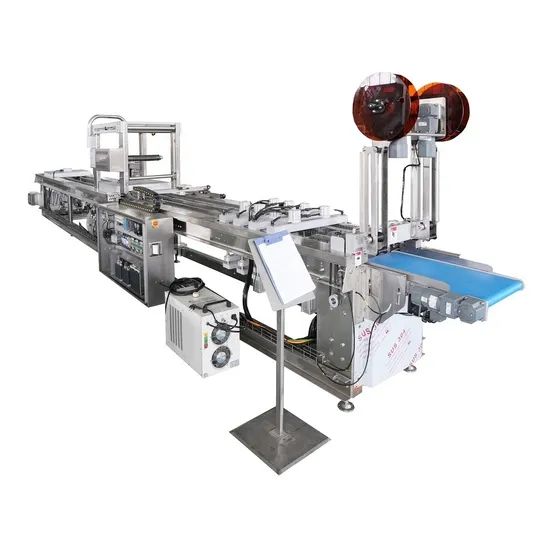

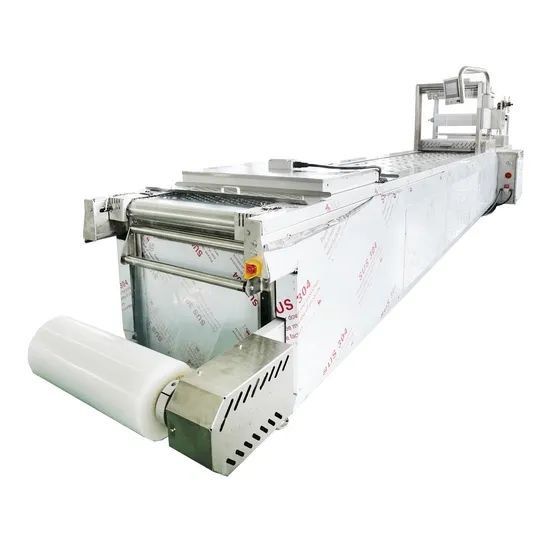

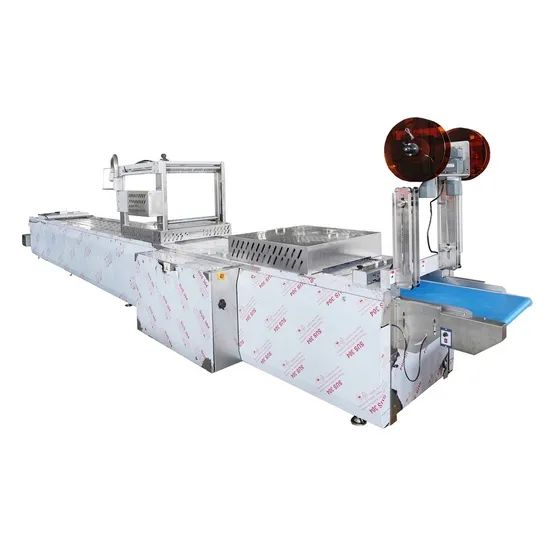

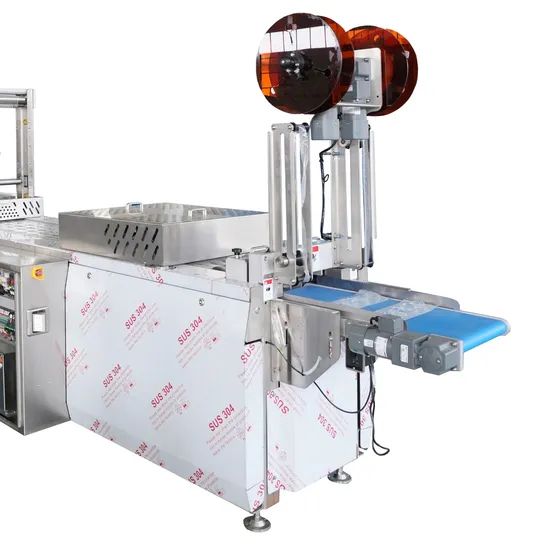

Detailed Photos
Multifunctional
Capable of soft film, hard film, and aluminum film packaging, supporting multi-step, vacuum, and nitrogen-filling packaging processes to meet diverse user needs. Multiple mold interchangeable solutions are available upon request.
High Efficiency
Equipped with imported electrical components, vacuum pumps, chains, and servo control systems.
Fast working cycle speed effectively reduces labor and equipment investment costs.
Safety
Equipped with emergency safety switches throughout the machine body, providing comprehensive and seamless protection to eliminate all potential dangers, fully embodying the human-centered design of modern fully automatic machinery.
Convenience
Features a fully Chinese human-machine interface with built-in functions such as product operating parameters, fault analysis, output statistics, emergency alarm prompts, and operation testing.
Robustness
The entire machine uses a 304 food-grade stainless steel frame structure, ensuring it will never deform. All components are made of standard stainless steel, and the molds are engraved from high-strength precision-machined aluminum plates.
Advantages
Leveraging advanced production technology and European equipment, it offers highly competitive prices and 24/7 customer service in the domestic market.
Capable of soft film, hard film, and aluminum film packaging, supporting multi-step, vacuum, and nitrogen-filling packaging processes to meet diverse user needs. Multiple mold interchangeable solutions are available upon request.
High Efficiency
Equipped with imported electrical components, vacuum pumps, chains, and servo control systems.
Fast working cycle speed effectively reduces labor and equipment investment costs.
Safety
Equipped with emergency safety switches throughout the machine body, providing comprehensive and seamless protection to eliminate all potential dangers, fully embodying the human-centered design of modern fully automatic machinery.
Convenience
Features a fully Chinese human-machine interface with built-in functions such as product operating parameters, fault analysis, output statistics, emergency alarm prompts, and operation testing.
Robustness
The entire machine uses a 304 food-grade stainless steel frame structure, ensuring it will never deform. All components are made of standard stainless steel, and the molds are engraved from high-strength precision-machined aluminum plates.
Advantages
Leveraging advanced production technology and European equipment, it offers highly competitive prices and 24/7 customer service in the domestic market.
Core Components
FAQ
Q1. What does your company supply?
A. We are a professional manufacturer of thermoforming packaging machines/vacuum packing machines.
A. We are a professional manufacturer of thermoforming packaging machines/vacuum packing machines.
Q2. Do you have any certifications for your products and your company?
A. Yes. We have CE certifications,1S09001.1S014001
A. Yes. We have CE certifications,1S09001.1S014001
Q3. The power supply in my country is different from that in China, so l'm worrying if l could use the machine in my factory?
A. Please don't worry about this. We customize every machine to make sure they are in accordance with your local power supply. You can use the machines without any problem.
A. Please don't worry about this. We customize every machine to make sure they are in accordance with your local power supply. You can use the machines without any problem.
Q4.How long can I receive the machine if l make an order?
A. The leading time is different, depending on machine type and production schedule. Usually, the leading time for a thermoforming packaging machine is 15-30 days; the leading time for an inline automatic MAP machine is 10-25 days; the leading time for a vertical MAP machine and chamber vacuum packing machines is 5-15 days.
A. The leading time is different, depending on machine type and production schedule. Usually, the leading time for a thermoforming packaging machine is 15-30 days; the leading time for an inline automatic MAP machine is 10-25 days; the leading time for a vertical MAP machine and chamber vacuum packing machines is 5-15 days.
