Conveyor Chain Links Steel Chain Agricultural Chain Origin China Material Steel Trademark Yutung Model NO. As Drawing Port: Shanghai, China
1 Meter
$10Product information
High-quality Conveyor Chain Links Steel Chain Agricultural Chain Origin China Material Steel Trademark Yutung Model NO. As Drawing Port: Shanghai, China supplied by Nantong Yutung Industrial Co., Ltd.. Bulk wholesale pricing is $10 per Meter with a minimum order of 1 Meter. Inquiry for latest prices.
Production Capacity::
500000/Pieces
Model NO.:
As Drawing
Origin:
China
Trade Term:
FOB, CFR, CIF, EXW
Specification:
GLF, GLR
Payment Terms::
L/C, T/T, Western Union, Paypal
Surface Treatment:
Oxygenation
Transport Package:
Pallet
Specifications
Production Capacity::
500000/Pieces
Model NO.:
As Drawing
Origin:
China
Trade Term:
FOB, CFR, CIF, EXW
Specification:
GLF, GLR
Payment Terms::
L/C, T/T, Western Union, Paypal
Surface Treatment:
Oxygenation
Transport Package:
Pallet
Structure:
Roller Chain
Port Of Loading:
Shanghai
Port::
Shanghai, China
Material:
Steel
Payment Term:
T/T, PayPal, Western Union
Trademark:
Yutung
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Shanghai
Certificates:
IATF16949, ISO 9001
Product descriptions from the supplier
Product Description
Product Description
Drop Forged Chains "Y" Serial
FEATURES
• It consists of forged steel links, which can be equipped with various plastic or steel scrapers. The connection pin between these links is in a circlip version.
• Special heat treated alloy steel,drop forged and precision machined, with case hardened.
• High strength, strong load-carrying capability.
• Extremely hard exterior surface and superior wear
resistance.
TECHNICAL SPECIFICATIONS
| Model | P (mm) | H (mm) | B (mm) | D (mm) | b (mm) | T (mm) | Breaking Load (Min.) | Material |
| P100 | 100 | 30 | 33 | 14 | 15.5 | 13 | 140KN | 40Cr |
| P125-B | 125 | 35 | 34 | 17 | 17 | 8 | 150KN | 40Cr |
| P142 | 142 | 50.8 | 43 | 25 | 19 | 12.2 | 180KN | 20CrMnTi |
| 300KN | 40Cr | |||||||
| P142H | 142 | 50 | 62 | 25 | 29 | 15 | 280KN | 20CrMnTi |
| 460KN | 40Cr | |||||||
| P160 | 160 | 40 | 48 | 20 | 22.5 | 20 | 240KN | 40Cr |
| P200 | 200 | 64 | 50 | 32 | 23 | 15 | 390KN | 40Cr |
| P200-E | 200 | 45 | 42 | 20 | 20 | 12.2 | 200KN | 40Cr |

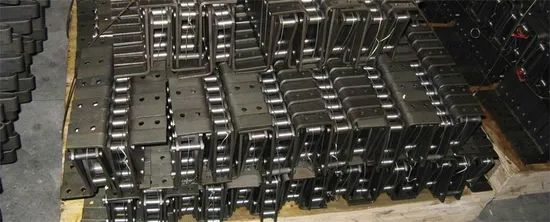

Roller Conveyor Chains
FEATURES

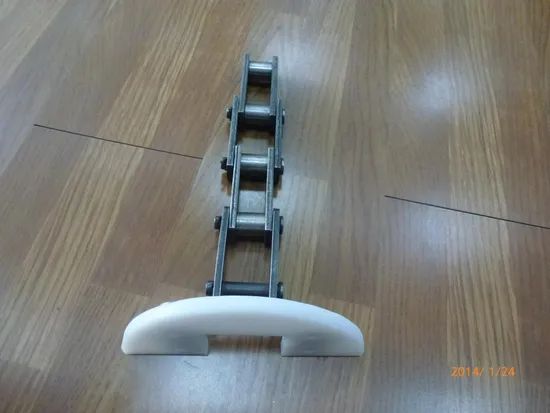

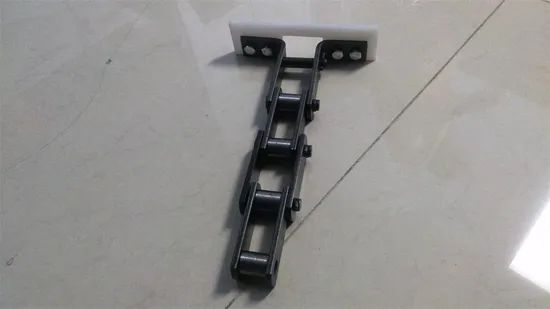

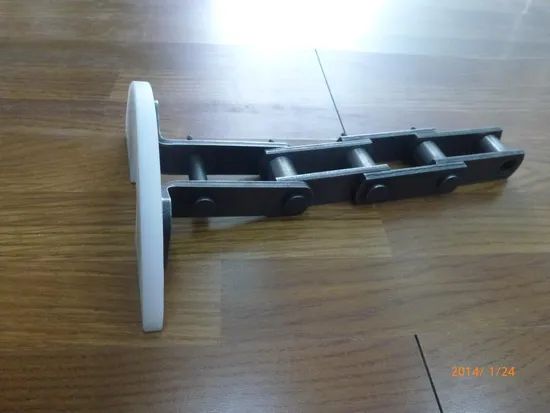

• It consists of a combination of inner and outer links.
• The bush/pin connections between the links are available in a circlip, split pin, or a riveted version.
• The steel scrapers can be either bent or welded.

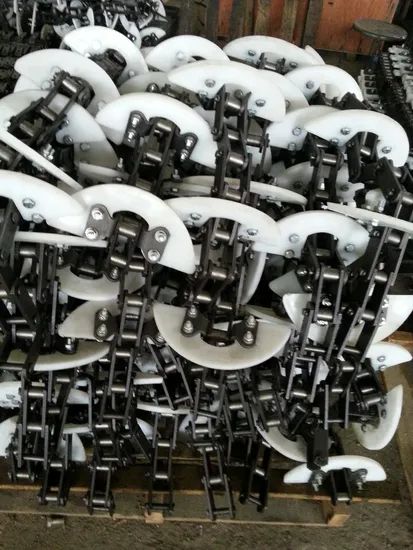

• UHMWPE lights are suggested to attach to the scrapers for more eficiency and high wear resistance.
GLF Type
TECHNICAL SPECIFICATIONS
| Model | Pitch (P) | Scraper Distance (P1) | Inner Width (b) | Plate Width (B) | T1 | T2 | Roller Dia. (D) | Bush Dia. (D2) | Pin Dia (D1) | Chain Width (L) | E1 | E2 | Number of Holes (n) | d | Breaking Load in KN (Min.) |
| GLF66.675 (6)D×182 | 66.675 | 266.7 | 26 | 30 | 6 | 6 | 22.23 | 12.7 | 182 | 90 | 150 | 4 | 9 | 130 | |
| GLF66.675 (6)D×215 | 66.675 | 266.7 | 26 | 30 | 6 | 6 | 22.23 | 12.7 | 215 | 95 | 195 | 4 | 9 | 130 | |
| GLF66.675 (6)D×295 | 66.675 | 266.7 | 26 | 30 | 6 | 6 | 22.23 | 12.7 | 295 | 95 | 195 | 4 | 9 | 130 | |
| GLF100 (6)D×170 | 100 | 200 | 38 | 40 | 6 | 6 | 36 | 21.6 | 16 | 170 | 115 | 2 | 9 | 220 | |
| GLF100 (6)D×225 | 100 | 200 | 38 | 40 | 6 | 6 | 36 | 21.6 | 16 | 225 | 104 | 194 | 4 | 9 | 220 |
| GLF100 (6)D×294 | 100 | 200 | 38 | 40 | 6 | 6 | 36 | 21.6 | 16 | 294 | 115 | 245 | 4 | 9 | 220 |
| GLF100 (5)×225 | 100 | 200 | 28 | 30 | 5 | 5 | 22.23 | 14.27 | 225 | 95 | 195 | 4 | 9 | 90 | |
| GLF125 (8)D×285 | 125 | 500 | 50 | 50 | 8 | 8 | 32 | 19.9 | 285 | 155 | 255 | 4 | 9 | 220 | |
| GLF125 (6)×235 | 125 | 250 | 32.5 | 40 | 6 | 6 | 28.58 | 20 | 14.27 | 235 | 95 | 195 | 4 | 9 | 170 |
| GLF160 (6)×290 | 160 | 320 | 27 | 45 | 6 | 6 | 32 | 20 | 14.27 | 290 | 193 | 2 | 9 | 193 |
TECHNICAL SPECIFICATIONS
| Model | Pitch (P) | Scraper Distance (P1) | Inner Width (b) | Plate Width (B) | T1 | T2 | Roller Dia. (D) | Bush Dia. (D2) | Pin Dia (D1) | Chain Width (L) | E1 | E2 | Number of Holes (n) | d | Breaking Load in KN (Min.) |
| GLR66.675 | 66.675 | 266.7 | 27.5 | 30 | 6 | 6 | 24 | 13 | 130 | 102 | 32 | 4 | 9 | 90 | |
| GLR100 | 100 | 200 | 38 | 40 | 6 | 6 | 36 | 21.6 | 16 | 130 | 102 | 32 | 4 | 9 | 220 |
