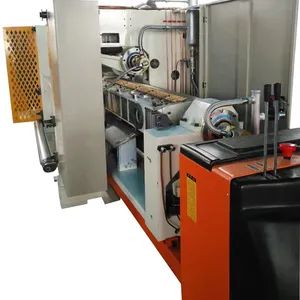

Corrugated Board Making Single Face Corrugated Paper Making Machine
set
Negotiable
Product information
High-quality Corrugated Board Making Single Face Corrugated Paper Making Machine supplied by DONGGUANG XINGLONG PACKAGING MACHINERY CO., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Capacity:
150-200m/Min
Production Capacity:
200 Per Year
Speed:
250m/Min
HS Code:
8443139000
Other Name:
Automatic Box Packaging Machine
Packaging:
Cartons
Origin:
China
Driven Type:
Electric
Specifications
Capacity:
150-200m/Min
Production Capacity:
200 Per Year
Speed:
250m/Min
HS Code:
8443139000
Other Name:
Automatic Box Packaging Machine
Packaging:
Cartons
Origin:
China
Driven Type:
Electric
Trade Term:
FOB
Applicable Product:
Filled Glass Bottles
Soft And Hardness:
Flexible Package
Name:
Making Machine Production Line
Product Name:
Multi-Cassette Positive Pressure Single Facer
Mode Of Operation:
Packaging of Export Products
Frequency Of Use:
Packing
Packaging Material:
Plastic
Transport Package:
Plastic Film and Wooden Box
Keywords:
Production Machine
Specification:
SF-360
Machine Type:
Sealing Packing Machine
Type:
Single Facer Machine
Circulation Function:
Single Packing
Application:
Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour
Payment Term:
To be discussed
Trademark:
XINGLONG
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-09-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
business lisence, CE, certificate, jianyanbaogao
Product descriptions from the supplier
corrugated board making single face corrugated paper making machine
A,Technical parameters:
| Working width | 2000mm |  |
| Design speed | 250m/min | |
| Economic speed | 150-200m/min | |
| Paper feed range | 2000--850mm | |
| Steam temperature | 200ºC | |
| Steam pressure | 1.2Mpa | |
| Working power | 380V 50Hz 70KW |
B,Structural feature:
| ★Main corrugating roller:¢360mm(According flute differ),pressure roller¢400mm,preheat roller¢400mm. ★Using negative pressure design, lower heat consumption, helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, because the pressure evenly, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating. ★Quickly change rollers in 10 minutes, while change corrugated roller with the electric trolley loading,put into the machine,and air pressure system will lock it,fixed to the machine base,only need a few buttons can complete the replacement quickly and easily. ★Corrugated roller adopt50CRMO high quality alloy steel, dealing with heat,after grinding tungsten carbide surface treatment. ★Corrugated roller, pressure roller adopt airbag control system having high stability, having the barometric pressure control buffering effect at the same time. ★Glue volume control with electric adjustment,rubber septum electric device,the glue system can operate independently when the motor stops,prevent glue exhausted. ★The moveable type glue unit is convenient to clean and maintain. ★Easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly. ★Built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture. ★Main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly. |
Part name Craftsmanship |
Specification | Material | Surface treatment |
| Corrugated roller | Main roll¢405mm | 50CrMAo | Tungsten carbide treatment |
| Pressure roller | ¢495mm | 45#steel | Hardened round grinding chrome plating polishing |
| Glue roller | ¢320mm | 45#steel | Round grinding and pressing pit mesh chrome plating |
| Fixed paste roller | ¢175mm | 45#steel | Round grinding chrome |
| Preheat roller | ¢400mm | Q235B | Round grinding chrome |
| Paper guide roller | ¢110 mm | 45#steel | Round grinding chrome |
| Name | Power | Voltage | Frequency |
| Main drive motor | 45KW | 380V | 50HZ |
| High-pressure suction motor | 15KW | 380V | 50HZ |
| Adjustable glue push rod | 30W | 380V | 50HZ |
| Glue adjustment motor | 200W*2 | 380V | 50HZ |
| Rubber pump motor | 2.2KW | 380V | 50HZ |
| Motor of glue department | 3.7KW | 380V | 50HZ |
 |
 |
 |
 |
FAQ
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
