Corrugated Cardboard Angles Edge Boards Kraft Paper Pallet Edge Protector Carton Corner Making Machine
1 Piece
$18,000Product information
High-quality Corrugated Cardboard Angles Edge Boards Kraft Paper Pallet Edge Protector Carton Corner Making Machine supplied by Cangzhou Quanheng Imp&exp Trade Co., Ltd.. Bulk wholesale pricing is $18,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Speed:
0-40m/Min
Number Of Operators:
1-2
Production Capacity:
100
Paper Layers:
12layers
Specification:
2500*2200*1800mm
Forming Roller:
8 Groups
HS Code:
84413090
Automation:
Automatic
Specifications
Production Speed:
0-40m/Min
Number Of Operators:
1-2
Production Capacity:
100
Paper Layers:
12layers
Specification:
2500*2200*1800mm
Forming Roller:
8 Groups
HS Code:
84413090
Automation:
Automatic
Cut Off Method:
Automatic CNC Cutting
Certification:
CE
Origin:
China
Transport Package:
Container
Customized:
Customized
After Sales Service:
Engineer and Spare Parts
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Condition:
New
Paper Thickness:
Normal Specification Paper
Sheet Former Type:
Paperboard
Trademark:
QH
Model NO.:
QH-PACK
Port Of Loading:
Tianjin Port
Paper Angle Protection Specification:
Width 20-100mm/Length 50-9000mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-12-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
9
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
Account opening permit, CE, CE Certificate of Lead edge feeder rpinter slotter rotary die cutter with stacker, ISO
Product descriptions from the supplier
Edge board & Paper board Protector Machine
| Paper Angle Protection Specification | Wide20-100mm |
| Long50-9000mm | |
| Thick2-8mm | |
| Production speed | 0-40m/min |
| paper layers | 12layers |
| Forming roller | 8 groups |
| way to control | Frequency |
| Cut off method | Automatic CNC cutting |
| Number of operators | 1-2 |
| total weight | 4322Kg |
| Main engine power | 7.5kw+4.3kw |
| PLC controller | Special products |
| HMI | Special products |
| Frequency converter | ENERGY |
| Electrical components | Omron/Chint |
| Signal element | Omron/Pefun |
| Button/emergency stop | Siemens |
| Pneumatic Components | Airtac/Tianao |
| Area size: | 27m*3m |
| Upper paper shelf | Right-angle belt hoisting |
| Glue frame | Automatic gluing |
| Paper guide wheel | stainless steel pipe |
| Host table | Stainless steel plate |
| Unloading conveyor | 2 |
| application tools | 1 |
- The angle protection host consists of 8 sets/10 sets/12 composite pressure wheels that rotate coaxially, and the upper pressure wheel is pneumatically adjusted.
- Adopting frequency converter, servo motor, touch screen, PLC human-machine interface. Easy to operate and learn.
- The production operation is fully digital, with batch input of production specifications into the touch screen, production quantity monitoring, and automatic shutdown after completion.
- Automatic alarm, fault prompt, and convenient maintenance.
- A punching and indentation device can be installed on the corner protection production line, which can punch the corner protection with a width of 30-80mm. Commonly used are 90 degree punching, 90 degree buckle punching, and 5-90 degree surround punching
- Adopting a thickened and reinforced square tube profile frame, international standard forming wheels and quenching treatment, 10mm thick machine panel, integrated process of punching and throwing tables, chrome plating treatment for all important components, latest servo flying shear table, stable operation, high cutting accuracy, and long service life.

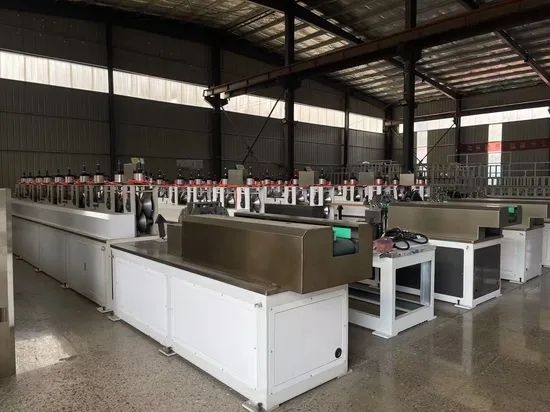

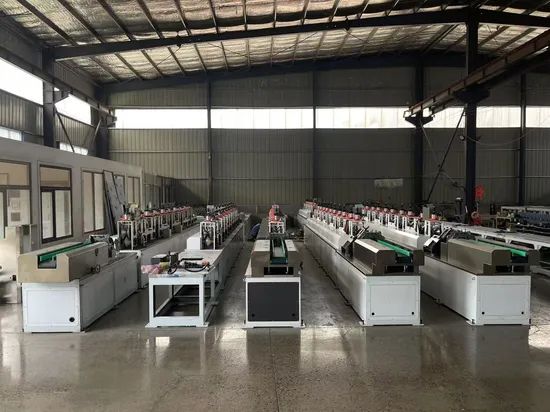

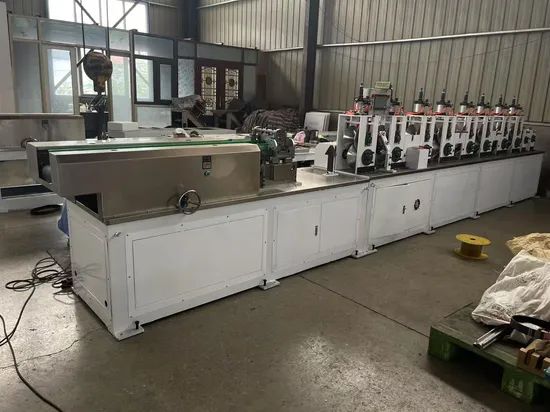

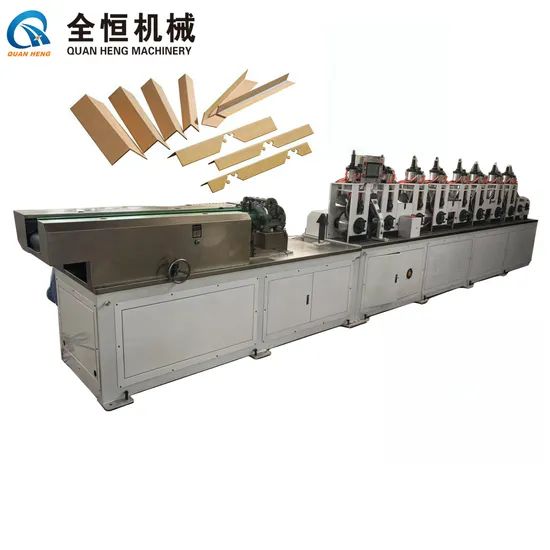

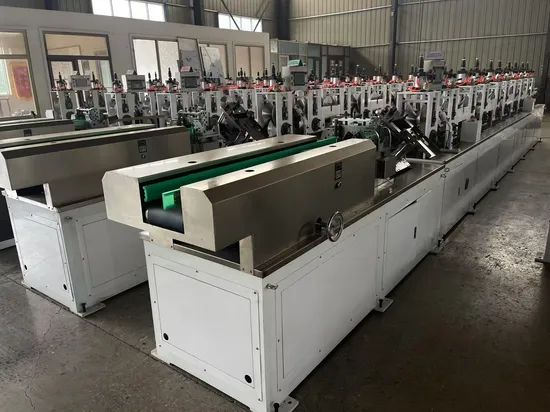

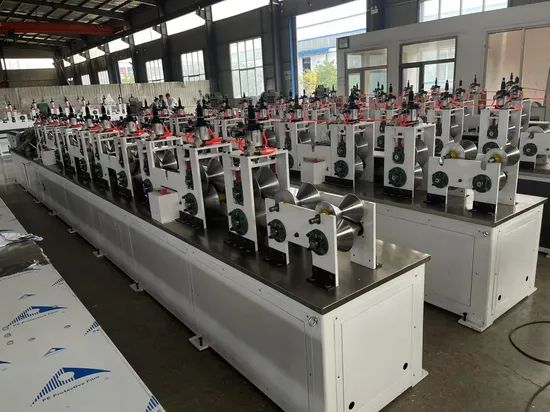

Machine Picture details:
