Corrugated Cardboard Box Forming Carton Erecting Machine
1 Set
$80,0001 Set
$70,000Product information
High-quality Corrugated Cardboard Box Forming Carton Erecting Machine supplied by Dayuan Industrial Co., Ltd.. Bulk wholesale pricing ranges from $70,000 to $80,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Air Pressure:
0.6MPa(Dry and Clean Compressed Air)
Sample Time:
1-3 Days
The Total Power:
11kw
Specification:
1800mm x 4000mm
Materials(Paper Board):
200-600GSM
Voltage:
380V/50Hz
Production Time:
45 Days
Conicity:
5°-40°
Specifications
Air Pressure:
0.6MPa(Dry and Clean Compressed Air)
Sample Time:
1-3 Days
The Total Power:
11kw
Specification:
1800mm x 4000mm
Materials(Paper Board):
200-600GSM
Voltage:
380V/50Hz
Production Time:
45 Days
Conicity:
5°-40°
Maximum Production Speed:
800 PCS/Min
Production Capacity:
800 Sets/Year
HS Code:
8441400000
Automatic Grade:
Automatic
Type:
Automatic Carton Making Machine
Trademark:
DaYuan
After Sales Service Provided:
Engineers Available to Service Machinery Overseas
Trade Term:
FOB, CIF, CFR, EXW
Paper Sample:
Free
Origin:
Guangdong, Chinese Mainland
Model NO.:
L1560/4-A
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Driven Type:
Mechanical
Sealing Method:
Tape or Hot Melt Adhesive
Transport Package:
Wooden Case
Port Of Loading:
Zhongshan Port
Materials(Corrugated Board Paper):
with Thickness Not Exceed 1.5mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
1998-07-20
Annual Revenue Amount:
Not specified
Numbers Of Employees:
66
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Zhongshan Port
Certificates:
CE
Product descriptions from the supplier

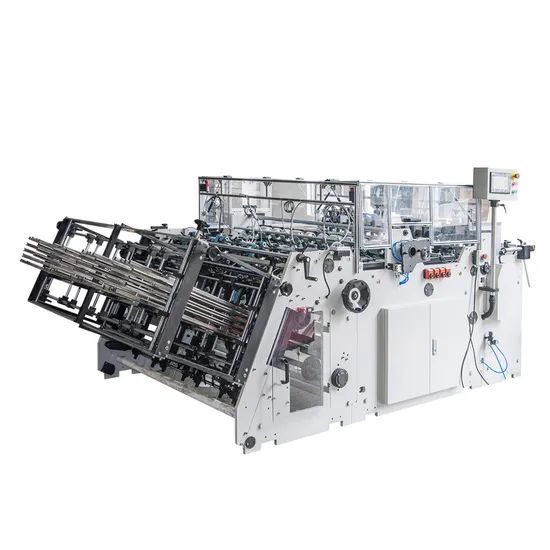

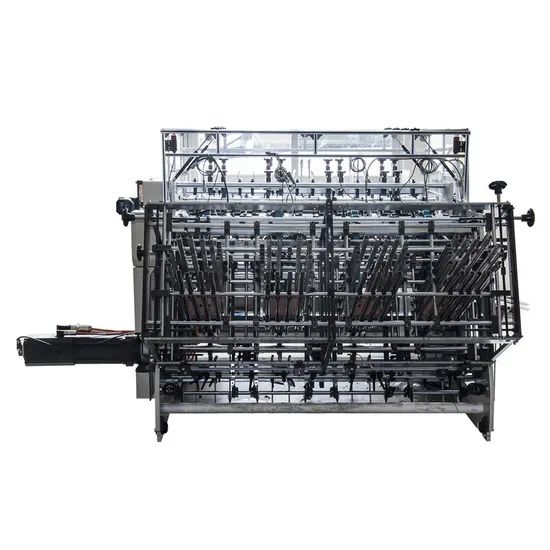

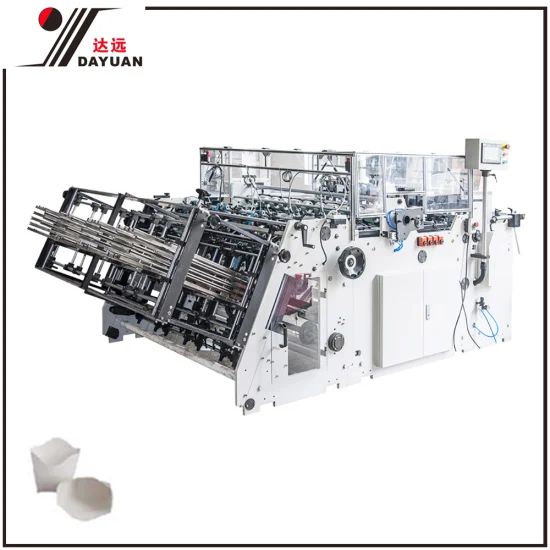

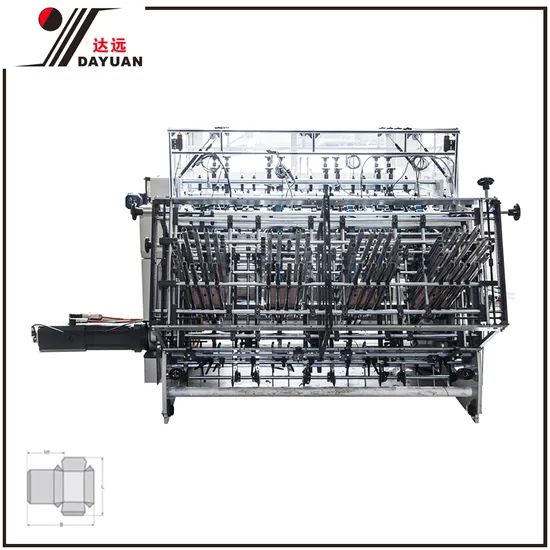

The Dayuan Carton Erecting Machine is designed according to the European standard and has been authorized the CE certification. With simple and firm structure, high quality and efficiency as well as low noise, it is an ideal choice to produce disposable snack boxes, hamburger boxes, chips boxes, etc.

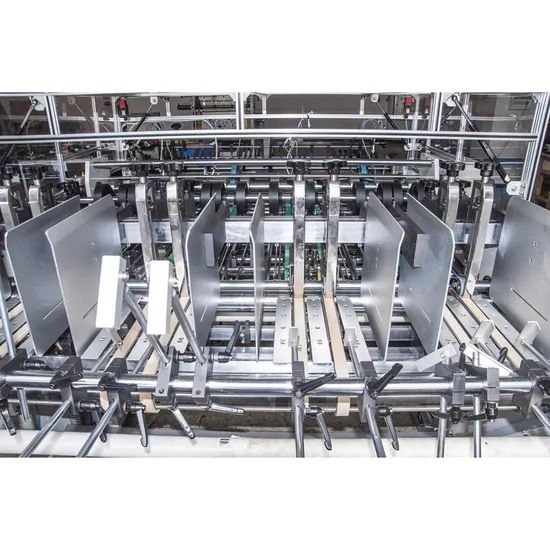

Forming Unit :It uses the mechanical punching forming structure. It is simple and working stable. Or you can choose the independent servo driving punching device for hamburger boxes, clamshell boxes forming specially. A carton box with three corners, four corners, five corners, six corners, seven corners, and eight corners can also be achieved.
|
Machine type |
L1560/4-A |
|
|
Blank length |
L |
100mm-450mm |
|
Blank length |
B |
100mm-300mm |
|
Height of side flaps |
H |
15mm-260mm |
|
Height of side flaps+lid |
HI |
50mm-260mm |
|
Conicity |
|
5°-40° |
Machine Specification
| Voltage | 380V/50HZ |
| Covering Area | 4.0M*1.8M |
| The total Power | 11KW |
| Maximum Production Speed | 800 pcs/min |
| Air Pressure | 0.6Mpa(Dry and clean compressed air) |
| Materials | Paper Board 200-600gsm; corrugated board paper with thickness not exceed 1.5MM. |
| Machine Model NO | L1560/4-A |
| Paper Box Sample | Free |
| Sample time | 1-3 days |
| Production Time | 45 days |
Finished Products/Collecting Unit
The finished boxes will be pushed into the collecting device. The size of the collector can be adjusted manually with the hand wheel. It's simple, convenient, highly effective and affordable.
Counting Unit
The finished box counting is automatic and subsection by inserting piece of scrip marker. The pieces for one section or one batch can be freely set as required.
Control Unit
It uses a PLC automatic control system and touching screen to operate. The programmed European control system is convenient, simple, highly effective and stable.
Sample Picture
Dayuan Industrial Co. Ltd
Established in 1995, Dayuan is a carton erecting machine manufacturer and supplier based in China. We provide a wide array of paper processing machines, including ice cream paper cone machine, automatic paper punching machine, paper cone cup machine, etc.
Due to their high quality, stable performance and long service life, our products are sought after by customers in Spain, Chile, Venezuela, Greece, Honduras, Malaysia,the Philippines, Russia, etc.
Shipping And Packaging
| Shipping | By sea, or as your requirement to do | |
| Packaging | By Strong Wooden Case | |
| Packaging Dimensions | Case 1 | Size: 2965mm*2110mm* 1430mm |
| Net weight : 2400KG | ||
| Gross weight: 2650KG | ||
| Case 2 | Size:2050mm* 1400mm*900mm | |
| Net weight :300KG | ||
| Gross weight:350KG | ||
What kinds of boxes can be made on machine ?
Hamburger boxes, clamshell boxes forming specially. A carton box with three corners, four corners,five corners,six corners, seven corners, and eight corners can also be achieved.Are you a manufacturer?
Yes,we are both factory&trading company.
What about the payment term ?
30%T/T in advanced,the rest need paid before shipping.
How about the machine guarantee?
One year. During this period, any parts damaged caused by machineself, the seller will repair/replace the spare parts for free. After one year, the seller will supply the spare parts to buyers as the cost. The machine service is all around the machine life.
What's your advantages
--More than 20 years experience
--Customers all over the world
-- Certificate:CE certificate
-- Fast reply :Our team will reply you soon
--After-sale service :We have a after sale department .
More details, welcome to visit our website:dayuanchina.en.made-in-china.com or, or send inquiry to us !
