Corrugated Cardboard Crush Test Machine
1 Set
$2,0001 Set
$5,000Product information
High-quality Corrugated Cardboard Crush Test Machine supplied by Hangzhou Pnshar Technology Co., Ltd.. Bulk wholesale pricing ranges from $2,000 to $5,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
500sets/Year
HS Code:
90248000
Power Source:
AC220V
Trade Term:
FOB, CIF
Origin:
Hangzhou, Zhejiang
Standards:
ISO 3035. ISO 3037. ISO 7263.
Payment Term:
LC, T/T
Model NO.:
PN-CT300B
Specifications
Production Capacity:
500sets/Year
HS Code:
90248000
Power Source:
AC220V
Trade Term:
FOB, CIF
Origin:
Hangzhou, Zhejiang
Standards:
ISO 3035. ISO 3037. ISO 7263.
Payment Term:
LC, T/T
Model NO.:
PN-CT300B
Trademark:
PNSHAR
Specification:
SGS, ISO
Port Of Loading:
Shanghai Port
Operation System:
Touch Screen
Transport Package:
Wooden Package
Video In Youtube:
http://youtu.be/nd3hyeecsga
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2007-04-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
26
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier
1. Description:

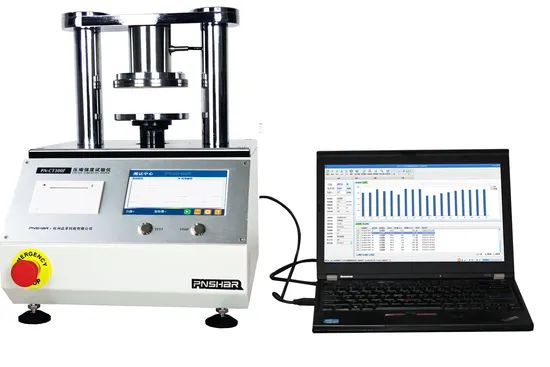

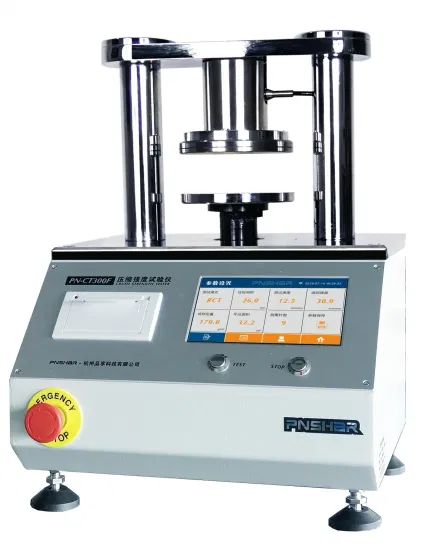

Corrguated cardboard crush test machine is a new type of compression testing instrument developed by our company according to the specification of national standard. With mechanical and electrical integration configuration, the instrument is well-designed using modern mechanical design theory and human engineering design criteria and micro-process. The instrument is upper pressure plate fixed type, which has high precision.

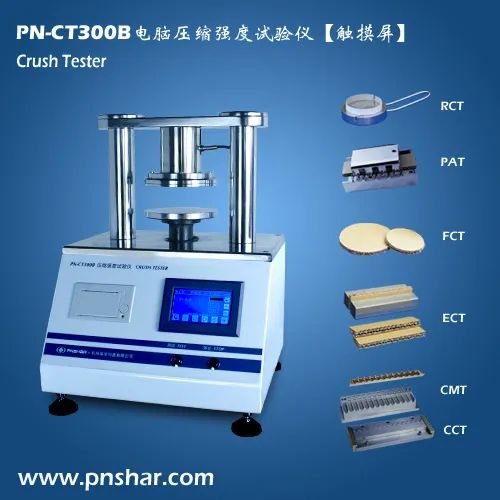

It applies to the test of Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesion Test (PAT), Corrugating Medium Test (CMT).
2. Applications:
Paper, Paperboard, Corrugated cardboard, Corrugated Package.
3. Standards:
ISO 3035. ISO 3037. ISO 7263. GB/T 2679.8, GB/T 6546-1998, GB/T 6548, GB/T 2679
4. Specification:
5. Features:
1) High speed return after finishing test
2) Imported step motor with servo control adopted
3) The test result can be measured, statistical and printed automatically and the data can be saved.
4) Thermal printer, high speed and no noise.
5) Use the modern design idea of mechanical and electrical integration, which has compact configuration, pleasing appearance and convenient maintenance.
Corrguated cardboard crush test machine is a new type of compression testing instrument developed by our company according to the specification of national standard. With mechanical and electrical integration configuration, the instrument is well-designed using modern mechanical design theory and human engineering design criteria and micro-process. The instrument is upper pressure plate fixed type, which has high precision.
It applies to the test of Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesion Test (PAT), Corrugating Medium Test (CMT).
2. Applications:
Paper, Paperboard, Corrugated cardboard, Corrugated Package.
3. Standards:
ISO 3035. ISO 3037. ISO 7263. GB/T 2679.8, GB/T 6546-1998, GB/T 6548, GB/T 2679
4. Specification:
| NO. | ITEM | SPECIFICATION |
| 1 | Power Supply: | AC220V±10% 2A 50HZ |
| 2 | Measuring Range: | 0~3000N |
| 3 | Compression Speed: | 12.5 ± 2.5mm/min (0-35mm/min Can be adjusted digitally) |
| 4 | Return Velocity: | 5-40.0 mm/min(Can be set randomly) |

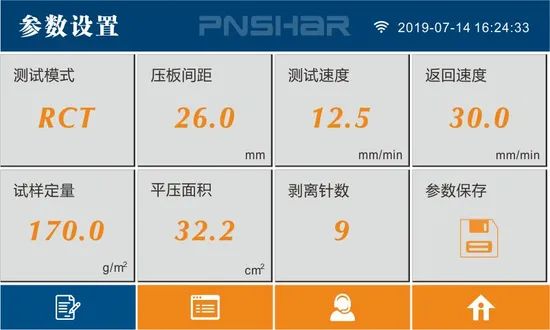

| 5 | Display: | English menu and LCD screen |
| 6 | Printer: | thermal printing, high speed and no noise. |
| 7 | Communication output: | standard RS232 interface |
5. Features:
1) High speed return after finishing test
2) Imported step motor with servo control adopted
3) The test result can be measured, statistical and printed automatically and the data can be saved.
4) Thermal printer, high speed and no noise.
5) Use the modern design idea of mechanical and electrical integration, which has compact configuration, pleasing appearance and convenient maintenance.
