Counterflow Heat Exchangers Automatic Production Line
Piece
Negotiable
Product information
High-quality Counterflow Heat Exchangers Automatic Production Line supplied by Taiyuan Machinery Euqipment(Dongguan) Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Gross Weight:
2000.000kg
Specification:
2T
Production Capacity:
50PCS/Month
Package Size:
700.00cm * 500.00cm * 170.00cm
Automatic Grade:
Automatic
Keyword4:
C-Erv Enthalpy Heat Exchanger
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specifications
Package Gross Weight:
2000.000kg
Specification:
2T
Production Capacity:
50PCS/Month
Package Size:
700.00cm * 500.00cm * 170.00cm
Automatic Grade:
Automatic
Keyword4:
C-Erv Enthalpy Heat Exchanger
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Keyword3:
Counterflow Heat Exchanger
Keyword2:
Counterflow Heat Exchanger Production Line
Installation:
Desktop
Origin:
Dongguan City, Guangdong Province, China
Driven Type:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Keyword1:
Heat Exchanger Assembly Line
Certification:
ISO, CE
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Condition:
New
Warranty:
One Year Free Warranty
Port Of Loading:
Shenzhen Port, Guangzhou Port
Payment Methods:
Support payments in USD
Model NO.:
TY-DFO1
Trademark:
Taiyuan Machinery (Dongguan) Co., Ltd
Transport Package:
Wooden Case Packing, Air Freight, and Sea Freight
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-07-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port, Guangzhou Port
Certificates:
BUSINESS LICENSE
Product descriptions from the supplier
Product Description

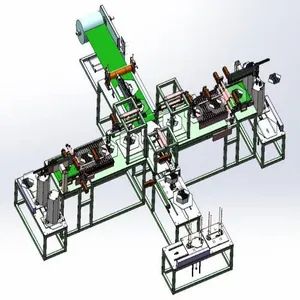

TY-DF01 Automatic assembly equipment for heat exchangers
Device parameters
Equipment model: TY-DF01
Total weight of the equipment: 2T

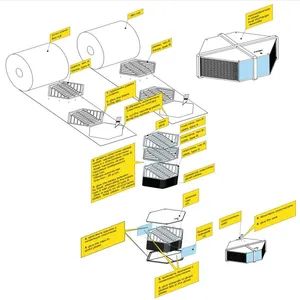

The device is divided into six parts

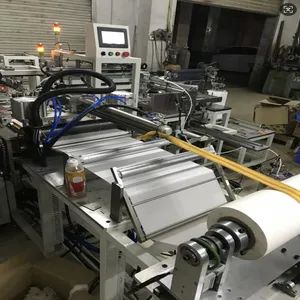

1. Paper cutting mechanism
2. A disc feeding and rolling mechanism
3. B disc feeding and rolling mechanism
4. Paper, AB material tray, end cover assembly mechanism
5. End cap dispensing mechanism

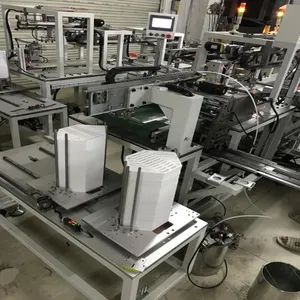

6. Finished product assembly line mechanism
Power supply voltage: AC200V - 240V
Total power of power supply: 1.5KW
Air pressure: 0.5 - 0.7 Mpa
Capacity: 20 - 25 Pcs/H

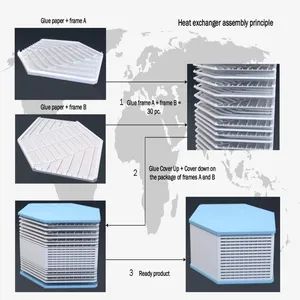

This equipment will realize: automatic paper cutting, automatic gluing, automatic assembly heat exchangers functions ;
The equipment adopts the online fully automatic design concept, and all processes are completed automatically.
1 Working source:AC220V
2 Working pressure :0.4-0.6 Mpa
3 Maximum power : 4KW
4 Productivity:
ERV212:40-50pcs Finished Heat exchangers/H
ERV366:30-40pcs Finished Heat exchangers/H
5 Lifetime:≥10years(Excluding consumables)
Safety precautions
This manual provides some information for users when using the TY-DF01 device. In order to ensure safe operation and smooth production, the following two points need to be noted:
1) It is forbidden for non-professionals or personnel who have not obtained relevant training certificates in electrical fields to open the electrical box. It is forbidden to make any changes to the electrical wiring and gas circuits in the electrical box.
2) It is forbidden to contact the moving parts of the machine parts with any part of the body during the operation of the machine, and if you need to check and repair, be sure to suspend the machine or turn off the power of the equipment. Repairs are carried out on a safe premise.
Preparation before production:
1. Cleaning and cleaning: Be sure to clean the work surface, check whether the cylinder joints and moving parts are loose, and tighten them if there are abnormal and loose parts.
2. If there is oil stain in the moving part of the cylinder, please wipe the oil dirt with a rag, and then lubricate the oil on the moving part of the cylinder again.
3. Ventilation: dry and clean air source, range: 0.5-0.7 Mpa. Operation method: Push forward the hand slide valve on the right side of the machine near the air conditioning combination triplet by hand, and the pressure display gauge on the triplet shows the range of 0.5-0.7 Mpa.
4. Power-on: power supply range: AC220V±0.5%, 50HZ. Operation method: Turn on the power of the three operation panels of the equipment and turn on the four-axis robot, and the equipment has been successfully powered on. The operation process of the four-axis robot: the key lock key is aligned automatically, and then press the start button. Other operating functions must be familiar with the operation manual of the Zhongweixing four-axis robot
Common alarms and handling methods
The following table lists common general alarms and how to resolve them:
Company Profile:
TAIYUAN MACHINERY EQUIPMENT(DONGGUAN)CO.,LTD is the subsidiary of TAIYUAN GROUNP(CHINA)CO.,LTD.The TaiYuan machinery company is located in 'the world factory'Dongguan City, the the Pearl River Delta region of China, adjacent to Hong Kong and Macao.
We have over 30 years in producing Chemical, and aviation equipments;Simulated climate testing and Size measuring equipments;Automated production equipments;Food production equipments etc.,those are widely used for scosmetics, food,chemical aviation,biology, pharmaceuticals etc.Especially our independently developed aviation solid propellant mixer and liquid metal, molten salt high-temperature magnetic transmission pump are hot selling and getting so good sales volume in USA, South America,North America, Europe,Rssia,Southeast market etc,
Our company has 6000m2 working shop,with lSO, CE European certification and Manufacture License forpressure machines.We have all kinds of technical personnel.resea
TY-DF01 Automatic assembly equipment for heat exchangers
Device parameters
Equipment model: TY-DF01
Total weight of the equipment: 2T
The device is divided into six parts
1. Paper cutting mechanism
2. A disc feeding and rolling mechanism
3. B disc feeding and rolling mechanism
4. Paper, AB material tray, end cover assembly mechanism
5. End cap dispensing mechanism
6. Finished product assembly line mechanism
Power supply voltage: AC200V - 240V
Total power of power supply: 1.5KW
Air pressure: 0.5 - 0.7 Mpa
Capacity: 20 - 25 Pcs/H
This equipment will realize: automatic paper cutting, automatic gluing, automatic assembly heat exchangers functions ;
The equipment adopts the online fully automatic design concept, and all processes are completed automatically.
1 Working source:AC220V
2 Working pressure :0.4-0.6 Mpa
3 Maximum power : 4KW
4 Productivity:
ERV212:40-50pcs Finished Heat exchangers/H
ERV366:30-40pcs Finished Heat exchangers/H
5 Lifetime:≥10years(Excluding consumables)
Safety precautions
This manual provides some information for users when using the TY-DF01 device. In order to ensure safe operation and smooth production, the following two points need to be noted:
1) It is forbidden for non-professionals or personnel who have not obtained relevant training certificates in electrical fields to open the electrical box. It is forbidden to make any changes to the electrical wiring and gas circuits in the electrical box.
2) It is forbidden to contact the moving parts of the machine parts with any part of the body during the operation of the machine, and if you need to check and repair, be sure to suspend the machine or turn off the power of the equipment. Repairs are carried out on a safe premise.
Preparation before production:
1. Cleaning and cleaning: Be sure to clean the work surface, check whether the cylinder joints and moving parts are loose, and tighten them if there are abnormal and loose parts.
2. If there is oil stain in the moving part of the cylinder, please wipe the oil dirt with a rag, and then lubricate the oil on the moving part of the cylinder again.
3. Ventilation: dry and clean air source, range: 0.5-0.7 Mpa. Operation method: Push forward the hand slide valve on the right side of the machine near the air conditioning combination triplet by hand, and the pressure display gauge on the triplet shows the range of 0.5-0.7 Mpa.
4. Power-on: power supply range: AC220V±0.5%, 50HZ. Operation method: Turn on the power of the three operation panels of the equipment and turn on the four-axis robot, and the equipment has been successfully powered on. The operation process of the four-axis robot: the key lock key is aligned automatically, and then press the start button. Other operating functions must be familiar with the operation manual of the Zhongweixing four-axis robot
Common alarms and handling methods
The following table lists common general alarms and how to resolve them:
| serial number | phenomenon | Solution |
| 1 | During the production process, the system stops automatically, and the information is displayed on the touch screen: There is a shortage of material in the A tray area |
|
| 2 | During the production process, the system stops automatically and the information is displayed on the touch screen: there is a shortage of material in the B tray area |
|
| 3 | In manual or automatic mode, the servo motor stepper motor has no action regardless of forward or reverse rotation |
|
| 4 | There is a deviation in the loading alignment |
|
TAIYUAN MACHINERY EQUIPMENT(DONGGUAN)CO.,LTD is the subsidiary of TAIYUAN GROUNP(CHINA)CO.,LTD.The TaiYuan machinery company is located in 'the world factory'Dongguan City, the the Pearl River Delta region of China, adjacent to Hong Kong and Macao.
We have over 30 years in producing Chemical, and aviation equipments;Simulated climate testing and Size measuring equipments;Automated production equipments;Food production equipments etc.,those are widely used for scosmetics, food,chemical aviation,biology, pharmaceuticals etc.Especially our independently developed aviation solid propellant mixer and liquid metal, molten salt high-temperature magnetic transmission pump are hot selling and getting so good sales volume in USA, South America,North America, Europe,Rssia,Southeast market etc,
Our company has 6000m2 working shop,with lSO, CE European certification and Manufacture License forpressure machines.We have all kinds of technical personnel.resea
