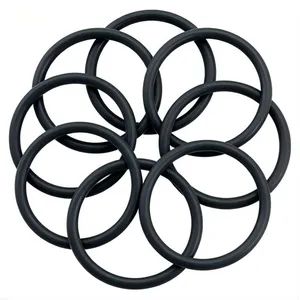

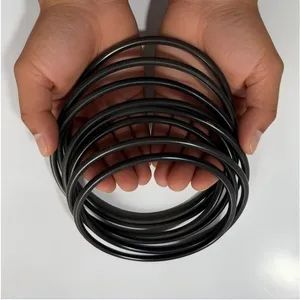

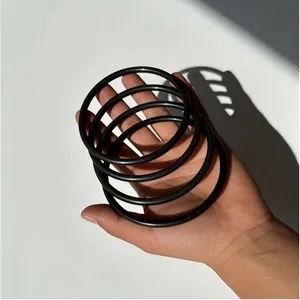

Custom-Color Coded Silicone O-Ring for Easy Assembly Identification
Pieces
Negotiable
Product information
High-quality Custom-Color Coded Silicone O-Ring for Easy Assembly Identification supplied by Suzhou Arisons New Material Co.,Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Temperature:
-30- to 150c
Package Gross Weight:
1.000kg
Package Size:
20.00cm * 20.00cm * 20.00cm
Compression Set 22h 175c:
25
Production Capacity:
300000000PCS/Month
Hardness:
40-90 Shore
HS Code:
4016931000
Tensile Strength:
8 MPa
Specifications
Temperature:
-30- to 150c
Package Gross Weight:
1.000kg
Package Size:
20.00cm * 20.00cm * 20.00cm
Compression Set 22h 175c:
25
Production Capacity:
300000000PCS/Month
Hardness:
40-90 Shore
HS Code:
4016931000
Tensile Strength:
8 MPa
Specification:
All sizes
OEM/ODM:
Avaialable
Transport Package:
Bag and Carton

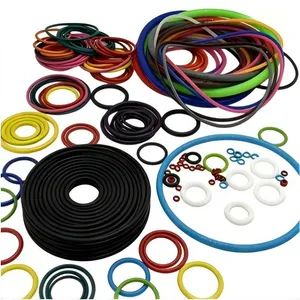

Color:
Black, Red, Blue, Brown, White, or Others
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP
Price Term:
Fob, CIF, CNF, EXW
Sample:
Free
Origin:
Jiangsu, China
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Elogation At Break:
Min 290%
Type:
Mold Compression
Shape:
O-Ring
Model NO.:
OR48
Special Request:
Physical and Chemical Properties
Port Of Loading:
SHANGHAI, NINGBO, QINGDAO
Standard:
Standard
Payment Methods:
Support payments in USD
Performance:
Temperature
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-07-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP
Port Of Loading:
SHANGHAI, NINGBO, QINGDAO
Certificates:
a patent certificate, AN XIN TESTING CERTIFICATION, Patent certificate, The patent certificate
Product descriptions from the supplier

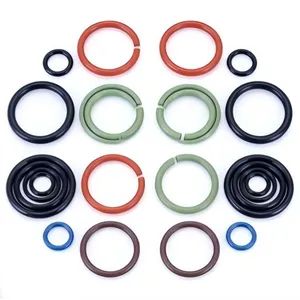

Different sizes and material oring o ring o-ring nbr fkm silicone epdm materials.
In designing an O-ring Seal, it is best to determine the O-ring compound first, as the selected compound may have significant influence on gland design parameters. Essentially, the application determines the rubber compound; The primary factor being the fluid to be sealed. The elastomer however, must also resist extrusion when exposed to the maximum anticipated system pressure and be capable of maintaining good physical properties through the full temperature range expected. In dynamic applications, the selected material must also have the toughness and abrasion resistance so important in reciprocating and rotary seals. Essentially, the application determines the rubber compound; The primary factor being the fluid to be sealed. The elastomer however, must also resist extrusion when exposed to the maximum anticipated system pressure and be capable of maintaining good physical properties through the full temperature range expected. In dynamic applications, the selected material must also have the toughness and abrasion resistance so important in reciprocating and rotary seals.
Product Description
Material-NBR
NBR o-rings also referred to as NBR o-rings and Nitrile o-rings are the most widely used o-ring material in the world because of low cost, good mechanical performance with resistance to water, most basic oils, lubricants and some fuels, many pneumatic, hydraulic systems, and the default choice for basic applications. The Buna-N O-rings have good abrasion resistance, tensile strength and compression set resistance.
Due to its excellent resistance to petroleum products, and its ability to be compounded for service over a temperature range of -35°C to +120°C (-30°F to +250°F), Nitrile /NBR is the most widely used elastomer in the seal industry today. Also many rubber specifications for fuel and oil resistant O-rings require nitrile based compounds.
Temperature Range: NBR / Nitrile O-Rings resists oil-based hydraulic fluids, fats and oils. Temperature Range -30°C to+120°C with Durometer/Hardness 70.
Specification
Material-EPDM
EPDM O-Rings are also referred to as ethylene-propylene o-rings because of the chemical composition of the same name. The use of EPDM o-rings and seals are commonly found in the automotive manufacturing industry where sealing of brake systems is required. EPDM material is also compatible with heat as in steam and water vapor. EPDM o-rings have great flexibility and chemical resistance at low temperatures. resistance to ozone, sunlight, and weathering and have great flexibility and chemical resistance at low temperatures.
Temperature Range: For EPDM the service temperature can be designed from -55° C to 125° C or up to 150° C (for peroxide cured systems).
List of O-ring standards | ||||||
Standard | O-ring Cross-sectional Diameter (W) | |||||
AS 568 BS 1516 | 1.78 | 2.62 | 3.53 | 5.33 | 6.99 | |
JISB2401 | 1.9 | 2.4 | 3.1 | 3.5 | 5.7 | 8.4 |
ISO 3601/1 DIN 3771/1 GB 3452.1 | 1.8 | 2.65 | 3.55 | 5.3 | 7 | |
Preferred metric size | 1 | 1.5 | 2 | 2.5 | 3 | |
3.5 | 4 | 4.5 | 5 | 5.5 | ||
6 | 7 | 8 | 10 | 12 | ||
AS 568 (900 series) | 1.02 | 1.42 | 1.63 | 1.83 | 1.98 | |
2.08 | 2.21 | 2.46 | 2.95 | 3 | ||
Performance parameters | ||
Static Seal | Dynamic Seal | |
Working pressure | Up to 20 MPa without a back-up ring; | Up to 5 MPa without a back-up ring; |
Up to 40 MPa with a back-up ring; | Higher pressure with a back-up ring. | |
Up to 200 MPa with a special back-up ring. | ||
Movement speed | The maximum reciprocating speed can reach 0.5 m/s and the maximum rotating speed can reach 2.0 m/s. | |
Temperature | General applications:-30°C~+110°C;special rubber:-60°C~+250°C;rotating applications:-30°C~+80°C | |
Medium | See Raw Material Characteristics of Rubber Seals | |
NBR 70 PHYSICAL TEST REPORT | ||||
Materia: NBR70-20 Standard:ASTM D2000 M2BG710A14B14E014E034EA14EF11EF21 | ||||
Press cure:sheet 170℃ 6min Button:170℃ 8min Post Cure:Sheet 120℃ 2h Button:120℃ 2h | ||||
Test Item | Test Condition | Standards | Test result | |
Test under normal situation | Hardness(Shore-A) | Room temperature | 70±5 | 70 |
Tensile strength(Mpa) | ≥10 | 14 | ||
Elongation (%) | ≥250 | 314 | ||
Density(g/cm3) | / | 1.215 | ||
Aging-Resistanc e Testing | Hardness Change(Shore-A) | 100℃×70 h | ≤+15 | 5 |
Tensile strength Change(%) | ≤-20 | 4 | ||
Elongation Change(%) | ≤−40 | −21.5 | ||
Compression set | Compression set(%) | 100℃×22h | ≤25 | 8.1 |
Oil-Resistance No.1 OIL | Hardness Change(Shore-A) | 100°C × 70 h | ≤-5~+10 | 8 |
Tensile strength Change(%) | ≤-25 | 9 | ||
Elongation Change(%) | ≤-45 | -9.7 | ||
Volume Change(%) | -10~+5 | -9.5 | ||
Oil-Resistance N0.3 OIL | Hardness Change(Shore-A) | 100℃×70 h | -10~+5 | -1 |
Tensile strength Change(%) | ≤-45 | 6.6 | ||
Elongation Change(%) | ≤-45 | -2.3 | ||
Volume Change(%) | 0~+25 | 5.3 | ||
Water Resistance | Hardness Change(Shore-A) | 100℃×70 h | ±10 | -2 |
Volume Change(%) | ±15 | 3.6 | ||
EPDM 70 PHYSICAL TEST REPORT | ||||
Material: EPDM70 Standard:ASTM D2000 M2AA707A13B13 | ||||
Press cure:sheet 170℃ 10min Button:170℃ 15min Post cure:sheet 120℃ 2H Button:120℃ 2H | ||||
Test Item | Test Condition | Standards | Test result | |
Original Properties | Hardness(Shore-A) | 23℃ | 70±5 | 72 |
Tensile strength(MPA) | ≥10 | 13.8 | ||
Elongation (%) | ≥200 | 310 | ||
Density(g/cm3) | / | 1.14 | ||
Aging-Resistanc e Testing | Hardness Change(Shore-A) | 70℃×70 h | ≤+15 | 2 |
Tensile strength Change(%) | ±30 | 1.2 | ||
Elongation Change(%) | ≤−50 | -5.6 | ||
Compression set | Compression set(%) | 70℃×22 h | ≤25 | 16.5 |
Conclusion test:OK | ||||
Company Profile
Suzhou ARISONS New Material Co.,Ltd.
ARISONS is a professional Rubber&Construction manufacturer in China. The factory is located in Jiangsu, closed to Shanghai. After 15 years of development, it has a mature production system, a professional engineering team, a quality inspection department and a strong production line, providing a one-stop design scheme and product design for customers in many countries.
Our main products are rubber sealing products, pipe sealing ring, car sealing ring, etc., water treatment equipment, aeration pipe, aeration disk, large pipe machine, driving, etc., we pay attention to quality, and will make different solutions according to different customers, provide the cheapest price, achieve the most perfect effect, has reached more partners for customers, look forward to cooperation with you!
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in Blank Cartons. We privode carton LOGO print service after getting your authorization letters.
A: Generally, we pack our goods in Blank Cartons. We privode carton LOGO print service after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before after receive the copy of B/L. We'll show you the photos of the products and packages before you pay the balance.
A: T/T 30% as deposit, and 70% before after receive the copy of B/L. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: We accept FOB,CIF,CNF,DDP,DDU,LC.etc
A: We accept FOB,CIF,CNF,DDP,DDU,LC.etc
Q4. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can supply the sample for free, client only need to pay the delivery cost.
A: We can supply the sample for free, client only need to pay the delivery cost.
