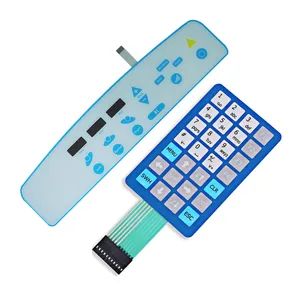

Custom Manufacturing Conductive PVC Membrane Control Label Tags for Remote Controllers
Pieces
Negotiable
Product information
High-quality Custom Manufacturing Conductive PVC Membrane Control Label Tags for Remote Controllers supplied by Xiamen Xinbixi Electronic Technology Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Working Temperature:
- 20 °C - + 70 °C
Storage Humiture:
- 40 °C - + 85 °C, 95% ± - 5%
Package Gross Weight:
1.000kg
Production Capacity:
2, 000, 000 Per Year
Pin Pitch:
2.54, 1.27, 1.0mm
Package Size:
20.00cm * 20.00cm * 5.00cm
Adhesive:
3m, Nitto, Sony, Soken, Crown, Foam Tape
HS Code:
8538900000
Specifications
Working Temperature:
- 20 °C - + 70 °C
Storage Humiture:
- 40 °C - + 85 °C, 95% ± - 5%
Package Gross Weight:
1.000kg
Production Capacity:
2, 000, 000 Per Year
Pin Pitch:
2.54, 1.27, 1.0mm
Package Size:
20.00cm * 20.00cm * 5.00cm
Adhesive:
3m, Nitto, Sony, Soken, Crown, Foam Tape
HS Code:
8538900000
Atmospheric Pressure:
86 - 106kpa
Reliability Service Life:
> 1 Million Times
Model NO.:
BX-01-189
Brand:
Bx
Usage:
Change-over Switch, Control Switch, User Interface
Origin:
China
Detection Method:
Circuit Function Testing Equipment
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Logo/Design:
Customized
Specification:
Customized
Trademark:
Customized
Function:
Durable, Waterproof, Dustproof, UV Resistant
Push Button Type:
Embossed Poly Dome, Metal Dome, Flat, Non Tactile
Trade Term:
FOB, EXW, CIF, DDP
Contact Type:
FPC Terminal Connector
Surface:
Glossy / Matte Finish
Application:
Home Appliance, Telecommunication Equipment, With Remote Control, Consumer Electronics
Certification:
ISO9001, CE, ISO14001
Used For:
Industrial, Electronics, Medical, Measurement
Number Of Switch:
Multi Control Switch
Dimension/Shape:
OEM Service
Material:
PVC
Color:
Pantone, Ral, Cmyk
Transport Package:
Plastic Bags / Foam Bags / Cartons
Basic Material:
Polyester, Polycarbonate, PVC, etc.
Payment Methods:
Support payments in USD
Payment Term:
T/T, PayPal, Western Union
Port Of Loading:
Xiamen, Ningbo
Insulation Resistance:
≥ 100m ω (100V / DC)
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-06-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CIF, DDP
Port Of Loading:
Xiamen, Ningbo
Certificates:
ISO14001, ISO9001
Product descriptions from the supplier
BE TRUSTED & CHOSEN AS LONG-TERM BUSINESS PARTNER BY
Material
Technical Parameter
STRUCTURE
Application
Widely used in user interface of electronic communication, electronic measurement instruments, industrial control, medical equipment, automotive industry, intelligent toys, household appliances and other fields.
Factory Workshop and Test Equipment
Process Flow
FQA
Q1. Do you provide free samples?
A1. We can provide samples and charge freight free of charge.
If you have any special membrane switch sample, please contact us for more details.
Q2. Can the product be produced according to customer requirements?
A2. We can customize according to the required specifications and drawings of membrane panels.
Q3. Is it allowed to visit the factory?
A3. Yes, we always welcome customers to visit our factory at any time.
Q4. How to solve the faults of the products during using?
A4. Please email us about the problem by pictures or videos of the membrane overlays. We will check the problem and offer solution during 24 hours
Q5. Where is your factory?
A5. We're a source membrane switch manufacturer, our workshop locates in 5th floor, Building 96, HuLi Park, Xiamen, China.
Q6. What is screen printing?
A6. Screen printing, commonly referred to as silk screening, is a method that uses a fine mesh to apply ink onto various surfaces including fabric, paper, metal, and plastic. A pattern or image is etched onto the mesh, usually constructed from polyester or similar delicate fabrics. The parts of the mesh not aligned with the image are covered, allowing ink to pass through only the exposed sections when pushed through with a squeegee, resulting in the final printed design.
Q7. Can the color of the membrane switch overlay product be customized?
A7. Our colors can be customized according to PMS ( Pantone matching system by usual) .
Q8. Can the membrane switch be equipped with LED lights?
A8. Yes. Generally, there are monochrome lamps, two-color lamps and three-color lamps available. Please contact us for specific requirements.
Q9. What is the thickness of the membrane switch control panel?
A9. Generally 0.9 ~ 1.3mm. And we support customized thickness if it's in need.
Q10. What are the types of convex keys on the membrane switch panel?
A10. Including round, pan, convex edge, convex key shape, no convex, etc. Please contact us for specific requirements.
Q11. How many layers can the membrane switch be customized?
A11. The general design is 6 layers, but can be customized according to special requirements.
Q12. What is the distance between the tail wires of the membrane switch?
A12. Generally 2.54mm, but there are other specifications of 1mm lamps. Please contact us for specific requirements.
Q13. Do I need to provide drawings?
A13. Yes, we need you provide high resolution drawings in vector format like PDF CDR or AI file, etc. In addition, need you provide the circuit drawing at the same time.
Material
| Base Material | PET / PC / PVC |  |
| Surface | Glossy / Matte Finish | |
| Temperature Resistance | -30ºC-120ºC | |
| Thickness | 0.05-0.25mm | |
| Circuit Layer | Silver Paste Carbon Past |
|
| Characteristic | High Temperature Resistance, Weather Resistance, Good Stability, Waterproof, Dustproof, UV Resistant |
Type
| Flat Non Tactile Type |  |
Metal Elastic Type |  |
| Tympanic Tactile Type |  |
LED Backlight Type |  |
Technical Parameter
| Electrical | 1.Voltage: ≤ 50V (DC) 2.Current: ≤ 100mA 3.Contact resistance: 0.5 - 10 Ω 4.Insulation resistance: ≥ 100M Ω (100V / DC) 5.Substrate withstand voltage: 2KV (DC) 6.Rebound time: ≤ 6ms 7.Loop resistance:≤ 100Ω, or 500Ω-1KΩ according to the needs of users. 8.Insulation ink withstand voltage: 100V / DC |
| Mechanical | 1. Reliability service life: > 1 million times 2. Standard working force: 100 - 750g 3. The silver paste line is free of oxidation and impurities 4. Silver paste line width ≥ 0.3mm 5. Pin spacing standard 2.54, 2.50, 1.27, 1.25, 1.0, 0.5mm 6. The bending resistance of tail cable shall be rolled 80 times with d = 10mm steel rod 7. The adhesion of printing ink should be passed test by Cross-Cut Tester |
| Environmental | 1. Working temperature: - 20 ºC -+ 70 ºC 2. Storage humiture: - 40 ºC - + 85 ºC, 95% ± 5% 3. Atmospheric pressure: 86 - 106kpa |
CUSTOM MEMBRANE SWITCH
STRUCTURE
A membrane switch functions as an integrated system combining control functions, display components, and panel design. It is composed of four key elements: the faceplate, top conductor, insulating layer, and bottom conductor. When pressed, the top conductor bends down, making contact with the bottom conductor's surface, completing the electrical path. Upon release, the top conductor returns to its original position, breaking the circuit and sending a signal to the system. This switch features a robust build, attractive design, and strong resistance to environmental factors. It offers waterproof capabilities and enduring durability.
Application
Widely used in user interface of electronic communication, electronic measurement instruments, industrial control, medical equipment, automotive industry, intelligent toys, household appliances and other fields.
Factory Workshop and Test Equipment
| BX Electronic Technology Co., LTD, based in Xiamen Special Economic Zone, began its journey in 2009 and has refined its printing and die-cutting expertise over 15 years. Today, it operates as a comprehensive technology service provider specializing in Solution / R&D / Production / Assembly. His products are Nameplate/Crystal Dome Label/Display Panel/Membrane Switch/Acrylic panel. Which are most important component in electronic consumer products, household appliances, industrial equipments. Automobile displayer and Smart Bathroom products. Our facility features skilled manual and automated manufacturing setups, along with a certified quality control group. We are equipped with a wide range of cutting-edge machinery such as the Auto Dryer System, automated screen printing units, 3D measurement tools, high-speed automatic doming equipment, die cutting devices, automated die-cutting systems, CNC workstations, and more. |
Process Flow
FQA
Q1. Do you provide free samples?
A1. We can provide samples and charge freight free of charge.
If you have any special membrane switch sample, please contact us for more details.
Q2. Can the product be produced according to customer requirements?
A2. We can customize according to the required specifications and drawings of membrane panels.
Q3. Is it allowed to visit the factory?
A3. Yes, we always welcome customers to visit our factory at any time.
Q4. How to solve the faults of the products during using?
A4. Please email us about the problem by pictures or videos of the membrane overlays. We will check the problem and offer solution during 24 hours
Q5. Where is your factory?
A5. We're a source membrane switch manufacturer, our workshop locates in 5th floor, Building 96, HuLi Park, Xiamen, China.
Q6. What is screen printing?
A6. Screen printing, commonly referred to as silk screening, is a method that uses a fine mesh to apply ink onto various surfaces including fabric, paper, metal, and plastic. A pattern or image is etched onto the mesh, usually constructed from polyester or similar delicate fabrics. The parts of the mesh not aligned with the image are covered, allowing ink to pass through only the exposed sections when pushed through with a squeegee, resulting in the final printed design.
Q7. Can the color of the membrane switch overlay product be customized?
A7. Our colors can be customized according to PMS ( Pantone matching system by usual) .
Q8. Can the membrane switch be equipped with LED lights?
A8. Yes. Generally, there are monochrome lamps, two-color lamps and three-color lamps available. Please contact us for specific requirements.
Q9. What is the thickness of the membrane switch control panel?
A9. Generally 0.9 ~ 1.3mm. And we support customized thickness if it's in need.
Q10. What are the types of convex keys on the membrane switch panel?
A10. Including round, pan, convex edge, convex key shape, no convex, etc. Please contact us for specific requirements.
Q11. How many layers can the membrane switch be customized?
A11. The general design is 6 layers, but can be customized according to special requirements.
Q12. What is the distance between the tail wires of the membrane switch?
A12. Generally 2.54mm, but there are other specifications of 1mm lamps. Please contact us for specific requirements.
Q13. Do I need to provide drawings?
A13. Yes, we need you provide high resolution drawings in vector format like PDF CDR or AI file, etc. In addition, need you provide the circuit drawing at the same time.
