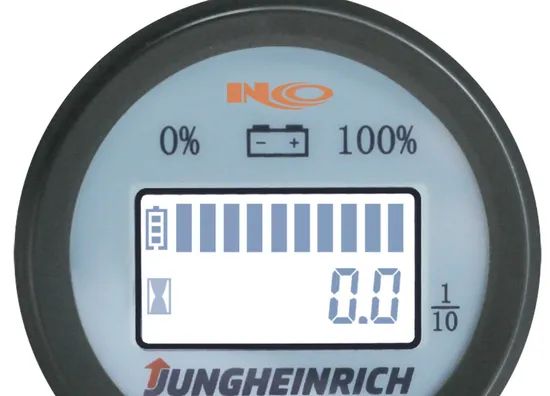

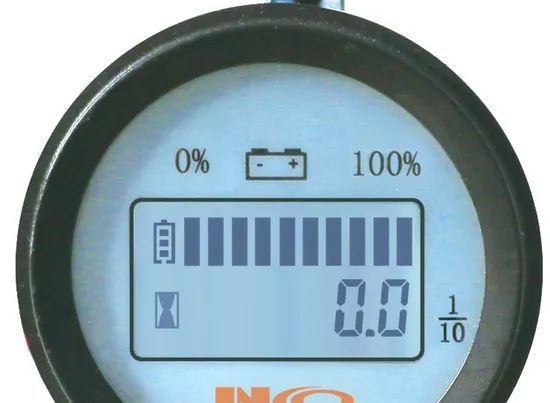

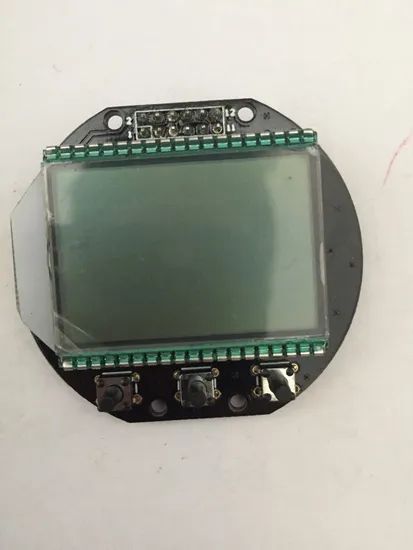

Custom Multiple Display Modules, 7-Segment LCD Display Module with PCB

Black and white segment display screen and LED backlight is our main products.We have nearly 10 years of product design, production, effect experience in the field of black and white segment display screen; Can Be well customized to meet customer needs of the product design; at present, LCD mainly are used in small appliances, medical, industrial control instrumentation, water and electricity meter, car and many other product areas.

We can design or coply LCD display as per samples or requirement.
How to make a LCD mold to get TN ,HTN,STN,FSTN,or VA LCD samples?
Firstly, please understand that there is no standard monochrome LCD display panel in monochrome LCD industry (not including color TFT LCD,COB moule and OLED) ,because specifications of LCD panel are quite different, especially size, voltage,viewing direction,graphics and so on.

In order to custom make LCD easy,please confirm these specifications below:
LCD size (mm):
Customers should tell us viewing area size or total LCD size in millimeter(length,width). We will help you design a final and economic LCD size.
LCD total thickness is 2.8mm or 2.0mm or 1.7mm. Usually,2.8mm is very common thickness.

LCD graphics(characters,icons)
Customers should send a simple LCD graphics(Formal CAD drawing or sketch) to us,then we will understand how many segment it is.Our engineer will make formal LCD drawing for your approval.

LCD type:
 1) TN   2)HTN  3)STN  4)FSTN   5)VA

How to choose LCD type?

1.Usually,TN LCD is used very widely,Such as power meter LCD,telephone LCD,calculator LCD, electric cooker LCD and so on. TN LCD is cheapest,but viewing angle is narrow.

2.HTN LCD is better than TN LCD. Display result of HTN positive LCD is the same as TN positive LCD.But viewing angle is wider than TN. Unit price of HTN LCD is close to TN LCD.

3. STN LCD is very excellent LCD. It has a wide viewing angle. Usually STN LCD is used in high-end equipments or display content too much!
STN LCD not only can make segment LCD,but also can make dot matrix LCD.
Unit price of STN LCD is higher than HTN LCD.

4.FSTN LCD is one of the best LCD in monochrome LCD field. Display content even can be seen in the sunshine. Display result of FSTN positive LCD is similar with TN LCD,but viewing angle is much wider than TN LCD's.

5.VA LCD is a new LCD type. It has high contrast and wide viewing angle. In general,VA LCD has a excellent display result.If you want a wonderful display result,VA LCD will be your best choice.
Price of VA is similar with FSTN LCD.

LCD operating voltage:
LCD operating voltage is up to LCD drive chip.
Usually,LCD operating voltage range is 2.8~5.0V.
We recommend to use 3.0V or 3.3V or 5V operating voltage.

5.LCD operating temperature and LCD storage temperature:
You can choose one from blow:
LCD operating temperature range:0 to 50ºC,then storage temperature range:-10 to 60ºC;
LCD operating temperature range:-10 to 60ºC,then storage temperature range:-20 to 70ºC;
LCD operating temperature range:-20 to 70ºC,then storage temperature range:-30 to 80ºC;
LCD operating temperature:-30 to 80ºC,then storage temperature range:-40 to 90ºC;
LCD operating temperature:-40 to 85ºC,then storage temperature range:-50 to 90ºC;
Temperature range is wider,then price is higher.

6.LCD Drive Method:
LCD drive method is up to LCD drive chip.
For examples,Static drive;1/2duty,1/2bias;1/3duty,1/2bias;1/4duty,1/3bias;1/8duty,1/4bias;
1/16duty,1/5bias and so on.

7.Rear polarizer type:
There are three types of polarizer: transmission polarizer;transflective polarizer and reflective polarizer.
If  No LED backlight,please choose reflective polarizer.
If  LED backlight is necessary,then you can choose transmission or transflective polarizer.

Transflective polarizer is better and expensive than transmission polarizer.But transflective LCD will have a uniform light result compared with transmission polarizer. What is more,when LED backlight is off, transflecitve LCD will also have a good display result.
For transmission polarizer,when it is negative LCD or LED backlight alway be on,then it is better  use transmission polarizer.

8.Viewing direction
As viewing angle of monochrome LCD is not very wide,especially TN LCD and HTN LCD, so it is necessary to confirm a best viewing direction,so that we can get a best display result.

As usual,LCD viewing direction is separated into 6:00 direction and 12: direction.
6:00 viewing direction: When our line of sight is from bottom to top of LCD,it is 6:00 viewing direction,such as telephone screen,wall clock screen,air condition screen and so on.

12:00 viewing direction: When our line of sight is from top to bottom of LCD,it is 12:00 viewing direction,such as electric cooker display screen.
Viewing direction of LCD is very important,if we made a wrong viewing direction,then the LCD display result was very bad. Maybe customers have to re-make a LCD mold....

9.Connection mode of LCD.
How to connect LCD on your PCB?There are four type of connectors for your choice.
Metal pin connector. It is very common connection way. Pins should insert into PCB holes and solder it. It is very strong and firm. LCD,LED backlight or PCB can be connected together as a LCD module.

2.Zebra strip.When it is zebra strip connector ,then zebra strip should be between LCD and PCB.You should compact LCD and PCB evenly,so that zebra trip can contact and breakover PCB with LCD.
For the connection,If you must make sure that LCD and PCB can be compacted well, or else LCD can't be displayed or just display a part.
But zebra strip is cheap.

3.Heat seal paper.Heat seal paper is a flexible connect way. Heat seal paper can be heated pressing on LCD and PCB directly. But head seal is easy to be oxidized after a few years.

4.FPC(Flexible Printed Circuit) connection. FPC connector is also a flexible connect way. FPC quality is very good compared with heat seal paper. It is a good connection way,but price and tooling charge is higher.
LED backlight is also our main product; LED backlight is a supporting product for liquid crystal display, which can be customized in size, structure, color and connection mode;
1. Color: white, blue, orange, red, RGB color, etc.;
2. Thickness: 2.2mm, 2.7mm, 3.2mm or other thicknesses customized;
3. Connection method: metal pin, wire, FPC, PCB pin;
4. Structure: straight slab structure, customized retaining wall, pillars, etc.
