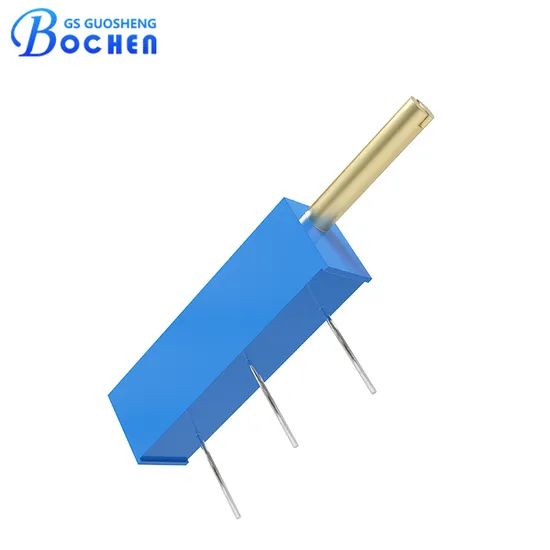

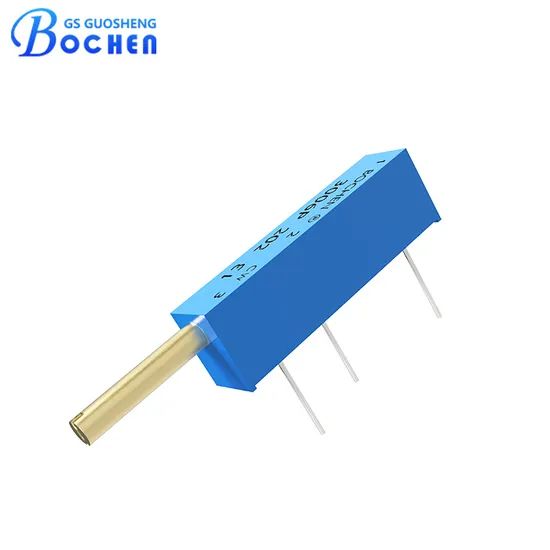

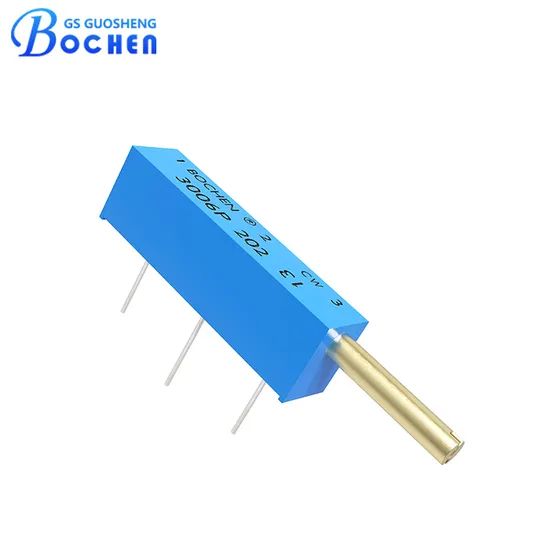

Custom Trimmer Solutions 3006p Ohm Potentiometers Variable Resistor
1-499 Piece
$0.18500-4999 Piece
$0.155000-49999 Piece
$0.1450000-99999 Piece
$0.13100000 Piece
$0.12Product information
High-quality Custom Trimmer Solutions 3006p Ohm Potentiometers Variable Resistor supplied by Sichuan Bochen Guosheng Intelligent Technology Co., Ltd.. Bulk wholesale pricing ranges from $0.12 to $0.18 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Rated Power:
0.75W
Nominal Resistance Range:
10Ω ~ 5mΩ
Effective Travel:
20±2 Turn
Total Mechanical Travel:
22±2 Turn
Production Capacity:
300000 Pieces/Year
Quantity:
50
Transport Package:
50 PCS/Tube
HS Code:
8533400000
Specifications
Rated Power:
0.75W
Nominal Resistance Range:
10Ω ~ 5mΩ
Effective Travel:
20±2 Turn
Total Mechanical Travel:
22±2 Turn
Production Capacity:
300000 Pieces/Year
Quantity:
50
Transport Package:
50 PCS/Tube
HS Code:
8533400000
Trademark:
BOCHEN
Brand:
Bochen
Material:
Ceramic and Metal
Element Type:
Cermet
Specification:
Cermet Trimpot
Origin:
Chengdu, China
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Resistance Change Scale:
Linear Scale
Application:
Medical Apparatus and Instruments
Termination Style:
PC Pin
Installation:
PCB Through Hole Mount
Port Of Loading:
Shanghai Port; Shenzhen Port; Guangzhou Port
Adjustment:
Side Slot
Shape:
Square
Product Type:
Trimmer Resistors
Type:
Trimming Potentiometer
Packaging:
Tube
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022-06-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
2
Preferred Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port; Shenzhen Port; Guangzhou Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
Bochen potentiometer 3006p 102 103 104 1K 10K 100k Trimmer Potentiometer
Description
The 3006P-1-503 trimmer potentiometer with a resistance of 50 kiloohms (50kΩ), it provides precise resistance adjustments in electronic circuits. This single-turn trim pot allows for easy modifications with a simple rotation. Known for its reliability, accuracy, and compact design, it's commonly used in applications such as audio equipment, instrumentation, and electronic prototypes requiring fine-tuning or calibration.
Feature
•3/4" Rectangular / Multiturn / Cermet / Industrial / Sealed.
•Transparent housing available, can be set visually without hook-up and instrumentation ("P" style only).
•Low PC board profile - only 1/4˝ high.
•Panel mount option available.
•RoHS compliant version available.
Specification
| Electrical Characteristics | Nominal ResistanceRange | 10Ω ~ 5MΩ |
| Resistance Tolerance | ±10% | |
| Terminal Resistance | ≤±1% R or 3Ω | |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω | |
| Insulation Resistance | 500 Vdc. R1≥1GΩ | |
| Withstand Voltage | 101.3KPa, 500 Vac; 8.5KPa, 250 Vac | |
| Dielectric Strength Sea Level | 500 Vac(1 Min.) | |
| Effective Travel | 20(±2) Turn | |
| Environment Characteristics | Weld Heat Resistance | Wave soldering Temp: 260 ºC ± 5 ºC, T: 3 ± 1 Secs. Soldering iron welding temp: 320 ºC ± 5 ºC, T ≤ 2 Secs. |
| Rated Power | 70ºC, 0.75W; 125ºC, 0W | |
| Temperature Range | -55°C ~ + 125°C | |
| Temperature Coefficient | ±250, ±100 ppm /°C | |
| Temperature Variation | ΔR≤±2%R, Δ(Uab/Uac)≤±1% | |
| Collision | 10-500Hz, 0.75mm, 6h ΔR≤±1%R, Δ(Uab/Uac)≤±2% | |
| Vibration | 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2% | |
| Electrical Endurance At 70°C | 1000 hours @ 70ºC Rated Power; ΔR≤±3%R | |
| Mechanical Endurance | 200 Cycles, ΔR≤±3%R | |
| Physical Characteristics | Total Mechanical Travel | 22±2 Turn |
| Starting Torque | ≤25 mN.m | |
| Clutch Torque | ≤35 mN.m |
Dimension
Packaging
Packaging specification: 1. 25 pieces/tube, 2500 pieces/carton; 2. Customization package is available.
Application
• Telecommunications: Used for impedance matching in signal processing equipment.
• Consumer Electronics: Applied in audio equipment for precise resistance adjustment.
• Industrial Automation: Utilized to calibrate sensors and controllers for optimal performance.
• Medical Devices: Ensures reliable operation by fine-tuning circuit parameters.
• Wide Resistance Range: Suitable for both low-power and high-power applications.
• Robust Construction: Provides durability and reliability in diverse electronic systems.
• Versatility: Supports various electronic circuit designs and configurations.
Advantage:
• Factory direct supply, no middlemen.
• Completed certificates such asRoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
