Customizable Industrial High Pressure Diaphragm Filter Press System
Set
Negotiable
Product information
High-quality Customizable Industrial High Pressure Diaphragm Filter Press System supplied by Hebei Shuangcheng Environmental Protection Equipment Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Gross Weight:
1600.000kg
Production Capacity:
260 Pieces/Year
Package Size:
300.00cm * 150.00cm * 130.00cm
HS Code:
8421291000
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
Customized
Type:
Diaphragm Filter Press
Specifications
Package Gross Weight:
1600.000kg
Production Capacity:
260 Pieces/Year
Package Size:
300.00cm * 150.00cm * 130.00cm
HS Code:
8421291000
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
Customized
Type:
Diaphragm Filter Press
Trade Term:
FOB, CIF, CFR, EXW
Origin:
Hebei China
Model NO.:
High pressure diaphragm filter press
Pressure:
Hydraulic Pressure
Trademark:
JINGWANG (or as customized)
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Purpose Four:
Marble Cutting Wastewater Treatment
Purpose Three:
Metallurgical Industry
Purpose One:
Mining Industry
Purpose Two:
Sand and Gravel Factory
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin Port
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-06-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
45
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
Certificates
Product descriptions from the supplier

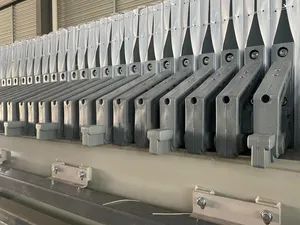

The main difference between the diaphragm filter press and the ordinary box filter press is that a layer of elastic diaphragm plate is installed the filter plate and the filter cloth. During operation, when the feed is over, high-pressure fluid medium can be injected between the filter plate and the diaphragm, the whole diaphragm will bulge to press the filter cake, so as to achieve further dehydration of the filter cake, which is pressing filtration. First, there is positive extrusion dehydration, also known as feed water dehydration, that is, a certain number of filter plates are closely arranged in a column under the action of strong mechanical force, a filter chamber is formed between the filter plate surface and the filter plate surface, the filtering material is sent into the filter chamber under strong positive pressure, and the solid part of the material entering the filter chamber is retained by the filter medium (such as filter cloth) to form a filter cake, and the liquid part passes through the filter medium and is discharged from filter chamber, so as to achieve the purpose of solid-liquid separation.
It is widely used in chemical industry, light industry, petroleum, pharmaceutical, food, resource development, metallurgical coal, environmental protection, sewage and wastewater chemical wastewater, metallurgical wastewater, electroplating wastewater, leather wastewater, printing and dyeing wastewater, pharmaceutical wastewater, breeding wastewater, slaughter wast, sand washing wastewater, building pile driving wastewater, stone cutting wastewater and other fields, which is deeply welcomed by users.
Our company produces various models of box filter press, hydraulic filter press, diaphragm filter press, fully automatic filter press and filter press accessories, with reliable quality and complete specifications.
Product Accessories
Product Application
Product Effect
It is widely used in chemical industry, light industry, petroleum, pharmaceutical, food, resource development, metallurgical coal, environmental protection, sewage and wastewater chemical wastewater, metallurgical wastewater, electroplating wastewater, leather wastewater, printing and dyeing wastewater, pharmaceutical wastewater, breeding wastewater, slaughter wast, sand washing wastewater, building pile driving wastewater, stone cutting wastewater and other fields, which is deeply welcomed by users.
Our company produces various models of box filter press, hydraulic filter press, diaphragm filter press, fully automatic filter press and filter press accessories, with reliable quality and complete specifications.
- Specifications include: 630 type, 800 type, 1000 type, 1250 type 1500 type, 1600 type, 2000 type.
- The maximum filtration area is up to 1000sqm.
- Filter plate materials are divided into cast iron, reinforced polypropylene, glass fiber polypropylene, etc.
- There are various forms fluid flow: open flow, closed flow, washable, non-washable, central feed, corner feed, etc.
| Technical Data:Work Journey 750,Maximum Joumey 1000. | ||||||||
| Filtraion area |
Number of Plate(M/R) |
Cake thickness (mm) |
Chamber volume (m³) |
Unit weight (kg) |
Anchor center (mm) |
Overall dimensions | ||
| Length | Width | Height | ||||||
| U-Plastic plate &frame(Thickness85/80.Flter Cloth Thickness 1mm/plate) | ||||||||
| 220 | 29 /28 | 40 | 4.48 | 18669 | 6840 | 8345 |
2470 |
1830 |
| 250 | 33/32 | 5.10 | 19727 | 7520 | 9025 | |||
| 300 | 39/38 | 6.03 | 21285 | 8530 | 10035 | |||
| 350 | 46/45 | 7.11 | 23106 | 9710 | 11215 | |||
| 400 | 52/51 | 8.04 | 24654 | 10730 | 12235 | |||
| 450 | 59/58 | 9.12 | 26474 | 11910 | 13415 | |||
| 500 | 65/64 | 10.05 | 28035 | 12925 | 14430 | |||
