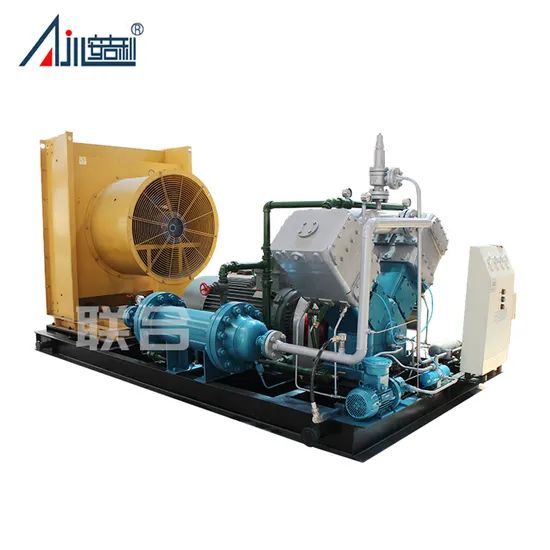

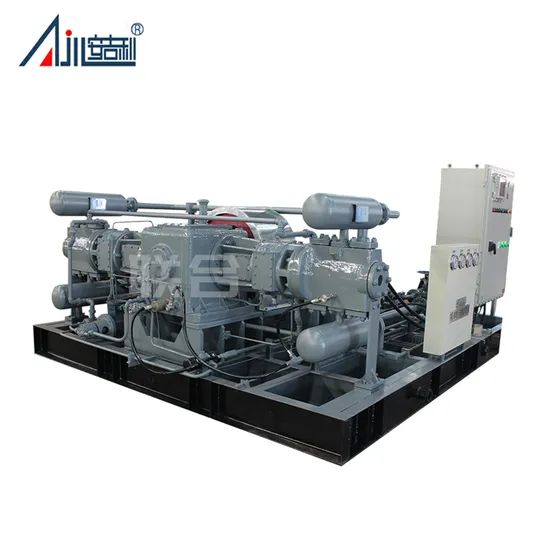

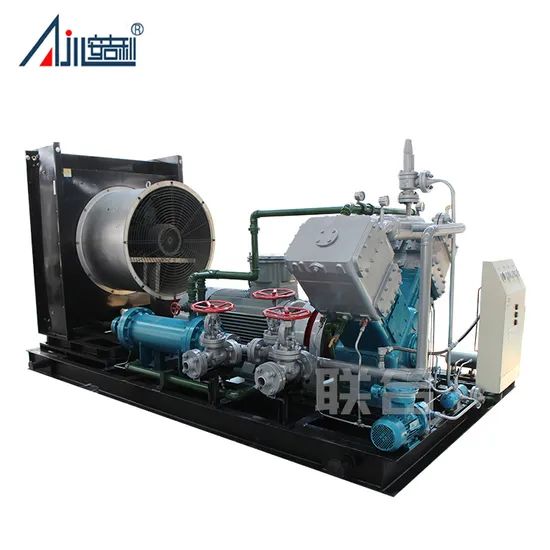

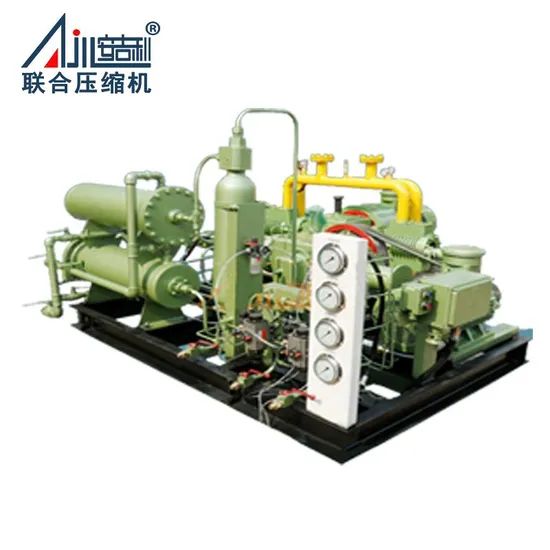

Customizable Multi-Gas Compressor Unit for Natural Gas Hydrogen Biogas LPG CNG Applications
1 Piece
$80,000Product information
High-quality Customizable Multi-Gas Compressor Unit for Natural Gas Hydrogen Biogas LPG CNG Applications supplied by Bengbu United Compressor Manufacturing Co., Ltd.. Bulk wholesale pricing is $80,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Flow Rate:
0.12m3/Min
Inlet Pressure:
0.3-20MPa
Package Gross Weight:
110000.000kg
Outlet Pressure:
25MPa
Power Equipped:
380V/50Hz
Package Size:
4800.00cm * 2350.00cm * 2250.00cm
HS Code:
8414804990
Compressor Speed:
980 R/Min
Specifications
Flow Rate:
0.12m3/Min
Inlet Pressure:
0.3-20MPa
Package Gross Weight:
110000.000kg
Outlet Pressure:
25MPa
Power Equipped:
380V/50Hz
Package Size:
4800.00cm * 2350.00cm * 2250.00cm
HS Code:
8414804990
Compressor Speed:
980 R/Min
Trademark:
ANJILI
Cooling System:
Air/Water /Mixed Cooling
Cylinder Arrangement:
Balanced Opposed Arrangement
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Cover:
Customized
Overall Dimensions:
Customized
Starting Method:
Customized
Cylinder Position:
Customized
Compress Level:
Customized
Model NO.:
DF-0.12/(30-200)-250
Drive Mode:
Direct Connection
Trade Term:
FOB
Installation Method:
Fixed and with Foundation
Transport Package:
Foreign Trade Packaging
Refrigerant Type:
Natural Gas
Structure Type:
Open Type
Factory Inspection:
Provided
Technical Guidance:
Provided
Electrical Brand:
Selectable
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Payment Term:
T/T
OEM:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2002-07-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
55
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB
Port Of Loading:
Shanghai Port
Certificates:
Compressor shaft grinding fixture, Compressor suction structure, Conveyor table for compressor production, Invention Patent, ISO14001 certificate of conformity of environmental, ISO9001 certificate of conformity of quality, Lifting platform for compressor production, Noise reduction base for compressor, Petroleum gas compressor with dust prevention and noise reduction
Product descriptions from the supplier
SONA2024 2.2.1
2.How long is delivery time ?
Delivery time is around the 30-135 days .
3.What about the voltage of products? Can they be customized?
Yes, the voltage can be customized according to your inquire.
4.Will you provide some spare parts of the machines?
Yes
Key Features:
Company Profile
Bengbu United Compressor Manufacturing Co., Ltd.
Your Reliable Partner in High-Performance Gas Compression Solutions
With over50 yearsof engineering experience, Bengbu United Compressor is a trusted manufacturer of industrialreciprocating piston compressorsspecializing in high-efficiency gas compression systems. Our34,000 m²modern production facility integratesforging, casting, precision machining, heat treatment, welding, skid-mounted assembly, and advanced performance testing, ensuring end-to-end quality control and reliable delivery.
Backed by a skilled technical team of120experienced engineers and technicians, we deliver customized gas compressor packages designed fornatural gas processing, hydrogen refueling stations, CNG/LPG plants, biogas recovery systems, petrochemical facilities, flare gas recovery, and other specialty gas applications. Our compressors support high-pressure operations up to100 MPa, ensuring stable, efficient, and durable performance even in the most demanding industrial environments.
Producing500+ unitsannually, we export to20+countries across five continents, including Southeast Asia, the Middle East, Europe, North America, and South America.Certifiedwith ISO, and equipped with state-of-the-art testing systems, we provide turnkey compression solutions that combine engineering innovation, precision manufacturing, and responsive after-sales service.
Choose Bengbu United Compressor — where innovation meets reliability in the field of high-performance gas compression.
FAQ
FAQ
1.Reciprocating Piston CompressorTechnical Parametersto Provide:
1)Gas Medium:_____
1)Gas Medium:_____
2)Flow Rate/Capacity: ___ Nm3/min
3)Suction/ Inlet Pressure: ____ Bar.G
4)Discharge/Outlet Pressure:____ Bar.G
5)Voltage and Frequency : ____ V/PH/HZ
3)Suction/ Inlet Pressure: ____ Bar.G
4)Discharge/Outlet Pressure:____ Bar.G
5)Voltage and Frequency : ____ V/PH/HZ
6)Cooling Method: : ____ (Air cooling/Water cooling)
2.How long is delivery time ?
Delivery time is around the 30-135 days .
3.What about the voltage of products? Can they be customized?
Yes, the voltage can be customized according to your inquire.
4.Will you provide some spare parts of the machines?
Yes
Product Description
Z Type
The Z-Type Vertical Unloading Compressor is specially designed for unloading operations and is widely used in the oil and gas industry, chemical industry, and liquefied gas stations. Its vertical structure not only saves space but also ensures efficient gas delivery under high pressure and high flow conditions, making it ideal for unloading tasks from gas transport vehicles.
Typical Applications:
LPG, CNG, LNG Unloading: Efficiently and safely unload liquefied petroleum gas, compressed natural gas, and liquefied natural gas.
Natural Gas Pipeline Delivery: Used for unloading natural gas from transport vehicles, delivering the gas efficiently to storage tanks or pipelines.
Chemical Gas Unloading: Handles unloading tasks for various chemical gases, biogas, and other industrial gases, ensuring stable gas transfer during operations.
Emergency Gas Unloading System: Used in liquefied gas stations, storage facilities, and other sites for emergency unloading and gas storage operations.
Typical Applications:
LPG, CNG, LNG Unloading: Efficiently and safely unload liquefied petroleum gas, compressed natural gas, and liquefied natural gas.
Natural Gas Pipeline Delivery: Used for unloading natural gas from transport vehicles, delivering the gas efficiently to storage tanks or pipelines.
Chemical Gas Unloading: Handles unloading tasks for various chemical gases, biogas, and other industrial gases, ensuring stable gas transfer during operations.
Emergency Gas Unloading System: Used in liquefied gas stations, storage facilities, and other sites for emergency unloading and gas storage operations.
V type
The V-type reciprocating piston compressor is a high-performance, robust compression solution engineered for handling a wide range of industrial gases under medium to high-pressure conditions. Designed with a compact V-configuration, this compressor ensures excellent mechanical balance, reduced vibration, and high efficiency — making it ideal for applications where stable, continuous operation is required.
Key Features:
V-Configuration Design: Optimized for smoother operation, lower noise, and reduced footprint.
High Efficiency: Designed for continuous-duty performance with high volumetric efficiency.
Oil-Free or Lubricated Options: Available in both oil-free and lubricated types based on process gas purity requirements.
Customizable Pressure & Flow: Discharge pressure up to 100MPa; flow range tailored to customer demand.
Wide Gas Compatibility: Suitable for compressing hydrogen, nitrogen, helium, natural gas, associated gas, syngas, and other flammable/toxic gases.
Advanced Sealing & Cooling System: Ensures long service life and safe operation under demanding conditions.
High Efficiency: Designed for continuous-duty performance with high volumetric efficiency.
Oil-Free or Lubricated Options: Available in both oil-free and lubricated types based on process gas purity requirements.
Customizable Pressure & Flow: Discharge pressure up to 100MPa; flow range tailored to customer demand.
Wide Gas Compatibility: Suitable for compressing hydrogen, nitrogen, helium, natural gas, associated gas, syngas, and other flammable/toxic gases.
Advanced Sealing & Cooling System: Ensures long service life and safe operation under demanding conditions.
D-Type
The D-Type compressor is a horizontally opposed, reciprocating piston gas compressor designed for high reliability, efficiency, and long-term operation. It is widely used in industries such as petrochemical, energy, gas recovery, and industrial gas transportation. With robust engineering and modular construction, it is ideal for complex and demanding working conditions.
Key Features:
Horizontally Opposed Structure: Balanced design reduces vibration and ensures smooth, stable operation.
Modular Design: Flexible configurations allow for customized flow rates and pressure levels; easy maintenance and upgrades.
Wide Range of Gas Applications: Suitable for natural gas, hydrogen, helium, methane, associated gas, tail gas,co2,co, and other industrial gases.
High Pressure Capability: Discharge pressure can reach up to 100MPa, supporting high-pressure operations.
Precision Machining & Sealing Systems: Ensures reliable performance under high temperature and pressure conditions.
Multi-stage Compression: Interstage cooling improves energy efficiency and extends service life.
Automated Control Options: Available with PLC control and remote monitoring for intelligent, efficient operation.
Key Features:
Horizontally Opposed Structure: Balanced design reduces vibration and ensures smooth, stable operation.
Modular Design: Flexible configurations allow for customized flow rates and pressure levels; easy maintenance and upgrades.
Wide Range of Gas Applications: Suitable for natural gas, hydrogen, helium, methane, associated gas, tail gas,co2,co, and other industrial gases.
High Pressure Capability: Discharge pressure can reach up to 100MPa, supporting high-pressure operations.
Precision Machining & Sealing Systems: Ensures reliable performance under high temperature and pressure conditions.
Multi-stage Compression: Interstage cooling improves energy efficiency and extends service life.
Automated Control Options: Available with PLC control and remote monitoring for intelligent, efficient operation.
M Type
The M-Type compressor is a modular, skid-mounted unit designed for compressing various gases such as natural gas, associated gas, tail gas, hydrogen, and mixed gases. It supports medium to high-pressure applications and is ideal for use in oilfields, chemical plants, and gas transportation systems.
Key Features:
Modular & Compact – Easy to transport and install
Wide Gas Compatibility – Supports various industrial gases
High Pressure Range – Discharge pressure up to 45MPa
Energy Efficient & Reliable
Customizable Per Project Needs
Applications:
Wide Gas Compatibility – Supports various industrial gases
High Pressure Range – Discharge pressure up to 45MPa
Energy Efficient & Reliable
Customizable Per Project Needs
Applications:
Oilfield gas recovery
Gas pipeline boosting
CNG/LNG filling systems
Petrochemical gas handling
Gas pipeline boosting
CNG/LNG filling systems
Petrochemical gas handling
W Type
S Type
The W-Type compressor is a heavy-duty reciprocating unit specially engineered for compressing a wide range of industrial gases such as natural gas, hydrogen, associated gas, and mixed gases. Its robust multi-stage configuration ensures stable performance and high efficiency, making it suitable for demanding industrial environments.
Key Features:
Heavy-Duty Design – Built for continuous operation in harsh conditions
Wide Gas Compatibility – Handles natural gas, hydrogen, mixed gases, and more
Medium to High-Pressure Operation – Discharge pressure up to 25 MPa
High Reliability & Long Service Life – Low maintenance and durable structure
Customizable Configuration – Flexible design to match different project requirements
Applications:
Oilfield gas recovery and processing
Petrochemical gas handling systems
Pipeline transportation boosting Gas storage and distribution facilities
Hydrogen and specialty gas industries
S-Type High-Pressure Air Compressor (Diesel & Electric Driven) The S-Type high-pressure air compressor is designed for applications requiring reliable, continuous compressed air at high pressures. Available in both diesel-driven and electric-driven models, this compressor is versatile and suitable for various industrial environments, including locations without stable power supply.
Key Features:
Dual Power Options – Diesel or electric drive to meet different operational needs
High Pressure Range – Discharge pressure up to 25 MPa
Energy Efficient & Reliable – Engineered for low energy consumption and consistent performance
Portable & Easy to Operate – Compact skid-mounted design for flexible deployment
Low Maintenance – Durable components with reduced downtime
Applications:
Industrial high-pressure air supply
Power plant maintenance and pipeline cleaning
Offshore and remote operations without grid power
Support for pneumatic tools and testing systems
Parameters Raference
NO. | MODEL | Compressed medium | Flow rate Nm³/h | Inlet pressure MPa | Outlet pressure MPa | Rotating speed r/min | Motor power KW | Cooling mode | Overall dimension mm |
1 | DW-14/(0-0.2)-25 | Raw gas | 800 | 0-0.02 | 2.5 | 740 | 160 | Water cooled | 4800*3200*1915 |
2 | VW-8/18 | Vinylidene fluoride gas | 418 | Atmospheric pressure | 1.8 | 980 | 75 | Water cooled | 3700*2000*1700 |
3 | VWD-3.2/(0-0.2)-40 | Biogas | 230 | 0-0.2 | 4.0 | 740 | 45 | Water cooled | 6000*2500*2650 |
4 | VW-9/6 | Ethyl chloride gas | 470 | Atmospheric pressure | 0.6 | 980 | 55 | Water cooled | 2800*1720*1700 |
5 | DWF-12.4/(9-12)-14 | Carbon dioxide | 6400 | 0.9-1.2 | 1.4 | 740 | 185 | Air cooled | 6000*2700*2200 |
6 | VWF-2.86/5-16 | Nitrogen gas | 895 | 0.5 | 1.6 | 740 | 55 | Air cooled | 3200*2200*1750 |
7 | DW-2.4/(18-25)-50 | Raw gas | 2900 | 1.8-2.5 | 5.0 | 980 | 160 | Water cooled | 4300*3000*1540 |
8 | VW-5.6/(0-6)-6 | Isobutylene gas | 1650 | 0-0.6 | 0.6 | 740 | 45 | Water cooled | 2900X1900X1600 |
9 | VW-3.8/3.5 | Mixed gas | 200 | Atmospheric pressure | 0.35 | 980 | 18.5 | Water cooled | 2200*1945*1600 |
10 | ZW-1.7/3.5 | Vinyl chloride gas | 100 | Atmospheric pressure | 0.35 | 740 | 15 | Water cooled | 2700X1600X2068 |
11 | ZWF-0.96/5 | Hydrogen chloride gas | 55 | Atmospheric pressure | 0.5 | 740 | 11 | Air cooled | 2000*1500*2000 |
12 | VW-0.85/(0-14)-40 | Refrigerant gas | 300 | 0-1.4 | 4.0 | 740 | 55 | Water cooled | 4500*2300*1780 |
13 | DW-3.78/(8-13)-(16-24) | Ammonia gas | 2700 | 0.8-1.3 | 1.6-2.4 | 740 | 75 | Water cooled | 3200*2000*1700 |
