Customizable Steel Frame PE Composite Pipe Automatic Plastic Extrusion Machine
Set
Negotiable
Product information
High-quality Customizable Steel Frame PE Composite Pipe Automatic Plastic Extrusion Machine supplied by Anhui Dongcai Machinery Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Nominal Pressure:
0.6MPa--3.5MPa
Specification:
28*4.5
Production Capacity:
500set/Year
HS Code:
8477209000
Electrical Machinery:
AC Servo Motor
Automation:
Automatic
Origin:
Chuzhou, China
Computerized:
Computerized
Specifications
Nominal Pressure:
0.6MPa--3.5MPa
Specification:
28*4.5
Production Capacity:
500set/Year
HS Code:
8477209000
Electrical Machinery:
AC Servo Motor
Automation:
Automatic
Origin:
Chuzhou, China
Computerized:
Computerized
Trademark:
DONCACY
Screw Channel Structure:
Deep Screw
Exhaust:
Exhaust
Product Type:
Extrusion Molding Machine
Trade Term:
FOB, CIF, CFR, EXW
Engagement System:
Full Intermeshing
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Feeding Mode:
Multiple Feed
Machine Color:
Orange, Silver, Green
Plastic Processed:
PE
Automatic Grade:
PLC
Type:
Pipe Extruder
Assembly Structure:
Separate Type Extruder
Port Of Loading:
Shanghai Port
Control System:
Siemens
Screw:
Single-Screw
Transport Package:
Wooden Pallets
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2025
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1
Product Description
Steel frame polyethylene composite pipe production line
This production line consists of wire feeding frame, wire mesh forming machine, high-speed extruder, cooling and shaping table, heavy-duty traction machine, band saw cutting machine, and material flipping frame, etc. The wire mesh forming machine adopts an efficient medium-frequency soldering device, which is more efficient and more stable than traditional soldering machines. The entire production line is controlled by a fully automatic PLC computer, with high automation level, safe and convenient operation, reliable unit performance, and stable and efficient production.

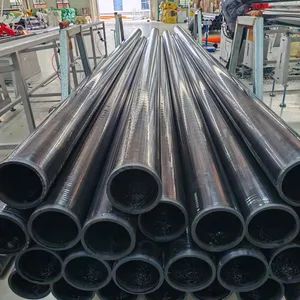

Steel frame polyethylene plastic composite pipe is a composite structure pipe produced continuously on the production line. It uses an interwoven and welded steel wire mesh as the reinforcing skeleton, polyethylene and other thermoplastic plastics as the matrix, and combines the two evenly. The polyethylene raw material for producing steel frame polyethylene plastic composite pipes adopts special materials for high-density polyethylene pipes or medium-density polyethylene pipes (for gas transportation), and the steel wire uses ordinary low-carbon steel wire. It is mainly applicable for the transportation and mixed transportation of oil, gas, water and sewage in the petroleum and natural gas industry, as well as the transportation of drinking water, fire protection and corrosive media. The operating temperature ranges from -40°C to 80°C.
Characteristics of Steel Frame Composite Pipes
1. High pressure resistance and creep resistance: The composite pipe is reinforced with high-strength steel wire, significantly enhancing the pipe's pressure resistance and maintaining stability over long-term use.
2. Rigidity and impact resistance: It retains the flexibility of plastic pipes while also offering rigidity and impact resistance, ensuring stability in environments with significant temperature fluctuations.
3. Smooth inner surface: Reduces fluid friction, improving water transmission efficiency, and is less prone to scaling, ensuring long-term efficient transportation.
4. Corrosion resistance: The inner and outer layers are made of polyethylene plastic, providing excellent corrosion resistance, suitable for transporting acidic, alkaline, and saline media, with a long service life.
5. Lightweight and easy to install: Light in weight, it is convenient for transportation and installation, making it suitable for large-scale projects.
6. Wear resistance: It has good wear resistance, suitable for transporting liquid media containing particles, ensuring long-term use.
7. Wide application range: Steel-reinforced plastic composite pipes are applicable in various fields.
8. Crack resistance: Due to the ring-shaped steel skeleton structure, the pipe's load-bearing capacity is greatly enhanced, and its axial resistance to rapid cracking and environmental stress cracking is also significantly improved.
2. Rigidity and impact resistance: It retains the flexibility of plastic pipes while also offering rigidity and impact resistance, ensuring stability in environments with significant temperature fluctuations.
3. Smooth inner surface: Reduces fluid friction, improving water transmission efficiency, and is less prone to scaling, ensuring long-term efficient transportation.
4. Corrosion resistance: The inner and outer layers are made of polyethylene plastic, providing excellent corrosion resistance, suitable for transporting acidic, alkaline, and saline media, with a long service life.
5. Lightweight and easy to install: Light in weight, it is convenient for transportation and installation, making it suitable for large-scale projects.
6. Wear resistance: It has good wear resistance, suitable for transporting liquid media containing particles, ensuring long-term use.
7. Wide application range: Steel-reinforced plastic composite pipes are applicable in various fields.
8. Crack resistance: Due to the ring-shaped steel skeleton structure, the pipe's load-bearing capacity is greatly enhanced, and its axial resistance to rapid cracking and environmental stress cracking is also significantly improved.
Specification
Model | Pipe diameter(mm) | Maximum production speed(m/min) | Actual power consumption(kw) | Installed power(kw) | Length * Width * Height |
DCS-GSGJ160 | Φ50-160 | 2.4 | 110 | 385 | 73*4.7*3 |
DCS-GSGJ315 | Φ110-315 | 2.4 | 170 | 545 | 75*5.5*4 |
DCS-GSGJ630 | Φ315-630 | 1.2 | 260 | 855 | 76*6*4 |
DCS-GSGJ800 | Φ500-800 | 1.0 | 360 | 1150 | 80*6*4 |
DCS-GSGJ1000 | Φ710-1000 | 0.6 | 350 | 1150 | 86*7*4 |
DCS-GSGJ1200 | Φ800-1200 | 0.6 | 460 | 1400 | 100*7.5*4 |
Application

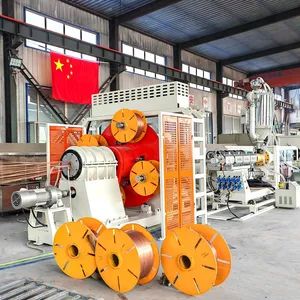

Equipment display
Equipment introduction

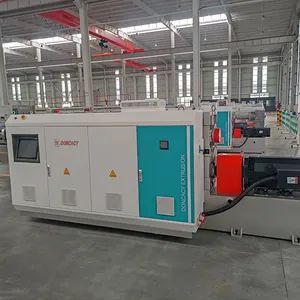

1.Host machine :It is composed of servo AC motors, heating screws, feeding ports and an intelligent control system. The main unit can control the entire production line. And while maintaining efficiency, it can also save 30% of energy consumption.
2.Mould:The heated plastic particles are molded into the inner walls of the pipes. This mold has been improved to enable quick replacement of the diameter.

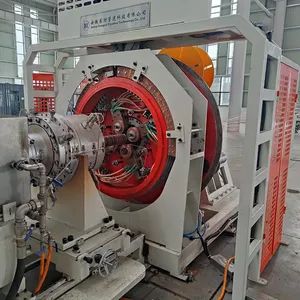

3.Welding net forming machine :Wrap steel wires in a crisscross pattern along the inner wall of the pipe, and then weld at the intersections.
4.Traction machine:The interior of the traction machine is composed of silicone gaskets, which prevent the pipes from being damaged and can be adjusted to fit pipes of different diameters.
5.Cutting machine:The diamond cutting edge is smooth and has low noise.
6.Sander:Grinding the ends of the cut pipes makes them easier to use.
6.Sander:Grinding the ends of the cut pipes makes them easier to use.
Company Profile
Anhui Dongcai Mechanical Technology Co., Ltd.
is located in a prime location, adjacent to the historical city of Nanjing. It is situated in the Economic Development Zone of Chuzhou City, Anhui Province. Currently, it has two production bases in Chuzhou, Anhui and Changzhou, Jiangsu, with a total area of 40,000 square meters. It has nearly 100 core personnel and is equipped with an advanced CNC mechanical processing base for components and a standard assembly workshop. At the same time, it has a highly qualified R&D team and a team of experienced electrical debugging engineers. Dongcai Machinery is a high-tech manufacturer dedicated to the research and manufacturing of plastic extrusion molding equipment.
Certifications
FAQ
1.Q:How long is the guarantee?
A:We respond to you within six hours and provide you with top-notch machines that are guaranteed for a full year.
2. Q:If the machine some parts is broken one day, how can we get help from you?
A:We will send you spare parts free of charge If they are in warranty, not including easy-broken parts. We will only charge a cost fee for parts that are easily broken.
3. Q:How can we check the machines before delivery?
A:We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery. We accept third-party testing. Except above points,we will provide detailed testing report.
4. Q:What strategies does the plastic profile production line use to reduce material waste?
A:The line integrates gravimetric feeding, rapid die changeovers, and in-line edge trimming with recycling, significantly cutting down on startup waste and excess material use, thus reducing overall production costs.
5. Q:What are your strengths?
A:DONCACY MACHINERY TECHNOLOGY CO., LTD. has mature technology and experienced engineers. With excellent product quality and integrity and perfect engineering service system sales network covers the whole country, get the majority of users praise.
