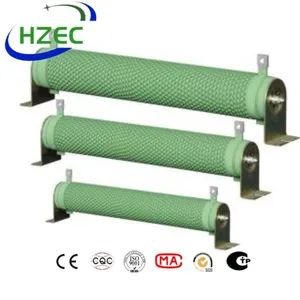

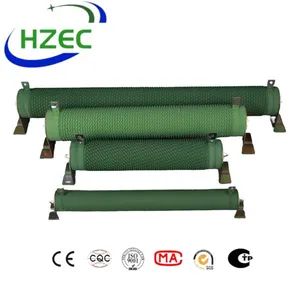

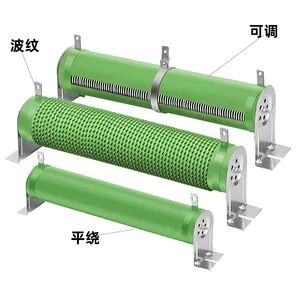

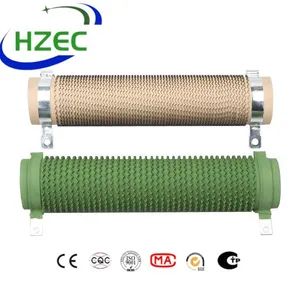

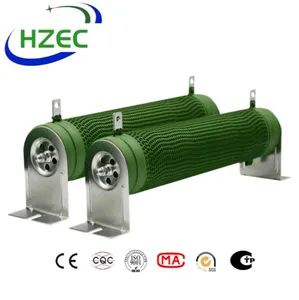

Customization Acceptable 50W 6000W Adjustable Wire Wound Resistor
Piece
Negotiable
Product information
High-quality Customization Acceptable 50W 6000W Adjustable Wire Wound Resistor supplied by Henan Energy Electric Equipment Co.,Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Gross Weight:
0.250kg
MOQ:
10 Pieces
Package Size:
18.00cm * 8.00cm * 5.00cm
Production Capacity:
50000piece Per Month
Specification:
50~6000W
Customizable:
Acceptable
Transport Package:
Cartons or as Required
Origin:
China
Specifications
Package Gross Weight:
0.250kg
MOQ:
10 Pieces
Package Size:
18.00cm * 8.00cm * 5.00cm
Production Capacity:
50000piece Per Month
Specification:
50~6000W
Customizable:
Acceptable
Transport Package:
Cartons or as Required
Origin:
China
Language:
Chinese, English, Russian
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Installation:
DIP Resistor
Application:
Elevators, Cranes, Rolling Mills
Trade Term:
FOB, CFR, CIF, EXW, DDP, DAP, CIP
Payment Term:
Fob, CIF, EXW, DAP
Trademark:
HZEC
Brand:
Hzec
Loading Port:
It Depends
Payment Term:
LC, T/T, D/P
Resistance Change Scale:
Linear Scale
Port Of Loading:
Ningbo Port
Model NO.:
RX20
Quantity:
Single Connection
Payment Methods:
Support payments in USD
Packaging:
Surface Mount
Type:
Thermal Resistor
Shape:
Tubular
Material:
Wire-wound Resistor
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2024-06-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CFR, CIF, EXW, DDP, DAP, CIP
Port Of Loading:
Ningbo Port
Certificates:
AAA Credit Rating Certificate, Certificates, ISO9001 Certificate, Utility Model Patent Certificate
Product descriptions from the supplier
Henan Energy Electric Equipment Co., Ltd. was established in 2011 and is an excellent and reliable power equipment manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations, high-voltage switches, and medium and low voltage complete sets of equipment. The equipment put into production and operation of the project advocates energy saving, intelligence, informatization, and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents. With years of accumulation in the transformer industry and strong technological innovation capabilities, HZEC products are sold to the Middle East, North America, South America, Europe, Southeast Asia, Africa, and other regions, covering more than 40 countries.
| Model | Rated Power (W) | Resistance Range(Ω) | Resistance Tolerance(%) | Max. Working Voltage(V) | Withstand Voltage(V) | Temperature Co-efficient (PPM/ºC) |
RX20-T |
50 | 0.5~4.3 | J(±5%) K(±10%) |
√PR |
1500 | ±250 |
| 80 | 0.5~5.1 | |||||
| 100 | 0.5~6.2 | |||||
| 150 | 0.5~8.2 | |||||
| 200 | 1~10 | |||||
| 300 | 1~12 | |||||
| 400 | 1~20 | |||||
| 500 | 1~100 | |||||
| 800 | 1~100 | |||||
| 1000 | 1~200 | |||||
| 1500 | 1~200 | |||||
| 2000 | 1~500 | |||||
| 2500 | 1~500 | |||||
| 3000 | 1~500 | |||||
| 3500 | 1~500 | |||||
| 4000 | 1~500 | |||||
| 5000 | 1~500 | |||||
| 6000 | 1~500 |
1. Good heat dissipation performance, impact resistance, high stability, long life.
2. Small size, large power load.
3. Widely used in inverters, elevators, ships, motors and high-end equipment industries, load aging tests and other mechanical industries.
4. Accuracy range: ±5%, ±10%.
| Model |
Rated power (W) |
Outline dimension | ||||||||||
| L1±2 | L2±5 | L3±3 | D±2 | B±1 | S±2 | H±1 | H1±3 | N±2 | Φd±1 | T±0.5 | ||
RX20 |
50 | 90 | 112 | 134 | 28 | 6 | 27 | 28 | 62 | 9 | 4.5 | 1.2 |
| 80 | 140 | 162 | 184 | 28 | 6 | 27 | 28 | 62 | 9 | 4.5 | 1.2 | |
| 100 | 170 | 204 | 226 | 28 | 6 | 27 | 28 | 62 | 9 | 4.5 | 1.2 | |
| 150 | 215 | 204 | 226 | 28 | 6 | 27 | 28 | 62 | 9 | 4.5 | 1.2 | |
| 200 | 267 | 288 | 310 | 28 | 6 | 27 | 28 | 62 | 9 | 4.5 | 1.2 | |
| 300 | 267 | 278 | 300 | 40 | 6 | 40 | 41 | 82 | 12 | 5.5 | 2.0 | |
| 400 | 330 | 322 | 344 | 50 | 6 | 40 | 41 | 82 | 12 | 5.5 | 2.0 | |
| 500 | 330 | 322 | 344 | 50 | 6 | 48 | 45 | 95 | 14 | 6.5 | 2.0 | |
| 800 | 430 | 340 | 362 | 50 | 6 | 70 | 69 | 132 | 16 | 6.5 | 2.0 | |
| 1000 | 430 | 340 | 362 | 60 | 7 | 70 | 69 | 132 | 16 | 6.5 | 2.0 | |
| 1500 | 430 | 438 | 460 | 70 | 7 | 70 | 69 | 132 | 16 | 6.5 | 2.0 | |
| 2000 | 430 | 438 | 460 | 80 | 7 | 70 | 69 | 132 | 16 | 6.5 | 2.0 | |
| 2500 | 500 | 518 | 540 | 70 | 7 | 70 | 69 | 132 | 16 | 6.5 | 2.0 | |
| 3000 | 430 | 478 | 500 | 100 | 7 | 80 | 79 | 142 | 16 | 6.5 | 2.0 | |
| 3500 | 430 | 458 | 480 | 100 | 7 | 90 | 89 | 152 | 16 | 6.5 | 2.0 | |
| 4000 | 500 | 458 | 480 | 100 | 7 | 100 | 99 | 152 | 16 | 6.5 | 2.0 | |
| 5000 | 600 | 558 | 580 | 100 | 7 | 100 | 99 | 152 | 16 | 6.5 | 2.0 | |
| 6000 | 600 | 658 | 680 | 100 | 7 | 100 | 99 | 152 | 16 | 6.5 | 2.0 | |
