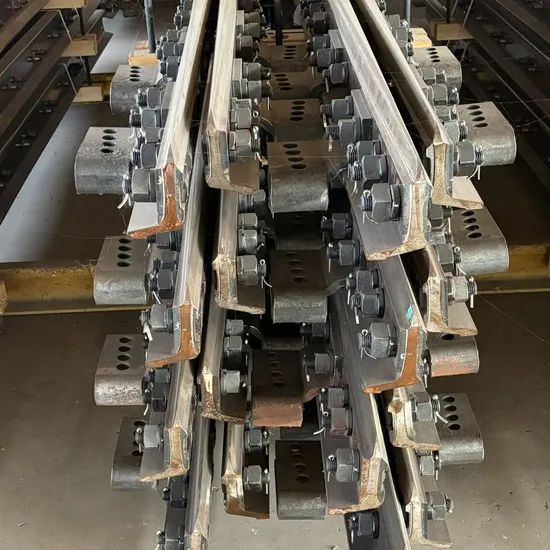

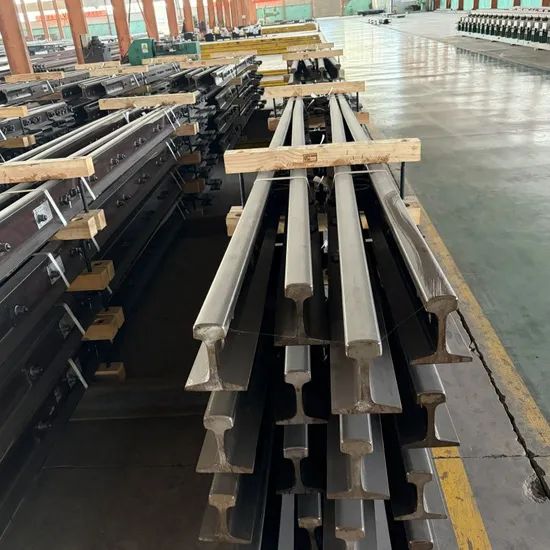

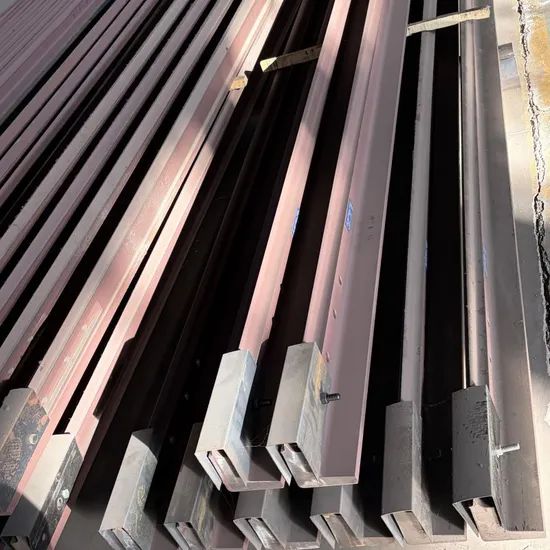

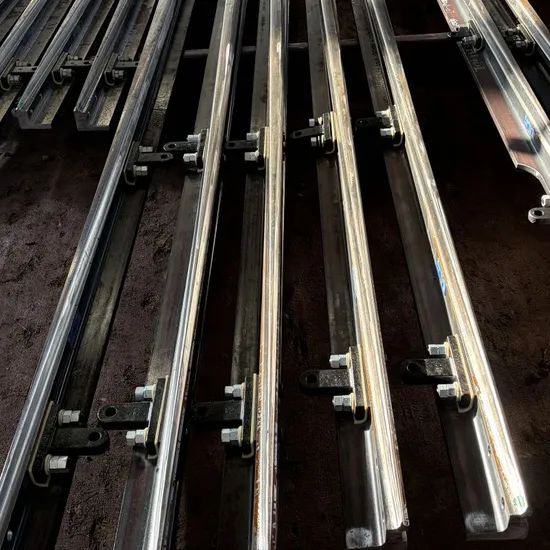

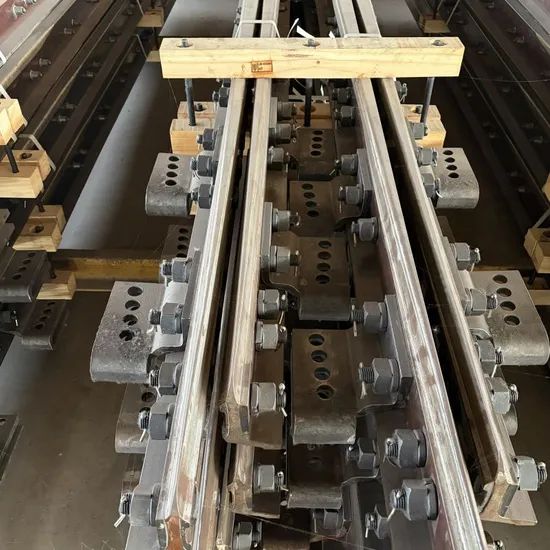

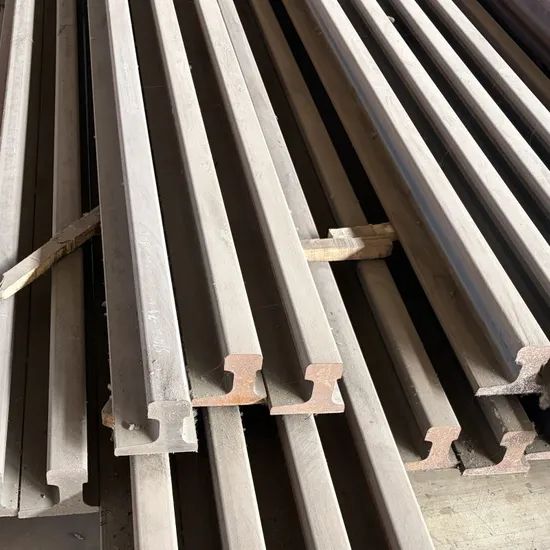

Customized 136re High Performance Point Rail Railway Turnout

A railway turnout is a line connection device that enables locomotives and rolling stock to switch from one track to another. It is usually laid in large quantities at stations and marshalling yards. Turnouts have the characteristics of large quantity, complex structure, short service life,etc, and the curves and joints are called the three weak links of the track .


The basic forms of railway turnouts include the connection, crossing and combination of connection and crossing of lines. Common types include:

Single turnout : Left-opening and right-opening turnouts, distinguished by the direction in which the side line branches when the front end of the point rail faces the point rail.

Symmetrical turnout

Three-switch : It has the characteristic of opening in three directions and is usually laid in marshalling yards, cargo yards and locomotive depots.

Crossover turnout : It is divided into single crossover turnout and double crossover turnout. A double crossover turnout is equivalent to two sets of single-opening turnouts laid in opposite directions and is used for the crossing of non-parallel tracks.

Crossover : Composed of four sets of single turnouts of the same type and number and one set of rhombus crosses, it is used to connect parallel tracks.

Rhombus crossing : A fixed crossing device for trains to cross one track from another on the same plane .

Teye America Inc. is a leading rail materials manufacturing company headquartered in the United States, serving as the global operational hub for its extensive international network. With a strong presence in North America, Teye America has built a professional and efficient operational team that deeply understands local market demands, ensuring precise, high-quality services for its clients. To further enhance its global reach, the company has established subsidiaries in South Africa and Vietnam, enabling swift and effective responses to diverse customer needs worldwide.

Manufacturing Capabilities & Industry Leadership

Teye America demonstrates formidable production strength and scale, with two state-of-the-art manufacturing facilities in China, strategically located in Hebei Province and Beijing, covering a total area of over 200,000 square meters. These advanced facilities boast an impressive annual production capacity:
• 5,000 frogs
•10,000 switch rails
•10,000 stock rails
• 5,000 complete turnouts

Equipped with world-class production technology and staffed by top-tier industry professionals, Teye upholds rigorous quality control at every stage from raw material selection to final product inspection. As one of China's top five railway switch manufacturers, the company continues to solidify its position as an industry leader through its cutting-edge manufacturing expertise and superior product reliability.

Commitment to Innovation & Global Recognition

Since its founding in 1992, Teye has remained at the forefront of technological innovation and product development. The switch products for railway lines operating at speeds under 200 km/h have obtained both administrative licensing from the China National Railway Administration and CRCC certification from China Railway, demonstrating the company's commitment to quality and compliance with the highest industry standards. Teye's products have been widely implemented across heavy-haul, high-speed, conventional railway, subway, and urban transit systems worldwide, proving their durability and performance in diverse operational and environmental conditions.

Breakthrough in Heavy-Haul Railway Technology

Teye's patented U20Mn bainitic steel switches have played a pivotal role in China's most significant heavy-haul railway projects, including:
• The Central-South Corridor (China's first 30-ton axle load heavy-haul railway)
• The Zhangjiakou-Tangshan Railway (China's second 30-ton axle load heavy-haul railway)

Q1: What kind of enterprise is Beijing Special Metallurgy Industry and Trade?
A: Our company is a national high-tech enterprise specializing in the research, development, production and service of railway track equipment. Our core products include turnouts, pointed rails, frog and related accessories. Our services cover domestic railway, metro, tram and other rail transit fields.

Q2: What types of railway turnouts does your company offer?
A:It covers various types such as single-opening turnouts, symmetrical turnouts, and crossover turnouts, supports national standards (GB), European standards (EN), and customer customization requirements, and is suitable for different gauge and scenarios.

Q3: Does the material of the turnout meet the railway safety standards?
A: All products are made of high-quality materials such as high manganese steel and alloy steel, processed by heat treatment technology, conforming to railway industry standards such as TB/T 412 and TB/T 3108, and have passed third-party testing and certification.

Q4: Is non-standard customization service provided?
A: Support customized customer demands. Special specification turnouts can be designed based on drawings or working conditions, and technical solution argumentation services are provided.

Q5: How long does it take from placing an order to delivery?
A: Regular products have sufficient inventory and can be dispatched within 7 working days. The production cycle of customized products is approximately 15 to 30 days (depending on the complexity). Urgent orders can be negotiated for expedited processing.

Q6: How to ensure transportation safety?
A: We adopt anti-rust packaging and wooden box reinforcement, and cooperate with professional logistics companies to provide full cargo tracking and insurance services.

Q7: How to deal with quality problems of the product?
A:Our company promises an 18-month warranty period and provides lifetime technical support. If quality problems are found, a response will be made within 24 hours, a solution will be issued within 72 hours, and a technical team will be dispatched to provide on-site support if necessary.

Q8: Is installation guidance provided?
A: Remote technical guidance or on-site installation and commissioning services are available (advance appointment required), and a "Turnout Maintenance Operation Manual" is also included as a gift.

Q9: Could you provide the product inspection report?
A: We can provide complete test reports including hardness testing, ultrasonic flaw detection, fatigue testing, etc., to ensure transparent and traceable data.

Q10: How to obtain the technical parameters of the product?
A: The standard product manual is provided in the "Download Center" on the official website, or you can call the technical department at 010-XXXXXXX to obtain information on customized products.
