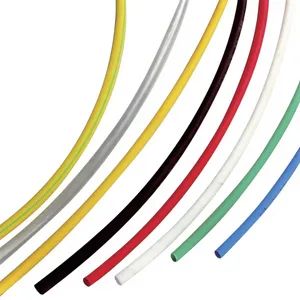

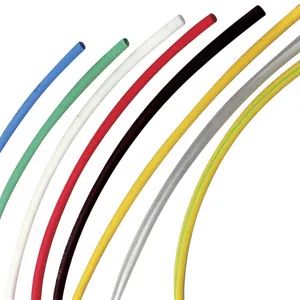

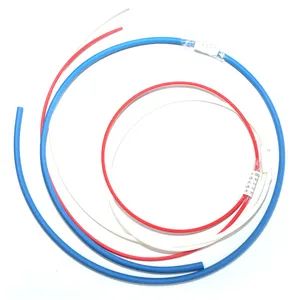

Customized Design Flame Resistant Insulation Protective Heat Shrink Tubing Tube
Pieces
Negotiable
Product information
High-quality Customized Design Flame Resistant Insulation Protective Heat Shrink Tubing Tube supplied by Wuhan Harvest Electrical Engineering Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Thickness:
0.20±0.05
Inner Diameter:
0.40±0.1
Outer Diameter:
0.9±0.2
Application(Mm):
1.35~2.3
Package Gross Weight:
10.000kg
Model NO.:
2.5
Standard Packaging(M/Disc):
200
Specification:
30*20*20cm
Specifications
Thickness:
0.20±0.05
Inner Diameter:
0.40±0.1
Outer Diameter:
0.9±0.2
Application(Mm):
1.35~2.3
Package Gross Weight:
10.000kg
Model NO.:
2.5
Standard Packaging(M/Disc):
200
Specification:
30*20*20cm
Package Size:
30.00cm * 30.00cm * 20.00cm
Maximum Voltage:
<10KV
OEM:
Accept
Transport Package:
Carton
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
EXW, FOB
Flexibility:
Flexible
Trademark:
Harvest
Product Name:
Heat Shrink Tube
Material:
PE
Payment Methods:
Support payments in USD
Payment Term:
T/T
Port Of Loading:
Wuhan Port; Shanghai Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-04-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
6
Preferred Payment Term:
T/T
Preferred Trade Term:
EXW, FOB
Port Of Loading:
Wuhan Port; Shanghai Port
Certificates:
Certificate
Product descriptions from the supplier
Customized Design Flame Resistant Insulation Protective Heat Shrink Tubing Tube
Product Introduction
Mogen heat shrink tubing features outstanding fire resistance and is halogen-free, ensuring it emits no toxic fumes during combustion, with minimal smoke and no residue.
2. lt does not contain heavy metal and conforms to SGS standard.
Safety standard: UL224 VW-1 C-UL CSAC 22.2OFT ROHS
| ltem No | Dimension before Shrinking(mm) | Dimension after Shrinking(mm) | Standard Packaging (m/disc) |
Application (mm) |
||
| Internal Diameter | Wall Thickness | Internal Diameter | Wall Thickness | |||
| Φ0.8 | 0.9±0.2 | 0.20±0.05 | 0.40±0.1 | 0.32±0.05 | 200 | 0.6~0.8 |
| Φ1.0 | 1.2±0.3 | 0.20±0.05 | 0.48±0.1 | 0.32±0.05 | 200 | 0.75~0.9 |
| Φ1.5 | 1.7±0.3 | 0.20±0.05 | 0.73±0.1 | 0.32±0.05 | 200 | 0.95~1.4 |
| Φ2.0 | 2.2±0.3 | 0.25±0.05 | 0.98±0.1 | 0.32±0.05 | 200 | 1.1~1.8 |
| Φ2.5 | 2.6±0.3 | 0.25±0.05 | 1.23±0.2 | 0.35±0.05 | 200 | 1.35~2.3 |
| Φ3.0 | 3.2±0.4 | 0.25±0.05 | 1.45±0.2 | 0.35±0.05 | 200 | 1.6~2.7 |
| Φ3.5 | 3.6±0.4 | 0.25±0.05 | 1.72±0.2 | 0.35±0.05 | 200 | 1.85~3.2 |
| Φ4.0 | 4.2±0.4 | 0.25±0.05 | 1.96±0.2 | 0.35±0.05 | 200 | 2.1~3.6 |
| Φ4.5 | 4.6±0.4 | 0.25±0.05 | 2.20±0.2 | 0.35±0.05 | 200 | 2.35~4.0 |
| Φ5.0 | 5.2±0.4 | 0.25±0.05 | 2.48±0.2 | 0.35±0.05 | 200 | 2.6~4.5 |
| Φ6.0 | 6.2±0.4 | 0.28±0.15 | 2.96±0.3 | 0.45±0.15 | 200 | 3.1~5.4 |
| Φ7.0 | 7.2±0.4 | 0.28±0.15 | 3.48±0.3 | 0.45±0.15 | 100 | 3.7~6.3 |
| Φ8.0 | 8.2±0.5 | 0.28±0.15 | 3.95±0.3 | 0.45±0.15 | 100 | 4.2~7.2 |
| Φ9.0 | 9.2±0.5 | 0.30±0.15 | 4.40±0.3 | 0.50±0.15 | 100 | 4.7~8.0 |
| Φ10 | 10.2±0.5 | 0.30±0.15 | 4.90±0.3 | 0.50±0.15 | 100 | 5.2~9.0 |
| Φ11 | 11.2±0.5 | 0.30±0.15 | 5.40±0.3 | 0.50±0.15 | 100 | 5.7~10 |
| Φ12 | 12.2±0.5 | 0.30±0.15 | 5.90±0.5 | 0.50±0.15 | 100 | 6.2~11 |
| Φ13 | 13.2±0.5 | 0.33±0.15 | 6.40±0.5 | 0.50±0.15 | 100 | 6.7~12 |
| Φ14 | 14.2±0.5 | 0.35±0.15 | 6.90±0.5 | 0.50±0.15 | 100 | 7.3~13 |
| Φ15 | 15.2±0.6 | 0.38±0.15 | 7.40±0.5 | 0.60±0.15 | 100 | 7.8~14 |
| Φ16 | 16.2±0.6 | 0.38±0.15 | 7.90±0.5 | 0.60±0.15 | 100 | 8.3~15 |
| Φ17 | 17.2±0.6 | 0.38±0.15 | 8.40±0.5 | 0.60±0.15 | 100 | 8.8~16 |
| Φ18 | 18.2±0.6 | 0.40±0.15 | 8.90±0.5 | 0.60±0.15 | 100 | 9.3~17 |
| Φ20 | 20.2±0.8 | 0.40±0.20 | 9.90±0.5 | 0.70±0.20 | 100 | 11.4~19 |
| Φ22 | 22.2±0.8 | 0.42±0.20 | 10.80±1.0 | 0.70±0.20 | 100 | 12.4~21 |
| Φ25 | 25.3±0.8 | 0.45±0.20 | 12.30±1.0 | 0.70±0.20 | 50 | 12.8~24 |
| Φ28 | 28.3±0.8 | 0.45±0.20 | 13.50±1.0 | 0.70±0.20 | 50 | 14.4~29 |
| Φ30 | 30.2±0.8 | 0.45±0.20 | 14.70±1.0 | 0.70±0.20 | 50 | 16~29 |
| Φ35 | 35.2±0.8 | 0.50±0.20 | 17.30±1.0 | 0.80±0.20 | 50 | 18~34 |
| Φ40 | 40.0±1.0 | 0.50±0.20 | 19.80±1.0 | 0.80±0.20 | 50 | 21~39 |
| Φ50 | 50.0±1.0 | 0.50±0.20 | 24.80±1.0 | 0.80±0.20 | 50 | 26~49 |
| Φ60 | 60.0±1.0 | 0.60±0.20 | 29.80±1.0 | 0.80±0.20 | 25 | 35~55 |
| Φ70 | 70.0±1.0 | 0.65±0.20 | 34.00±2.0 | 1.00±0.20 | 25 | 40~65 |
| Φ80 | 80.0±1.0 | 0.65±0.20 | 39.00±2.0 | 1.00±0.20 | 25 | 45~75 |
| Φ90 | 90.0±1.0 | 0.65±0.20 | 44.00±2.0 | 1.00±0.20 | 25 | 50~88 |
| Φ100 | 100.0±2.0 | 0.65±0.20 | 49.00±2.0 | 1.00±0.20 | 25 | 55~95 |
| Φ120 | 120.0±2.0 | 0.70±0.20 | 59.00±2.0 | 1.20±0.20 | 25 | 65~115 |
| Φ150 | 150.0±2.0 | 0.70±0.20 | 74.00±2.0 | 1.20±0.20 | 25 | 80~145 |
| Φ180 | 180.0±2.0 | 0.70±0.20 | 88.00±2.0 | 1.20±0.20 | 25 | 95~175 |
Wuhan Harvest Energy Technology Co., Ltd was established in 2017, and over the past six years has evolved into a full-spectrum industry and commerce entity specializing in the conceptualization, engineering, and manufacturing of diverse pipeline systems and fittings. The company delivers superior-grade, precisely aligned solutions and top-tier support across multiple sectors including power, telecommunications, manufacturing, infrastructure, oil and gas, chemicals, aviation, logistics, rail, automotive, consumer electronics, and electrical systems.
Precision in every component ensures top-tier performance. Harvest boasts a robust technical foundation, state-of-the-art manufacturing processes, and comprehensive inspection tools. The company remains committed to the mission of "Outstanding quality, surpassing customer expectations." A quality management system aligned with ISO9001 global standards is fully integrated across product development, production, and after-sales support. Every stage of our supply chain holds TUV certification and ISO9001 quality accreditation from the China Quality Certification Center. Our products have achieved EU CE compliance, meet ROHS regulations, and carry SGS Environmental Certification, enabling widespread distribution domestically and international shipments to the Middle East, Southeast Asia, the European Union, the United States, Australia, South America, and other global markets.
Harvest Electric offers electrical solutions built on the principles of "Safe, Reliable, Appropriate, and Consistent", upholds the values of "Technology Leadership, Integrity in Operations, Quality Focus, and Customer Priority", and delivers top-tier products and genuine support to both existing and new, local and international clients.
Q1: Are you a factory or just a trading company?
A1: Manufacturer,and we focus on the development and production of electrical industry for more than 10 years.
Q2: Is customized service available?
A2: Of course, OEM & ODM both are available.
Q3: How can I get the quotation?
A3: Feel free to send us your buying needs and we’ll get back to you within one hour during business hours. You can also reach us straight through Trade Manager.
Q4:Can I buy one as sample?
A4: Yes, of course.
Q5: How about your quality control?
A5: A dedicated quality control team monitors production stages and conducts final quality verification prior to dispatch. Each shipment includes a full inspection certificate.
